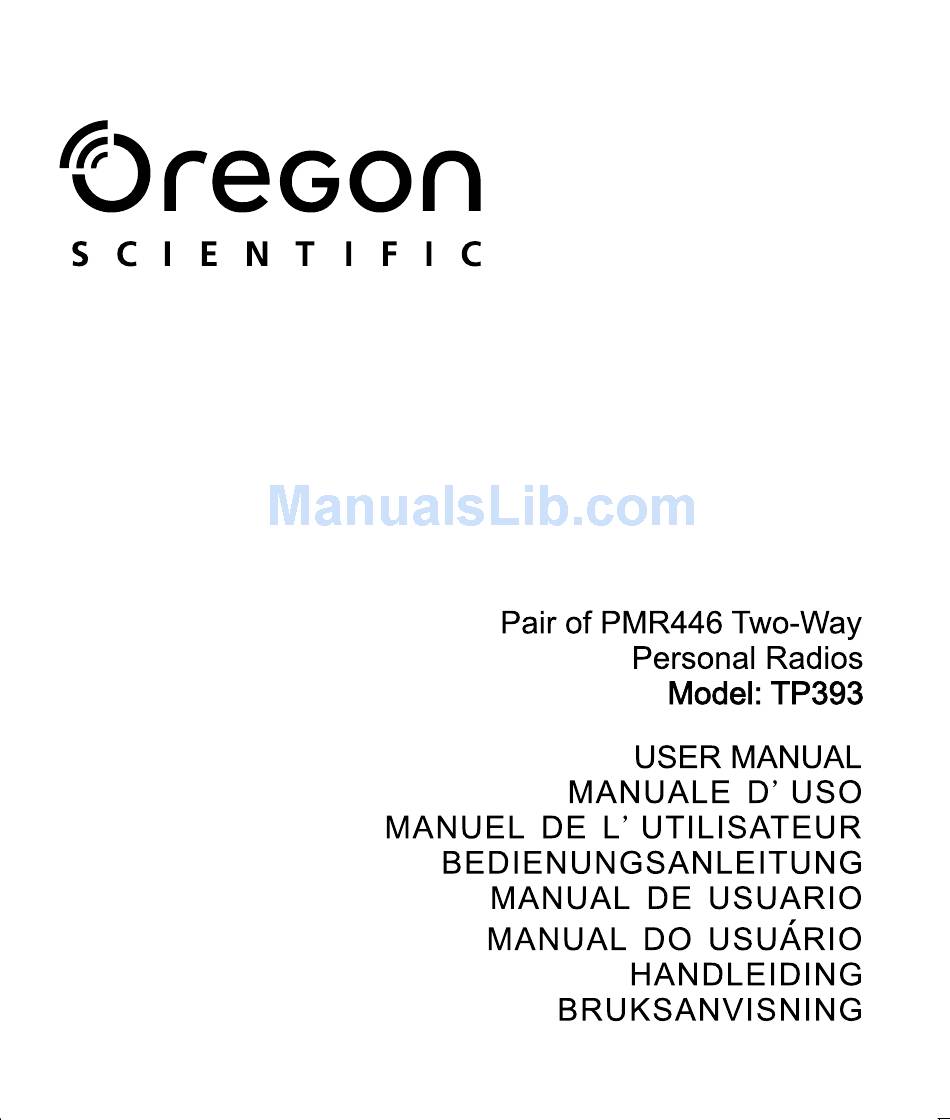

Pair of pmr446 twi-way personal radios

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP393 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Oregon Scientific TP393

  • Page 2: Table Of Contents

    PAIR OF PMR446 TWO WAY PERSONAL RADIOS MODEL: TP393 Safety Instructions................3 Features..................4 Key Features ..................5 LCD Display Icons................5 Starting operation Battery Installation..............6 Using Li-ION rechargeable battery..........6 Recharging the battery..............7 Charging with the AC/DC Adaptor..........8 General operation Powering the unit On/Off.............8 Using the PMR................8...
  • Page 3 VOX (Hands-free Function) ............13 Stop Watch................14 Baby Monitor................15 Roger Beep (On/Off)..............15 Auto Power Off .................16 Scanning Channels..............16 Key Lock...................16 Technical Specifications Channel frequency table.............17 About oregon scientific...............19 EU-Declaration of conformity ............19...
  • Page 4: Safety Instructions

    Thank you for selecting the Oregon ScientificTM TP393 as your product of choice. This product is a portable, easy-to-use two-way radio transceiver that you can use to contact your family and friends at shopping malls, amusement parks, sports events, beaches, forests and so on. You can also use is as a vital communications tool in a neighborhood watch.
  • Page 5: Features

    Battery 1. This radio is designed to use 3.7V Li-Ion rechargeable battery. The battery included with the radio has a protection circuit to protect the battery from internal short circuit and over charge. 2. Avoid any contact with conductive materials such as jewelry, keys, or beaded chains and the exposed terminals of the battery.
  • Page 6: Key Features

    1. Antenna 2. Microphone 3. LCD lens 4. PTT Key 5. Key Lock Key 6. Menu Key 7. Speaker 8. Earphone & Wall Charger Jack 9. Up Key 10. Down Key 11. Call Tone Key 12. Scan / Monitor Key 13.
  • Page 7: Starting Operation Battery Installation

    STARTING OPERATION BATTERY INSTALLATION Using Li-Ion Rechargeable Battery 1. Press the top end of battery door and slide it down 2. Follow +/- direction to install the Li-ION battery pack into the compartment...
  • Page 8: Recharging The Battery

    3. Then push up the battery door to close Warning: 1. Reversing the polarities of battery could damage the unit and the battery. 2. If you’re not going to use the unit for a long period of time e.g several weeks, please take out the battery.
  • Page 9: Charging With The Ac/Dc Adaptor

    CHARGING WITH THE AC/DC ADAPTOR 1. Plug the adaptor into the wall socket and plug the other end into the earphone jack. 2. The unit will automatically turn off, LCD backlight turn on in “RED” and have no display. 3. Charge time is around 4 hours. Once fully charged, the LCD backlight will turn to ‘Green’.
  • Page 10: Speaking To Other Radio

    SPEAKING TO OTHER RADIOS 1. Press & hold the PTT key, the RED LCD backlight will turn on & show icon. 2. Hold the unit in a vertical position with the Microphone 5-8cm from the mouth and then speak with normal voice. 3.
  • Page 11: Tx Timeout Function

    TX TIME OUT FUNCTION 1. TX time out function can avoid accidental transmission and prolong the battery life. 2. The unit will stop transmitting and sound a warning tone when PTT is hold over 60 seconds. You then need to release PTT and press it again for further transmission.
  • Page 12: Ctcss Code

    This function can help you to identify your group of users among the same channel. Only the users with the same CTCSS code setting can listen and talk to each other, so the CTCSS mode is like a sub code for your closed user group.
  • Page 13: Call Tone

    SSelect receiving volume in broadcast mode Select receiving volume in broadcast mode 1. Press“ ”key once (in broadcast mode, this key toggles between frequency setting and volume setting). 2. Press “ ” or “ ” to adjust the volume when listening to FM radio. 3.
  • Page 14: Scrambler Function

    Selecting Call Tone 1. Press“ ” key four times, LCD display shows the icon and call tone number will flash. 2. Press “ ” or “ ” key to select your desired the call tone. 3. Press the “PTT” key to confirm and quit. 4.
  • Page 15: Stop Watch

    To turn on VOX function 1. Press“ ”key six times, LCD displays the icon and the VOX sensitivity digit display will flash. 2. Press “ ” or “ ”key to select of , 1, 2,3 for OFF, Low, Medium & High sensitivity.
  • Page 16: Baby Monitor

    BABY MONITOR This function can be used not only to monitor babies or handicapped persons, but as well for acoustical monitoring of rooms. The function is similar to VOX operation, but is especially adjusted for baby and sound monitoring. One radio is set to baby monitor mode, and another radio remains in normal mode and is used to receive the transmissions of the baby¡¦s unit.
  • Page 17: Auto Power Off

    AUTO POWER OFF(APO) This function may help to save battery energy in case that you should forget to switch off a radio after use. 1. Press“ ”key 10 times, LCD displays icon. 2. Press “ ” or “ ” key to select auto power off time from 0 to 12 hours.
  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS CHANNEL FREQUENCY TABLE Frequency Frequency Channel no. Channel no. 446.00625 446.05625 446.01875 446.06875 446.03125 446.08125 446.04375 446.09375 Power supply: Ten Pao Industrial Co. Ltd-G060040D25 In put: AC230V 50Hz 80mA Output: DC 6V 400mA 2.4VA Battery pack: Feng Yuan in Electronic Co.Ltd-FYX053048A, 3.7V 720mAh Li-lon Rechargeable batteries pack...
  • Page 20: About Oregon Scientific

    EU-DEKLARATION OM ÖVERENSSTÄMMELSE Härmed deklarerar Oregon Scientific att PMR446 Tvåvägs kommunikationsradio (modell: TP393) uppfyller kraven och andra relevanta regler enligt direktivet 1999/5/EC. En kopia på undertecknad och daterad Överensstämmelsedeklaration finns tillgänglig på förfrågan via Oregon Scientific kundservice. LÄNDER SOM OMFATTAS AV ÖVERENSSTÄMMELSEN...
