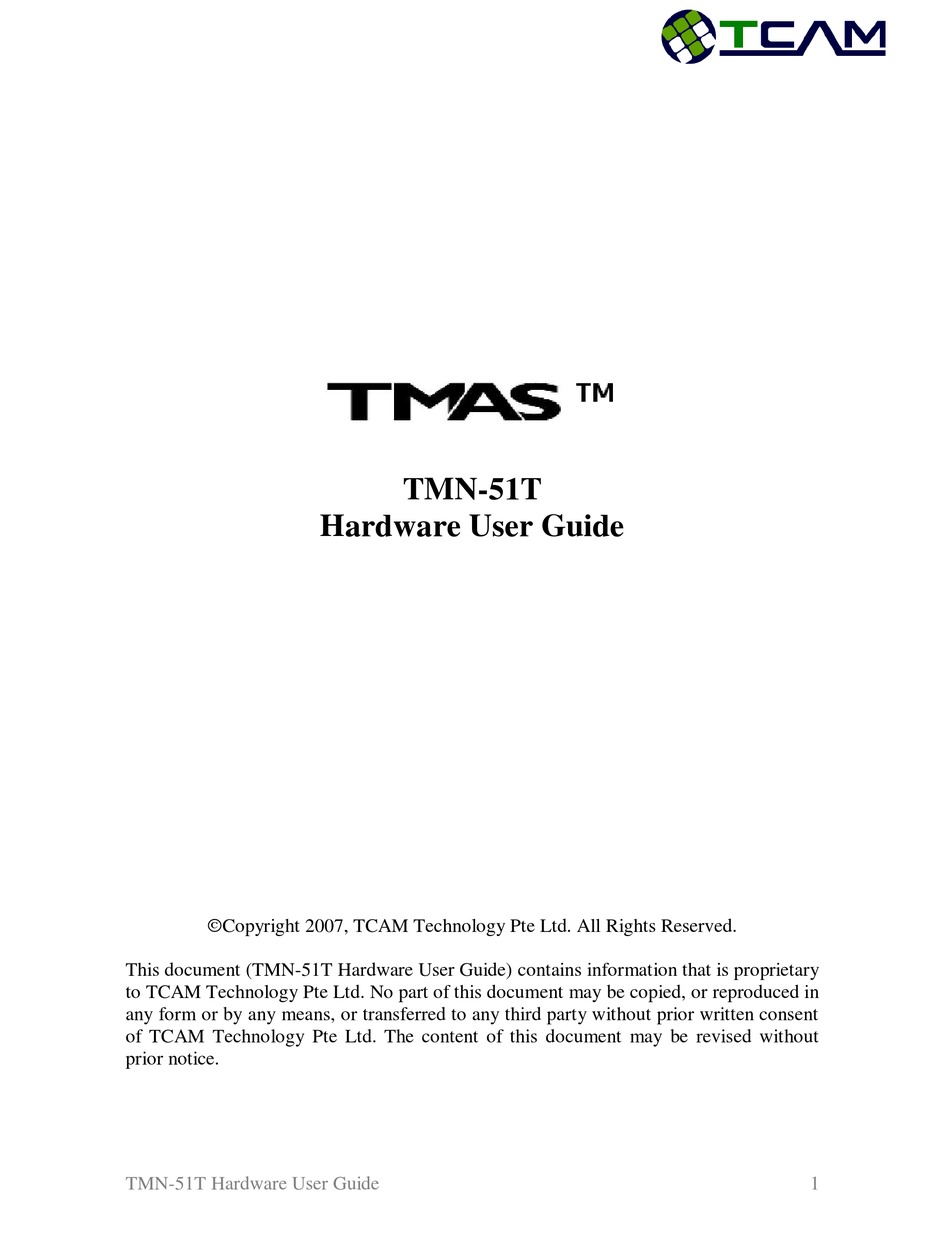

TMN-51T
Hardware User Guide
Copyright 2007, TCAM Technology Pte Ltd. All Rights Reserved.
This document (TMN-51T Hardware User Guide) contains information that is proprietary
to TCAM Technology Pte Ltd. No part of this document may be copied, or reproduced in
any form or by any means, or transferred to any third party without prior written consent
of TCAM Technology Pte Ltd. The content of this document may be revised without
prior notice.
TMN-51T Hardware User Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMN-51T and is the answer not in the manual?

Questions and answers

Summary of Contents for Team TMN-51T

  • Page 1 Hardware User Guide Copyright 2007, TCAM Technology Pte Ltd. All Rights Reserved. This document (TMN-51T Hardware User Guide) contains information that is proprietary to TCAM Technology Pte Ltd. No part of this document may be copied, or reproduced in any form or by any means, or transferred to any third party without prior written consent of TCAM Technology Pte Ltd.

  • Page 2: System Overview

    4-20mA analog signal. System Overview TMN-51T is a plug and play RS232 to GPRS gateway. It can easily retrofit a traditional serial communication system to a more advance GPRS platform. Remote devices can be centrally managed without upgrading the device firmware and central software. Unlike those systems that the devices are centrally managed via PSTN or GSM dial up line or lease line, TMN-51T can be a more cost economical solution to achieve an “always on”...

  • Page 3: Key Features

    • Time to live timer for network checking • 3 methods of serial data packetization Flexible Operation • Server mode and client mode for connection • Static or dynamic IP • Support RS232 / 485 hardware interface TMN-51T Hardware User Guide...
  • Page 4 DB9 Connector Connector Figure 1: TMN-51T Interface DB9 Female Connector Main interface: DB9 female connector Communication standard:  RS232 (default)  RS485 (optional) Figure 2 shows the DB9 female interface for TMN-51T including all the pin numbers. TMN-51T Hardware User Guide...
  • Page 5 Data - Micro Fit 3.0 Power Supply Connector Shown in Figure 3 is the 4-pin Micro Fit 3.0 power supply socket for TMN-51T. Included in the figure is the pin numbering for the socket. Figure 3: Micro Fit 3.0 Power Supply Socket for TMN-51T...

  • Page 6: Connecting To Pc

    Below is a description of the 4-pin Micro Fit 3.0 power supply socket for TMN-51T Description 6-40 VDC Ground Analog input 0 Analog input 1 TMN-51T contains 2 channels each capable of supporting 4-20mA analog input. LED Blinking Sequence The red LED blinking sequence represents the state where TMN-51T is currently in.
  • Page 7 Ground RS232 For a basic configuration in which TMN-51T is connected to a device via RS232 port, transmit, receive and ground pin must be connected. In situation where the device is utilizing hardware flow control, Ready To Send (RTS) and Clear To Send (CTS) have to be connected as well.
  • Page 8 4 pin Micro Fit 3.0 power supply socket as shown in Figure 4 below. Analog Inputs Figure 4: Analog Inputs To insert the analog signal to TMN-51T, use TMN-51T power adaptor‟s 4 pin Micro Fit 3.0 socket connector as shown in Figure 5. The additional 2 empty holes are for the analog input.
  • Page 9 Figure 5: Micro Fit 3.0 Socket Connector for Power Adaptor Hyper Terminal Communication We will be able to configure TMN-51T by connecting it through RS232 cable to an available comports as seen in Figure 6. This process does not require the Center Manager software.
  • Page 10  Check the Antenna was connected properly.  Check the Power Supply was connected accordingly.  Power on TMN-51T after Hyper Terminal is connected.  Open the Hyper Terminal, Use 115200, 8N1, No flow control.  After pressing space for 3 times immediately after power on, it will give the indication and enter “tcam”...
  • Page 11  After the correct password was typed, it will show the main configuration menu.  The Mobile Network Operator Setup, please check with the network operator‟s internet setting. TMN-51T Hardware User Guide...
  • Page 12 Please remember to Set correct Packet Idle Interval for different baud rate  Recommend 5 ms for 115200  Recommend 100 ms for 300  The value should be adjusted to app requirement o Packet End Character is disabled when Packet Idle Interval is not “0”. TMN-51T Hardware User Guide...
  • Page 13 Please consult the IT administrator for this. o Backup Server IP Address, Center Phone Number is not used in this example. TMN-51T Hardware User Guide...
  • Page 14  The value should be adjusted to app requirement o Flow Control can be set as Xon/ Xoff, Hardware or None. o The TMN-51T will always goes to 115200, 8N1 after power on. After no correct control command is received, it will goes to the GPRS gateway mode as configured.
  • Page 15 „7‟ to save the parameter , then press „9‟ to restart the TMN-51T.  After reboot, and wait for a while without any input, the TMN-51T will go to Data mode. It will also display all the major configuration info except the ID info (for secure reason).
  • Page 16 APN setting, User Name and Password in this case.  If you select the TCP protocol and server is not ready, The TMN-51T will also reboot itself after trying to build TCP socket failed for few times. Please do checking the correct protocol and correct port setting is used from both VSP and TMN-51T side.
