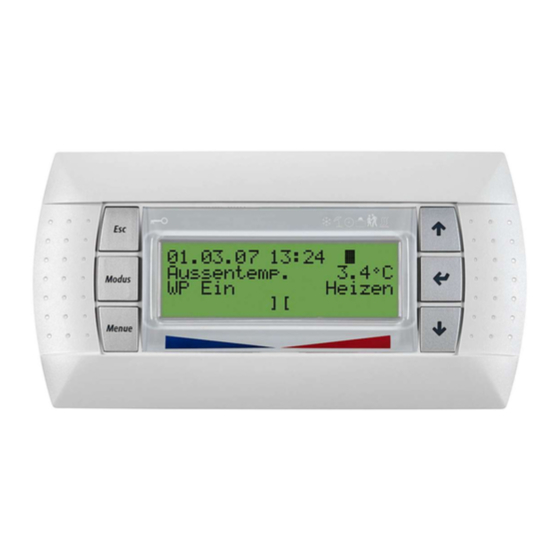

WPM 2008 R
Wärmepumpen-
Manager
für Nieder-, Mittel- und
Hochtemperatur–Wärme-
pumpen zum Heizen und
Kühlen
Bestell-Nr. / Order no. / N
Heat pump
manager
for low, medium and high
temperature heat pumps
for heating and cooling
o
de commande : 452114.66.53
Bedienungsanleitung
für den Benutzer
Operating instructions
for users
Manuel d'utilisation
à l'usage de l'utilisateur
Gestionnaire de
pompe à chaleur
pour pompes à chaleur
à température basse,
moyenne ou haute
pour le chauff age et
le rafraîchissement
FD 8801
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dimplex WPM 2008 R
Summary of Contents for Dimplex WPM 2008 R
-
Page 1: Operating Instructions
WPM 2008 R Bedienungsanleitung für den Benutzer Operating instructions for users Manuel d’utilisation à l‘usage de l‘utilisateur Wärmepumpen- Heat pump Gestionnaire de Manager manager pompe à chaleur für Nieder-, Mittel- und for low, medium and high pour pompes à chaleur Hochtemperatur–Wärme-... - Page 2 Einstellung der Sprache Inställning av språk MENUE-Taste für einige Sekunden gedrückt halten Håll MENY-tangenten intryckt några sekunder Välj menyposten 1 Einstellungen med piltangenterna (⇑ och ⇓) Auswahl des Menüpunktes 1 Einstellungen mit den Pfeiltasten (⇑ und ⇓) und bestätigen durch Drücken der ENTER-Taste (↵) och bekräfta genom att trycka på...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 General Information............................E-2 2 Heat Pump Manager ............................E-2 3 Quick Reference Instructions ........................E-3 3.1 Selection of the Operating Mode..............................E-3 3.2 Changing the Settings................................... E-3 3.3 Settings and Operating Data................................. E-3 4 Operation ................................. -
Page 4: General Information
1 General Information For installation, operation and maintenance refer to the materials and components should be observed in accordance installation and operating instructions. This unit should only be with the applicable standards. installed and repaired by an experienced technician. Poorly Regulations and Safety Information! carried out repairs can endanger the safety of the user. -
Page 5: Quick Reference Instructions
Quick Reference Instructions 3 Quick Reference Instructions 3.1 Selection of the Operating Mode Select the desired operating mode by repeatedly pressing the modus button (text message). The operating mode will change 10 seconds after altering the setting (symbol changes on the display). Cooling The system operates in cooling operation. -
Page 6: Operation
4 Operation The heat pump manager is operated using 6 keys: Esc, 6 different operating modes can be selected: Modus, Menu, ⇓, ⇑, ↵ . Different functions are assigned to Cooling, Summer, Auto, Party, Vacation, 2nd heat these buttons according to the current display (Standard or generator. -
Page 7: Operating Modes
Operating Modes 5 Operating Modes 6 different operating modes can be selected using the button NOTE (Modus). There is a time delay between switching modes. The Heat pump operation block operating mode can be changed each time the button is pressed The heat pump is blocked in the 2nd heat generator operating mode. -
Page 8: Dhw Heating
7 DHW Heating The heat pump manager automatically calculates the maximum preparation is terminated once the so-called HP maximum possible hot water temperature in heat pump operation. The temperature is reached. desired domestic hot water temperature can be set in the menu Hot water cylinder with flange heater “Settings –... -
Page 9: Menu Structure
Menu Structure 8 Menu Structure 8.1 Settings NOTE All user settings are made in the “Settings” menu item. The following table shows not only the menu structure and Dynamic menus The following contains a description of the complete menu. During start- explanations right-hand column,... - Page 10 System-specific parameters Setting range For each day of the week, it is possible to select whether Time1, Time2, no time or both times are to be active when the temperature is raised. Operations to raise the temperature that exceed a week day are activated or deactivated at the end of each day accordingly.
- Page 11 Menu Structure System-specific parameters Setting range Sets the time programs for hot water blocks Sets the times in which DHW preparation is blocked 00:00 23:59 For each day of the week, it is possible to select whether Time1, Time2, no time or both times are to be active when the temperature is lowered.
- Page 12 System-specific parameters Setting range Sets the time programs for swimming pool blocks Sets the times in which swimming pool water preparation is 00:00 blocked 23:59 For each day of the week, it is possible to select whether Time1, Time2, no time or both times are to be active when the temperature is lowered.
-
Page 13: Operating Data
Menu Structure 8.2 Operating Data All current operating statuses are displayed in the “Operating Selecting the operating data menu item with the arrow data” menu item. buttons and confirming with the ENTER button Depending on the system configuration, the following data can You can access the operating data menu by: be queried in the “Operating data”... - Page 14 Display of sensor and system values Display Displays the temperature measured on the “Antifreeze Cool” Reversible HP sensor. Cooling operation This temperature is used to safeguard the operating limits in cooling operation. Displays the temperature measured by the hot gas sensor Reversible HP Displays the current room set temperature with silent cooling.
-
Page 15: History
Menu Structure The hot water temperature display shows which heat generators are used to process a hot water request. Fig. 8.1: Hot water temperature display 8.3 History The “History“” menu can be used to query the runtimes of the Selecting the history menu item with the arrow buttons and compressor(s), circulating pumps and further components in the confirming with the ENTER button heat pump heating system. -
Page 16: Displays
9 Displays The current operating status of the heat pump system can be read from the LC display. 9.1 Normal Operating Statuses The display shows both normal operating statuses and those that heat pump. Only information about the relevant system are required by utility companies or due to safety functions of the configuration and HP type are shown on the display. - Page 17 Displays The heat pump is switched off because the operating mode, 2nd heat generator (HG2), was selected. Heat generation is provided by the 2nd heat generator. Flow rate monitoring of the heating water takes place before the evaporator is defrosted. This applies to air-to-water heat pumps only.
-
Page 18: Fault Messages
9.2 Fault Messages Fault messages on the display fall into three broad categories: You only need to inform your after-sales service if there is a heat pump fault (HP fault). Make a note of the error message and the Heat pump fault software version displayed in the operating data. - Page 19 Garantiebedingungen Kundendienstadresse siehe Irrtümer und Änderungen vorbehalten. Montage- und Gebrauchsanweisung Wärmepumpe. Subject to alterations and errors. Sous réserve d’erreurs et modifications. For the terms of the guarantee and after-sales service addresses, please refer to the Installation and Operating Instructions for Heat Pumps. Pour les conditions de garantie et les adresses SAV, se référer aux instructions de montage et d'utilisation de la pompe à...
