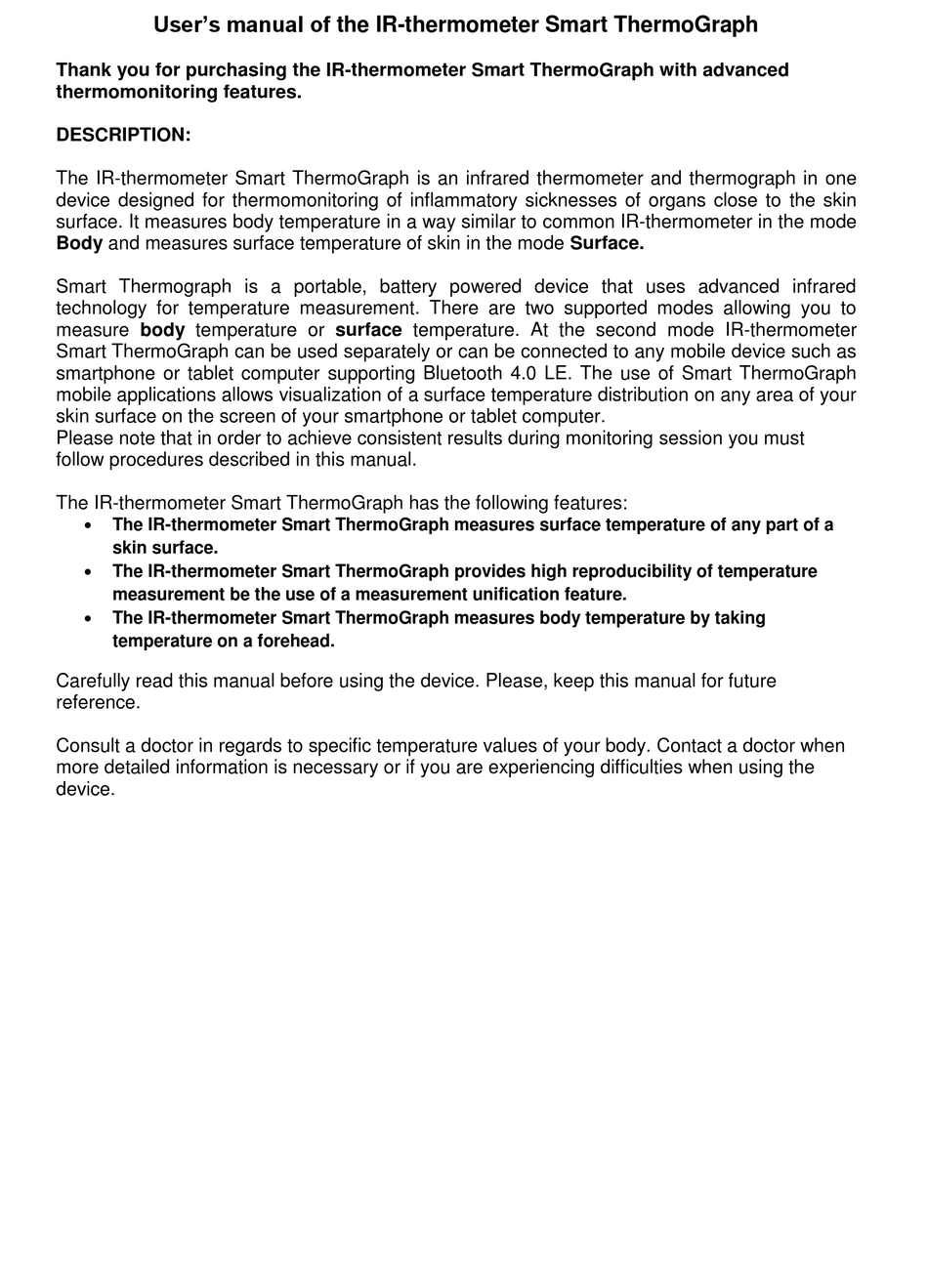

User's manual of the IR-thermometer Smart ThermoGraph
Thank you for purchasing the IR-thermometer Smart ThermoGraph with advanced
thermomonitoring features.
DESCRIPTION:
The IR-thermometer Smart ThermoGraph is an infrared thermometer and thermograph in one
device designed for thermomonitoring of inflammatory sicknesses of organs close to the skin
surface. It measures body temperature in a way similar to common IR-thermometer in the mode
Body and measures surface temperature of skin in the mode Surface.
Smart Thermograph is a portable, battery powered device that uses advanced infrared
technology for temperature measurement. There are two supported modes allowing you to
measure body temperature or surface temperature. At the second mode IR-thermometer
Smart ThermoGraph can be used separately or can be connected to any mobile device such as
smartphone or tablet computer supporting Bluetooth 4.0 LE. The use of Smart ThermoGraph
mobile applications allows visualization of a surface temperature distribution on any area of your
skin surface on the screen of your smartphone or tablet computer.
Please note that in order to achieve consistent results during monitoring session you must
follow procedures described in this manual.
The IR-thermometer Smart ThermoGraph has the following features:
The IR-thermometer Smart ThermoGraph measures surface temperature of any part of a
skin surface.
The IR-thermometer Smart ThermoGraph provides high reproducibility of temperature
measurement be the use of a measurement unification feature.
The IR-thermometer Smart ThermoGraph measures body temperature by taking
temperature on a forehead.
Carefully read this manual before using the device. Please, keep this manual for future
reference.
Consult a doctor in regards to specific temperature values of your body. Contact a doctor when
more detailed information is necessary or if you are experiencing difficulties when using the
device.
Advertisement
Table of Contents
Summary of Contents for PTE Smart ThermoGraph
- Page 1 At the second mode IR-thermometer Smart ThermoGraph can be used separately or can be connected to any mobile device such as smartphone or tablet computer supporting Bluetooth 4.0 LE. The use of Smart ThermoGraph mobile applications allows visualization of a surface temperature distribution on any area of your skin surface on the screen of your smartphone or tablet computer.
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL INFORMATION 1.1. IMPORTANT SAFETY INSTRUCTIONS 1.2. PRECAUTIONS BEFORE USE 1.3. DESCRIPTION OF THE IR-THERMOMETER SMART THERMOGRAPH 1.4. FEATURES 1.5. INTERFACE 1.6. TECHNICAL CHARACTERISTICS 1.7. ADVICE 2. BODY TEMPERATURE MEASUREMENTS 2.1. INTRODUCTION 2.2. OPERATING PRINCIPLE 2.3. THE DIFFERENT METHODS OF TEMPERATURE MEASUREMENT 2.4. -
Page 3: General Information
OF THE PRODUCT WITHOUT PRIOR NOTIFICATION 1.2. PRECAUTIONS BEFORE USE The Smart ThermoGraph device is pre-set at the factory. It is not necessary to calibrate the device when starting it up. If you bring the device from outside and there is a significant difference between the outside environment temperature and the room temperature, it is advised to allow the device to acclimatize for 15 to 20 minutes before use in order to obtain reliable and stable results. -
Page 4: Features
1.4. FEATURES 1. Connects to your Smartphone with Smart ThermoGraph application. 2. Reproducibility of measurements. 3. Quick and reliable results due to the advantage infrared detection system. 4. Audible alarm if temperature is exceeded. 5. Memorizes 32 measures. 6. Backlit-lighted LCD digital screen. -
Page 5: Technical Characteristics
From 39°C to 42.5°C = ± 0.3°C From 102.2°F to 108.5°F = ± 0.6°F The IR-thermometer Smart ThermoGraph takes temperature readings below 32°C or above 42.9°C (89.6°F to 109.2°F), but precision is not guaranteed outside of this range. LONGEVITY USE IR-thermometer Smart ThermoGraph was conceived for home and professional use, its longevity is guaranteed for 40,000 temperature takings. -
Page 6: Body Temperature Measurements
2. BODY TEMPERATURE MEASUREMENTS 2.1. INTRODUCTION The IR-thermometer Smart ThermoGraph has been developed by using the latest infrared technology. This technology allows taking temporal artery (TA) temperature from the forehead. It has been demonstrated that this method of TA temperature measurement is more precise than the tympanic thermometry and better tolerated than rectal thermometry (Greenes D, Fleisher G. -
Page 7: Normal Body Temperatures According To Measurement Method
The IR-thermometer Smart ThermoGraph has been designed to produce an instant forehead temperature reading without any contact with temporal artery. As this artery is quite close to the skin surface and therefore accessible and the blood flow in it is permanent and regular, it allows precise measurement of the body temperature. - Page 8 - Remove any secrets (e.g. from nasal specs) from the measuring part IR-thermometer Smart ThermoGraph. - Allow 1 minute interval between two measurements. Apply the IR-thermometer Smart ThermoGraph perpendicularly and non-pressing at the FOREHEAD in contact with the right temporal region and press the measurement button. The body temperature is displayed instantly.
-
Page 9: Surface Temperature Measurements
There are no precisely defined normal values of surface temperature and so the IR-thermometer Smart ThermoGraph is not intended for diagnostics of inflammation diseases, it is intended only for thermomonitoring. Temperature distribution on the surface of a healthy person is approximately symmetrical;... -
Page 10: The Technique For Surface Temperature Measurement
1. Choose “Surface temp” mode on your IR-thermometer Smart ThermoGraph. The appropriate inscription should be on the screen. 2. Place the IR-thermometer Smart ThermoGraph to the point on skin surface in the interest area. If you measure temperature on any injured area of skin, the measurements must be done distantly at the distance about 3-5 cm. -
Page 11: Special Applications Of Surface Temperature Mode With The
In order to obtain accurate temperature values it is necessary to learn how to use IR- thermometer Smart ThermoGraph properly. Select any point on the body surface in the area of interest and measure the temperature at least three times. Temperature is measured correctly when three consecutive temperature measurements at one point do not vary by more than 0.2°C. - Page 12 When maximum temperature and average temperature behave differently or without change, the inscription is displayed by yellow letters. For more information you can download free app “Smart ThermoGraph” and read the “Help” for the app.
-
Page 13: Troubleshooting
THE SCREEN DISPLAYS THE MESSAGE HI When using the IR-thermometer Smart ThermoGraph, the message “HI” can appear on the screen. In this case, the measured temperature above the measurement range is registered, or the measured temperature is above 42.9 °C(109.2°F) in the Body Mode. -
Page 14: Accessories Supplied
5. ACCESSORIES SUPPLIED - User Manual in English - Protective storage bag - 2 pcs batteries supplied (AAА)
