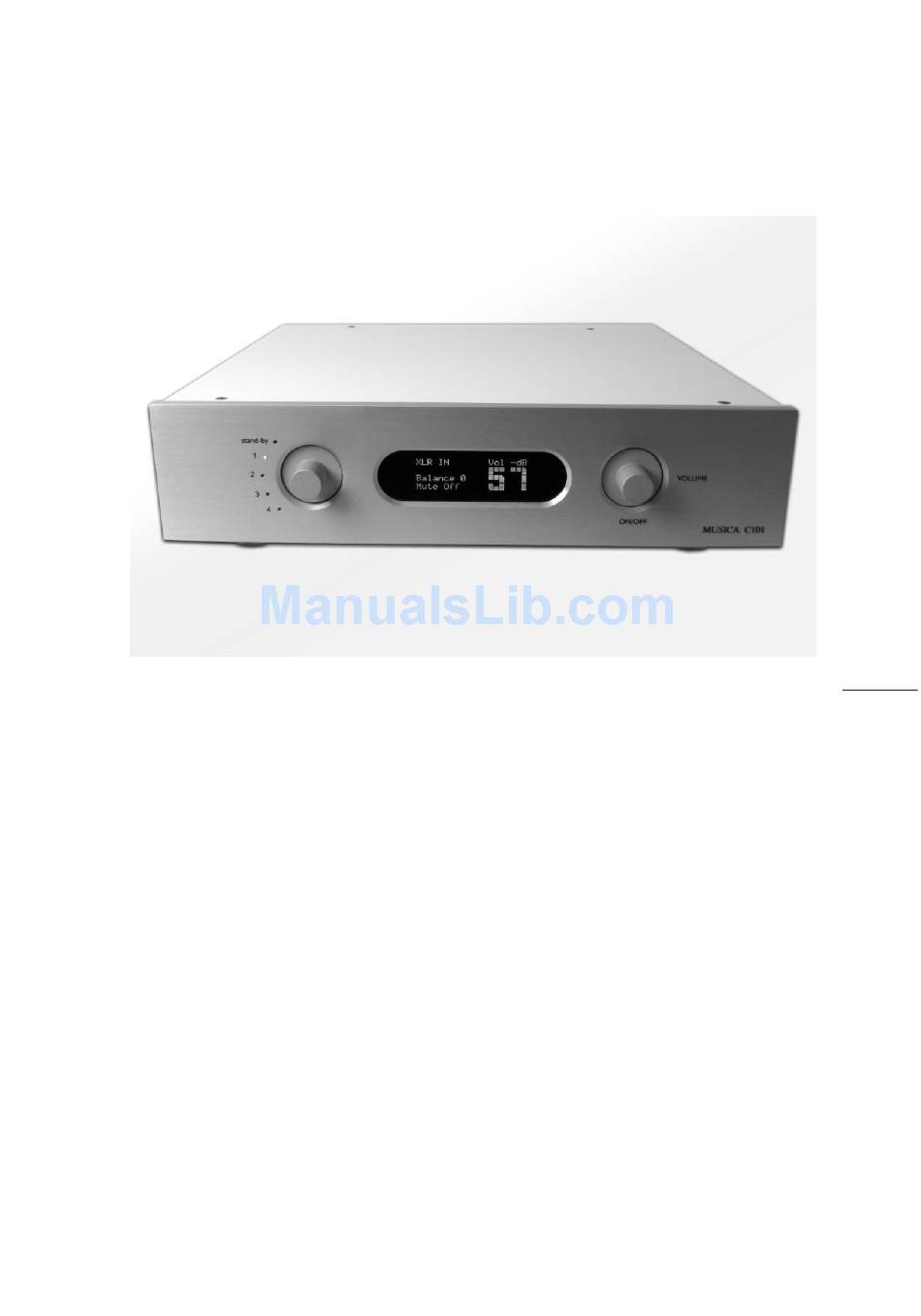

MUSICA C101 preamplifier
1
Thank'you of purchasing this EamLab product. Who are dedicated to the policy
of creating the highest quality audio components, are proud to introduce. You
can be assured that in preparing this component, every attention was paid in
great detail by our entire staff to strict quality control . This dedication was
followed throughout the wole manufacturing process – from basic research,
the selection of each parts, assembly and testing – so that we could supply a
product with every confidence that it will give full owner satisfaction and pride.
We welcome you to the fast-growning Eam Lab circle of dedicated audio
enthusiasts and true sound lovers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Musica C101

Summary of Contents for Musica C101

  • Page 1: User Manual

    User manual MUSICA C101 preamplifier Thank’you of purchasing this EamLab product. Who are dedicated to the policy of creating the highest quality audio components, are proud to introduce. You can be assured that in preparing this component, every attention was paid in great detail by our entire staff to strict quality control .
  • Page 2 Features The C101 is substantially the evolution of the preamplifier HP01. In C101 the circuit of signal amplification is entrusted darlington transistor technology in configuration DPFE (Darlington Parallel Follow Emitter) operating in pure Class A. The new stadiums input and output HDCA guarantee wide flat frequency response with high slew / rate and high crest factor.
  • Page 3 Contents 2 …………….Introduction & features 3 …………….Table of contents 4 …………….Safety instructions 5 …………….Use remote control 6 …………….Menu and Submenu on display 8 …………….Front pannel instruction 9 …………….Connections 10 …………….Troubleshooting guide 11 …………….Datasheet 12 …………….guarantee policy...
  • Page 4 Before you start to use read following information Safety information 1. For best performance, please read 6. Always set the VOLUME control to this manual carefully. Keep it in a safe min. before starting playback of the place for future reference. audio source.

  • Page 5: Replacing Batteries

    Unpacking: Use remote control Carefully remove from the box your amplifier and keep the original carton and packing materials for The remote control transmits a future trips, expeditions or long-term directional infrared beam. During storage operation, be sure to point the remote directly at the infrared Before the installation : sensor.

  • Page 6: Remote Control Function

    Remote control function  Set – button for sub menu dipaly to command balance and mono/stereo operation  Pwr – turn on /off preamplifier  DSP – same set button  increase volume  decrease volume  Mute – muting signal out ...
  • Page 7 To master menu use DSP or SET button for enter in this menu. When inside this menu choose button :  Mute for changing MONO/STEREO operating  V+ / V- for changing balance left/right gain  for return to master menu...
  • Page 8 Front pannel functions LEFT encoder LEFT encoder Rotate to select input Rotate To increase /decrease source Volume Push for turn OFF or turn ON Status LED to input selected (indicated also on display)
  • Page 9 Connection and functions  1 – trigger signal *  2 – XLR / RCA output to connect power amplifier **  3 – thre line single endend inputs  4 – one balanced XLR input  5 – ON/OFF general switch ...

  • Page 10: Troubleshooting

    Troubleshooting problem Possible cause remedy The plug on the power Securely connect the No power on cord is not connected plug or check the fuse or is not fully inserted . on the rear panel next The mains fuse is to the socket blown Connecting signal...
  • Page 11 C101 Datasheet Input 1 stereo XLR balanced 1 stereo RCA single ended Output 1 stereo Male XLR balanced 1 stero RCA single ende XLR input impedance (xlr input) 47 Kohm RCA input impedance (input 22 Kohm 2/3/4) Output impedance XLR <...

  • Page 12: Return Authorization Procedure

    Return Authorization Procedure How to expedite service If you believe there is a problem with your component, please contact your dealer, distributor, or the EamLab factory to discuss the problem before you return the component for repair. To expedite service, you may wish to complete and e-mail the Service Request Form in the Service section of our website at:...
