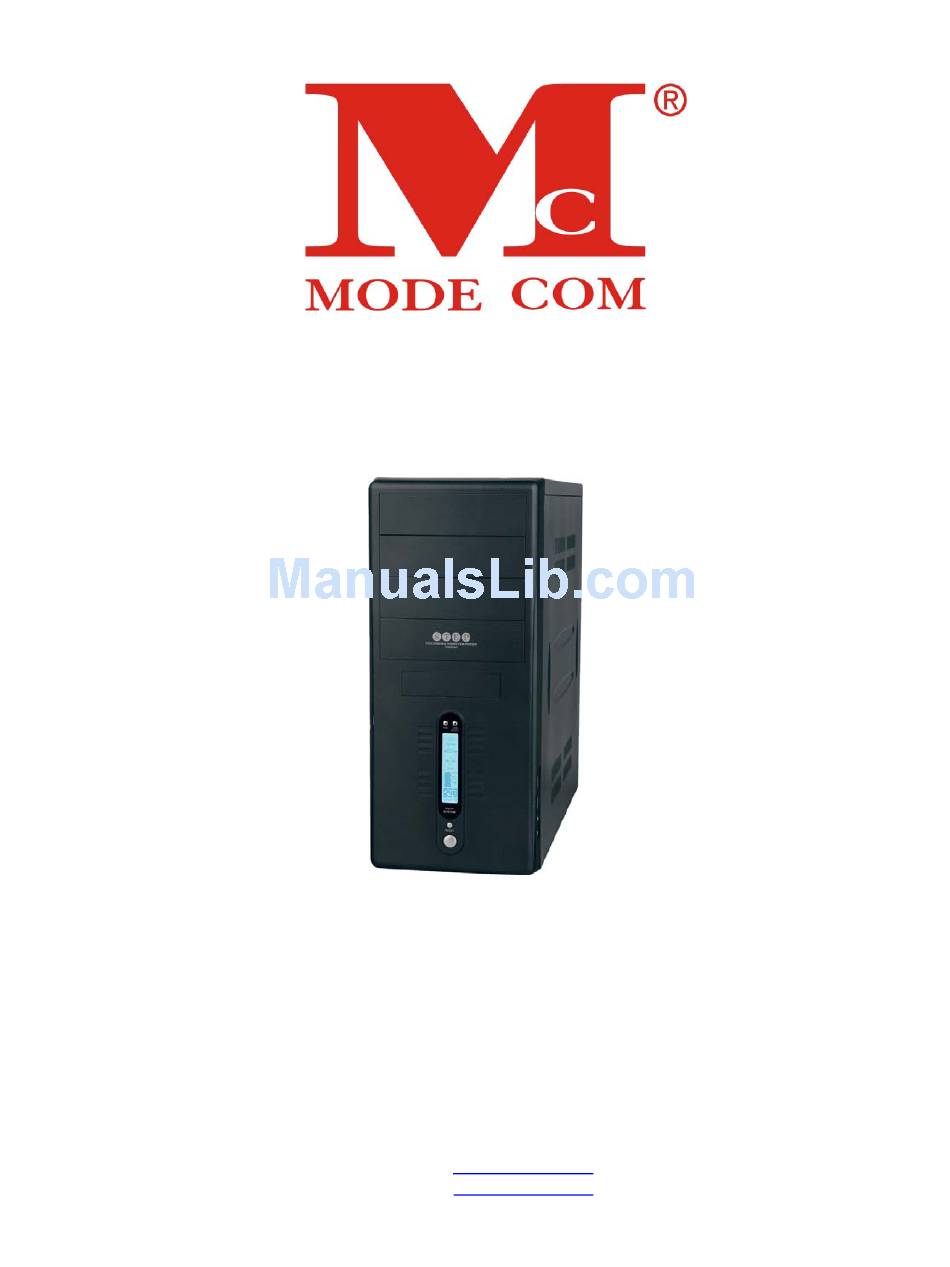

- Page 1 INSTALLATION AND HANDLING MANUAL FOR COMPUTER CASES. MIDI : (f.e.) MODE COM Ltd. 82 Jagiellońska St. 03-301 Warsaw Poland Phone: (+48 22) 597 48 48 Fax.: (+48 22) 597 48 49 E-mail: info@modecom.pl Www: www.modecom.pl Manufacturer : MODE COM Co. Ltd.
- Page 2 Congratulations for choosing MODE COM computer case. You have received the highest quality product which will satisfy any of your expectations. Should You share with us with your comments about using our product, please don’t hesitate to contact us. Note, the device you have purchased is not a final product intended to and ready to work as a household or office appliance.
- Page 3 3. Assembling / Disassembling front panel. Depends on model You own : • Harry Midi, Feel 307, Fresh, Step 107, Step 107 LCD, Step 207, I-Zone Plus, Digital, Ex-2: Disassembly both sides covers then remove front panel by squeezing &...
- Page 4 A. Insert drive into its place in 5,25’’ bay and position it in the right place. B. Secure it with the screws provided. Caution :To remove 5,25’’ blinds, removing front panel is needed first. 5. Installing the Motherboard. Caution: When installing, follow the attached manufacturer’s instructions. •...
- Page 5 Harry Midi, Feel 307, Step 207, Rainbow, Prism, Enjoy, Winner, Fresh, Nice II, Magic II, Feel V, Prostation, Digital, Impact, Platinum, EX-2, Fine I, Fine II :...
- Page 6 I-Zone Plus, Feel 109 :...
- Page 7 Step 107, Step 107 LCD :...
- Page 8 6. Connecting USB & audio outlets : When installing USB & Audio outlets follow the motherboard Caution and Sound Card manufacturer’s instructions. Connect USB wires to appropriate pins on the Motherboard, according to USB wires layout attached to USB harness and the Motherboard installation manual. Guide USB wires outside the case through the rear slot blind.
- Page 9 7. Connecting LCD Display ( f.e. Step 107 LCD) Caution: When installing LCD Display outlets follow the motherboard instructions. Connect LCD Display wires to appropriate pins on the Motherboard, according to LCD Display wires layout attached to LCD Display harness and the Motherboard installation manual.
- Page 10 Assembly of side covers. Assembly side covers using their inner side rulers, then slide them forward. Secure side covers with screws. 10. Working conditions. • Working temperature: from 10° C until 50° C, • Storage temperature: from –40° C until 60° C, •...
