IE-MediaChassis/2 (DC)

Operation Manual

Table of Contents

Summary of Contents for B&B Electronics IE-MediaChassis/2

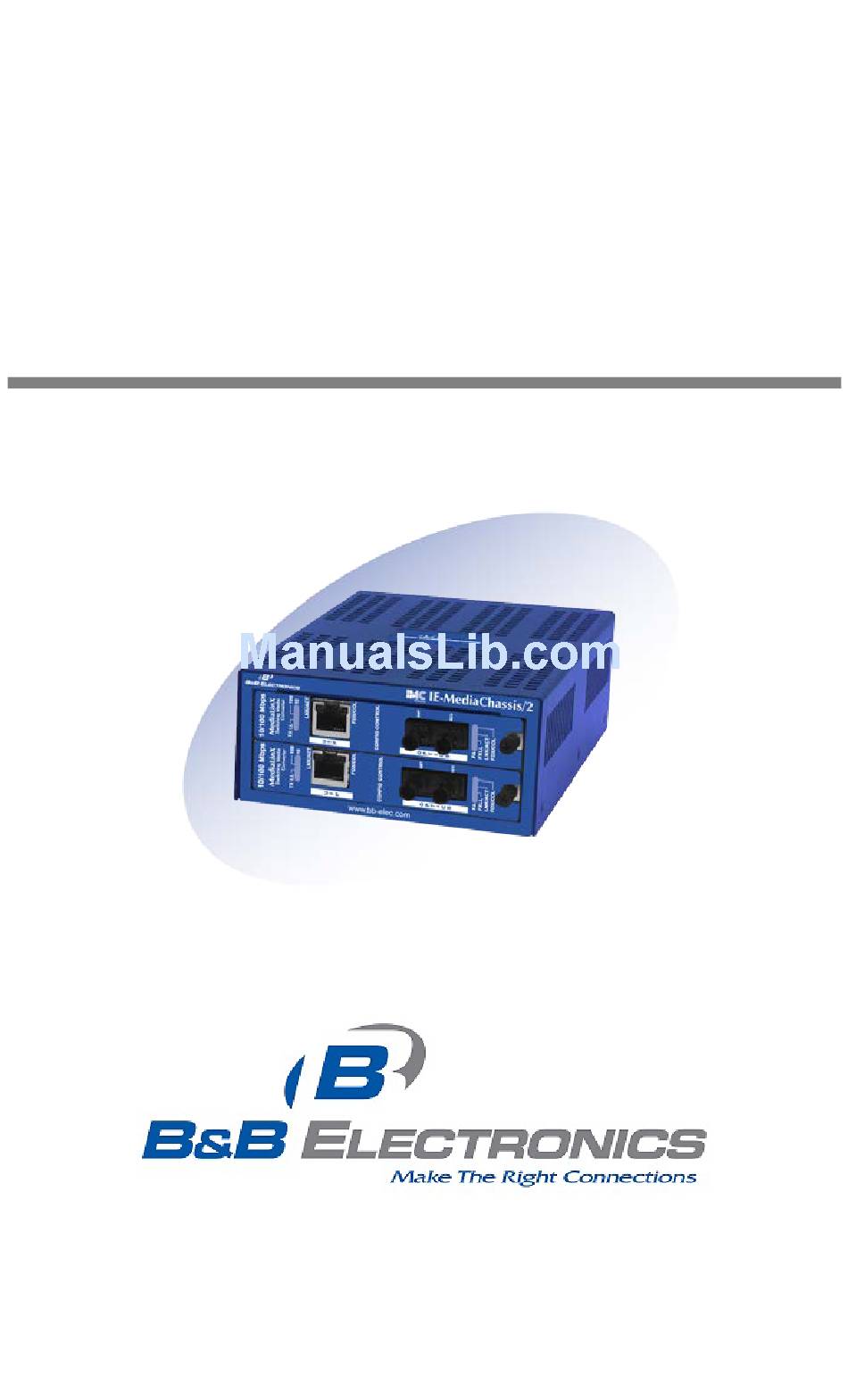

Page 1 IE-MediaChassis/2 (DC) Operation Manual...
Page 2: Fcc Radio Frequency Interference Statement
FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3 ORIGINAL USER ONLY, IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND ALL SUCH WARRANTIES AND INDEMNITIES ARE EXPRESSLY DISCLAIMED, INCLUDING WITHOUT LIMITATION (I) THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY AND (II) ANY WARRANTY THAT THE PRODUCTS ARE DO NOT INFRINGE OR VIOLATE THE INTELLECTUAL PROPERTY RIGHTS OF ANY THIRD PARTY.
Page 4: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ..........ii Warranty ......................ii About the IE-MediaChassis/2 (DC)..............1 Installing the IE-MediaChassis/2 (DC) ............... 1 Configuring and Installing Modules..............3 DC Power Supply Wiring Instructions ..............3 Rack Mount Precautions ................... 4 DC Power Supply Precautions ................
Page 5: About The Ie-Mediachassis/2 (Dc)
Installing the IE-MediaChassis/2 (DC) Use the IE-MediaChassis/2 (DC) as a table-top chassis, mount in a rack mount shelf, or mount it to a wall surface (brackets are not required). 1. Install the IE-MediaChassis/2 (DC) by placing it on a flat surface.
Page 6 The rack-mount shelf is sold separately. To purchase the rack-mount shelf (part number 895-39949); visit the B&B Electronics’ Product Accessories page: www.bb-elec.com Rackmounting requires a rackmount shelf for mounting up to three units side by side. 3. If mounting the chassis on a wall, place two #10 panhead screws (not supplied) on the wall the distance of the holes on the chassis, and then hang the unit on the screws.
Page 7: Configuring And Installing Modules
NOTE Incorrect wiring will result in chassis malfunction. The IE-MediaChassis/2 (DC) is compliant with Isolated Grounding Plane practices. The POSITIVE and NEGATIVE terminals are isolated from chassis ground and must have a ground reference at the power-sourcing equipment.
Page 8: Rack Mount Precautions
1. This equipment shall be connected directly to the DC supply system earthed electrode conductor or to a bonding jumper from a grounded terminal bar or bus to which the DC supply system grounding electrode conductor is connected. 2. This equipment shall be located in the same immediate area (such as, adjacent cabinets) as any other equipment that has a connection between the earthed conductor of the same DC supply circuit and the earthing conductor, and also the point of earthing of the DC system.
Page 9: Dc Power Supply Precautions
DC Power Supply Precautions The following precautions must be observed when installing the chassis model with an internal DC power supply. 1. Check nameplate ratings to ensure there is no overloading of supply circuits that could effect over current protection and supply wiring. 2.
Page 10: B&B Electronics Technical Support
B&B Electronics Technical Support International Headquarters B&B Electronics Mfg. Co. Inc. 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.bb-elec.com European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 -- Fax +353 91-792445 Website: www.bb-europe.com Specifications...
Page 11: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to your add-in modules. Always observe the following precautions when installing or handling an add-in module or any board assembly. 1. Do not remove unit from its protective packaging until you’re ready to install 2.
Page 12: Safety Certifications
Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (89/336/EEC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC).
Page 13 The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for any errors that may appear in this document. IE-MediaChassis/2 is a trademark of B&B Electronics. Other brands or product names may be trademarks and are the property of their respective companies.
