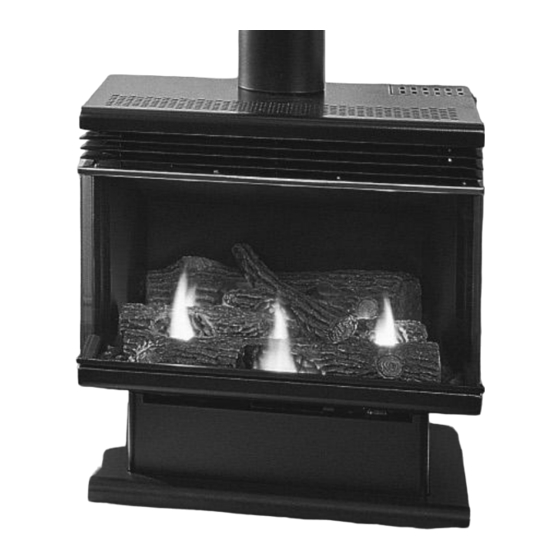

Summary of Contents for KENT Estate NG Gas Fire
-
Page 2: Table Of Contents
THE MODELS COVERED ARE:- For use with Natural Gas:- KENT ESTATE NG, KENT ULTIMA NG For use with Liquid Propane Gas (LPG):- KENT ESTATE LP, KENT ULTIMA LP WARNING. Installation of all gas appliances MUST be carried out only by an Authorised Installer. -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION. LIGHTING AND RUNNING THE FIRE:- •... -
Page 4: Installing Instructions
INSTALLING INSTRUCTIONS HEATER DIMENSIONS (ESTATE AND ULTIMA MODELS) -
Page 5: Minimum Installation Clearances
MINIMUM INSTALLATION CLEARANCES (To heat sensitive surfaces) NOTE: The clearances shown are for fire hazard only. For durability of finishes or surfaces you should contact the relevant manufacturer for their specification. GLG Ltd accepts no responsibility for the deterioration of surfaces or finishes. NO FLOOR PROTECTOR (HEARTH) IS REQUIRED ALCOVE INSTALLATION NOT PERMITTED POSITIONING THE HEATER... -
Page 6: Flue
GAS PRESSURE ADJUSTMENT. All pressure adjustments must be made while the heater is operating on the ‘HIGH’ setting. NG models. These have a pressure regulator separate from the control valve. The regulator must be set to 1.0 kPa. The pressure test point is on the side of the regulator and the adjusting screw is on the top. Slacken the lock-nut and rotate the screw by hand, screwing down to increase the pressure. -
Page 7: Seismic Restraint
SEISMIC RESTRAINT New Zealand regulations require that flued gas heaters be secured to prevent shifting in the event of an earthquake. This is best done by fastening the heater to the floor right through the floor protector if one is fitted. -
Page 8: Servicing Instructions
SERVICING INSTRUCTIONS Servicing must be carried out only by authorised personnel. Minor adjustments can be made with the heater in its normal operating position, but it will be found more convenient to move the heater away from the wall for major work. If it is necessary to move the heater:- •... -
Page 9: Access Points
ACCESS POINTS 1. THE CABINET REAR AND SIDE COVER PLATES. These give access to the gas entry connection, the pressure regulator and the gas control valve (incorporating the piezo igniter module). The filter for the pilot light gas supply is under the large cheese-headed screw on top of the gas control valve. 2. -
Page 10: Removing The Burner(S)
6. For safety, fix the two top front corners of the glasses together with adhesive tape to prevent them from falling outwards. 7. Replace the top glass trim, fit its fastening screws, remove the tape and refit the louvre assembly. ESTATE models:- 1. -
Page 11: Trouble Shooting
TROUBLE - SHOOTING The following table lists possible problems and their likely causes. Most of these will require a professional serviceman and we recommend that this work be performed by an Authorised Technician. If a problem cannot be solved after referring to this table, please call the Retailer from whom the appliance was purchased. Refer to your Warranty Card for details of Warranty cover. -
Page 12: Annual Service Record
ANNUAL SERVICE RECORD DATE SERVICE DETAILS SERVICED BY KENT Gas Fires are manufactured in New Zealand for GLG NZ LTD. P.O. Box 27-250 Mt Roskill, Auckland New Zealand. Installed by:- Date:-...
