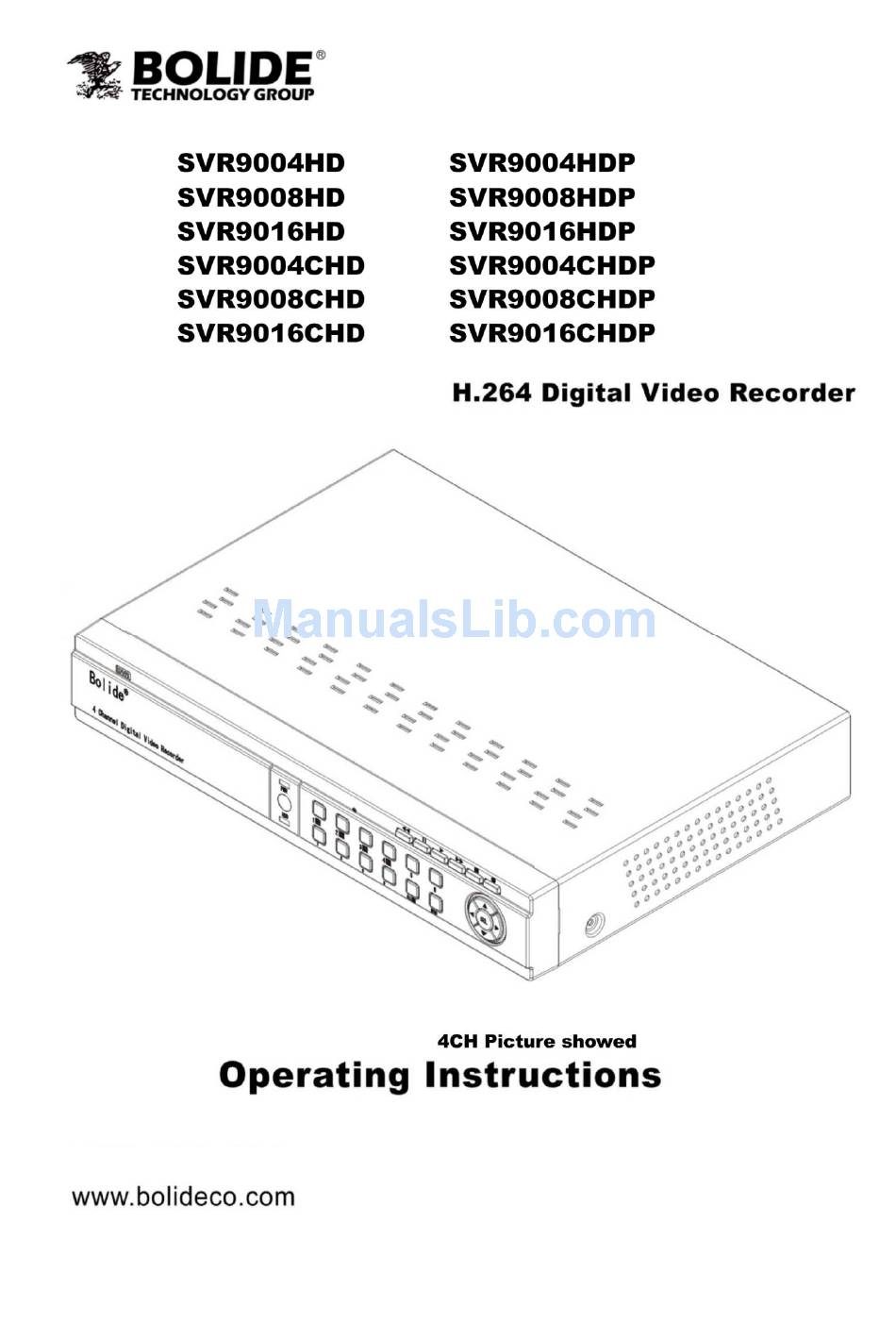

- Page 2 User Manual Non P2P Models: SVR9004HD SVR9008HD SVR9016HD SVR9004CHD SVR9008CHD SVR9016CHD Below with suffix “P” are models with P2P feature: SVR9004HDP SVR9008HDP SVR9016HDP SVR9004CHDP SVR9008CHDP SVR9016CHDP...
-
Page 3: Table Of Contents
..................................... 6 ANEL 2.2.1 SVR9004CHD/ SVR9004CHDP DVR Back Panel ....................6 2.2.2 SVR9004HD/ SVR9004HDP DVR Back Panel ....................7 2.2.3 SVR9008CHD/ SVR9008CHDP DVR Back Panel ................... 7 2.2.4 SVR9008HD/ SVR9008HDP DVR Back Panel ....................8 2.2.5 SVR9016HD/ SVR9016HDP DVR Back Panel ....................8 2.2.6 SVRD9016CHD/ SVRD9016CHDP DVR Back Panel .................. - Page 4 User Manual 5.3.3.5.1 back-up file based on event ............................21 5.3.3.5.2 back-up file based on time ............................22 5.3.3.5.3 Video Player backup ..............................22 5.3.3.6 Log Search ....................................23 5.3.4 Network ..................................23 5.3.4.1 Network set ..................................... 23 5.3.4.2 Mobile Set ....................................25 5.3.4.3 Router’s Port Forwarding .................................
- Page 5 User Manual 6.3.3.2 Record ...................................... 42 6.3.3.3 Network Parameters ................................43 6.3.3.4 Alarm Set ....................................45 6.3.3.5 Device ...................................... 46 6.3.3.6 System...................................... 47 6.3.3.7 Advanced ....................................48 6.3.4 Local setting................................49 6.3.5 Logout ..................................49 CHAPTER 7: SPECIFICATION ............................50 CHAPTER 8:APPENDIX ..............................
-
Page 6: Safety Instruction
User Manual Safety Instruction 1. Read Instruction All the safety and operating instruction should be read before the equipment is operated. 2. Power sources This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer. -
Page 7: Chapter 1: Features
User Manual Chapter 1: Features Function Brief and Description Double video output; with monitor, VGA virtual output port or HDMI Output; Real time Support net-viewer and MP live surveillance and also support zoom in/out, monitoring auto sequence and PIP display. H.264 video compression format;... -
Page 8: Chapter 2: Overview
User Manual Chapter 2: Overview 2.1 Front Panel Reminder: DVR is the abbreviation of Digital Video Recorder Equipment. 2.1.1 SVR90004HD/ SVR90004HDP DVR Front Panel Item Key title/Indicator Marks Functions Power indicator If the “Green” indicator is on, the system is getting powered IR Receiver Receives signal from Remote Control When the “Red”... -
Page 9: Svr90008Hd/ Svr90008Hdp /Svr9016Chd/Svr9016Chdp Dvr Front Panel
User Manual 2.1.2 SVR90008HD/ SVR90008HDP /SVR9016CHD/SVR9016CHDP DVR Front Panel Item Key title/Indicator Marks Functions If the “Green” indicator is on, the system is getting Power indicator powered IR Receiver Receives signal from Remote Control When the “Red” indicator flashes, it means the HDD indicator hard drive is being read or written to. -
Page 10: Svr9016Hd/ Svr9016Hdp Dvr Front Panel
User Manual 2.1.3 SVR9016HD/ SVR9016HDP DVR Front Panel Key title Item Marks Function /Indicator Receives IR signal from Remote Control If the “Green” indicator is on the system is getting Power indicator powered normally. When the “Red” indicator flashes it means the hard HDD indicator drive is being read or written to. -
Page 11: Svr9004Chd/ Svr9004Chdp/ Svr9008Chd/ Svr9008Chdp Dvr Front Panel
User Manual 2.1.4 SVR9004CHD/ SVR9004CHDP/ SVR9008CHD/ SVR9008CHDP DVR Front Panel Item Key title /Indicator Marks Function When the “Red” indicator flashes it means the hard drive HDD indicator is being read or written to. If the “Green” indicator is on the system is getting Power indicator powered normally. -
Page 12: Svr9004Hd/ Svr9004Hdp Dvr Back Panel
User Manual 2.2.2 SVR9004HD/ SVR9004HDP DVR Back Panel Item Physical port Connection method Video input Connect CH1-4 (Virtual) video input device（BNC） Video output Connect monitor output(BNC interface) Audio Input 4CH audio input (RCA interface） Audio Output 1CH output (RCA interface）... -
Page 13: Svr9008Hd/ Svr9008Hdp Dvr Back Panel
User Manual 2.2.4 SVR9008HD/ SVR9008HDP DVR Back Panel Item Physical port Connection method Video input Connect CH1-8 (Virtual) video input device (BNC) Video output Connect monitor output (BNC interface) Audio Input 8CH audio input (RCA interface） Audio Output 1H output (RCA interface） VGA Port Connect to VGA monitor, such as PC monitor HDMI... -
Page 14: Svrd9016Chd/ Svrd9016Chdp Dvr Back Panel
User Manual 2.2.6 SVRD9016CHD/ SVRD9016CHDP DVR Back Panel Item Physical port Connection method Connect CH1-16 (Virtual) video input（BNC interface） Video input Video output Connect monitor output(BNC interface) Audio input Connect CH1-4 audio signal input (RCA interface) Audio output 1CH output (RCA interface） HDMI HDMI Output VGA Port... -
Page 15: Remote Controller
User Manual 2.3 Remote Controller(not applicable for SVR9016HD/SVR9016HDP) Key title Key function Item Channel select 1-8; Numeric key Numeric key; Clicking numeric “0” allow you switch to GUI (Graphical user Interface) 9、 、 、 、 0 function Multiple display mode Enter into Main menu/Exit Menu Up arrow key, Volume adjust... -
Page 16: Svr9016Hd/ Svr9016Hdp Remote Controller
User Manual 2.4 SVR9016HD/ SVR9016HDP Remote Controller Key Title Key Function Press the button to enter into manual record. SEARCH Press the button to enter into record search menu 2× × × × 2 Enter into Quad display 3× × × × 3 Enter into 9-split display Enter into 16-split display 4×... - Page 17 User Manual Mouse Operation Except using buttons of front panel or remote controller, you also can use mouse to perform system operation. TYPE Function In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up Log-in window; on menu unlock mode, enter into pop-up menu, and then clicking left key to enter into any sub menu directly.
-
Page 18: Chapter 3 Dvr Installation
User Manual Chapter 3 DVR INSTALLATION 3.1 HDD Installation Caution： ： ： ： Please do not Install or take out hard drive when DVR is running! (1) Cut power firstly, and then remove screws and open DVR upper cover carefully; (2) Insert Power Cord and data cable into Pin of hard drive securely;... -
Page 19: Chapter 4: Dvr Boot Up
User Manual Chapter 4: DVR Boot up 4.1 System Initialization After connecting the Power cable of DVR to wall outlet and pressing the Power button on the front panel, you will enter into the system initializing screen shown as Picture 4-1 Picture 4-1 4.2 Live Interface After finishing initialization the system will enter... -
Page 20: Main Menu Guide
User Manual 5.2 Main Menu Guide Live set Display Output Set Privacy Zone Record Parameter Record Schedule Main Stream Record Search Event Search Search Backup Log search Network Set Sub stream Main Menu Email Set Network DDNS Set Motion Alarm Alarm set PTZ set Device... -
Page 21: Main Menu
User Manual 5.3 Main Menu On <Live> mode, click [Menu] button on the front panel or Remote controller to enter into Main menu interface shown as Picture 5-2. And also you can click [ ] icon to enter the main menu screen. -
Page 22: Output Mode
User Manual 5.3.1.2 Output mode Go to [Main menu Display Output] to enter into the output set interface shown as Picture 5-5. Picture 5-5 Picture 5-6 Video output: Support CVBS output Live and Spot mode simultaneously, and Live is main output, and Spot is auxiliary output (only for SVR9016HD/ SVR9016HDP) View Setup(CH Sequence): the option is defaulted to “Off”... -
Page 23: Record Set
User Manual 5.3.2 Record set 5.3.2.1 Record parameters Go to [Main menu Record Record Para] to enter into the interface shown as Picture 5-11. Channel: allow you setup the channel you desired. Record: allows you set up record status (Enable/Disable) of each channel Pack Duration: indicates maximum continuous record time (15, 30, 45 and 60 min). -
Page 24: Search
User Manual 5.3.3 Search 5.3.3.1 Record Search Click [Main Menu Search Record Search] to enter into the interface shown as Picture 5 Record Search] to enter into the interface shown as Picture 5 Record Search] to enter into the interface shown as Picture 5-14. Channel: allows you select the channel(s) you desire to allows you select the channel(s) you desire to search. -
Page 25: Time Axis Setup, File Clip And Zoom In/Out
User Manual (Next page): go to the next ones of current page. Clicking the [Next] button will take you to the next ones of go to the next ones of current page. Clicking the [Next] button will take you to the next ones of go to the next ones of current page. -
Page 26: File Backup
User Manual Record Clip and backup function and Zoom in/out function Record Clip and backup function and Zoom in/out function Picture 5-18B-2 Picture 5 Picture 5-18C Clip and backup: When one channel is playing Clip and backup: When one channel is playing-back, the [ back, the [ ] icon will appear in the [Play control] bar ] icon will appear in the [Play control] bar... -
Page 27: Back-Up File Based On Time
User Manual 5.3.3.5.2 back-up file based on time up file based on time NOTE: SVR9004CHD/ SVR9004CHD SVR9004CHDP and SVR9008CHD/ SVR9008CHDP are without sensor input and alarm are without sensor input and alarm output. I/O Alarm is not applicable for these two models. output. -
Page 28: Log Search
User Manual Delete one file in the list Delete all the files in the list Delete all the files in the list Unfold or fold the list files Unfold or fold the list files Advance Configuration: click the icon to set Advance Configuration: click the icon to set capture path and language shown as Picture 5 capture path and language shown as Picture 5-24... - Page 29 User Manual DNS: DNS server is generally provided by local ISP. Herein please enter the IP address of your DNS When selecting DHCP from the Type, A router will automatically allocate IP address for your DVR. After restarting each time, the IP address captured by your DVR may be different.
-
Page 30: Mobile Set
User Manual 5.3.4.2 Mobile Set The DVR is currently compatible with mobile phones running Android and Iphone on 3G networks. Click [Main menu Network] to enter into the [Network] interface shown as Picture 5-27. Mobile port: Mobile monitoring port. Setting range is between 1024 and 65535. Please note that the server port could not duplicate the port you have set to network set. -
Page 31: Ddns Set
User Manual SMTP Port: indicate one kind of mail transmittal port opened by Simple Message Transfer Protocol (SMTP). The port number for most mails is 25 except such as Gmail server (Port No.: 465). SMTP server: indicates server address you used. Sender address: indicates sender’s email address. -
Page 32: Alarm Set
User Manual Area: Click the [Setup] button to enter into area setup interface shown as Picture 5-37. Sensitivity: allow you to set sensitivity level of motion detection from higher to low with 8 being the most sensitive. Alarm out: allow you connect external alarm sensor. Picture 5-36 Latch time: you can set how long the alarm devices will sound when object move is detected (10s, 20, 40s, 60s);... -
Page 33: Device
User Manual (10s, 20, 40s, 60s); Show Message: You can set show message on the screen when sensor alarm is detected. Buzzer time: you can set how long the buzzer will sound when sensor alarm is detected (Off, 10s, 20, 40s, 60s);... -
Page 34: Ptz Set
User Manual Picture 5-39 Picture 5-40 Overwrite – When set to ENABLE the DVR will record over the oldest files on the hard drive. The DVR will always be able to record events as they happen, however, it does mean that you’ll need to get important events off the HDD before they’re overwritten;... -
Page 35: Users
User Manual And click [DST Setup] button to enter into the below interface shown as Picture 5-43. Picture 5-42 Picture 5-43 5.3.7.2 Users Click [Main Menu System users] option and then enter into the interface shown as Picture 5-44. The model supports up to seven users with one Admin and six users. Click [Edit] button to enter into the [User Edit] interface shown as Picture 5-45 User name consist of eight characters, password consist of 0~9 and its fixed-length is 6 bit. -
Page 36: Information
User Manual 5.3.7.3 Information Click [Main Menu System Info] and then enter into the interface shown as Picture 5-47 Now user can check the current Device name, Device ID, Device type, Hardware Version, MAC address, IE version and Software version etc.. Picture 5-47 5.3.8 Advanced 5.3.8.1 Maintain... -
Page 37: Event
User Manual 5.3.8.2 Event Click [Main menu Advanced Event] to enter into the <Event> interface shown as Picture 5-50 Event Type: support the three abnormal types: Disk Full, Disk Error and Video Loss. Enable: allow you activate abnormal alarm. Alarm out: select [Enable] or [Disable] Latch time: you can set how long the alarm devices will sound when external sensor alarm is detected (10s, 20, 40s, 60s);... -
Page 38: Pip Mode
User Manual and set up cruise channel, cur point and total quantity and stop time etc. How to set pre-set point Total: set up pre-set point quantity Cur Point: indicates starting point cruised. System default point is 01. The model support up to 255 pre-set points. -
Page 39: Start Sequence
User Manual 5.12 Start Sequence In the single mode, when entering into [Start sequence] menu, auto-sequence will be conducted at the set interval. Details please refer to section 5.3.1.2. 5.13 Start Cruise If multiple presets are specified, the PTZ camera will automatically move to the entire preset one at a time whilst user activates [Start Cruise ] options. - Page 40 User Manual If running the web application for the first time,you need about one minute to finish download and install plug-in, please wait patiently. Note: If you want to use the undated webcam at one computer which you already login before, please delete the old IE webcam and click [Start Run] to input the command characters: “regsvr32/u HiDvrOcx.ocx”, then login again.
- Page 41 User Manual （5）After quitting Safari, The <VideoSurveilliance> application will appear in the desktop. Please double-click the <VideoSurveilliance> file and then click <Open> button. Click <Continue> Click <Install> button, system will pop up user login interface. Please type your password and click <Install Software>...
-
Page 42: Web Application Manager Log - In
User Manual （6）Type your IP address and port of DVR again to enter into the <SurveillianceClient> application. Type your IP address and port of DVR again to enter into the <SurveillianceClient> application. Type your IP address and port of DVR again to enter into the <SurveillianceClient> application. 6.2 Web Application Manager Log Application Manager Log-in After plug-ins installation, please... -
Page 43: Ptz Control
User Manual screen. : Volume switch; : Record icon: record will be saved to a specified position : Record icon: record will be saved to a specified position after starting record. after starting record. : Snapshot function: allow you capture the live images and save it to a specified position. The image : Snapshot function: allow you capture the live images and save it to a specified position. -
Page 44: Playback
User Manual 6.3.2 Playback Click [ ] icon to enter into <playback> interface shown Picture 6 enter into <playback> interface shown Picture 6-7. Picture 6-7 The Web Application Manager supports up to 4 channels playback simultaneously. The Web Application Manager supports up to 4 channels playback simultaneously. The Web Application Manager supports up to 4 channels playback simultaneously. -
Page 45: Playback Control
User Manual Picture 6-9 If you tick-select < > option, that means the selected channel will playback > option, that means the selected channel will playback synchronously; otherwise, you could separate synchronously; otherwise, you could separately control the channels playback. Thirdly, Click [ ] icon to start record playback. -
Page 46: Remote Setting
User Manual Record file clip After opening playback, click [ After opening playback, click [ ] icon to clip the selected file; and click again to stop the clip function. selected file; and click again to stop the clip function. Record clip file will be saved as *.264 format. -
Page 47: Record
User Manual 2、Privacy zone: Each channel could set up to four privacy zones shown as Picture 6 Each channel could set up to four privacy zones shown as Picture 6 Each channel could set up to four privacy zones shown as Picture 6-14. Details parameters please refer to section 5.3.1 parameters please refer to section 5.3.1.3. -
Page 48: Network Parameters
User Manual 3、 Main Stream: detailed settings please refer to DVR local setting. Herein allow user modifies the resolution, detailed settings please refer to DVR local setting. Herein allow user modifies the resolution, detailed settings please refer to DVR local setting. Herein allow user modifies the resolution, frame rate, Bit rate and audio of the record frame rate, Bit rate and audio of the record channel. - Page 49 User Manual Set network type to “PPPoE” shown as Picture 6-20. Its user name and password should be consistent with DVR local setting. Picture 6-20 2、 Mobile (shown as Picture 6-18): Relative parameters should be consistent with DVR local setting. 3、...
-
Page 50: Alarm Set
User Manual 5、 DDNS Setting: After user applies for DD : After user applies for DDNS service shown as Picture 6-23 3, you could enable <DDNS> function under any one network type mode (Static, DHCP and PPPoE). Now function under any one network type mode (Static, DHCP and PPPoE). Now function under any one network type mode (Static, DHCP and PPPoE). -
Page 51: Device
User Manual 2、 I/O Alarm: allow you configure <I/O Status>, <Alarm output>, allow you configure <I/O Status>, <Alarm output>, <I/O Alarm record> and <Alarm email> etc. <I/O Alarm record> and <Alarm email> etc. Details setting should be consistent with DVR loca Details setting should be consistent with DVR local setting (Shown as Picture 6 l setting (Shown as Picture 6-26). -
Page 52: System
User Manual 6.3.3.6 System Click <System> option to unfold its sub unfold its sub-options: General, Users and information. 1、 General: User could check DVR’s language and video system, and also set system time, date format, DST User could check DVR’s language and video system, and also set system time, date format, DST User could check DVR’s language and video system, and also set system time, date format, DST and NTP shown as Picture 6-29 29. -
Page 53: Advanced
User Manual 6.3.3.7 Advanced Click <Advance> to unfold its sub- -options: System update, Load default, Events and system maintain etc. options: System update, Load default, Events and system maintain etc. 1、 System update: allow you upgrade DVR system remotely shown as Picture 6 you upgrade DVR system remotely shown as Picture 6 you upgrade DVR system remotely shown as Picture 6-32. -
Page 54: Local Setting
User Manual 2、 Load Default: allow you recover defaulted parameters of DVR remotely shown as Picture 6 allow you recover defaulted parameters of DVR remotely shown as Picture 6 allow you recover defaulted parameters of DVR remotely shown as Picture 6-35. Details setting should be consistent with DVR local setting. -
Page 55: Chapter 7: Specification
User Manual Chapter 7: Specification SVR9004CHD/ SVR9004CHDP Model No. Video Compression H.264 Video System NTSC/PAL Operation System Linux(embedded) Video-input /output 4CH input /1CH output(BNC) Audio input /output 2CH input /1CH output(RCA) PAL:960×576@25fps(each channel) resolution Display NTSC:960×480@30fps(each channel) feature single/ Quad/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1) 960H mode: 480x288(WCIF),960x288(WHD1),960x576(WD1) resolution... - Page 56 User Manual Model No. SVR9008CHD/ SVR9008CHDP Video Compression H.264 Video System NTSC/PAL Operation System Linux(embedded) Video-input /output 8CH input /1CH output(BNC) Audio input /output 2CH input /1CH output(RCA) PAL:960×576@25fps(each channel) resolution NTSC:960×480@30fps(each channel) Display feature single/ Quad/Nine/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1) 960H mode:480x288(WCIF),960x288(WHD1),960x576(WD1) resolution NTSC:D1 mode:360x240(CIF),720x240(HD1),720x480(D1)
- Page 57 User Manual Model No. SVR9004HD/ SVR9004HDP Video Compression H.264 Video System PAL/NTSC Operation System Linux(embedded) Video input /output 4CH input /1CH output(BNC) Audio input /output 4CH input /1CH output(RCA) PAL:960×576@25fps(each channel) resolution NTSC:960×480@30fps(each channel) Display feature single/ Quad/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1)
- Page 58 User Manual Model No. SVR9008HD/ SVR9008HDP Video Compression H.264 Video System PAL/NTSC Operation System Linux(embedded) Video input /output 8CH input /1CH output(BNC) Audio input /output 8CH input /1CH output(RCA) PAL:960×576@25fps(each channel) resolution NTSC:960×480@30fps(each channel) Display feature single/ Quad/Nine/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1) 960H mode:480x288(WCIF),960x288(WHD1),960x576(WD1) resolution NTSC:D1 mode:360x240(CIF),720x240(HD1),720x480(D1)
- Page 59 User Manual SVR9016CHD/ SVR9016CHDP Model No. Video Compression H.264 Video System PAL/NTSC Operation System Linux(embedded) Video input /output 16CH input /1CH output(BNC) Audio input /output 4CH input /1CH output(RCA) PAL:960×576@25fps(each channel) resolution NTSC:960×480@30fps(each channel) Display feature single/ Quad/Nine/Sixteen/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1) 960H mode:480x288(WCIF),960x288(WHD1),960x576(WD1) resolution NTSC:D1 mode:360x240(CIF),720x240(HD1),720x480(D1)
- Page 60 User Manual Model No. SVR9016HD/ SVR9016HDP Video Compression H.264 Video System PAL/NTSC Operation System Linux(embedded) Video input /output 16CH input /2CH output(BNC) Audio input /output 16CH input /2CH output(BNC) PAL:960×576@25fps(each channel) resolution NTSC:960×480@30fps(each channel) Display feature single/ Quad/Nine/Sixteen/S.E.Q. PAL :D1 mode: 360x288(CIF),720x288(HD1),720x576(D1) 960H mode:480x288(WCIF),960x288(WHD1),960x576(WD1) resolution NTSC:D1 mode:360x240(CIF),720x240(HD1),720x480(D1)
-
Page 61: Chapter 8:Appendix
User Manual Chapter 8:Appendix 8.1 Record Alarm setting Please refer the below matrix: “⊥” stand for “only alarm but no record”; “AMR” stand for “alarm record”; “NLR” stand for “normal record”; and “NOR” stand for “ no record”. Once alarm is triggered, alarm icon will occur, and when many alarms are triggered, alarm remarks will occur on the screen. -
Page 62: Troubleshooting
User Manual vip.21cn.com vip.21cn.com Vip.21cn.com smtp.etang.com pop.etang.com etang.com smtp.elong.com pop3.elong.com elong.com 8.3 Troubleshooting Q: What can I do if the system does not detect the HDD? A: Check if the power supply system is properly connected and data cord and power cables are securely connected. -
Page 63: System Connection Diagram
User Manual 8.5 System Connection Diagram... -
Page 64: Accessories
User Manual 16CH 8.6 Accessories (For Reference Only) Power cord Power Adaptor User Manual USB Mouse Remote Controller Software CD... - Page 65 The material in this document is the intellectual property of our department . No part of this manual reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without notice.
