Flowtoys Podpoi User Manual

podpoi
Pod: silicone outer shell
Micro-USB charging jack:
max. power-draw: 500mA
Button: single recessed button
Length: 118mm | Diameter: 66mm | Weight: 128g | Battery: 3.7v, 750 mAh rechargeable Li-ion

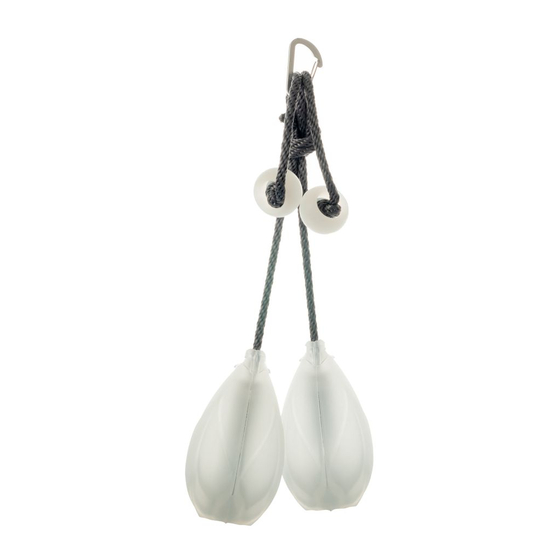

Podpoi = a pair of podlights with flowleashes. Each podlight has 10 adjustable modes,
a preset mode with 10 patterns, a nocturnal mode to optimize battery life, and a "favorites"
mode that recalls your last 10 saved patterns (mode+adjustment). Either the speed, color
palette, brightness or preset patterns can be selected or adjusted in each mode. It charges
in 1-2 hours from USB power and most modes last all night or longer!
BUTTON INTERFACE
There is a single recessed button on the bottom of the podlight. To turn on, press the
button – it will enter the pattern it was most recently in.
Select a mode: Press the button briefly (short press), the light will blink and enter the
next mode. The last mode is off.
Adjust a mode: Hold the button for over half a second (long press), let go when the
light flashes, before it turns off. The mode will now cycle through its adjustment range.
When you like what you see, press the button once (short press) to select the adjust-
ment. You may also leave the podlight in "adjust" for a constantly changing effect :)
Turn off: There are 2 ways to turn off the podlight:
1. Hold the button until it turns off – about 1.5 sec (long hold) – the podlight will
blink and fade out. This records the last pattern you were in, and the pod will return
to it when you turn it back on. There is also a "favorites" mode that allows you to
select from the last 10 patterns you recorded.
2. You may also cycle through the modes until it turns off. This will reset the light
to mode1, default adjustment. All modes start in the default adjustment when you
change modes.
on bottom of pod
Flowleash: inverted ultra-slick flowleash design
Tri-ring: polycarbonate tri-petal ring
closes the top
Leash knot: a knot secures the leash
inside the pod/capsule
Capsule O-ring: thick silicone O-ring
seals the top of the capsule
Capsule: polycarbonate light-unit inside pod
Capsule C-ring: polycarbonate C-ring
seals the bottom of the capsule and
secures it inside the pod
