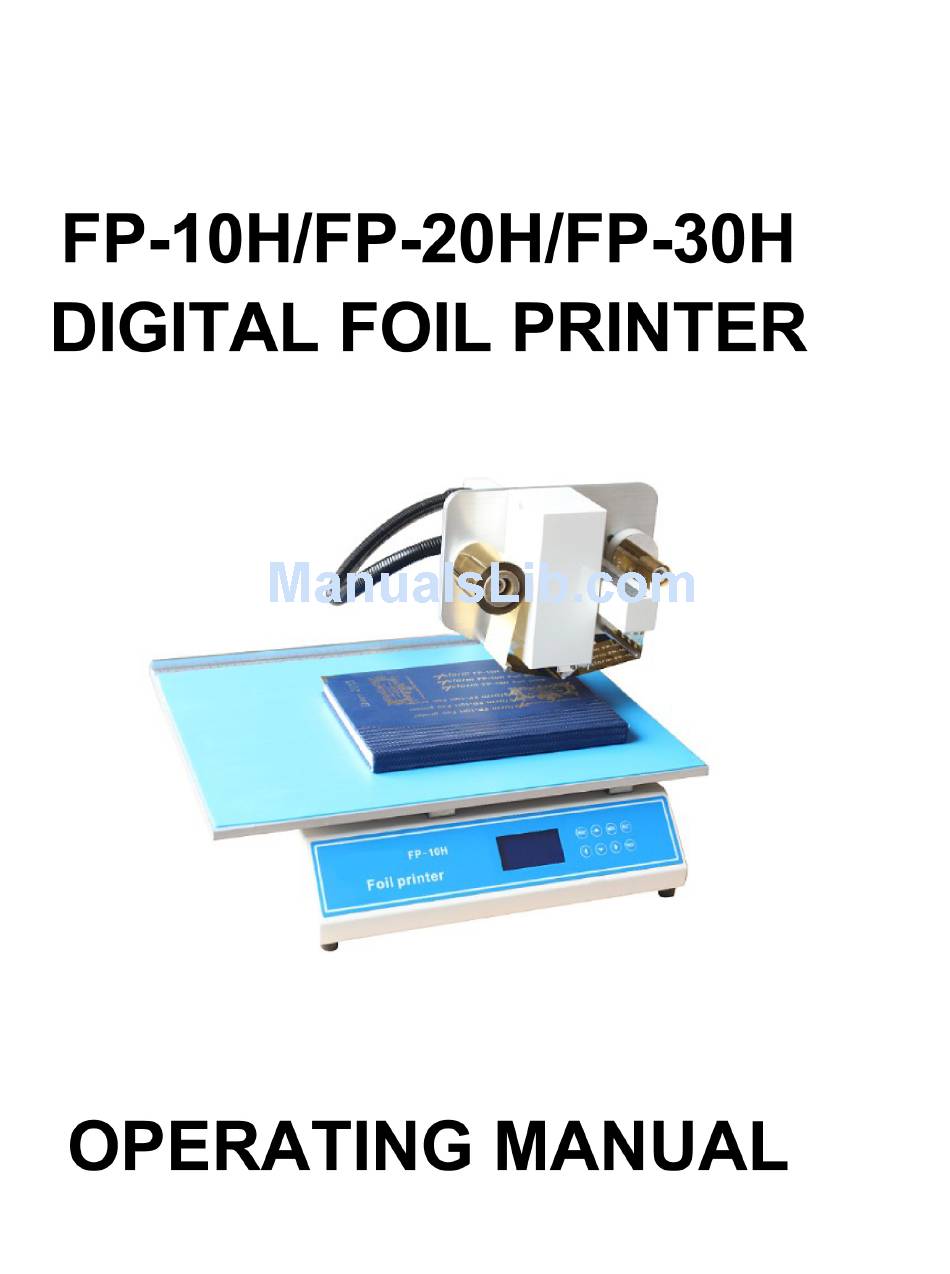

Summary of Contents for SYSFORM FP-10H
-
Page 2: Table Of Contents
Content Part one: Notes Manual Range………………………………………………2 Safety Requirements……………………………………… 2 Part Two: Symbols ……………………………………4 Part Three: Quick Start Introduction………………………………………………4 Product Appearance………………………………………5 Opening the package……………………………………….5 Connect the power and insert SD card……………………6 Part Four Operation Instructions Button ……………………………………………………7 Foil Transmission ………………………………………8 Foil Installation …………………………………………9 Start………………………………………………………9... -
Page 3: Part One: Notes
Printer settings………………………………………….10 Print head maintenance…………………………………17 Part Five : Technical Parameters ………………….18 Note : Design the printed words or pictures using CorelDraw, AI or Photoshop …etc…any software in computer and save in SD card with BMP format (file name should be numerical character or English character) then insert foil printer for printing. -
Page 4: Manual Range
2. Manual range: To ensure the user use the foil printer correctly and efficiently, please make sure read all the content of the manual, please keep the manual at the proper place for reference anytime. Before operation, please read the basic system, warnings, notes and tips. 3. - Page 5 A. Notes: only qualified and trained person can repair the printer; B. The electronic components on the control board are very sensitive to the static electricity , easy to damage; C. The internal voltage has the risk of electric shock. D.
-
Page 6: Part Two: Symbols
Part Two: Symbols ON : press down the symbol on the switch , the power is OFF: press down the symbol on the switch , the power is off Part Three: Quick Start 1. Function introduction Digital foil printer is a mini table foil printer, can foil print in gold and silver ,no need to make dies or plates, artworks designed on the computer, can print once the design finished, it is very time-saving;... -
Page 8: Connect The Power And Insert Sd Card
(3) SD card and card reader( demo video and some demo files saved in SD card ) (4) Demo Foil (5) Operating manual 【 note 1 】 : the packaging size is 67 cm * 67 cm * 54 cm, please place it properly so that the operator has move access 【... -
Page 9: Part Four : Operation Instructions
【 note 2 】 : check the switch if is on the OFF position. The symbol "O" means power off 1. The power cable plug should be firmly inserted into the printer power interface 2. The other end of the power cable should be insert a plug with grounding 3. -
Page 10: Foil Transmission
MENU means the job list . SELECT means the job list can be selected ← means page left. ↓ means page down. → means page right PAUSE means PAUSE. 2. Foil transmission used to install the unused foil ribbons. Supply-side to receive the used foil ribbon, and also provide the Recycling-side proper tensile force to avoid the foil ribbon folded. -
Page 11: Foil Installation
3. Foil Installation 【 note 1 】 : please don't place the foil upside down (please refer to the installation below), please don't print without the foil ribbon installed 【 note 2 】 : please use the qualified thin film, foils or color ribbon, the damage that caused by using unproper materials will be out of warranty, and the fix fee will be at users own expense 4. - Page 12 5. Printer Setting printer setting need to the follow below steps: Tip: No need to set the printer every time, all the parameters will be saved automatically after the initial setting, users only need to change the parameters if use different material and different foils. After turning on, the screen will display as below: Standy Press...
- Page 13 (1) Settings A. Press and came to the setting Menu File management Setting Language Service Quit B. Press and the screen display as blow Setting Print settings System Quit...
- Page 14 C. Press to select the print setting and the screen display as below Print Settings Speed Pressure Darkness Quit ① Select the SPEED to adjust the printing speed, for the operation please refer to the remarks ② Select the PRESSURE to adjust the pressure of the print head, for the operation please refer to the remarks ③...
- Page 15 Remarks: symbolize increase symbolize reduce Note: ① The speed range is: 1 ~ 3, normal using 3 ② The pressure range: 0 ~ 80, normal using 20 ③Printing darkness range: 1 ~ 18, normal using 3 Above settings are used usually, but different printed materials should be different settings and different foil used.
- Page 16 Menu File management Setting Language Service Quit B. Press and come to the File list as below File management File list Quit C. Select File list, and then you will see the file listed in orders now you can select the wanted file, and press start printing.
- Page 17 A. Press and come to the Language Menu File management Setting Language Service Quit B. Press and the screen display as below. Language Simplified Chinese English Quit C. Select Simplified Chinese or English。 6.Print head maintenance...
- Page 18 The print head may be attached by the dust, foils, carbon, etc, this may cause the bad printing (i.e. parts can't print). So the user need to ensure the printing consumables attached by the dust or some other dirt things, by doing this can help to increase the printing life of the head.
- Page 19 Part Five: Technical Parameters Model FP-10H / FP-20H/FP-30H SD card SD card & USB Printing interface 250mm Max printing length 57mm 300mm Max printing width 50mm 30mm Max thickness admits 350mm Max feeding width 20-50mm/s Speed Win XP / Win 2000 / Windows 7 32 bit...
