ITEM NO.: HTA-TTP111VGA
The VGA Extender allows VGA video signals to be transmitted up to 135 meters via 4-paris CAT5 STP or
UTP cable. Used in pairs, the VGA Extender is used in home or commercial applications as a smart, fast
and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected
extended distances from the PC via standard twisted pair cable. Ideal for classrooms video distribution,
lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems,
and tradeshows PC demo systems.
Features:
Passive device, no power required.
Including 2 units as transmitter and receiver.
Supports up to 1280x1024 pixels.
Up to 135 meters via standard 4 pairs CAT5 STP or UTP cable instead of VGA cable.
Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency.
Transmitter built in sync mode selection for signal stability.
Receiver built in sync filter level adjustment for signal stability.
Perfect for classrooms, lecture halls, tradeshows, video information displays...etc.
Installation:
Recommend Cable:
1. CAT5e UTP/STP or Cat6 UTP cable.
2. There are some certain models or brands of monitors with very high demand at
sync-sensitive, recommend use STP (shielding twisted pair) cable to instead of UTP
(unshielded twisted pair) cable.
RJ45 Pin Configuration: TIA/EIA 568B Wiring standard
1. Orange-white
2. Orange
3. Green-white
4. Blue
5. Blue-white
6. Green
7. Brown-white
8. Brown

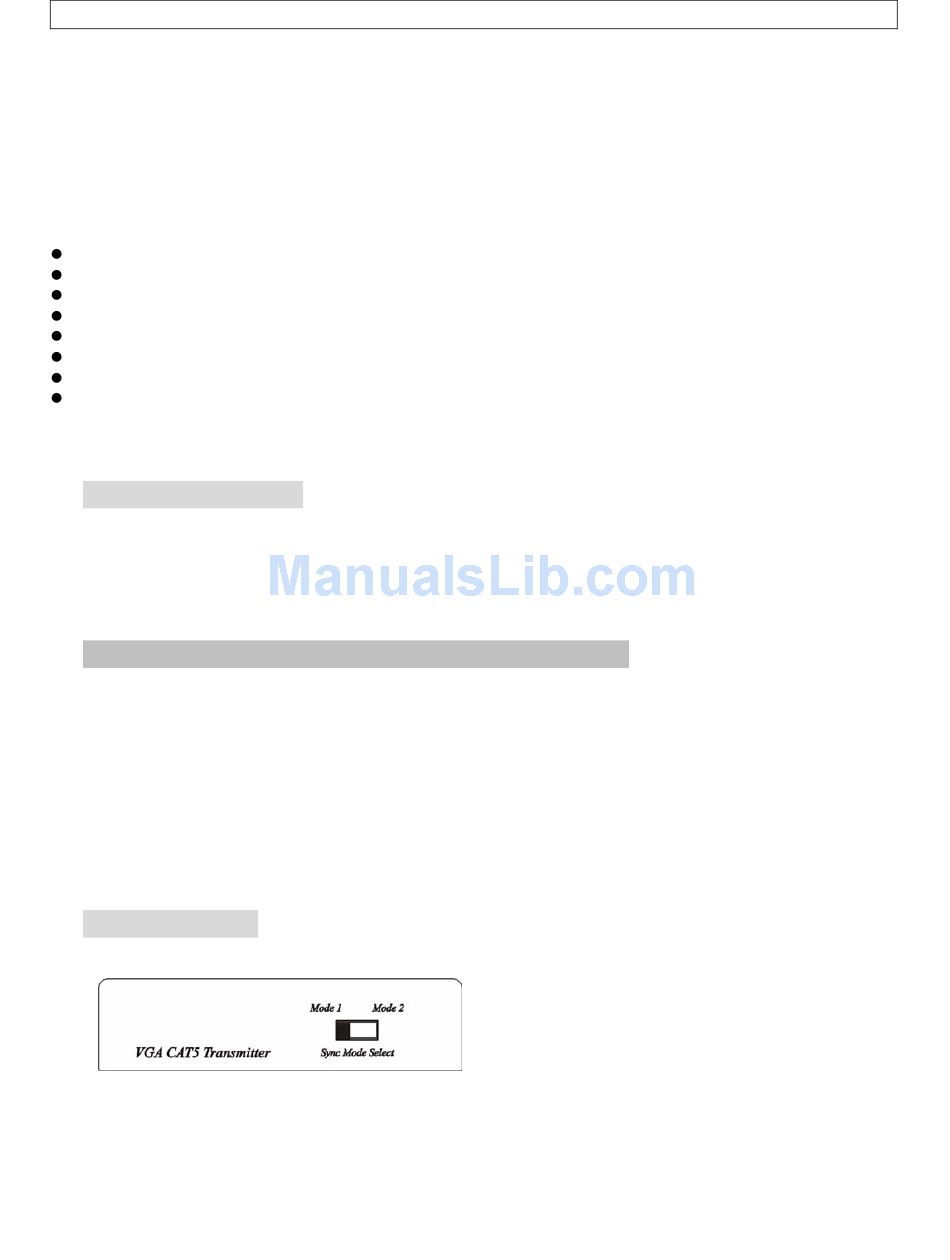

Switch Setting:
TTP111VGA-T Sync Mode Select
1. For new type monitors, such like over 17" LCD Monitor, recommends setting at mode 1 for the best
stability. If the picture not normal, then switch to Mode 2.
2. For old type monitors, such like CRT or under 17" LCD Monitor, recommend setting at mode 2. If
picture still not normal after adjust the dip switch of HTA-TTP111VGA-R. Then please use STP
(shielding twisted pair) cable.
CAT5 VGA Extender
Red +
Red -
H-Sync
Green +
Green -
V-Sync
Blue +
Blue -
← Mode 1
→ Mode 2
1
Advertisement
Summary of Contents for Hunt HTA-TTP111VGA-T
- Page 1 CAT5 VGA Extender ITEM NO.: HTA-TTP111VGA The VGA Extender allows VGA video signals to be transmitted up to 135 meters via 4-paris CAT5 STP or UTP cable. Used in pairs, the VGA Extender is used in home or commercial applications as a smart, fast and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected extended distances from the PC via standard twisted pair cable.
- Page 2 DIP Switch Setting: HTA-TTP111VGA-R Sync Filter Level ==================== １２３４５ Level 0 (Min) ↓↓↓↓↓ Level 1 ↑↓↓↓↓ Level 2 ↓↑↓↓↓ Level 3 ↓↓↑↓↓ Level 4 ↓↓↓↑↓ Level 5 (Max) ↓↓↓↓↑ Sync Filter is designed for using UTP CAT5 cabling. Sync Filter level adjustment is to add the sync stability, but not adjust picture quality or eliminate skew.
- Page 3 Panel View: HTA-TTP111VGA-T HTA-TTP111VGA-R Max. Distance via CAT 5 Cable 640x480 pixels (15MHz) 135M 800x600 pixels (30MHz) 105M 1024x768 pixels (60MHz) 1280x1024 pixels (100MHz) Specification: ITEM NO. HTA-TTP111VGA-T HTA-TTP111VGA-R Devices DVR, VGA Monitors, Projectors, Laptops, PCs. Input Signals Video: 1 Vp-p Horizontal &...
- Page 4 Application Tips to use CAT5 STP cable: Following is the correct cable connection when use STP cable: 1. STP (shielding twisted pair) Cable. 2. STP (shielding) RJ45 connector with STP cable connection. If your RJ45 connector is plastic housing (unshielded), then the cable connection must do the following: The ground cable must pull out around 5-10cm length to connect with VGA Extender’s ground screw for grounding.
