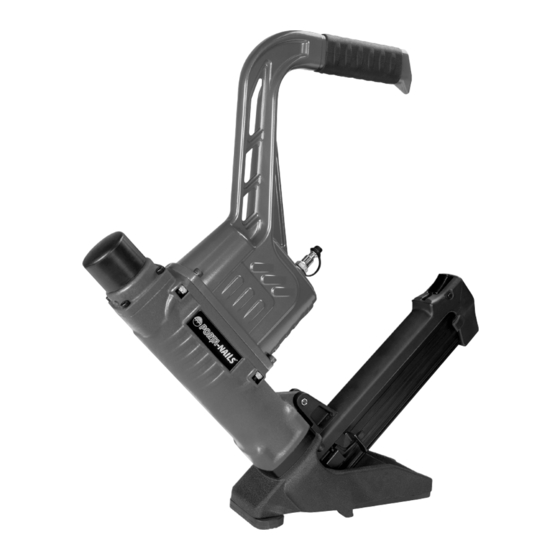

Pneumatic floor stapler & nailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

PNEUMATIC FLOOR STAPLER & NAILER
INSTRUCTION AND SAFETY MANUAL
AGRAFEUSE PNEUMATIQUE ET CLOUEUSE À PLANCHER
MODE D'EMPLOI ET CONSIGNES DE SÉCURITÉ
GRAPADORA Y CLAVADORA NEUMÁTICA PARA PISOS
MANUAL DE INSTRUCCIONES Y SEGURIDAD
3-in-1 Portamatic SLT
16 Gauge • Calibre 16 • Calibre 16
DANGER!
Improper use of this Stapler
& Nailer can result in death or
serious injury!
This manual contains important
information about product safety.
Read
and
understand
manual before operating the
Stapler & Nailer.
Never allow anyone (to handle
this tool) who has not reviewed
this manual.
05/10/13
DANGER!
L'utilisation inappropriée de cette
cloueuse peut causer une blessure
grave et même mortelle!
Ce manuel contient d'importantes
consignes de sécurité.
this
Lire le manuel attentivement avant
d'utiliser la cloueuse.
Ne jamais laisser une personne qui
n'a pas lu le manuel utiliser l'outil.
MODEL# 465SLT
PELIGRO!
¡El uso incorrecto de esta pistola de clavos
puede ocasionar lesiones graves o la muerte!
Este manual contiene información importante
acerca de la seguridad del producto.
Lea y comprenda este manual antes de usar
la pistola de clavos.
No permita nunca el uso de esta herramienta
por parte de alguien que no haya leído este
manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 465SLT and is the answer not in the manual?

Questions and answers

Related Manuals for Porta-Nails 465SLT

Summary of Contents for Porta-Nails 465SLT

  • Page 1 MODE D’EMPLOI ET CONSIGNES DE SÉCURITÉ GRAPADORA Y CLAVADORA NEUMÁTICA PARA PISOS MANUAL DE INSTRUCCIONES Y SEGURIDAD 3-in-1 Portamatic SLT 16 Gauge • Calibre 16 • Calibre 16 MODEL# 465SLT DANGER! DANGER! PELIGRO! Improper use of this Stapler L’utilisation inappropriée de cette ¡El uso incorrecto de esta pistola de clavos...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS FOR USING 465SLT MANUAL FLOOR STAPLER & NAILER . . . . . . . . .7 LOADING FASTENERS . . . . . . . . . . . . . . . . . . . . . . . . . . .15 EMPLOYER’S RESPONSIBILITIES .

  • Page 3: Important Safety Information

    7 YEAR LIMITED WARRANTY – U.S. AND CANADA ONLY Q .E .P . Co ., Inc . (“QEP”) warrants to the original retail purchaser that this Porta-Nails brand product is free from defects in materials and workmanship for a period of seven (7) years from the date of purchase . In the unlikely event that a problem occurs, return the product along with proof of purchase to QEP, or a QEP authorized service center freight prepaid and insured, so that a determination of the fault can be made .

  • Page 4: Safety

    SAFETY IMPORTANT SAFETY INSTRUCTIONS FOR USING STAPLER & NAILERS READ ALL INSTRUCTIONS DANGER 1. OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS. When operating the Stapler & Nailer, always wear eye safety glasses with side shields, and make sure others in the work area wear safety glasses, too .
  • Page 5 SAFETY SAFETY (continued) (continued) WARNING 7. ALWAYS WEAR EAR AND HEAD PROTECTION. Always wear ear protection to protect your ears from loud noise . Always wear head protection conforming to ANSI Z89 .1-1986 to protect your head from flying objects . 8.
  • Page 6 24. NEVER USE TOOL WHICH IS DEFECTIVE OR OPERATING ABNORMALLY. If the Tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Porta-Nails authorized service center .

  • Page 7: Important Safety Instructions For Using 465Slt Manual Floor Stapler & Nailer

    Porta-Nails. Unauthorized parts, accessories, or fasteners may void your warranty and can lead to malfunction and resulting injuries . Only service personnel trained by Porta-Nails, distributor or employer shall repair the Tool . 32. NEVER MODIFY OR ALTER A TOOL.

  • Page 8: Operation

    The information contained in this manual is designed to assist you in the safe operation of the Stapler & Nailer . Some illustrations in this manual may show details or attachments that differ from those on your Stapler & Nailer . 465SLT SCHEMATIC...

  • Page 9: Especifications

    Only nails and cleats shown in the table below can be driven with this Stapler & Nailer. WARNING Be sure to use only the genuine PORTA-NAILS staples and nails for the 465SLT . The use of any other nails can result in tool malfunction and/or nail breakdown, leading to serious injuries .

  • Page 10: Applications

    For installation of tongue and groove solid wood and engineered hardwood flooring . The 465SLT Pneumatic Floor Stapler & Nailer, with the standard shoe, drives 1-1/2” and the 2” Staples, T or L nails into the tongue and groove flooring at a 45 degree angle . The orientation of the fastener is as depicted above . To convert from 3/4”...

  • Page 11: Accesories

    3 . Flooring Shoe ( Item No . 47395) 5 . Wrenches 6 . Oil Note: Accessories are subject to change without any obligation on the part of PORTA-NAILS . BEFORE OPERATION read over section titled “SAFETY” ( pages 4 - 7 ).
  • Page 12 . Lubricator- The lubricator supplies an oil mist to the Tool . Inspect the lubricator before operation to be sure the supply of lubricant is adequate . Use Porta-Nails pneumatic tool lubricant . Regulator...

  • Page 13: Adjusting Air Pressure

    AIR SUPPLY 3. Air Hose Air hoses should have a minimum of 150 psi (10 .4 bar 10 .6 kgf/cm2) working pressure rating or 150 percent of the maximum pressure that could be produced in the air system . The supply hose should contain a fitting that will provide “quick disconnecting”...

  • Page 14: Testing The Tool

    TESTING THE TOOL DANGER • Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications. LUBRICATION Frequent, but not excessive, lubrication is required for best performance . Oil added through the air line connection will lubricate the internal parts .

  • Page 15: Loading Fasteners

    • Do not depress the trip mechanism while loading the Tool. STAPLE AND NAIL LOADING (Porta-Nails Model 465SLT Pneumatic Floor Stapler & Nailer) Insert 15 .5 gauge Staples, “L” or “T” 16 gauge Cleat Nails in the end of the magazine as shown .

  • Page 16: Tool Operation

    TOOL OPERATION DANGER • Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications. WARNING • NEVER point tool at yourself or others in work area. • Never place your face, hands or feet closer than 8 inches (200 mm) from discharge area when using.

  • Page 17: Methods Of Operation

    DO NOT HIT THE TOOL HARD- This Tool is pneumatically powered and requires only actuation by tapping the ram head . The 465SLT Pneumatic Floor Stapler & Nailer is user-friendly and following these simple instructions, will insure a very high quality hardwood flooring installation .

  • Page 18: Maintenance

    These steps are provided as a simple guideline for proper installation technique . Should you encounter a situation not covered here or have additional questions regarding the 465SLT Pneumatic Floor Stapler & Nailer and its use please contact us at 866-435-8665 . Should you require detailed information regarding...

  • Page 19: Service And Repairs

    • Use only Porta-Nails parts supplied or recommended by Porta-Nails for repair. All quality Tools will eventually require servicing or replacement of parts because of wear from normal use . In order to achieve the optimal performance of the 465SLT Pneumatic Floor Stapler & Nailer preventative maintenance is recommended .
  • Page 20 To view additional Quality Tools available from Porta Nails please visit our website www.porta-nails.com Q.E.P. Co., Inc. 1001 Broken Sound Parkway, NW, Suite A Boca Raton, FL 33487 1-866-435-8665 M1013_8029...
