RHINO VSHUNTINGCAM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSHUNTINGCAM and is the answer not in the manual?

Questions and answers

Summary of Contents for RHINO VSHUNTINGCAM

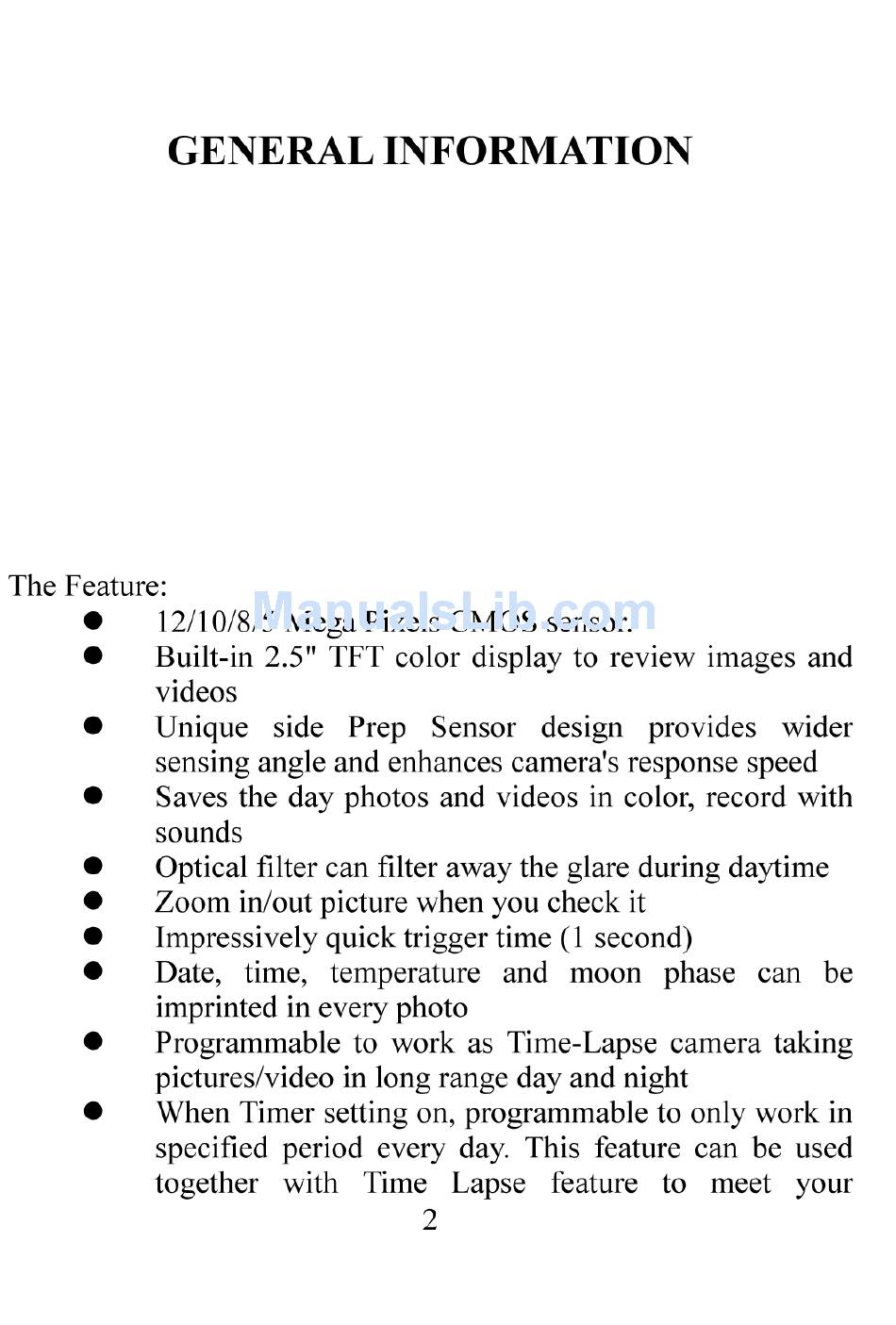

  • Page 2 timetable Laser light makes the camera focus to the optimal point Ultra low standby power consumption .Extremely long in- field life(in standby mode ,up to more than 4 months with 4 x AA batteries and 8 Months with 8 x AA batteries) Multi-shot of Single, Camera+Video, 3 pictures, 5 pictures...
  • Page 3 1.3 Illustration The laser button can help users to confirm the fixed angle of the camera.You should only put the laser key in front of the camera(as shown), the direction indicated by the red light beam is the front of the lens.
  • Page 4 The camera provides the following connections for external devices: USB port, SD card slot, TV out jack, and external DC power in jack .The 3-way Power/Mode Switch is used to select the main operation modes : OFF , ON and TEST. To supply power, it is recommended to use four new high-performance alkaline AA batteries or low self-discharge Ni-MH chargeable AA batteries.

  • Page 5: Quick Start

    Quick Start 2.1 Load Batteries Install 4 AA batteries or 8 AA batteries. 2.2 Insert SD Card The camera comes with 32M internal memory. Before inserting the SD card into the card slot, please make sure the write-protect switch on the side of the SD card is “off”(NOT in the “Lock ”...
  • Page 6 and adjust the parameters just like using an ordinary camera. There are three scenarios in the testing mode, and they are: 1) the preview mode, where you can see the scenes directly in front of the camera lens from the TFT LCD screen or the TV, 2) the setting mode, where the menu is shown, and 3) the playback mode, where you can view existing photos and videos that are stored in SD card from the TFT LCD screen or the TV.
  • Page 7 2.4 Enter ON Mode (Automatic Infrared Shooting Mode) Moving the switch to the ON position would set the device in the Automatic Infrared Shooting Mode. There is a waiting time of about 30 seconds before the system adjusts to this mode, and during this period the red LED indicator light will keep flashing.
  • Page 8 prepared PIR, its scope of induction is 100-12 Angle, a very wide range of induction, far outweigh 50 Angle of the camera lens, when the animals into the PIR is detecting range, photographic parts began power on and ready to shoot after 1 second, if animals go in range (less the camera lens Angle), will soon, this time is almost negligible, rapidly across the...

  • Page 9: Advanced Operations

    Advanced Operations Compared with ordinary cameras, our camera has more professional functions. The user can change the settings according to specific needs under the preview test mode. 3.1 Parameter Setting Settings Parameter Description (Bold= default) Camera Select whether still photos or Mode Video video are taken.
  • Page 10 (affects still photos from 5 to 12 mega pixels. still photos Higher resolution produces only) better quality photos, creates larger files that take more of the SD card capacity. HD 1280*720 Select video resolution (pixels Video Size per frame). Higher resolution (affects produces better quality videos, video clips...
  • Page 11 camera to work within a specified time period every day. For instance, if the starting time is set at 18:35 and the ending time at 8:25, the camera will function from 18:35 the current day to 8:25 the next day. Outside the time period the camera will not be triggered or take photos/videos.
  • Page 12 Side PIR The default setting is On. The two side prep PIR sensors provide wider sensing angle detect more potential triggers. In some situations, you only want to monitor a narrow spot. many irrelevant triggers by the side sensors outside of that spot will keep the camera on and off, which drains battery...
  • Page 13 IR-LED You can choose IR-LED work Night time. NTSC You can choose TV system TV OUT NTSC or PAL . Select ON if you want the date Date Date &Time & time ,temperature and moon Stamp phase can be imprinted in every photo .

  • Page 14: Limited Warranty

    LIMITED WARRANTY We take great pride in our products. We always stand behind our promises. We provide a leading warranty term and service. Buying a our product, you are covered under a limited warranty. We guarantee our products to be free of defects in materials and workmanship for a limited warranty of the original purchase date.

  • Page 15: Appendix I. Technical Specification

    We will, at our option during the warranty period, repair your camera or replace it with the same or comparable model free of charge. This warranty only extends to the original retail buyer from our authorized dealer. Purchase receipt or other proof of the date of the original purchase is required to receive warranty benefits.
  • Page 16 Memory 32M , SD card (32M to 32G) Laser light makes the camera focus to Laser light the shooting range .Just put Magnet Key on front of camera HD 1280*720 20fps 720*480 20fps Video Size 640*480 20fps 320*240 20fps Sensing Distance Left and right light beams form an angle Prep PIR Sensing...

  • Page 17: Appendix Ii Package Contents

    Password 4 Digit NO. 4*AA; Expandable to 8*AA Power Supply 4-8 Months(4*AA –8*AA) Stand-By Time Stand-by Current 0.2mA 2 minutes while no keypad controlling Auto Power off 150mA(+500mA when IR LED lights Power Consumption 4.3V Low Battery Alarm TV out ; USB; SD card slot; 6V DC Interface External Waterproof...
