ALIBI ALI-NVR7032R Quick Setup Manual

ALI-NVR7032R Embedded Network Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use the ALI-NVR7032R network video recorder (NVR). For additional
information on the extensive capabilities of your NVR, refer to the ALI-NVR7000R Series Embedded Network Video Recorder User
Manual provided electronically with your system.
NVR CONTROLS, CONNECTORS AND INDICATORS
Your new security system is easy to use and easy to setup. This section includes the function and use of the components included with a NVR
system. Advanced control and configuration procedures are included in the ALI-NVR7000R Series Embedded Network Video Recorder
User Manual.

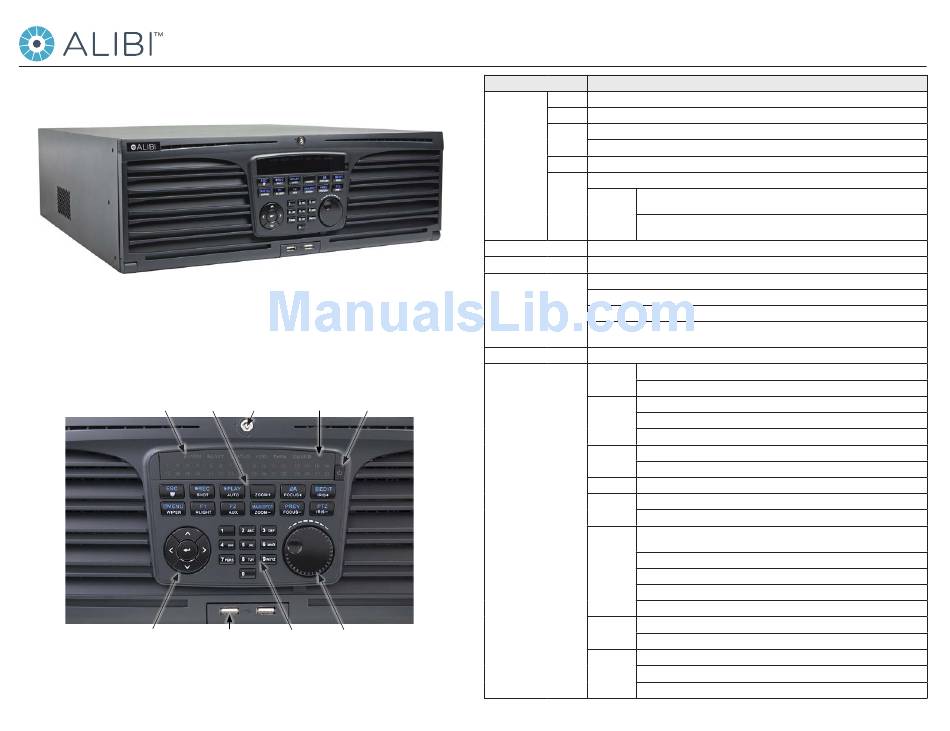

NVR Front Panel
Status indicators Composite keys
Control Buttons
1
Lock IR Receiver Power button
USB ports (2) Alphanumeric Jog Shuttle control
keys
Front panel controls
Name Function Description
ALARM Turns red when a sensor alarm is detected.
READY Ready LED is normally blue, indicating that the device is functioning properly.
Turns blue when device is controlled by an IR remote.
STATUS
Turns red when controlled by a keyboard and purple when IR remote and keyboard is used at the same time.
HDD Flashes red when data is being read from or written to HDD.
Status Indicators
Flashes blue when network connection is functioning properly.
Guard LED turns blue when the device is in armed status; at this time, an alarm is enabled when an event is
TX/RX detected.
GUARD
The LED turns off when the device is unarmed. The arm/disarm status can be changed by pressing and holding
on the ESC button for more than 3 seconds in live view mode.
IR Receiver Receiver for IR remote
Front Panel Lock You can lock or unlock the panel by the key.
Switch to the corresponding channel in Live view or PTZ Control mode.
Input numbers and characters in Edit mode.
Alphanumeric Buttons
Switch between different channels in Playback mode.
The light of the button is blue when the corresponding channel is recording; it is red when the channel is in network transmission
status; it is pink when the channel is recording and transmitting.
USB ports (2) Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
Back to the previous menu.
ESC
Press for Arming/disarming the device in Live View mode.
Enter the Manual Record setting menu.
REC/SHOT In PTZ control settings, press the button and then you can call a PTZ preset by pressing Numeric button.
It is also used to turn audio on/off in the Playback mode.
The button is used to enter the Playback mode.
PLAY/AUTO
It is also used to auto scan in the PTZ Control menu.
ZOOM+ Zoom in the PTZ camera in the PTZ Control setting.
Adjust focus in the PTZ Control menu.
A/FOCUS+
It is also used to switch between input methods (upper and lowercase alphabet, symbols and numeric input).
Composite Keys
Edit text fields. When editing text fields, it will also function as a Backspace button to delete the character in
front of the cursor.
On checkbox fields, pressing the button will tick the chec kbox.
EDIT/IRIS+
In PTZ Control mode, the button adjusts the iris of the camera.
In Playback mode, it can be used to generate video clips for backup.
Enter/exit the folder of USB device and eSATA HDD.
Switch between main and spot output.
MAIN/SPOT/
ZOOM-
In PTZ Control mode, it can be used to zoom out the image.
Select all items on the list when used in a list field.
F1/ LIGHT In PTZ Control mode, it will turn on/off PTZ light (if applicable).
In Playback mode, it is used to switch between play and reverse play.
