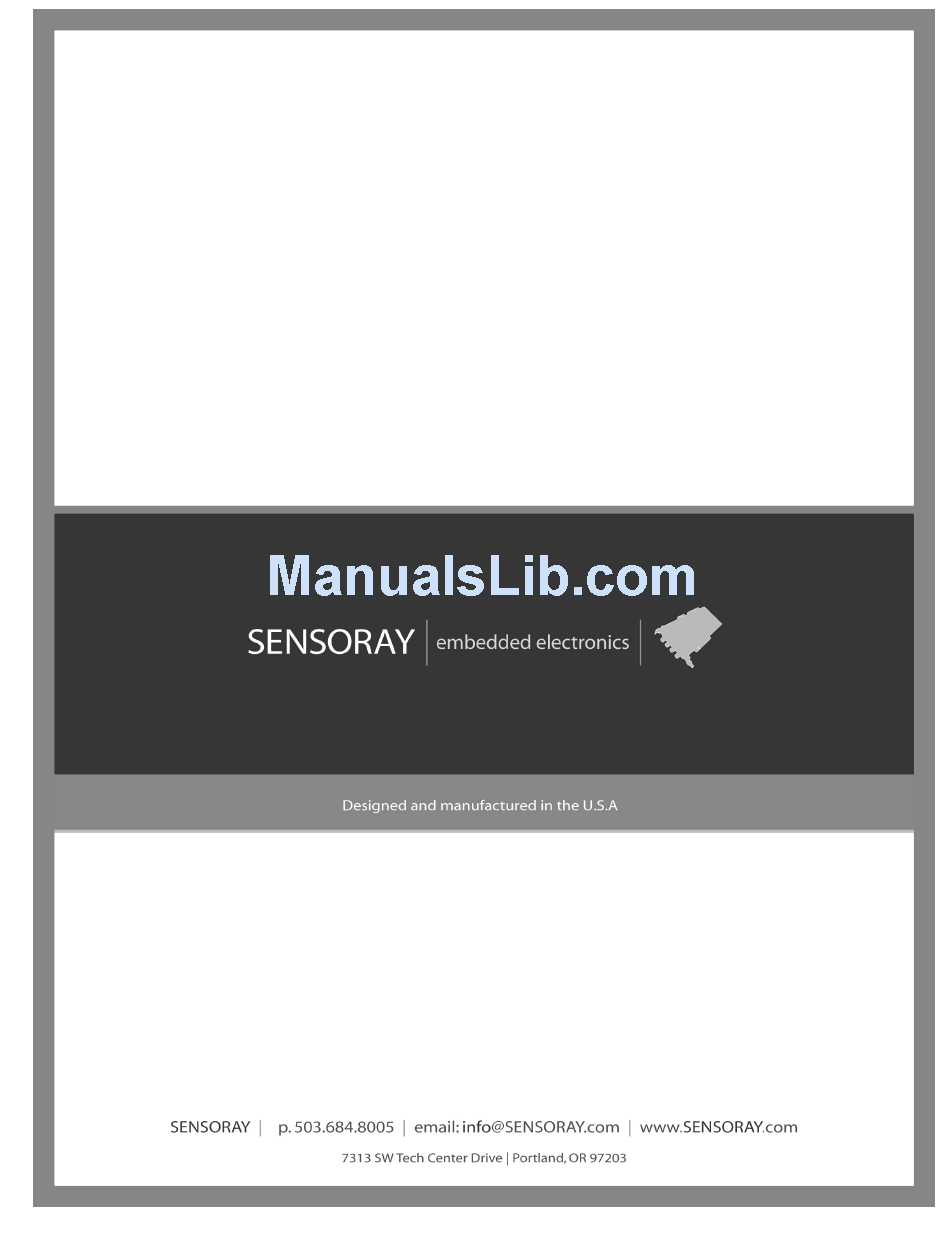

  • Page 1 3G-SDI 4x4 Matrix Switch Model 2444 Hardware Manual Ver.1.0.2 | May 2014...
  • Page 2: Table Of Contents

    Table of Contents LIMITED WARRANTY.......................3 INTRODUCTION........................4 FRONT PANEL INTERFACE.......................5 NETWORK INTERFACE......................7 Network setup........................7 Step 1 – Set up a temporary IP address................7 Step 2 – Set up a permanent IP address................8 HTTP Server........................9 Control page........................9 Switch configuration page....................10 Network configuration page....................11 Information page......................12 Telnet server........................13 Telnet commands......................13...
  • Page 3: Limited Warranty

    The reader should consult Sensoray if errors are suspected. In no event shall Sensoray be liable for any damages arising out of or related to this document or the information contained in it.
  • Page 4: Introduction

    Introduction Model 2444 is a 4x4 matrix (crosspoint) switch designed to operate with SDI signals from 125 Mbps to 2.97 Gbps. It supports SMPTE 259M(C) (SD-SDI), 292M (HD-SDI), and 424M (3G-SDI) serial digital video standards. The switch allows connecting any of the four inputs to any of the four outputs.
  • Page 5: Front Panel Interface

    Front panel interface Model 2444 has 4 SDI inputs (numbered 1 through 4) and 4 SDI outputs (numbered 1 through 4). All of those are brought out using BNC connectors on the back panel of the unit (Fig.1). Fig.1. Model 2444, back panel.
  • Page 6 It is possible to switch more than one output with one press of the Set button. For that use multiple Select buttons within 5 seconds from the last press. The brightness of the LED displays can be adjusted via the Web page interface. It is preserved across power cycles until changed.
  • Page 7: Network Interface

    Network Interface Network setup Each model 2444 unit is assigned a static IP address. As shipped from the factory the IP address is set to 192.168.24.44, with the netmask of 255.255.0.0. Those settings, along with some other, can be modified using a Web page interface. The unit has to be powered up and connected to the LAN using an Ethernet patch cable, Cat5 or better.
  • Page 8: Step 2 - Set Up A Permanent Ip Address

    Proceed to step 2 without cycling the power (while the unit is still in configuration mode). Step 2 – Set up a permanent IP address Connect to the unit with a Web browser by typing the unit's temporary IP address in the address box.
  • Page 9: Http Server

    HTTP Server The HTTP server (Web page interface) makes it possible to control and configure model 2444 using a computer connected to the network and a browser program. Control page Fig.3. Control page. Control page allows changing the matrix switch connections and LED brightness.
  • Page 10: Switch Configuration Page

    Switch configuration page Fig.4. Switch configuration page. The page allows configuring input equalizers for each of the four inputs of the switch. Extended 3G mode – turning this mode on (checking the corresponding check box) will provide extra 10 m of cable reach at 2.97 Gbps. However with this setting on, the cable reach will be reduced for lower bitrates.
  • Page 11: Network Configuration Page

    Network configuration page Fig.5. Network configuration page. The page provides means to configure network parameters. Notes: 1. The new parameters do not take effect until the unit is rebooted by clicking on the Reboot button in the bottom of the page. 2.
  • Page 12: Information Page

    Information page Fig.6. Information page. The page contains the unit's status information.
  • Page 13: Telnet Server

    The Telnet server allows 2 sessions: one through Ethernet port, and one through the serial port. Although the sessions are independent, it is not recommended to use both simultaneously. Telnet commands Below is the list of telnet commands supported by the 2444. help Syntax: help lists all available commands;...
  • Page 14 Syntax: ssw <out> <in> Connect matrix switch output out (1-4) to input in (1-4). Syntax: gsw <out> Get the input connected to output out (1-4). Returns 1-4. Syntax: gcd <in> Get carrier detection status for input in. Returns 1 for carrier detected, 0 otherwise.
  • Page 15 Syntax: gla <in> Get launch amplitude value for selected input in. Returns 0 (default), 1 (+50%) or 2 (+100%). sbri Syntax: sbri <val> Sets the front panel LED brightness to value val (0-7), with 0 being off, 7 being the brightest. gbri Syntax: gbri...
  • Page 16: Serial Communication Interface

    The serial interface supports the set of commands identical to that of the Ethernet telnet server. It is possible to communicate to the 2444 using a terminal program (for example, Hyperterminal in Windows). To achieve the look and feel similar to that of a telnet session it is recommended to configure the terminal program to add LF (Line Feed) characters to CR (Carriage Return) characters and to echo input characters.
  • Page 17: Software Configuration

    Table 2. Configuration switches. Switch Function Output driver 120 Ohm termination off Output driver 120 Ohm termination on Input driver 120 Ohm termination off Input driver 120 Ohm termination on RS-422 RS-485 RS-422 RS-485 Reserved Must be in “Off” position. Reserved Must be in “On”...
  • Page 18: Specifications

    Specifications Video Matrix 4x4 (4 inputs, 4 outputs) Supported data rates 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.97 Gbps Standards SMPTE 259M(C), SMPTE 292M, SMPTE 424M Input equalization 100 meters (2.97 Gbps) 200 meters (1.48 Gbps) 400 meters (270 Mbps) Impedance 75 Ohm, input and output Ethernet Interface...
  • Page 19: Revision History

    Revision history Version Notes 1.0.2, May 2014 Correction in the IP address setup procedure with a Linux computer. 1.0.1, May 2011 Equalized cable length specifications and embedded audio added. Power specification updated. 1.0.0, January 2011 Initial release.
