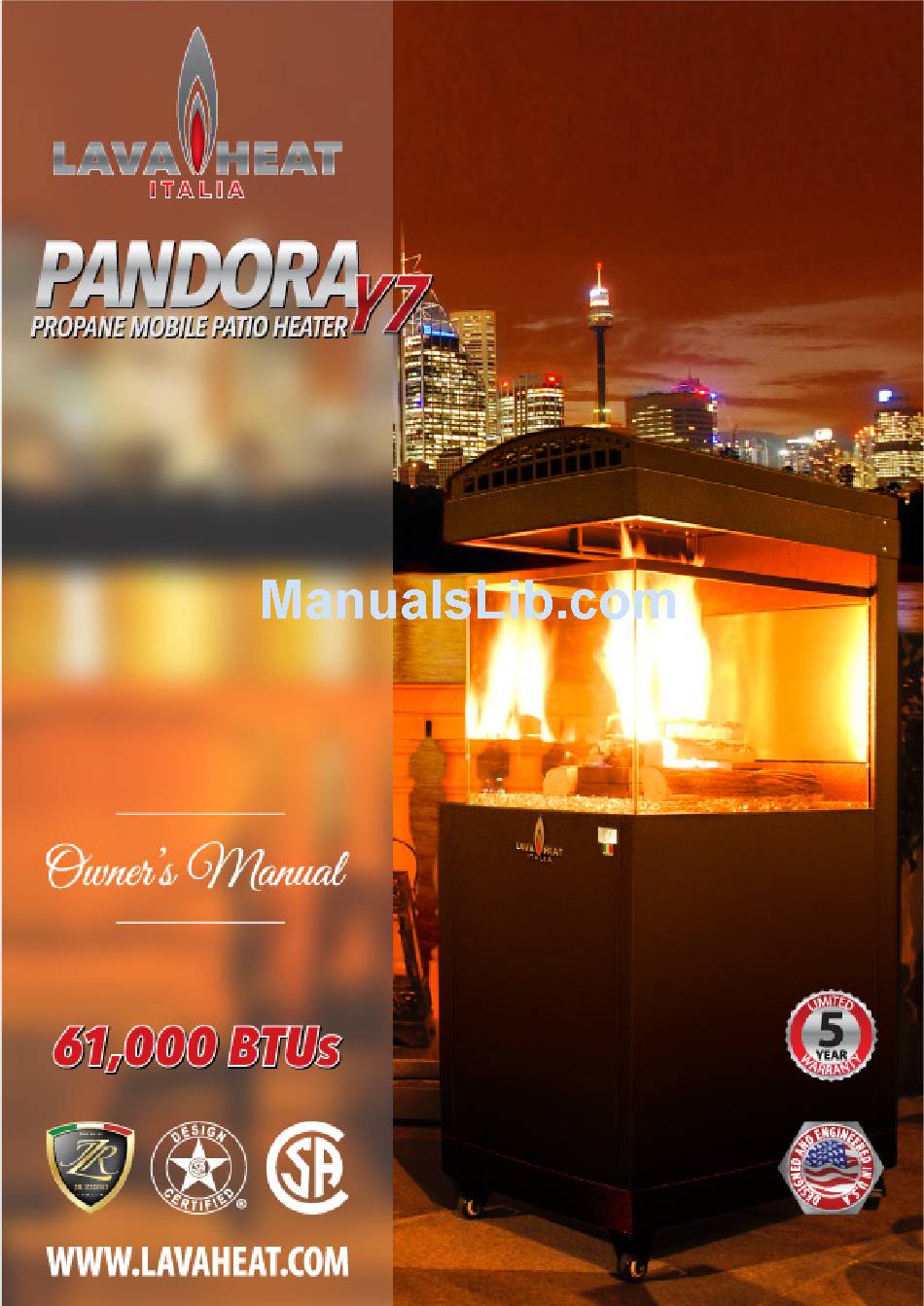

Summary of Contents for Lava Heat PANDORA Y7
-
Page 2: Table Of Contents
TABLE OF CONTENTS Caution ………………………………………………………. 1 Exploding drawing-Y7 ………………………………………. 2 Parts list-Y7…………………………………………………. ..3 Assembly Procedures ………………………….….…………4 Position logs and glass ball on the burner………………… 5 Heater Stand and Location ………………………………… 6 Gas Requirements …………………………………………..6 Leakage Test …………………………………………………6 Lighting instructions …………………………………………7 Storage ……………………………………. -
Page 3: Caution
CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION FOR INSTALLATION, PLEASE READ THIS MANUAL CAREFULLY REPAIRS SHOULD BE DONE BY A QUALIFIED SERVICE PERSON ONLY Do not use this appliance for indoors, as it may cause personal injury or property damage. -
Page 4: Exploding Drawing-Y7
Exploding Drawing-Y7... -
Page 5: Parts List-Y7
Parts List-Y7 Part No Part Name Part No Part Name Side panel of bottom cupboard Inner panel of burner Wheel without brake Artificial log set Wheel with brake Outer top connection Bottom panel Inner top connection Back door of bottom cupboard Back handle Door knob Top mash side connection... -
Page 6: Assembly Procedures
ASSEMBLY PROCEDURES Take out the heater body and all of the parts from carton, then follow below procedures. STEP 1 STEP 2 Screw the knob on tank door with screw Use 2 pcs of M8 screw to contact handrail we supplied in one set. with heater body STEP 3 STEP 4 if go with back wheel... -
Page 7: Position Logs And Glass Ball On The Burner
Position ceramic logs on the burner Pandora 1 Take out ceramic logs decorated oblate glass ball from carton 2 Refer to following picture for position the ceramic logs and decorated oblate glass ball. -
Page 8: Heater Stand And Location
HEATER STAND AND LOCATION The heater is for outdoor use only. Always ensure that adequate fresh air ventilation is provided. Always maintain proper clearance to combustible materials. Heater must be placed on level firm ground. Never operate heater in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored. -
Page 9: Lighting Instructions
LIGHTING INSTRUCTIONS Open the cabinet door, put the gas cylinder into the cabinet Turn the control knob clockwise to “OFF” position. Connect the regulator to the gas bottle. Turn the gas supply “ON” at the cylinder. Check with the use of soapy water for any gas leakage between the bottle and the regulator Push down the control knob and keep pressing whilst turning anti-clockwise to the “Ignition”... -
Page 10: Data Badge1
DATA BADGE FOR THE Y7 MOBILE PATIO HEATER APPLIANCE CODE: TOTAL HEAT INPUT: GAS CATEGORIES: 3B/P(30) TYPES OF GAS: Butane Propane LPG mixtures GAS PRESSURE: 28 – 30 mbar butane 30 mbar LPG mixtures 37 mbar propane INJECTOR SIZE: 1.45 mm 1.45 mm FOR USE OUTDOORS AND IN WELL VENTILATED AREAS THIS APPLIANCE IS NOT FOR DOMESTIC USE... -
Page 11: Data Badge2
DATA BADGE FOR THE Y7 MOBILE PATIO HEATER APPLIANCE CODE: TOTAL HEAT INPUT: 61000BTU GAS CATEGORIES: 3B/P(50) TYPES OF GAS: LPG mixtures GAS PRESSURE: 50 mbar LPG mixtures INJECTOR SIZE: 1.30 mm FOR USE OUTDOORS AND IN WELL VENTILATED AREAS THIS APPLIANCE IS NOT FOR DOMESTIC USE WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.
