Summary of Contents for One Tech OTP-MG610 Mini Mega-Pixel
-
Page 1: User Manual

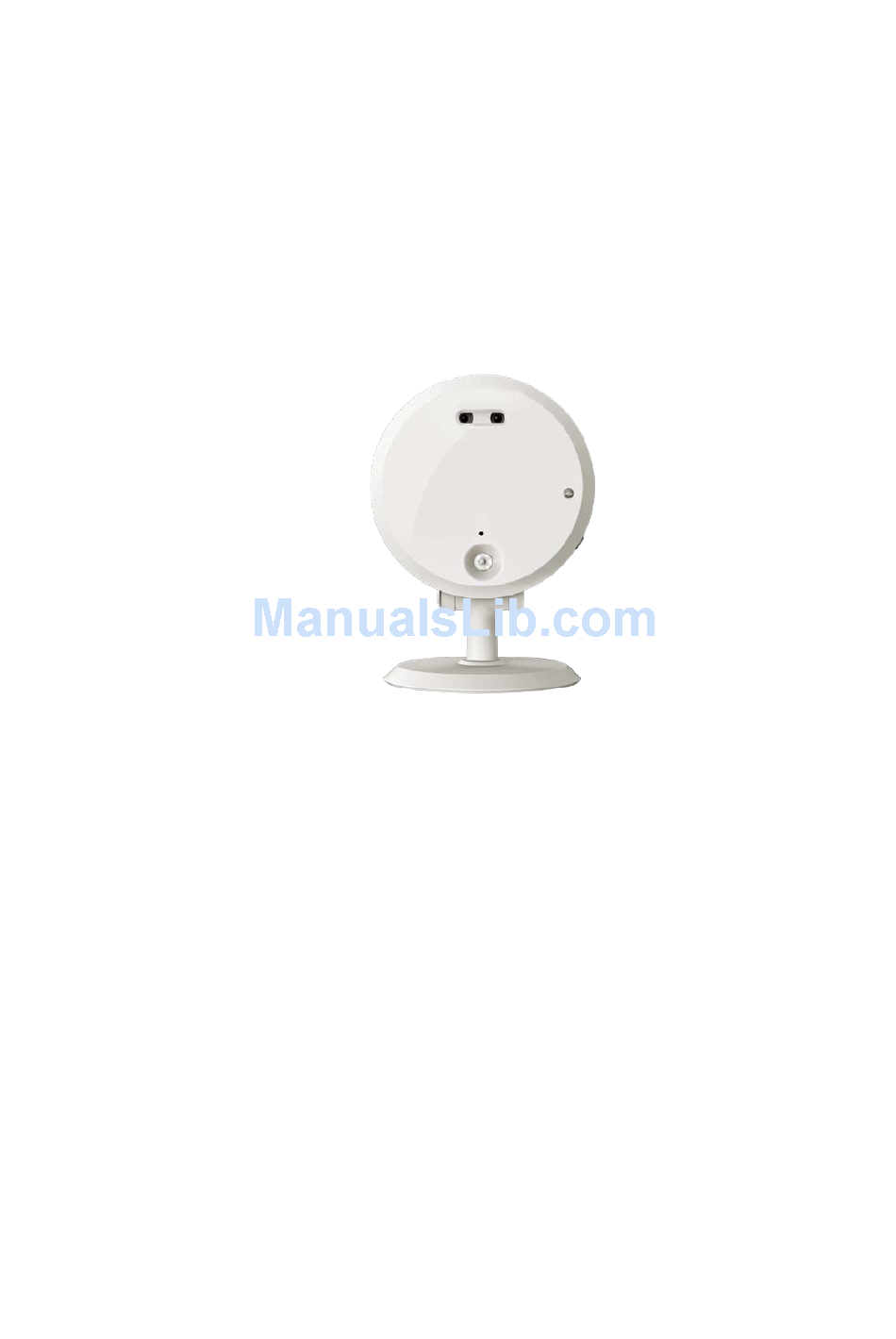

Mini Mega-pixel IP Network Camera User Manual Revision: 030701 Date: 2014/10/12 For firmware version v030701... -
Page 2: Table Of Contents
Mini Mega-pixel IP Camera Table of Contents LIST OF FIGURES AND TABLES ...................... 4 INTRODUCTION .......................... 6 HARDWARE DESCRIPTION AND QUICK INSTALLATION/USAGE ........ 9 2.1..................9 AJOR HARDWARE COMPONENTS 2.2..................10 UICK INSTALLATION AND USAGE 2.3. ) .......... 16 IRELESS CONNECTION IF ROUTER BUTTON... - Page 3 Mini Mega-pixel IP Camera APPENDIX B. MAXIMUM ALLOWED VIDEO USERS ..............54 APPENDIX C. PERFORMANCE INFORMATION ................. 55 APPENDIX D. TROUBLE SHOOTING .................... 56 APPENDIX F. SNAPSHOT PICTURE ON ANY BROWSER ............59...
-
Page 4: List Of Figures And Tables
Mini Mega-pixel IP Camera List of Figures and Tables Figure 2-1: Major components in the front panel Figure 2-2: Major components in the back panel Figure 2-3: IP CAM connection diagram. Figure 2-4: Connect Ethernet cable to a switch/router. Figure 2-5: Download the latest CamView software Figure 2-6: The ID/Password card Figure 2-7: Running window of CamView program Figure 2-8: Pop-up play-video password window... - Page 5 Mini Mega-pixel IP Camera Figure 3-28: System reboot under-going page Figure 3-29: Stick on the reset button to set to the factory default Figure 5-1: The IP camera body Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable Figure 5-5: Anchors and Screws Figure 5-6: ID/Password Card Table A-1: List of tested Wireless AP/router devices...
-
Page 6: Introduction
Mini Mega-pixel IP Camera 1. Introduction The IP Camera is designed for all day video surveillance on your iPhone/iPad and Android mobiles/pads. The setup is truly 1-2-3 : 1. Connect the camera to the network 2. Download the app mCamView into your iPhone/iPad or Android 3. - Page 7 Mini Mega-pixel IP Camera monitor in your house and shop. .
- Page 8 Mini Mega-pixel IP Camera The differences It’s very easy to see the video of the IP Camera, you only need to key in the ID/Password of the IP CAM any where in the world, you do not need to remember the IP address or domain name or DDNS name or port number.
-
Page 9: Hardware Description And Quick Installation/Usage
Mini Mega-pixel IP Camera 2. Hardware description and quick installation/usage The IP CAM is designed to be very easy to install and use. First, let’s see the major components of the IP CAM products. 2.1. Major hardware components. The major components on the front panel of the IP CAM products are the followings : 1. -
Page 10: Quick Installation And Usage
Mini Mega-pixel IP Camera Figure 2-1: Major components in the front panel The major components on the back panel and bottom of the IP CAM products are the followings: 1. Power jack – this is the place to plug in the power adaptor. The power needed for this IP CAM is 12V/1.0A, please make sure you are using the correct power adaptor. - Page 11 Mini Mega-pixel IP Camera CamView, and then you can see the video. First, Connect the IP CAM to the home/office network Please connect the IP CAM accessaries to the IP CAM body correctly, including the power adapter and Ethernet cable, as shown in Figure 2-3. And connect the other end of the Ethernet cable to the home network or office network.
- Page 12 Mini Mega-pixel IP Camera Figure 2-3: IP CAM connection diagram. Figure 2-4: Connect Ethernet cable to a switch/router. Second, Install the CamView/mCamView software on the notebook/PC/mobiles Please download the latest CamView software with the following information : Website: http://www.starvedia.com/download.html Username: viewer Password: camview (must be running Microsoft Windows OS).
- Page 13 Mini Mega-pixel IP Camera Figure 2-5: Download the latest CamView software Third, Use CamView program to see the video Figure 2-5 is the running window of the CamView program. If the computer and IP CAM is connected to the same network, the IP CAM ID will be displayed in the “Auto Search”...
- Page 14 Mini Mega-pixel IP Camera Notice 2: 1. For the iPhone usage, please download “mcamview” from App Store 2. For the iPad usage, please download “mcamviewHD” from App Store 3. For the Android mobile phone/pad usage, please download “mcamview” from Android Market. Seeing the video in a remote location After the IP CAM is installed and you can see the video from the CamView software in the local network, it’s very easy to see the video in a remote location.
- Page 15 Mini Mega-pixel IP Camera Figure 2-8: Pop-up play-video password window...
-
Page 16: Wireless Connection (If Router/Ap Has Wps Button)
Mini Mega-pixel IP Camera 2.3. Wireless connection (if router/AP has WPS button) The IP Cam(w) can be connected to the home/office network through the 802.11 n wireless connection. If the router or AP has WPS button, then there are only three simple steps that you need to do to have the wireless connection: Unplug the Ethernet cable from the camera. -
Page 17: Push Notification
Mini Mega-pixel IP Camera Third, unplug the Ethernet cable If the WiFi test is successful, you can then enable the WiFi connection by unplugging the Ethernet cable from the IP CAM. The IP CAM will detect the Ethernet cable unplugged condition and start the WiFi connection. After the WiFi is connected, the IP CAM will connect to the Internet immediately. - Page 18 Mini Mega-pixel IP Camera To enable the push notification, go to the settings page of the specific camera, choose “alarm notification”, key in the login account( default is “admin”, no password ), and enable the alarm condition( motion detection or sound detection) you want.
-
Page 19: Web Configurations
Mini Mega-pixel IP Camera 3. Web configurations You can login into the web configuration page by directly key-in the IP address of the IP CAM or right-click the searched IP CAM in the “Auto Search” list of the CamView software and click the “Web Configure” to open the login window of the IP CAM. -
Page 20: Information
Mini Mega-pixel IP Camera 3.1. Information The first page of the web configuration of the IP CAM is the information page. You can see the model name/firmware version, IP CAM ID, registration status, network type and current video settings( bandwidth, resolution) in this page. The IP CAM can be viewed remotely by the CamView software only when the IP CAM is registered. -
Page 21: Video Display
Mini Mega-pixel IP Camera 3.2. Video Display This display page allows you to view the video display of the IP camera. For the first time use of this display on a computer, an activeX component will be automatically downloaded into the browser. This could take some time, depends on the internet speed. -
Page 22: Network
Mini Mega-pixel IP Camera 3.3. Network The Network page allows you to modify the network settings of the wired Ethernet. The default settings use DHCP to obtain an IP address automatically. In most of the home and office network environment, there is a DHCP server running. In this situation, by using this default settings, the IP CAM can work immediately in most of the time. - Page 23 Mini Mega-pixel IP Camera Figure 3-6: Network settings page for fixed IP address...
-
Page 24: Wifi Security
Mini Mega-pixel IP Camera 3.4. WiFi security You can use the wireless to connect the IP CAM to the network. If your network environment has a 802.11 n router or AP running, you can check the “Enable WiFi function” button to use the wireless. Figure 3-7: WiFi security disabled page In order to use the wireless network, you need to fill the following fields: SSID –... - Page 25 Mini Mega-pixel IP Camera Figure 3-8: WiFi security enabled page You can click the “WiFi test” button to check if the IP CAM can connect to the wireless network for these settings. You will need to unplug the Ethernet cable to enable the wireless connection after the “WiFi test”...
-
Page 26: Advanced Network
Mini Mega-pixel IP Camera 3.5. Advanced Network In some special situation, your network environment only provides PPPoE connection(ADSL service), there is no NAT/router available. You will then need to set the PPPoE settings in the “Advanced Network” page. Only the PPPoE username and password are needed to let PPPoE work. -
Page 27: Video Settings
Mini Mega-pixel IP Camera 3.6. Video Settings The IP CAM is designed to provide high quality video for viewing from CamView software. In this page, you cam modify some settings related to the video viewing: 1. Password(play video) – this is the password needed for viewing the video from the CamView software. - Page 28 Mini Mega-pixel IP Camera this situation, change the setting to “Indoor video” will solve the problem. Please also be noticed that in “Indoor video” setting, the video display of outdoor view is very vague. For indoor usage, if there is strong sun light into the room, please select the “Indoor+sun light”...
-
Page 29: Mobile Video Settings
Mini Mega-pixel IP Camera 3.7. Mobile Video settings The IP CAM is able to be viewed from a 3G mobile phone, please download “mcamview”/”mcamviewHD” software from App Store for iPhone/iPad and “mcamview” from Android Market for Android Mobiles and pads.. The video frame rate, resolution and bandwidth for 3G mobile access could be set independently from the video settings for CamView(PC) access. -
Page 30: Night Mode Control
Mini Mega-pixel IP Camera 3.8. Night mode control The IP Cam is able to work both in day time and night time. There is an IR LED that can let the IP camera see the objects in the night time. This night mode control page is to control when the time the IR LED will be on. -
Page 31: Email/Ftp Alarm
Mini Mega-pixel IP Camera 3.9. Email/ftp alarm The IP Camera provides the Email/ftp function, you can enable or schedule the Email/ftp ability in this page, the IP Camera will then send out an email with a jpeg picture attached in the email and/or send out the jpeg picture file to a ftp server. The related settings are explained below: 1. - Page 32 Mini Mega-pixel IP Camera When this modification is “Save&Apply”ed, it works immediately, but all the connected video viewing users will be disconnected. The default setting is “Disable”. Figure 3-13: Email/FTP Alarm page For the email message to work, a SMTP server is required. Click the “advanced” button will display the SMTP server settings page.
- Page 33 Mini Mega-pixel IP Camera Figure 3-14: SMTP server settings page...
-
Page 34: Speaker Alarm Settings
Mini Mega-pixel IP Camera 3.10. Speaker Alarm settings The IP Camera provides speaker alarm function, a video motion detection could trigger the speaker alarm. The duration of the alarm could also be set. The related settings are explained below: 1. Speaker alarm trigger– select the trigger mode of the speaker alarm Motion trigger –... -
Page 35: Nas Settings
Mini Mega-pixel IP Camera 3.11. NAS settings The IP Camera provides the recording of the video files into a standard NAS ( Network Access Storage ) device. The IP camera connects to the NAS device using the standard LMX_NS/CIFS/SSN protocols that are the same as the Microsoft Windows network neighborhood protocols. - Page 36 Mini Mega-pixel IP Camera keying the URL address \\”NAS name”\”shared folder name” or \\”NAS address”\”shared folder name” in the windows Internet Explorer, and then key in the “NAS access account” and “NAS access password” to the prompted login window. The video files are recorded under the subfolder IPCamRecordFiles/Recording/ID-ID, where ID is the ID of this IP camera.
-
Page 37: Cloud Storage Settings
Mini Mega-pixel IP Camera 3.12. Cloud Storage Settings The IP camera provides the recording of the video files into the Dropbox as the cloud storage. You can use your Dropbox account to do the recording and remotely playback the recorded video files on your mobile devices or computers. 1. - Page 38 Mini Mega-pixel IP Camera Figure 3-18: Cloud Storage logged in page...
-
Page 39: Sd-Card Settings
Mini Mega-pixel IP Camera 3.13. SD-Card settings The IP camera provides the recording of the video files into a standard Micro SD-Card. Since this recording is directly to the SD-Card, there is no network packets loss problem when recording to remote device through internet. Notice : The resolution and frame rate of the recorded video is the same as that set for the video settings. - Page 40 Mini Mega-pixel IP Camera Figure 3-20: SD-Card information page...
-
Page 41: Scheduling
Mini Mega-pixel IP Camera 3.14. Scheduling The IP camera provides the scheduling function for the motion detection triggered email/ftp sending and/or the NAS recording with the individual parameters set in the . “Email/ftp alarm” settings and the “NAS settings” page. Totally 12 schedule list items are allowed. - Page 42 Mini Mega-pixel IP Camera scheduling period. Figure 3-21: Schedule management page...
-
Page 43: Led Display Control
Mini Mega-pixel IP Camera 3.15. Led Display Control The IP CAM provides the Led Display Control function, you can enable or disable the led display/indication on the front panel of the IP cam device. The related settings are explained below: 1. -
Page 44: Date/Time
Mini Mega-pixel IP Camera 3.16. Date/Time The IP CAM can synchronize the date/time with the universally available time server( for example stdtime.gov.tw) through NTP protocol. The date/time will then be corrected with the time server anytime when the Internet is connected. Users can choose the different TimeZone of their areas to display the correct time. -
Page 45: Admin
Mini Mega-pixel IP Camera 3.17. Admin In this page, you can modify the web login account. With this account, you can login to the IP CAM and do any modifications. The default account is “admin” without password. If the login account is forgotten, you can reset the IP CAM to the factory default settings by following the steps in section 3.19 and login with the “admin”... -
Page 46: Upgrade
Mini Mega-pixel IP Camera 3.18. Upgrade If there is some new firmware available from the supplier of this IP CAM, you can upgrade the firmware on this page. Please ask for the correct information about FTP server, username/password account and firmware filename from your supplier, and then do this upgrade. -
Page 47: Reboot
Mini Mega-pixel IP Camera 3.19. Reboot You can restart the IP CAM manually on this page. All the connected video viewing users will be disconnected. Figure 3-27: System reboot settings page Figure 3-28: System reboot under-going page... -
Page 48: Set To Factory Default
Mini Mega-pixel IP Camera 3.20. Set to factory default For some reason, for example you forgot the web login password, you may want to set the IP CAM to the factory default settings. The only thing you need to do is using a stick to press the “reset”... -
Page 49: Features And Specifications
Mini Mega-pixel IP Camera 4. Features and specifications 4.1. Features Plug & play by ID/password, no IP address or DNS settings. H.264 video compression Mega-pixel for up to 1280x800 resolution at 30 fps. Two sensors/lens for day and night separately. ... -
Page 50: Specifications
Mini Mega-pixel IP Camera Specifications Mini Mega-pixel Models DC 5V, 1.5A Power Processors RISC CPU, hardware video processing and compression. Network Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45 interface Wireless IEEE 802.11n 90 - 150 Mbps IEEE 802.11g 6 - 54 Mbps interface IEEE 802.11b 1 - 11 Mbps Transmit power:... - Page 51 Mini Mega-pixel IP Camera Built-in microphone for audio monitoring Audio Built-in 0.5W speaker for alarm and half-duplex two-way audio. Audio compression: G.711 Security Web management username/password protection Video display ID/password protection WiFi WEP and WPA/WPA2 security mode Installation, Plug & play by ID/password. Video management software-CamView for video access and management multi-camera management...
-
Page 52: Package Contents
Mini Mega-pixel IP Camera 5. Package contents Figure 5-1: The IP camera Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable Figure 5-5: Anchors and Screws Figure 5-6: ID/Password Card... -
Page 53: Appendix A. List Of Tested Nat/Router Devices
Mini Mega-pixel IP Camera Appendix A. List of Tested NAT/router Devices The followings are the list of tested NAT/router devices that can work with the IP CAM and CamView software when viewing in a remote location. You do not need to do any modification on the default settings of the NAT/routers. -
Page 54: Appendix B. Maximum Allowed Video Users
Mini Mega-pixel IP Camera Appendix B. Maximum Allowed Video Users The maximum allowed video users for a single camera at the same time is 20. -
Page 55: Appendix C. Performance Information
Mini Mega-pixel IP Camera Appendix C. Performance Information 1. Video Performance Information The video quality is dependent on the video parameter settings and the network quality. If you want to have a better video quality, you will usually set higher resolution and higher frame rate. -
Page 56: Appendix D. Trouble Shooting
Mini Mega-pixel IP Camera Appendix D. Trouble shooting 1. What’s going on when the red led light on the IP camera is flashing? A: When the IP Cam is connected to the Internet and working correctly, the red led light will be on constantly. If the red led light is flashing, it’s probably because there is some network connecting problem. - Page 57 Mini Mega-pixel IP Camera A: It’s probably because the internet bandwidth (internet speed) is not big enough. Please try to apply for a better internet connection from your Internet Service Provider or decrease the bandwidth settings of the IP Cam. You can adjust the bandwidth requirement of the IP Cam either from the CamView software or login into the web configuration page of the IP Cam to do the modification.
- Page 58 Mini Mega-pixel IP Camera Appendix E. Third party and embedded web page integration For third party and embedded web page integration, the IP camera supports the standard RTSP protocol and video/audio codecs needed by most generally used video play software, including Apple QuickTime and VideoLAN. The supported media protocols including TCP and UDP.
-
Page 59: Appendix F. Snapshot Picture On Any Browser
Mini Mega-pixel IP Camera Appendix F. Snapshot picture on any browser If you want to have the live snapshot picture on any browser, use the URL http://ip_address/snapshot.cgi to access the snapshot of the camera. The ip_address is the IP address of the camera. This works for all the browsers on computer or mobile device.
