Summary of Contents for SIGNIPS P-CAST DE7000

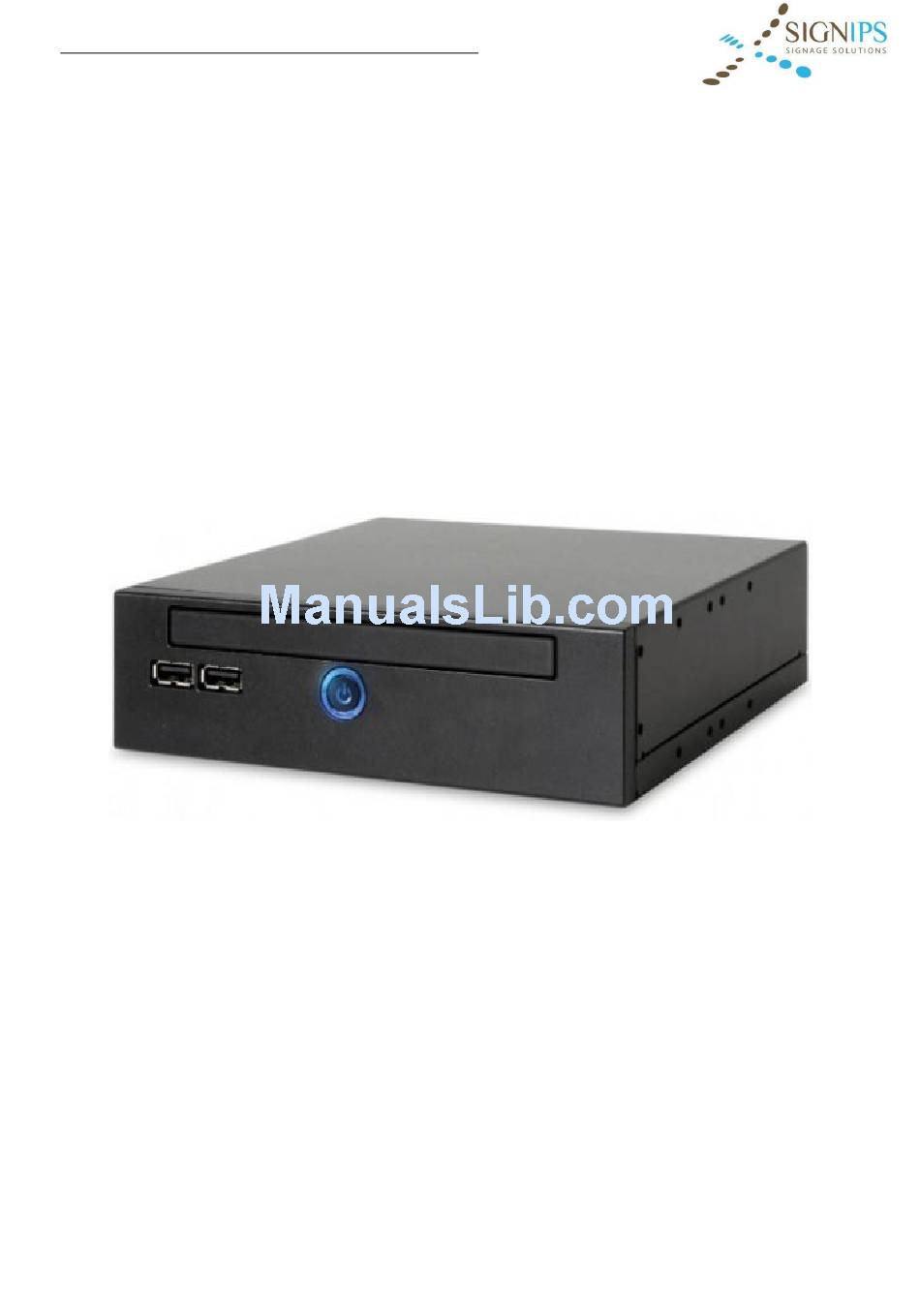

- Page 1 Basic Installation Instruction for the P-Cast DE7000 Media Player P-CAST DE7000 Signage Player...
- Page 2 Basic Installation Instruction for the P-Cast DE7000 Media Player Before you begin: Make sure, that at the chosen location for the Signage solution, the following mandatory infra is installed: 1. 2 Sockets for AC 110V or 230V * 2. Ethernet (RJ45) connection 3.
- Page 3 Basic Installation Instruction for the P-Cast DE7000 Media Player (Fig. 1) Although this is just “a snapshot” that depends on that the achieved results of that specific moment, it will give you some insight in the quality of the connection.
- Page 4 Basic Installation Instruction for the P-Cast DE7000 Media Player Step 1: Attach the mounting brackets to the side of the DE7000 Media Player (Fig.2) Step 2: Mount the DE7000 at the chosen location (e.g. a wall, at the back side of the monitor or on a System Ceiling).
- Page 5 Basic Installation Instruction for the P-Cast DE7000 Media Player Installing the Media Player to a wall: Installing the Media player in a Smart Insert Bracket:...
- Page 6 Basic Installation Instruction for the P-Cast DE7000 Media Player Please enter this link in to your webbrowser: http://www.youtube.com/watch?v=nd1zaBw2XRY&feature=player_embedded Keep in mind that the player needs fresh air to cool down the electronics. Beware that you place the player correct in the Smart Insert and that the ventilation holes are visible:...
- Page 7 Check for Connectivity When you are doen with the installation and the media system is operational you can call Signips Servicedesk to check the connectivity for a specific media player. Please dial +31 40 284 04 02 during office hours CET.
- Page 8 Q: What exactly can you expect from Signips? A: Signips delivers a media player and power supply unit (110V-230V) with one DVI to HDMI cable of approximately 3 feet of length and a pair of mounting brackets with screws to attach them to the media player.
- Page 9 Basic Installation Instruction for the P-Cast DE7000 Media Player Addendum 2: Connecting the Media Player to a consumer panel (TV) We have tested the media player with all known professional panels from Philips as well al many other industrial panels.
