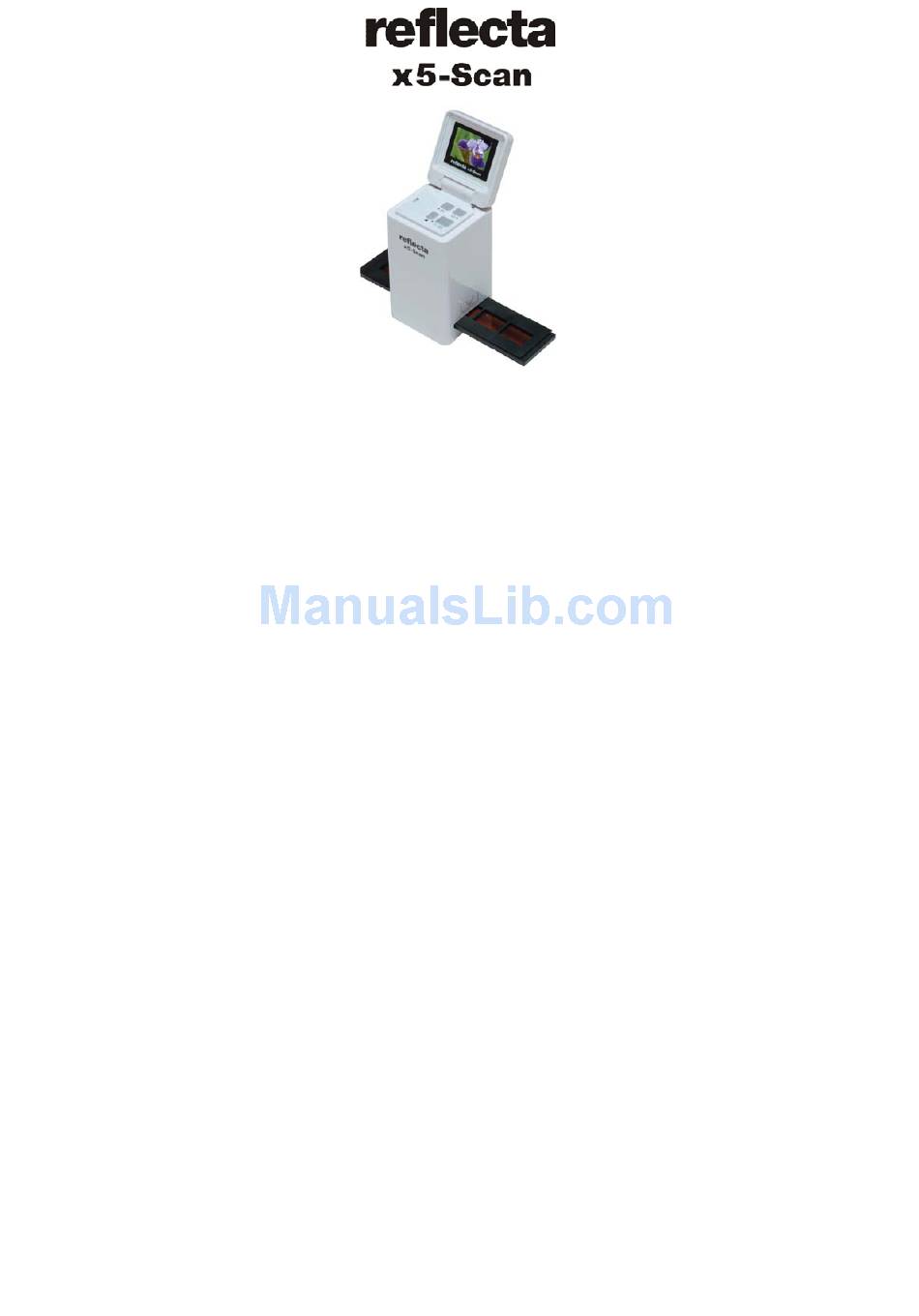

  • Page 1 User manual...

  • Page 2: For Customers In Europe

    For customers in North and South America For customers in USA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that...

  • Page 3: System Requirements

    1. System Requirements • Personal computer, laptop, desktop or IBM compatible with Pentium 166 MHz minimum, and with an active USB (Universal Serial Bus) port. • Windows 98/2000 / XP / Vista/Windows7, CD ROM drive, color monitor, mouse and keyboard. 2.

  • Page 4: Name Of Parts

    3. Name of parts We strongly suggest using a clean, dry, non-alcohol cotton swab to insert into the film scanner slot and clean the glass surface periodically to produce a clear image. Please make sure your film, slide and holder are clean before inserting into the scanner as well. Dust or dirt on the film, slide and holder will affect the quality of your scanned images.
  • Page 5 4 How to install slides and film into the tray holder a. Open the film holder as illustrated b. Put a film/slide in the film/slide slot as shown. Note: Do not flip the film/slide. If flipped, the pictures will be scanned backwards. c.

  • Page 6: Quick Start

    5. Insert and take out SD card ( optional ) • Insert SD card before scanning. • Built in memory will be suspended when the SD card is in use. • Please close and then open the cover after card inserted. Note: This device does not support hot-plug.
  • Page 7 • Select Home Press Start button to back to capture mode. • Scanning Type To enter the Film Type, you can use the Left or Right button to select, press the Start button to confirm. Slide: You need select the Slide mode when you scanner the slide. Monochrome: You need select the Monochrome mode when you scan the BW film.
  • Page 8 PAL: Setting the TV Output to PAL. • Exposure value To enter the EV mode, press the EV button directly.Also you can press the Left or Right button to select, and press Start button to confirm. Exposure compensation helps you change the exposure setting manually to adjust object lighting. This feature helps to achieve better results when scanning a film or slide image with a strong backlight, or an image that is against a dark background.
  • Page 9 • Slide Show Use the Slide Show feature to continue display your photos on the scanner screen panel. Once selected the Slide Show Mode, camera will automatically play all the photos. Press any button to stop the slide show. • Delete One Select the to delete current image.

  • Page 10: Downloading Images To Your Computer

    • Exit Select the icon, and press Start button to confirm, then you will back the playback mode. 7. Downloading Images to Your Computer For Windows 98/ME customers: When connected the scanner to the computer with the USB cable, the “USB Mass Storage driver” appears on the computer screen. For Windows XP: A dialogue box with options appears as shown on the Right side.

  • Page 11: Installing The Software

    8. Installing the software • Installing the software 1. Insert the installation CD into the CD-ROM drive and the installation CD menu should appear. 2. When you see the following screen, choose “Arcsoft Software Suite” to install the software. Windows 2000 / XP / Vista/Windows7 directions: 1.
  • Page 12 5. Click Next to continue. 6. PhotoImpressions will start the setup process. 7. Once you get this to this screen select 8. Click on Finish to complete and restart the "Clear All" so that PhotoImpressions does computer. not take over the files on your computer. 9.

  • Page 13: Main Menu

    9. Now you can start to edit the picture as you like: First , click on the “PhotoImpression 6” icon on the desktop. Follow the instructions to open the software, and click on the picture to select, then use the Arcsoft tools to edit the pictures.
  • Page 14 • Scan All Folders - Scans your entire computer for media (except Windows and Program Files folders). • Select the folders you want to scan -Let's you choose the folders for scanning. View Full Screen/Play (F4) Plays or displays the first selected file in full screen view. - Main Buttons Get Photos Acquire from Scanner...
  • Page 15 How to acquire images from a TWAIN compliant device: Select a scanner or other TWAIN device from the drop down list. Choose the file format you want to use for the acquired images (JPG). If you've selected JPG as the file format, select the image quality for the acquired images (Highest, High, Normal, Low).
  • Page 16 Auto Enhance Click "Auto Enhance" button to improve the overall quality of your pictures with a single click. Manual Fix For precise image enhancement control, adjust the Brightness, Contrast and Sharpen sliders. How to enhance a photo manually: 1. Move the sliders to adjust the level of Brightness and Contrast and to make the image more Sharp.
  • Page 17 yellow to make the photo warmer. Add blue or green to make the photo cooler. Drag the Lighter/Darker slider to the left to reveal details hidden in a dark photo or to the right to make a faded photo look new again. Click "Apply"...
  • Page 18 5. Click "Undo" if you make a mistake or don't like the result. Crop This feature enables you to trim photos for dramatic effect or cut off the ugly/distracting parts of a picture. How to use crop: Choose the crop orientation (portrait or landscape). Select a fixed proportion for the crop rectangle (4:6, 5:7, 8:10) or choose "Custom"...
  • Page 19 How to use Blur Background: With your cursor, trace a line around the person or object you want to stand out. When you release the mouse button, the area outside the traced line will become slightly blurred. Drag the first slider to make the transition between the blurred and non-blurred area sharp or smooth.
  • Page 20 Click "Undo" if you make a mistake or don't like the result. Clone The Clone tool is good for removing unwanted elements from a photo. It can also be used for fun effect, like moving a nose from one person to another. How to use the Clone tool to remove a telephone pole from the background of a photo: Establish a source point for the Clone tool by holding the Shift key and clicking on an area of the sky that you want to use to paint over the telephone pole.
  • Page 21 Blur Smooth out rough areas. Please click and drag the sliders below to change the brush size and intensity. Paint Brush Let you "paint" on your image when you click and drag the mouse. Please click and drag the sliders below to change the brush size and transparency.

  • Page 22: Specification

    10.Specification Interface: USB 1.1 Image Sensor: 5 mega CMOS sensor Lens: F no.= 6.0, 3 glass elements , Half-field Angle=15° Panel 2.4" TFT Focus Range: Fixed focus Exposure Control: Automatic / Manual (-2.0 EV~ +2.0EV) Color Balance: Automatic Scan high resolution 2592x1680 Data Conversion 10 bits per color channel...
