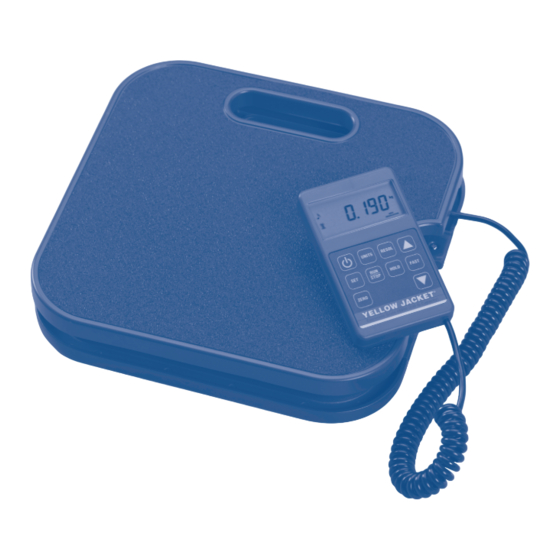

- Page 1 Economy Charging Scale...
- Page 2 If the weight applied to the weighing platform exceeds the maximum capacity of the 68860 (100 kg), a single “1” will be shown on the left side of the display. To prevent damage to the load cell, immediately remove the weight from the platform.
- Page 3 To operate the 68860 as a basic weigh scale, place the weighing platform on a firm, level surface and then perform the following steps: If using a container to hold the objects being measured, place it empty on the center of the platform.
- Page 4 In order to compute the percentage accu- rately, the 68860 must be trained to know the weights of an empty and full tank. To train the 68860 Tank Capacity Mode, perform the following steps: While holding the “ZERO”...
- Page 5 3. Press the “RUN/STOP” key to return to normal operation. Turning the Tank Capacity Mode On without Re-training The Tank Capacity Mode can be turned back on without retraining. The 68860 will remember the previous 0% and 100% set points until the unit is re-trained as above.
- Page 6 As delivered from the factory, the 68860 beeps when turning on and when keys are pressed. This sound can be muted as follows: Make sure the power is on. While holding the “ZERO” key, press the “ON/OFF” key. The musical symbol on the left of the display will turn off to indicate that the sound has been muted.
- Page 7 Item Function Main Numeric Display Alternate Numeric Display Tank Capacity Percent Indication Units Indicators Sound Mute Indicator “Floating” Negative Indicator (indicates weight removed from platform) Battery Level Indicator Fast Adjustment Indicator Set Mode Indicator Tank Capacity Mode Indicator Run Mode Indicator Hold Mode Indicator Program Complete Indicator Calibration Mode Indicator...
- Page 8 Starts programming mode Activates/Deactivates stored program YELLOW JACKET electronic products are covered by a one year warranty from the date of sale. All electronic products must be returned to Ritchie Engineering. If the product is found to be defective, Ritchie Engineering will repair or replace at our dis- cretion.
