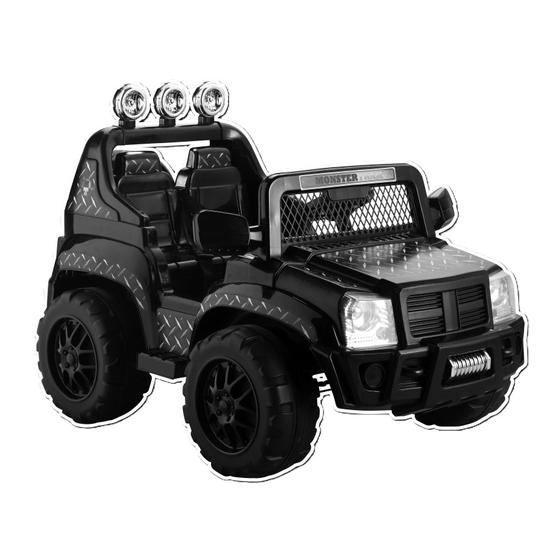

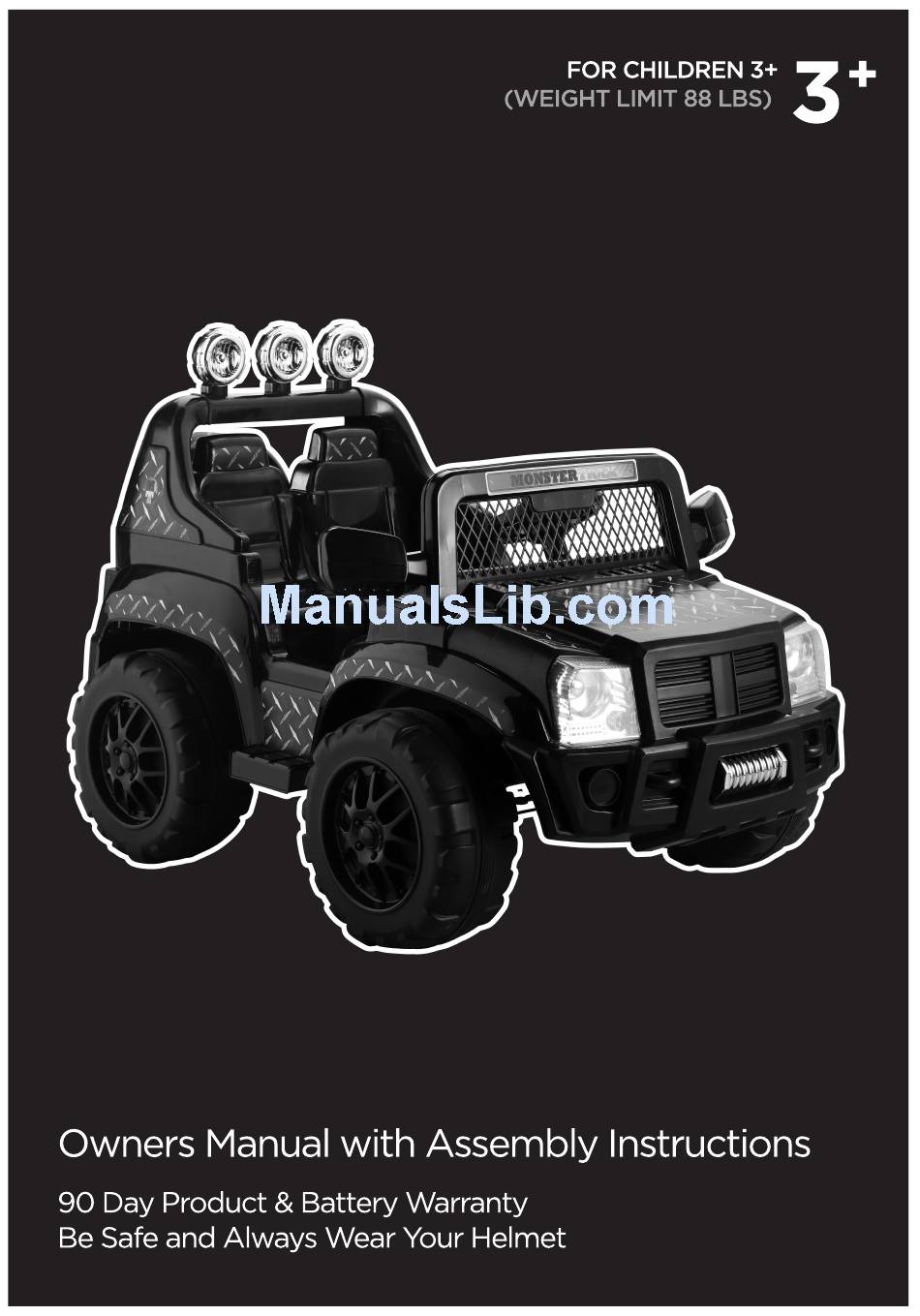

- Page 1 MONSTER TR A X 12 VOLT BLACKOUT SUV...
- Page 2 WARNING! To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes and a helmet. Never allow more than 2 riders. TO PREVENT FIRE AND ELECTRIC SHOCK: Only use battery and charger provided and specified by manufacturer.
- Page 3 Tools required Philips head screwdriver Pliers Adjustable wrench Component List Cover plate under wheel×4 the seat×1 4mm×12mm 4mm×16mm 4mm×12mm 4mm×16mm Circular self-tapping Circular self-tapping Flat self-tapping Flat self-tapping screws×6 screws×2 screws×4 screws×4 5mm×35mm 5mm Lock nut×1 Steering fixing bolt×1 Steering wheel×1 Wheel cover cap Wheel cover Charger...
- Page 4 IMPORTANT! Assembly of your new car is simple, provided Before first time use, charge you carefully follow the detailed diagram and refer to the battery for at least 10 hours. component part numbers to ensure they are fitted in the Never charge the battery longer correct order as shown above.
- Page 5 A to A B to B B to B A to A Connect the wire of the motor in accordance with the instruction in the above drawing, and insert plug-ins of the motor in place. 4mm×12mm Circular self-tapping screws×2 If you have any question, please call the Redman and Associates service phone #1-877-901-8811 instead of returning to the retailer where purchased.
- Page 6 4mm×16mm Circular self-tapping screws×2 4mm×16mm Flat self-tapping screws×2 If you have any question, please call the Redman and Associates service phone #1-877-901-8811 instead of returning to the retailer where purchased.
- Page 7 4mm×12mm Flat self-tapping screws×4 4mm×16mm Circular self-tapping screws×4 If you have any question, please call the Redman and Associates service phone #1-877-901-8811 instead of returning to the retailer where purchased.
- Page 8 4mm×16mm Flat self-tapping screws×2 If you have any question, please call the Redman and Associates service phone #1-877-901-8811 instead of returning to the retailer where purchased.
- Page 9 OPERATING FEATURES Your car is fitted with 2 gearboxes containing 2 forward speeds and 1 reverse speed. The operating speed of your car can be controlled by the middle gear lever. Pushing it all the way forward will engage forward speed on high speed.
- Page 10 Product Specification Suitable age grading 3+yrs Usage temperature range 0-40 degrees C Maximum user weight 88 lbs Speed 2.17-4.35/mph Charger Input AC 120V Output DC 12V 1000mA Battery 12V 7AH×1 Charger time 8-12hrs Battery life Appro×300 charges Battery safety information Disposal Of Battery Disposal Of Battery If you have any question, please call the Redman and Associates service phone #1-877-901-8811...
-
Page 11: Safety Warnings
Charging tips 1.Charging of battery should always be performed by an adult. 2.Never run battery flat as this will decrease battery life. 3.It is quite normal for battery and charger to become very warm during charging cycle. Never charge battery while still warm after use. 4.To ensure proper life span of your battery while car is in storage, it is strongly advised to charge battery fully every 3 months. - Page 12 LIMITED 90 DAY WARRANTY Your Electric Vehicle has a Limited 90 Day Warranty from Redman & Associates, LLC. from the date of original purchase against defects in materials or workmanship. This warranty covers normal use and the coverage is not extended if the unit was damaged by unreasonable use, neglect, accident, abuse/misuse, improper service or other causes not arising out of defects in material or workmanship.
