Summary of Contents for Mi Home MIHO005

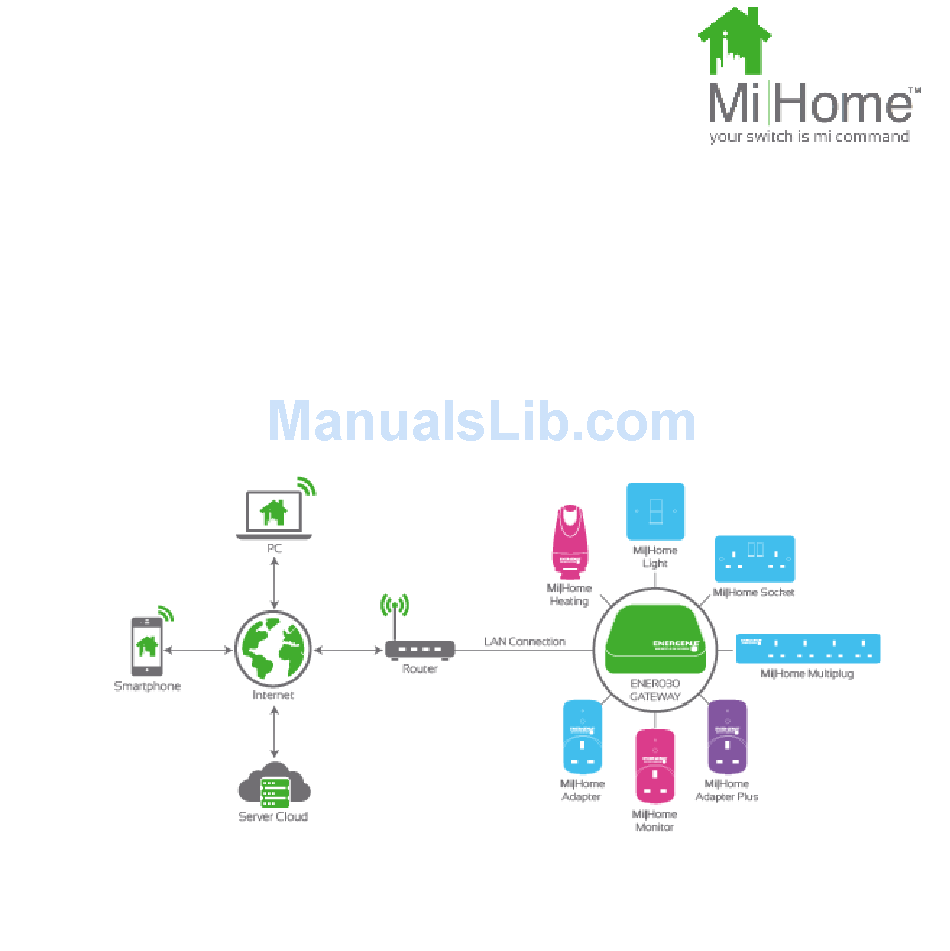

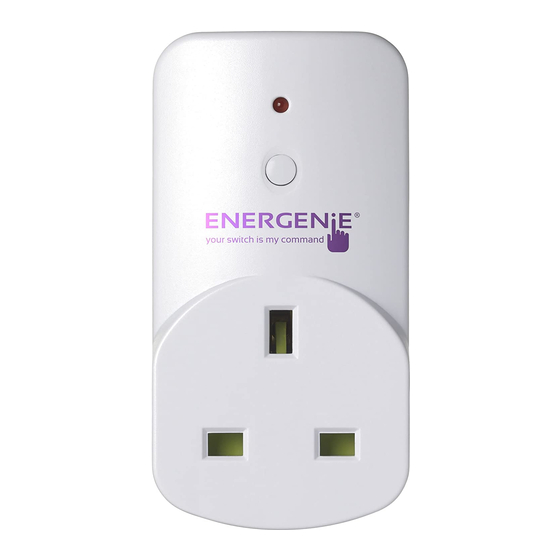

- Page 1 User Manual Energenie MiHome Adapter Plus The Adapter Plus is part of the MiHome home automation range. The Adapter Plus links to the MiHome Gateway which provides the communications between your MiHome device and the internet.
- Page 2 Pairing the Adapter Plus To use the adapter in your MiHome system it must be first “paired” with the Gateway. Please ensure that your device is in range of the Gateway when you pair it. We suggest 10 metres or so as unobscured by furniture or walls etc.
- Page 3 Via a Browser: Select the option to pair a new device and choose the Adapter plus to be registered. Follow the instructions to hold down the button on the front of the housing of the adapter for 5 seconds or more. If pairing is successful you should see the red light on the adapter housing go off while the button is paired and the device come up on the screen as being paired.
-
Page 4: Using The Dashboard
If you are having trouble with the range move your adapter closer to the Gateway or move an obstruction that may affect the signal. Using the Dashboard You can view and control your paired device by selecting the Dashboard option on your App or via the browser. -
Page 5: Technical Specification
Technical Specification Electrical Maximum load: 3000W, 13A Voltage range: 230-250V 50Hz ac Plug and socket: BS5733 and BS1363 Insulation: Class II Radio Transmission Frequency: 434.300 MHz Tx duty cycle: <10% Modulation: FSK, Manchester encoded Transmission Interval: Protocol: OpenThings Environmental Operating temperature: 0°C to 40°C Storage temperature: -40°C to 85°C... - Page 6 Location: Indoor use only Mechanical Plug adapter housing in UK format...
-
Page 7: Troubleshooting
Troubleshooting Please ensure that you do not plug MiHome adapters into adjacent sockets in a wall socket or extension lead. There should be several metres distance between individual adapters. Any local source of radio noise may effect operation of the system. This may include poorly regulated fans or other devices running electric motors, noisy power supplies or other low quality electrical and electronic equipment including LED lights. - Page 8 For further help please look online at mihome4u.co.uk/help or contact us at support@mihome4u.co.uk...
-
Page 9: Declaration Of Conformity
Declaration of Conformity Sandal Plc trading as Energenie declare under our sole responsibility as importer that the product: Model: MIHO005 is in accordance with the following Directive(s): 2006/95/EC Low Voltage Directive (LVD) 2014/53/EC R&TTE Directive (Article 3.1b and 3.2) 2002/96/EC... - Page 10 The Technical Construction File required is maintained at the company headquarters at 5 Harold Close, The Pinnacles, Harlow, Essex, England, CM19 5TH.
- Page 11 Caution Please be aware that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Energenie and MiHome are brand names of Sandal Plc. Registered Office: Claremont House, Deans Court, Bicester, Oxon, OX26 6BW...
-
Page 12: Other Notices
Other Notices THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF... - Page 13 Copyright Notice © 2015 Sandal Plc. User Manual Part no: MIHO005...
