Summary of Contents for Raven Audio Goldfinch Tabletop Audio System 2015

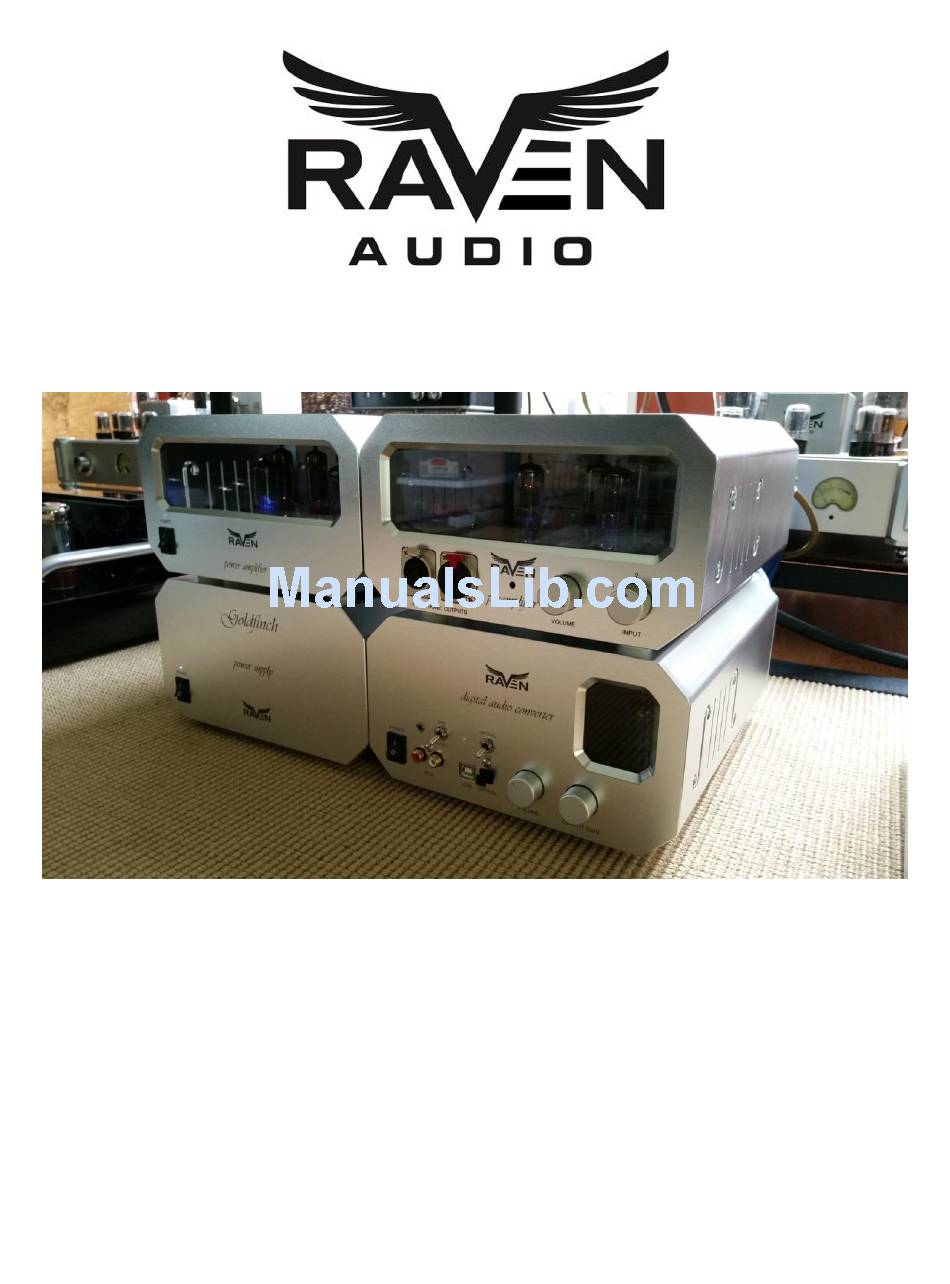

- Page 1 The 2015 Raven Audio Goldfinch Tabletop Audio System!
-
Page 2: The Power Supply
The Power Supply Input AC voltage can be changed upon customer request: 100V, 120V, 220V & 240V – 50/60 Cycle... - Page 3 The Goldfinch Multi-Component System: DAC / Preamp-Headphone Amp / Power Amp Goldfinch: The Rear Panels...
-
Page 4: The Power Amplifier
The Power Amplifier Speaker Output – 6 Ohm RCA Inputs – From Preamplifier Power Input – From Power Source Specifications: Tube Complement - (2) 12AU7 First Stage Amplification & Phase Inverter/Splitter - (4) 6AQ5/6005 Power Amplifier Tube Frequency Range 25Hz ~ 20kHz Power Output: 7.5 Watts Per Channel Recommended Speaker Sensitivity: 90dB ~ 105dB... -
Page 5: The Preamplifier
The Preamplifier Preamplifier Output Gain – 0dB RCA Inputs – From Source – (1 Stereo) R&L Balanced (2 Stereo) R&L Single Ended RCA Power Input – From Power Source Specifications: Tube Complement - (2) 12AT7 First Stage Amplification - (1) 6DJ8/6922 Cathode Follower Headphone Output .5 watt per channel... - Page 6 Enjoy your Godlfinch Audio system in the places where you always wanted high end, but it was never feasible before~! Now you can enjoy high end audio anywhere you have a small space to set your new Goldfinch down on! The Raven Audio Goldfinch Tabletop Audio System – she is so easy to love.
- Page 7 Raven Audio – Goldfinch DAC Specifications 1. D/A Converter: Texas Instruments PCM 1793 a. 24Bit 192kHz Sampling, 8x Oversampling Digital Filter b. Dynamic Range: 113dB c. THD+N: 0.001% d. Sampling Frequency: 10kHz to 200kHz 2. Digital Controller: Cirrus Logic CS8422 a.
- Page 8 500 watts per channel for the same effect. The Raven Audio Goldfinch Tabletop Audio System is a real gem of a system and you have purchased one of the most innovative and quality built products in the audio world today.
- Page 9 Call me if you have a question and I will try to help. Sincerely, Dave Thomson Raven Audio 131 Carlisle Chita Cemetery Rd. Trinity, Texas 75862 936-662-5100 dave@ravenaudio.com Notes:...
