surveillance 112 PZ0312 User Manual

Intelligent speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PZ0312 and is the answer not in the manual?

Questions and answers

Summary of Contents for surveillance 112 PZ0312

  • Page 2: Table Of Contents

    Catalogue Production-------------------------------------------------------------------------------------------------------------------------------------3 Note / Warning / Friendly suggestion Installation and connection--------------------------------------------------------------------------------------------------------------4 Indoor & Outdoor IR High Speed Dome Camera----------------------------------------------------------------------------------5 1. Features 2. Mounting size drawing 2.1 Wall mount 2.2 Hoisting mount----------------------------------------------------------------------------------------------------------------------------6 3. Hardware setting 3.1 Dial codes switch setting 3.2 Baud rate setting 3.3 Address codes setting 4.

  • Page 3: Installation And Connection

    Products introduction Thank you for using our INTELLIGENT SPEED DOME CAMERA Our products use perfect function design of high performance digital DSP, stable performance. The key parts, we use world famous bands, like electrical motor, zoom module, electrical ring, IR lights components. With the perfect electrical circuit design and convenient installation method, make it can tracing objectives fast and correctly.

  • Page 4: Indoor & Outdoor Ir High Speed Dome Camera

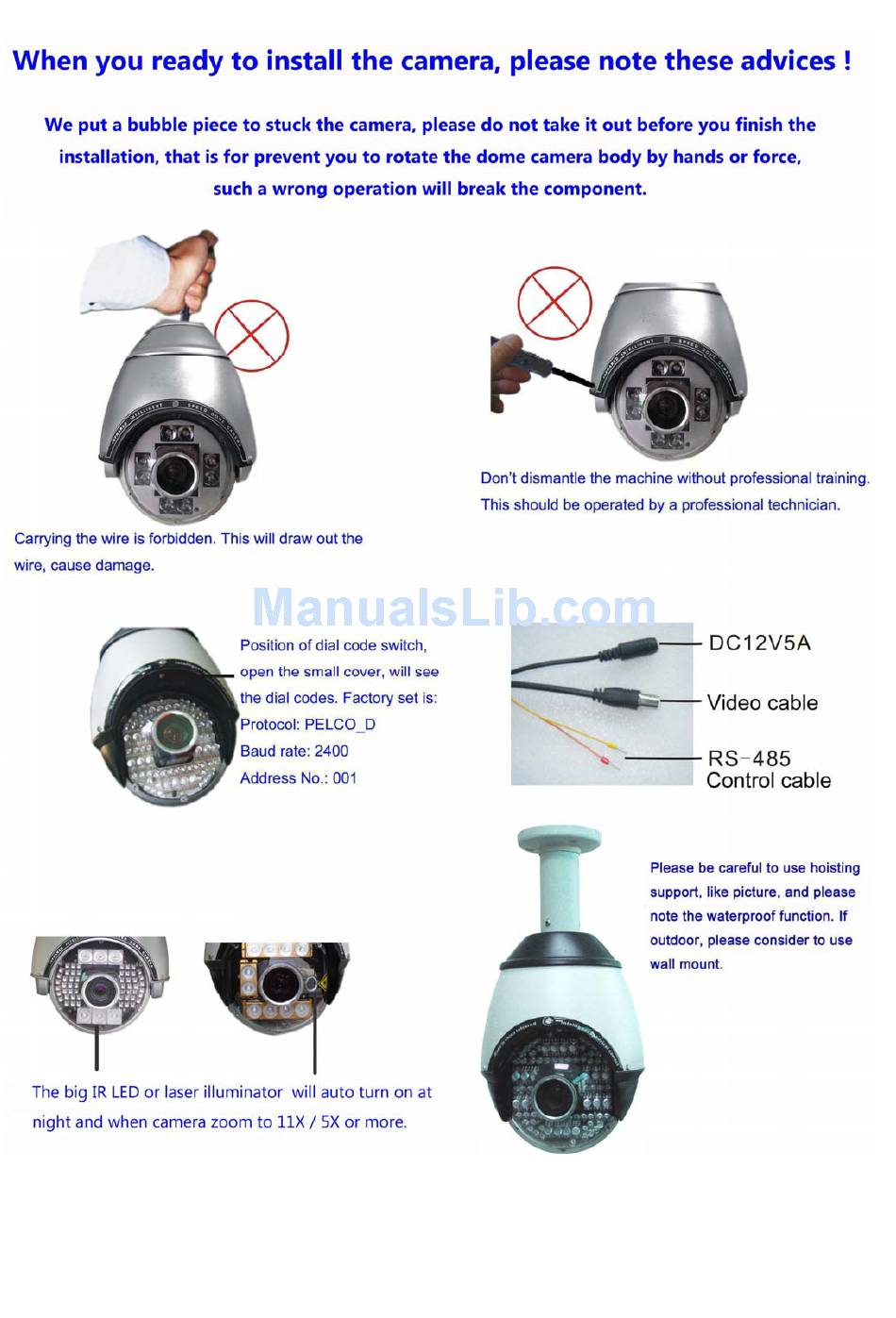

    Notes before installation 1．Installation must by the professional technicians or someone which have qualification. 2．Detailed wiring method please reference the installation sketch map and the install introductions. 3．When you installing camera, please use clean gloves, and avoid to use metal/strong objects/hands to touch the dome or its cover, in order to avoid damage the cover and affect image quality.
  • Page 5 1. Features 128 accurate preset positions, 2 pattern scan routes, 4 tour routes, 1 fixed monitoring position Display PTZ direction and zoom number, and temperature English OSD menu for operation. RS-485 communication, auto identify protocol of Pelco D / Pelco P Address codes range: 1~255 Baud rate: 2400/4800/9600/19200, set by dial codes Horizontal rotating range: 0°...
  • Page 6 3. hardware setting 3.1 Dial codes switch setting Open the codes cover on top of dome cover, see the dial codes of 10 numbers, you can turn every number ON or OFF 3.2 Baud rate setting High speed dome camera can auto identify the Pelco-D / Pelco-P, then starting work, so you just need to set baud rate and address codes of the camera, it can starting normal working.

  • Page 7: Osd Menu Setting

    DVR controlling address code to be 3 or 1, then you can control it. Remarks: alarming output switch always opening, K1~K8 are use to connect outside input signal 4. OSD menu setting 4.1 menu setting operating introductions When the camera power on, its basic informations will display, like protocol, baud rate, address code. After finish the checking and accept your controlling, these informations will disappear.
  • Page 8 TITLE INFO COORDINATE TEMPERATURE Shake the joystick up / down to select, then press the key "Iris+" (or the key "OPEN" / "ENTER" on the keyboard ) to confirm select this item. CAMERA TITLE ON / OFF COORDINATE ON / OFF TEMPERATURE ON / OFF ZOOM...
  • Page 9 the key "OPEN" / "ENTER" on the keyboard ) to confirm select this item, then screen appears "?", shake the joystick up / down to select the letters (a~z, A~Z) and numbers (0~9) you want, move the joystick left or right will move the cursor location, then press the key "Iris+"...
  • Page 10 MODE----PUSH / OFF / ON ID----OFF / ON FOCUS----OFF / ON EXIT IR LIGHT: FUNCTION (MODE)----OFF / ON IR LIGHT (LEVEL)----1 / 2 / 3 (IR light turn on set) SWITCH----OFF / ON ZOOM STAR----1 (changeable) ZOOM END----30 (changeable) EXIT INITIALIZE: ON / OFF EXIT 4.5 PAN setup...

  • Page 11: Calendar Setup

    this item, you can set continuous preset positions in this route, every route can set 16 preset positions (Note: this function shortcut key and number can't use as preset positions ). You can set the speed between every positions (50~128 level). You can set the stay time of every position (1~240 seconds). Run tour--------press the key "Iris+"...
  • Page 12 up / down to change time (YY/MM/DD HH:MM) TIME DISPLAY: select this item, then press "Iris+" (or the key "OPEN" / "ENTER" on the keyboard ) to confirm, move joystick up / down to change display mode, default set is "OFF". TIMING ACTION NO.: select this item, then press "Iris+"...
  • Page 13 Display the camera location coordinates and zoom multiples Waterproof cover level: IP66 Built-in constant temperature control system 2 installation methods: Drop ceiling installation, wall mounted installation Working temperature: -20° C--+65° C Working humidity: less than 95% Power: DC12V/5A 2. Mounting size drawing 2.1 Wall mount 2.2 hoisting mount 3.
  • Page 14 3.3 Address codes setting 10numbers dial codes switch, (picture 01) No.1~ No.8 are use to set the address codes, you can set address codes within the range 1~256, factory default as 1. Use binary, dial every number to be "ON" is means as 1, dial to be "OFF" is means as 0, details please reference the sheet.
  • Page 15 Change the language to be English: move the joystick down to the bottom, press the key "Iris+" (or the key "OPEN" on the keyboard ) to confirm select the item of "LANGUAGE", shake the joystick to change language to be "ENGLISH". SYSTEM SETUP CAMERA SETUP PAN SETUP...

  • Page 16: Camera Setup

    scan/ fixed position scan (home). Select one, then press the key "Iris+" (or the key "OPEN" / "ENTER" on the keyboard ) to confirm and save your set value. You can press the key "Iris-" (or the key "CLOSE" / "RETURN" on the keyboard ) to exit this menu, and back to the previous menu.

  • Page 17: Exit

    BLC: ON/OFF:--------back light compensation is selectable,ON/OFF(selectable by useing the key "zoom") RESET:--------restore factory settings EXIT:--------return ID: --------ID of every camera, in order to control all cameras more conveniently, from 1~255 FOCUS: FOCUS MODE----AUTO: real time, default; MANU: manual focus; PUSH: find image clear point when the zoom stopping, then focus, will not focus again.

  • Page 18: Level

    key "OPEN" / "ENTER" on the keyboard ) to confirm select this item, and enter the next sub menu: (as the sheet:) PATTERN NUMBER 001 / 002 SET PATTERN RUN PATTERN USED STATE ENABLE / DISABLE Pattern number--------shake the joystick up/down to change the scanning routes,(001—002), 2 routes are settable. Set pattern--------select this item, then press the key "Iris+"...
  • Page 19 use the keyboard, you can adjust camera pitch angle and zoom, let the camera to remember it. Left limit: select this item, then press the key "Iris+" (or the key "OPEN" / "ENTER" on the keyboard ) to confirm, shake the joystick up / down to set the position (starting point).

  • Page 20: Clean The Dome Cover

    No. 07 Call 47# preset position No. 161—176# preset position No. 08 Call 48# preset position No. 177—192# preset position Preset position number of pattern scan, and call / delete command Pattern scan route Call command No.01 Call 51# preset position No.02 Call 52# preset position Starting limit scan...

  • Page 22: Shutter

    Simple sheet for check faults Faults Possible reasons Solution Power wires connected wrong Correct Power on, but no Change Power damaged action, no image, Power is not right Change indicating lights off. Power wires are poor connection Rule out Address codes, baud rate are wrong Reset the address codes and baud rate Power on, camera can check itself and display...

  • Page 23: Lg Zoom Module Menu For Reference

    M.IRIS (OFF / ON)---- manual iris; NIGHT (OFF / ON)----auto night vision mode A.SBLC (OFF / ON)----super back light compensation; BRIGHT (ADJ)---- brightness adjustable WBMODE----white balance mode (6 optional); R.GAIN (OFF / ON. ADJ)----red gain adjustable B.GAIN (OFF / ON.ADJ)----blue gain adjustable; SHARP (ADJ)---- sharp adjustable ALARM----alarm (13 modes optional);...

  • Page 24: Mirror

    LANGUAGE: ENG / CHN; INITIAL SET / EXIT / BACK TO PREVIOUS MENU / BACK TO MAIN OPTIONS / END RESET FACTORY SET; SOFTWARE VERSION; REBOOT; PROTOCOL: PELCO-D / PELCO-P; INITIAL SET / EXIT / BACK TO PREVIOUS MENU / BACK TO MAIN OPTIONS / END EXIT Note: If built in LG module to our speed dome, when you enter MENU, "FOCUS+ / -"...
  • Page 25 (e.g. Our control keyboard, if for mid / low speed dome camera, press IRIS + for about 15 seconds , you wills see the zoom module menu. zoom+ / zoom - can be used to choose option, focus + / focus - can be used to change the options value) Use UP / DOWN button to choose the option, when you choose options, the arrow on screen will follow your choice to move, use LEF / RIGHT button to change the mode of your chose option, when you finish all set, move...
  • Page 26 EXPOSURE----enter the sub menu, BRIGHTNESS; IRIS: AUTO / MANUAL; SHUTTER: ANTI-FLICKER / MANUAL / AUTO (best mode); AGC: HIGH / MID / LOW; DIGITAL NOISE REDUCTION; SENSE LIGHT: help camera to get better image at dark environment. ADDITIONAL MENU----enter the sub menu DAY / NIGHT: DAY (COLOR) / NIGHT (B&W) / AUTO;...
