Sonodyne SM 50Ak Owner's Manual

Sonodyne sm 50ak 2-way nearfield active monitor
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
SM 50Ak
2 way nearfield active monitor
owners manual
S N O D N
O
Y E
S N O D N
Y E
O
www.sonodyne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM 50Ak and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonodyne SM 50Ak

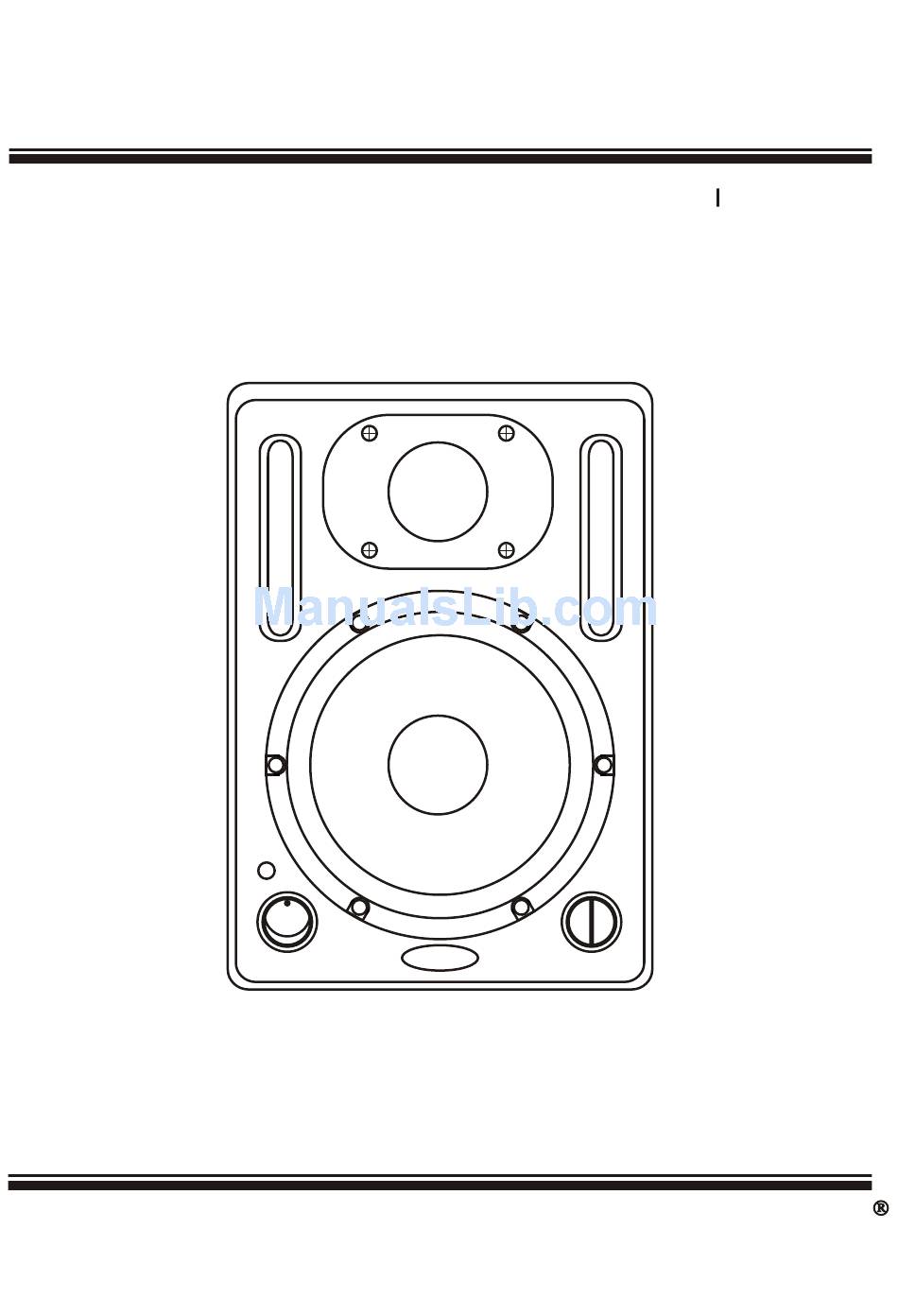

  • Page 1 SM 50Ak 2 way nearfield active monitor owners manual S N O D N S N O D N www.sonodyne.com...
  • Page 2 INTRODUCTION Congratulations on your purchase of the SM 50Ak near field active studio monitor. The SM 50Ak has all the makings of a truthful reference device. The high grade transducers, the aluminium die cast rigid enclosure, the active amplification, the on board EQ, among others, result in sound that is neutral and transparent.

  • Page 3: Controls And Features

    • GAIN: The SM 50Ak has a variable gain control. The gain is factory set to 0 dB. With the level control on the front panel set to maximum position (fully clockwise) and an input signal of -6 dBu, the SM 50Ak will typically produce an output of 109 dB SPL at 1 meter in an anechoic environment.

  • Page 4: Installation

    INSTALLATION ROOM PLACEMENT: The SM 50Ak has a wide variety of placement options. Shown in Fig. 4 on page 4 is a typical stereo setup for near to mid-field monitoring. Shown in Fig. 3 is a typical 5 channel setup.

  • Page 5: Operation

    Switch on your mixer, but keep the master level control at minimum. • Switch ON SM 50Ak. The blue power LED will light up. Ensure that the Input Sensitivity (Gain control at the rear panel) is set to 0 dB •...

  • Page 6: Troubleshooting

    Is the master level control on the front panel turned up? The gain control on the rear panel may be at minimum position. • Is the signal source turned up? Make sure that the signal level from the device preceding the SM 50Ak is high enough to match the Input sensitivity (Gain control on rear panel).
  • Page 7 Fig. 6, 7 & 8 FIG. 6 FIG. 7 FIG. 8 S N O D N SM 50Ak Page 6...

  • Page 8: Specifications

    S N O D N A product of the Mukherjee Innovation Centre Manufactured by Sonodyne Technologies Pvt. Ltd, H.O.: 98 NB Block E New Alipore, Kolkata 700053, INDIA Tel: +91 33 24570418, 24583406; Fax: +91 33 24787243; E-mail: response@sonodyne.com Please visit us at www.sonodyne.com...
