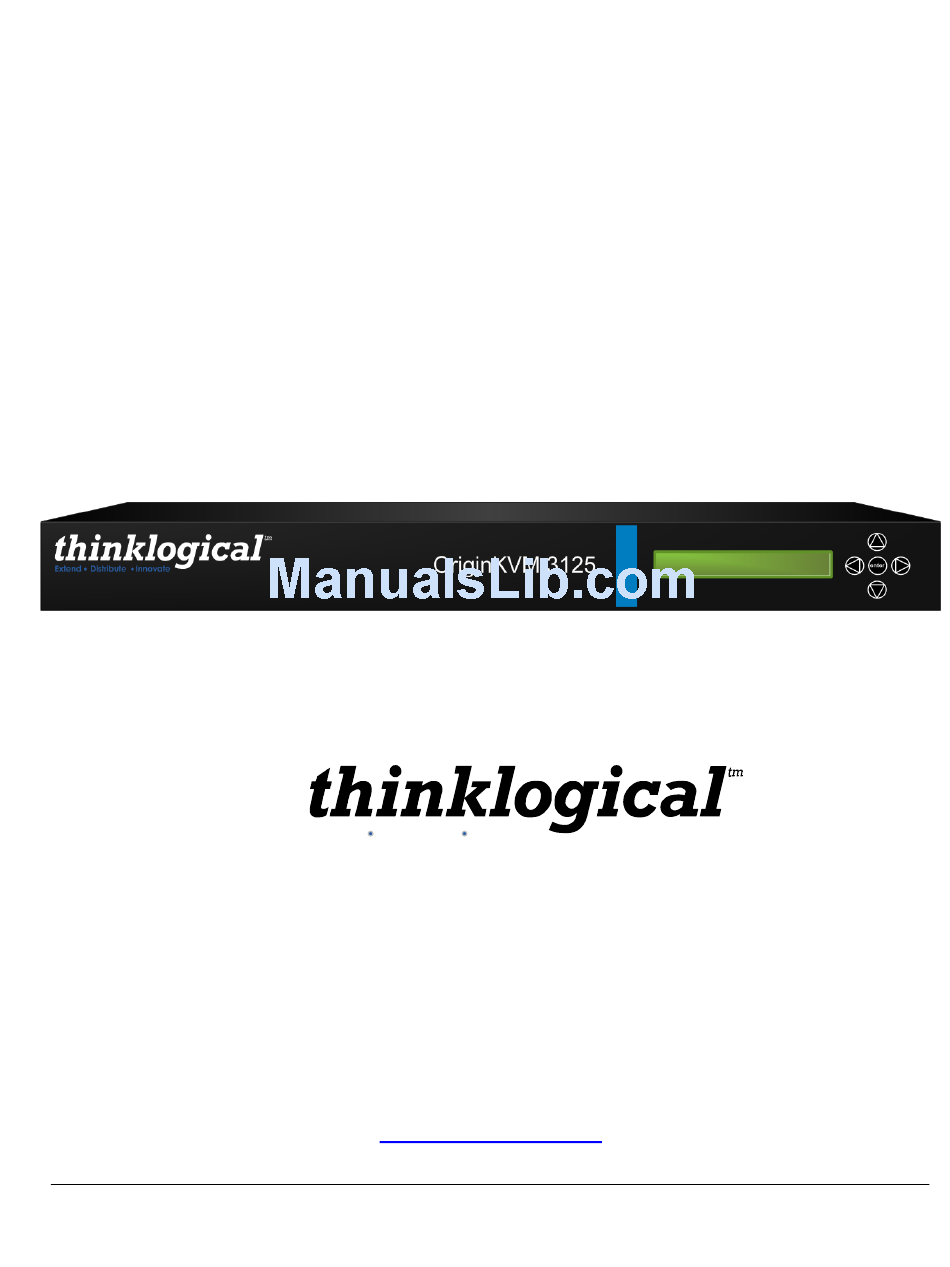

- Page 1 OriginKVM 3125 Product Manual Extend Distribute Innovate Thinklogical LLC 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 www.thinklogical.com REVISION A JUNE 2011...
-
Page 2: Copyright Notice
Logical Solutions 100 Washington Street Milford, Connecticut, U.S.A. 06460 Telephone 1-203-647-8700 All trademarks and service marks are the property of their respective owners. Subject: OriginKVM 3125, 3x1 KVM Switch Revision: Rev A, June 2011 REVISION A JUNE 2011... -
Page 3: Table Of Contents
6.2.1 Warranty ..........................12 6.2.2 Our Address ........................13 Appendix A: OriginKVM 3125 Quick Start Guide ………………………………………………………..14 Appendix B: OriginKVM 3125 Front Panel LCD Displays ……………………………….…………….….. 15 Appendix C: Out Of Band Control for Apple Keyboard Users …….…………..……….……………….. 16 REVISION A... -
Page 5: Introduction
1. Introduction 1.1. Contents When you receive your Thinklogical™ OriginKVM 3125, you should find the following items: OriginKVM 3125 Switch – KVM-003125 AC Power Cord – PWR-000006-R (International connections may differ) OriginKVM 3125 Cables (Audio, USB, Serial, CAT5, DVI Dual-Link) ... -
Page 6: System Features
Many USB touch-screens and tablets are also supported on the USB HID port. Each OriginKVM 3125 system includes the following features: Supports 2 video channels, either single-link or dual-link Supports USB HID devices such as keyboards, mice, tablets and touch-screens ... -
Page 7: Technical Specifications
16 lbs (7.26 kg) Copper Cables (3) 3.5mm Male to Male Plug, 6FT (supplied with unit) Thinklogical Part Number: CBL000016-006FR (3) USB Type A to USB Type B Cable, 6 Feet Thinklogical Part Number: CBL000015-006FR (3) DB9M to DB9F Serial Cables... -
Page 8: Product Overview
2.2.2. Convection Cooled The OriginKVM 3125 does not require special cooling or ventilation. No fans means that it will not add to the ambient noise in your equipment room and it is less prone to equipment failure. Be sure to not block the air vents on the sides of the unit. -
Page 9: Cables
Extend Distribute Innovate 3.3 Cables 3.5mm to 3.5mm Audio Cable, 6 Feet (CBL000006-006FR) – Qty 3 3.3.1 3.5mm 3.5mm USB A-B Cable, 6 Feet (CBL000015-006FR) – Qty 3 3.3.2 USB B USB A DVI-D Dual-Link, 2 Meters (CBL000023-002MR) – Qty 6 3.3.3 DVI Male DVI Male... -
Page 10: Installation
(Also see Appendix A: Quick Start Guide, on page 14.) Console Connections: 1. Connect an AC Power Cord to the OriginKVM 3125 and turn the unit ON 2. Plug DVI Dual-Link Displays 1-2 into the DVI ports labeled DVI OUT Dual-Link 1 and 2. See Appendix B (pg. -
Page 11: Regulatory And Safety Compliance
Regulatory Compliance Thinklogical™ LLC products are designed and made in the USA. Our products have been tested by a nationally recognized testing laboratory and found to be compliant with the following standards (both domestic USA and many international locations). -
Page 12: Standards With Which Our Products Comply
Extend Distribute Innovate 5.2.3.2 Standards with Which Our Products Comply Safety CENELEC EN 60950-1, 1 Edition (2001) Electromagnetic Emissions EN55022: 1994 (IEC/CSPIR22:1993) EN61000-3-2/A14:2000 EN61000-3-3:1994 Electromagnetic Immunity EN55024:1998 Information Technology Equipment-Immunity Characteristics EN61000-4-2:1995 Electro-Static Discharge Test ... -
Page 13: Product Serial Number
5.2.5 Product Serial Number Thinklogical™ products have a unique serial number, imprinted on a small silver label that is placed on the bottom of the chassis. The serial number includes a date-code. The format for the date-code is two digits for the month; two digits for the day, two digits for the year and two or three digits for a unique unit number. -
Page 14: Email
(ii) modifications to or repairs of the product that are made by any party other than Thinklogical or a party acting on Thinklogical’s behalf, or (iii) combination of the product with third party products that is not consented to by Thinklogical. -
Page 15: Our Address
Repairs may be made with refurbished parts. If repair or replacement is not possible, Thinklogical may keep the defective product and refund the amount that you paid for the defective product. These are Thinklogical’s sole obligations, and your exclusive remedies, for a breach of the limited warranty set forth above. -
Page 16: Appendix A: Originkvm 3125 Quick Start Guide
Extend Distribute Innovate Appendix A: OriginKVM 3125 Quick Start Guide REVISION A JUNE 2011... -
Page 17: Appendix B: Originkvm 3125 Front Panel Lcd Displays
Extend Distribute Innovate Appendix B: OriginKVM 3125 Front Panel LCD Displays REVISION A JUNE 2011... -
Page 18: Appendix C: Out Of Band Control For Apple Keyboard Users
LCD System Information and Programming LCD Navigation If using an Apple Keyboard, once the firmware has been installed into the OriginKVM 3125, use the UP arrow on the Navigation Pad to reach *Out of Band CTRL from the main menu. Then use the RIGHT arrow to reach User Set HOT Key Scroll Lock.
