ADSMAG
Manual (EN)
Firmware 0.1
Serial
1 0 0 0
Be preserved
Copyright  2005 Alfano, S.A. Tous droits réservés.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADSMAG and is the answer not in the manual?

Questions and answers

Related Manuals for Alfano ADSMAG

Summary of Contents for Alfano ADSMAG

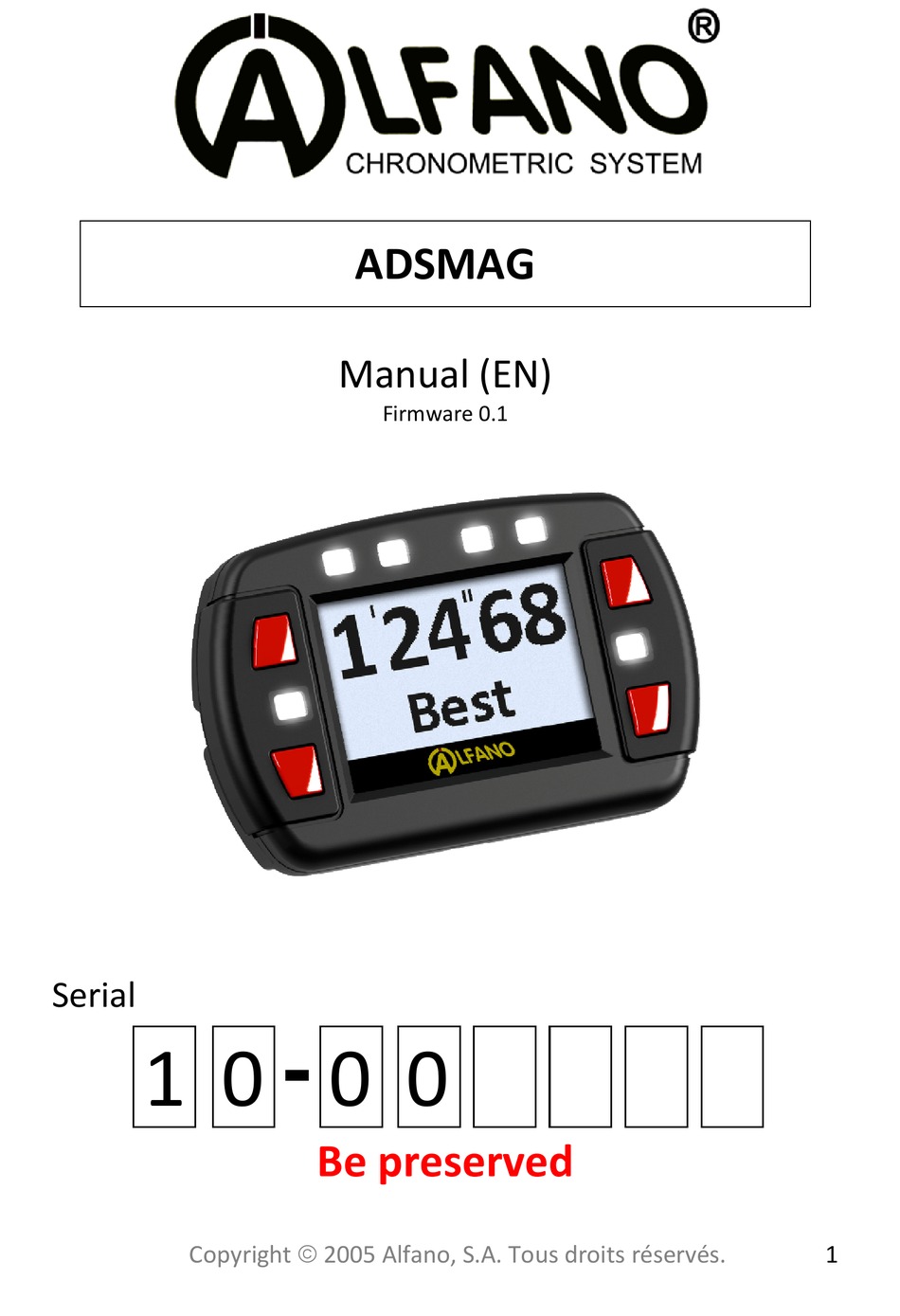

  • Page 1 ADSMAG Manual (EN) Firmware 0.1 Serial 1 0 0 0 Be preserved Copyright  2005 Alfano, S.A. Tous droits réservés.

  • Page 2: Installation

    It consists of 6 LEDs, 4 buttons, the external dimensions are 133,5x90x40mm, weight 275gr. • The ADSMAG is equipped with a magnetic sensor ref. A1301 • Batteries : Type 2xAA The four LEDs above the screen are activated by running the fastest time achieved.
  • Page 3 Press the button on the bottom right, the system is activated on the main page. Depending on the setting in the SETUP DISPLAY, the Alfano is active in several ways : Backlight • "OFF" : Alfano the comes on without backlight.

  • Page 4: Circuit Configuration

    For the visualization and the logical recording of the data, it is necessary, before using the ALFANO in race, to configure the morphology of the track. With the arrow « » at the top, choose the number of magnetic strips installed on the circuit.
  • Page 5 Windows race & Setting Led From the main page, press the button at the top right. Then press on « Choice » to display windows race (layout). Currently, there are 12 windows to choose from. Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 6 • Lap time • Difference on the lap • Difference on partial Race « 3 » • Lap time • Nr of laps • Difference on the lap • Difference on partial Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 7 Nr of laps Race « 7 » • Lap time (REVERSE) • Nr of laps • Difference Race « 8 » • Lap time with partial ACCUMULATED • Nr of laps • Difference Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 8 • Nr of partial • Difference on partial Note : You can change the display while driving on the circuit, with the same button. Other windows will be available in the future. Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 9 To change the window in race Then press the button at the top right. To enable or disable the backlight in the race Press the button on the top left. Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 10 STOP appears for a few seconds. Best laps Before returning to the main page, the ALFANO shows the best time and the best time of the last session Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 11 The « Sessions » are reported by chronology. Last Session is selected by default. Press on "ok" on the desired session Third window : « Best » The best lap is displayed with the respective partial. Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 12 Scroll through the entire session with the arrows on the left to display all the laps. Press on "ok" Seventh window : « Erasing data » Press on « OK » more than 3 seconds Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 13 Note : for future use, the ALFANO will store the configuration of all the settings before closing the lock. On the next power, or from the button or step on the magnetic stripe, the ALFANO only displays window race, only the buttons on the bottom will be activated to show the best time.

  • Page 14: Power Supply Option

    UNIROSS charger from 100 to 240V 2050mAh Hybrio 1.2V 50/60Hz ! No memory effect ! A4017 ALFANO Rechargeable Pack 8.800 mAh Li Ion 3.7V (Waterproof) 75x40x40mm Delivered with a 100 to 240V 50/60Hz charger and a case. A4006 (A4014 + A4017)
  • Page 15 Option Support It is fixed with clamps, the instrument has two steps to fix it. Steering wheel : A5002 Windshield : A5001 Copyright  2005 Alfano, S.A. Tous droits réservés.
  • Page 16 Product modifications Alfano applies a method of continuous development. Alfano reserves the right to make changes and improvements to any product described in this document without prior notice. No modifications or changes to the product should be done without ALFANO approval.

  • Page 17: Important Notice

    2-3 weeks to avoid the dissolution of the batteries on the electronics causing irreparable damage. You lose the warranty in case of leakage of battery acid Rue de l’Industrie, 3b – 1400 NIVELLES (BELGIUM) www.alfano.com Copyright  2005 Alfano, S.A. Tous droits réservés.
