Installation
Installing BikeComm Headset to Helmet

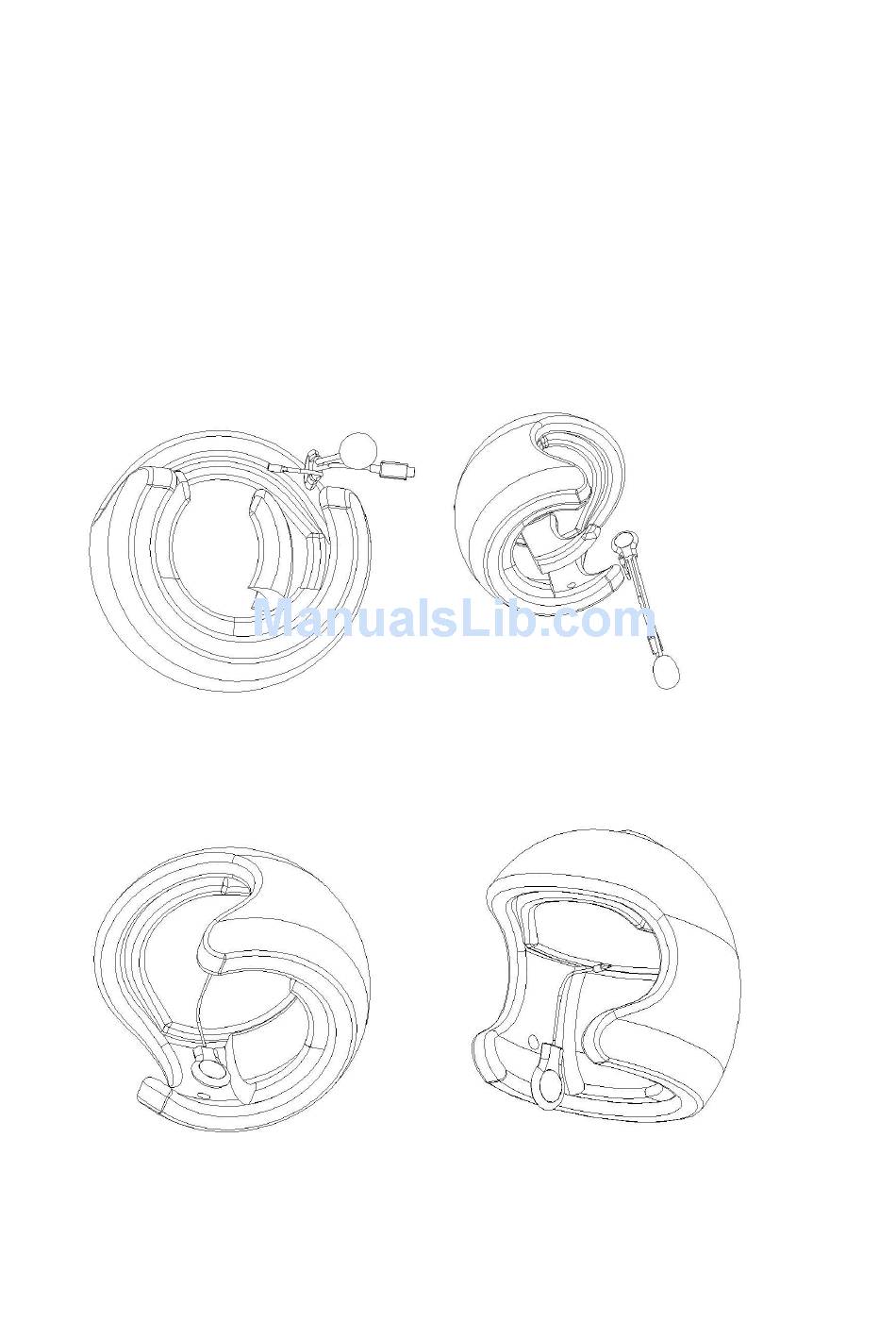

Step1: Install the left speaker/microphone first. Separate the inner lining of the helmet
on the left side, insert the left speaker/microphone between the inner lining and the
helmet, and fasten the left speaker/microphone to the helmet with the magic tape.
Step 2: Insert the right speaker from the right right of the helmet, and connect to the
left speaker/microphone.
1
Advertisement
Table of Contents
Summary of Contents for Bikecomm EZ-02
- Page 1 Installation Installing BikeComm Headset to Helmet Step1: Install the left speaker/microphone first. Separate the inner lining of the helmet on the left side, insert the left speaker/microphone between the inner lining and the helmet, and fasten the left speaker/microphone to the helmet with the magic tape.
- Page 2 Installing BikeComm Headset and Clip Base to Helmet Step 1: Apply the magic tape to left side of the helmet at suitable location. The lower edge of the magic tapes should be in-line with the lower edge of the helmet.
- Page 3 Step 3: Slide the BikeComm headset from the top of the clip base into the track on clip base, as indicate in the figure below. Step 4: Connect the speaker/microphone USB to BikeComm headset.
-
Page 5: Power And Led Indicator
The three main functions of BikeComm headset are (1) calling/answering cell phone, (2) receiving audio (music, and/or GPS instruction) from other wireless devices, and (3) intercom with other BikeComm headsets. Each button of the BikeComm headset is designed for multiple function settings, and the following section will guide you through in setting up your BikeComm headset. -
Page 6: About Pairing
BikeComm headset and each device respectively. How to Pair: Pairing with Cell Phone: (1) When the BikeComm headset is in OFF state, press the [MFB] on the BikeComm headset for about 8 seconds until the LED flashes red/blue alternating. - Page 7 GPS user’s manual for details.) (1). On GPS, search for cell phone and connect to cell phone. (2). With the BikeComm headset in OFF state, press the [MFB] on the OpenRoad headset for about 6 seconds until the LED flashes red/blue alternating.
- Page 8 The BikeComm headset can also be paired with up-to 3 other OpenRoad headsets for intercom. (1). To pair two BikeComm headsets (e.g., A and B), the following operations must be performed on both A and B, respectively. (2). With the headset in OFF state, press the [MFB] on the headsets (A, B) simultaneously for about 6 seconds until the LED flashes red/blue alternating to enter the “pairing”...
-
Page 9: Volume Control
In case you should need to adjust volume during the ride, extreme caution must be taken to ensure safety. The [V+] and [V-] buttons on BikeComm headset are for volume control. When the volume is adjusted to the highest or lowest level, you will hear a <beep>... - Page 10 The setting of Voice Answer to answer incoming call is different from the setting of VOX. (Please refer to: BikeComm Headset Voice Activation (VOX)). (3). Use automatic answering, by setting the automatic answering function, the phone will be automatically answer after 5 second of ringing.
- Page 11 (VOX vs. Manual Activation) Voice Activation (VOX) Mode You can use voice activation (VOX) to activate your BikeComm headset for an intercom with another headset. However, the first intercom between two headsets after the successful pairing can only be activated manually. During the intercom, any silence of more than 10 seconds will automatically end the intercom connection.
- Page 12 The indicated speed is only for reference, and the application depends on the actual environmental noise level and the wind speed. VOX Level Control: When the BikeComm headset is ON (but without any voice signals transmitted), press [V+] or [V-] twice to raise or lower the voice level.
-
Page 13: Manual Activation Mode
VOX mode. Manual Activation Mode Manual Activation Mode: Press [V+] twice to adjust the BikeComm Headset to Level 5. (1). If you need to stay in intercom connection for a long period of time, it is suggested that you set both your headset and your target headset to Level 5 (i.e., Manual Activation Mode). - Page 14 Use Your GPS If you have paired your BikeComm headset with a GPS, you can hear the voice instruction from the GPS through the headset. If you are on an intercom with another headset when the GPS voice instruction comes in, you can hear <dodo>...
- Page 15 CELL PHONE TALK Answer incoming call Press [MFB] Automatic Answer Automatic answer after ringing for 5 seconds Speak into microphone directly, e.g., “Hello.” Voice Answer End a call Press [MFB] Reject a call Press [MFB] for about 3 seconds Voice dial Press [MFB], and speak into microphone INTERCOM WITH A HEADSET Manual Activation...
