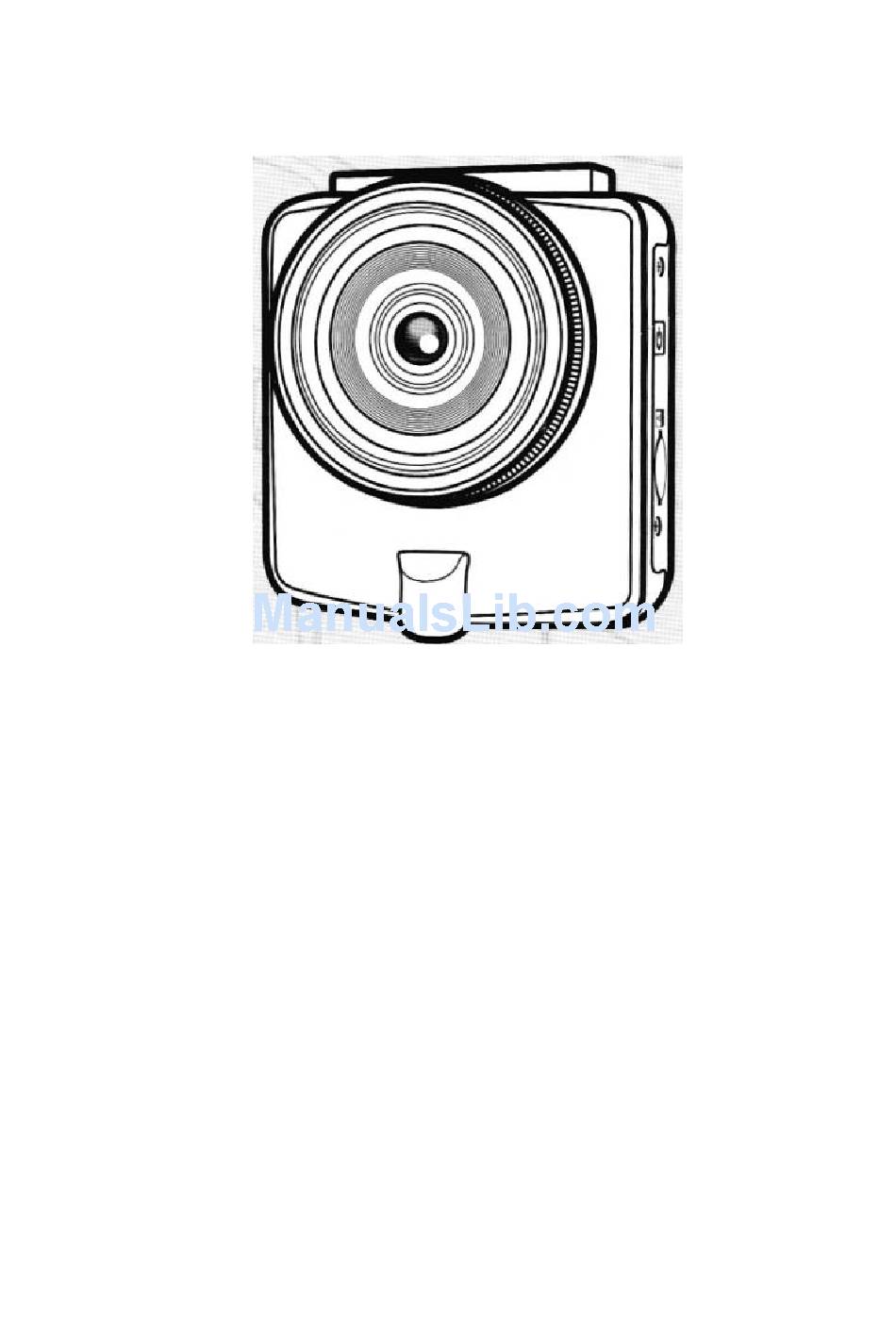

  • Page 1 Vehicle Video Recorder User Guide...

  • Page 2: Table Of Contents

    Contents About this Guide ..............3 FCC Statement ..............3 WEEE Notice ..............3 CE Regulatory Notice ............4 Notes on Installation ............4 Caution ................4 Introduction ..............5 Features ............5 Package Contents ........... 5 Product Overview ..........6 Getting Started.............
  • Page 3 3.1.4 The Recording Screen ....... 15 3.1.5 Taking Snapshot........ 16 Playback Videos and Photos ......17 3.2.1 Playing Videos ........18 3.2.2 Viewing Photos ........18 3.2.3 The Playback Screen ......19 3.2.4 Deleting Files ........20 Adjusting the Settings ..........21 Using the Menu ..........

  • Page 4: About This Guide

    About this Guide The content in this document is for information purpose and is subject to change without prior notice. We made every effort to ensure that this User Guide is accurate and complete. However, no liability is assumed for any errors and omissions that may have occurred. The manufacturer reserves the right to change the technical specifications without prior notice.

  • Page 5: Ce Regulatory Notice

    CE Regulatory Notice This equipment complies with the requirements set out in the Council Directives on the Approximation of the Laws of the Member States relating Electromagnetic Compatibility (2004/108/EC); the Low Voltage Directive (2006/95/EC); the Restriction of The Use of Certain Hazardous Substances in Electrical And Electronic Equipment Directive (2002/95/EC), Turkish EEE Directive;...

  • Page 6: Introduction

    1 Introduction Thank you for purchasing this advanced Vehicle Video Recorder. This device is specifically designed for real time video and audio recording when driving. 1.1 Features  Full HD camera (1920x1080 @ 30fps)  2.4” LCD color screen  Wide angle lens ...

  • Page 7: Product Overview

    1.3 Product Overview Rear View Side (Top and Bottom) Views Side (Left and Right) Views Front View Item Item Bracket Socket LED Indicator Microphone LCD Panel Power Button Up Button Memory Card Slot Down Button USB Connector Enter Button HD Connector Wide Angle Lens Back Button Speaker...

  • Page 8: Getting Started

    2 Getting Started 2.1 Inserting the Memory Card Insert the memory card with the gold contacts facing the back of the device. Push the memory card until it clicks into place. To remove the memory card Push to eject the memory card out of the slot. Note: 1.

  • Page 9: Installing In Vehicles

    2.2 Installing in Vehicles 2.2.1 Mount to Windshield Attach the bracket to the device. Slide it into the bracket holder until you hear a click. With the suction-cup laying flat, position the suction-cup on the windshield. Hold the base firmly on the windshield and press down the clamp to mount the car holder to the windshield.

  • Page 10: Adjust The Device Position

    2.2.2 Adjust the Device Position Loose the knob to swivel the device vertically. Knob Loose the knob to swivel the device horizontally up to 360°. Knob Then tighten the knob to make sure the device is securely locked in place.

  • Page 11: Connecting To Power

    2.3 Connecting to Power Use only the supplied car adapter to power up the device and charge the built-in battery. Connect one end of the vehicle adapter to the USB connector of the device. Plug the other end of the vehicle charger to the cigarette lighter socket of your vehicle.

  • Page 12: Powering The Device On / Off

    2.4 Powering the Device On / Off 2.4.1 Auto Power On / Off Once the vehicle key is in the On position, the device automatically turns on. If the Automatic Record function is enabled, the recording will automatically start right after the device turns on. See Set Automatic Recording (2.5.1).

  • Page 13: Initial Settings

    2.5 Initial Settings Before using the device, we recommend you to enable the Automatic Record function and set up the correct date and time. 2.5.1 Set Automatic Recording To enable the recording to start automatically after you turn on the vehicle power, do the following: Press the button to enter the OSD menu.

  • Page 14: Using The Vehicle Video Recorder

    3 Using the Vehicle Video Recorder 3.1 Recording Videos 3.1.1 Record Videos While Driving When the vehicle key is in the On position and the Automatic Record function is enabled, the device automatically turns on and starts recording. Recording will automatically stop when the vehicle key is in the Off position.

  • Page 15: Emergency Recording

    3.1.3 Emergency Recording During Video Recording, press the " " button to enter emergency recording mode, the “Emergency” message will be shown immediately on upper left corner of the screen, and the recorded file will be protected. To stop the recording, press the button.

  • Page 16: The Recording Screen

    3.1.4 The Recording Screen Description Item Indicates the recording duration. Duration Date and time Indicates the current recording date and time. Guide icon Press the button to enter the OSD menu. (Menu) Guide icon Press the button to switch to Playback mode. (Playback) 1080P (1920x1080) / 720P (1280x720) Resolution...

  • Page 17: Taking Snapshot

    3.1.5 Taking Snapshot You can also use this device to take snapshots of the current scene. From the standby screen, press the button to take a snapshot. Note: If recording is in progress, press the button to stop the recording first.

  • Page 18: Playback Videos And Photos

    3.2 Playback Videos and Photos If recording is in progress, press the button to stop recording. The standby screen is displayed. Press the button to enter the OSD menu. Press the button to select the file category that you want to browse and press the button.

  • Page 19: Playing Videos

    3.2.1 Playing Videos To play videos, do the following: If recording is in progress, press the button to stop recording. Press the button to enter the OSD menu. Press the button to select File Playback and press the button. Press the button to select Video or Emergency and press the button.

  • Page 20: The Playback Screen

    3.2.3 The Playback Screen Video Playback Screen Photo Playback Screen Description Item Date and time Indicates the recorded date and time. Press the button to return to file Guide icon selection display. (Back) Press the button to view the previous Guide icon video/photo.

  • Page 21: Deleting Files

    3.2.4 Deleting Files To delete file(s), do the following: If recording is in progress, press the button to stop recording. Press the button to enter the OSD menu. Press the button to select File Deletion and press the button. Press the button to select the file category and press the button.

  • Page 22: Adjusting The Settings

    4 Adjusting the Settings 4.1 Using the Menu You can customize the video recording and other general settings via the on-screen display (OSD) menus. If recording is in progress, press the button to stop recording. Press the button to open the OSD menu. Press the button to select a menu option and press the button to enter the selected menu.

  • Page 23: Menu Tree

    4.2 Menu Tree Refer to the below table for details on menu items and available menu options. Menu Description Available option option Select the file category that File Video / Emergency / you want to view. Playback Picture Press button to adjust the value, press the Set the date and time.
  • Page 24 Menu Description Available option option Enable/Disable the motion detection. If this function is enabled and the power off button is pressed, the system alert message, “Press OK key to power off. Or enter Motion On / Off motion detection after 10 Detection sec.”, will pop on the screen.
  • Page 25 Menu Description Available option option Set the TV type based on TV standard NTSC / PAL your local region. Format Format the memory card. Yes / No Reset all settings to factory Default Yes / No default settings.

  • Page 26: Specifications

    Specifications Item Description 1/3” CMOS sensor Image sensor 2304 (H) x 1536 (V) Effective pixels Storage media Support Micro SDHC, up to 32GB class 6 or above 2.4” LCD color TFT (112K pixels) LCD display Wide Angle Fixed Focus lens Lens F2.4, f=3.0mm Focus range...
  • Page 27 Item Description Operating 32°F ~ 122°F (0° ~ 50° C) Temperature Operating 20 ~ 70% RH Humidity Storage -4°F ~ 176°F (-20° ~ 80° C) Temperature 2.48 x 2.76 x 1.13 in (63 x 70 x 28.7 mm) Dimensions Weight Approx.
  • Page 28 Copyright © 2013 All rights reserved. All other marks, products or company names mentioned in this guide are trademarks of their respective companies.
