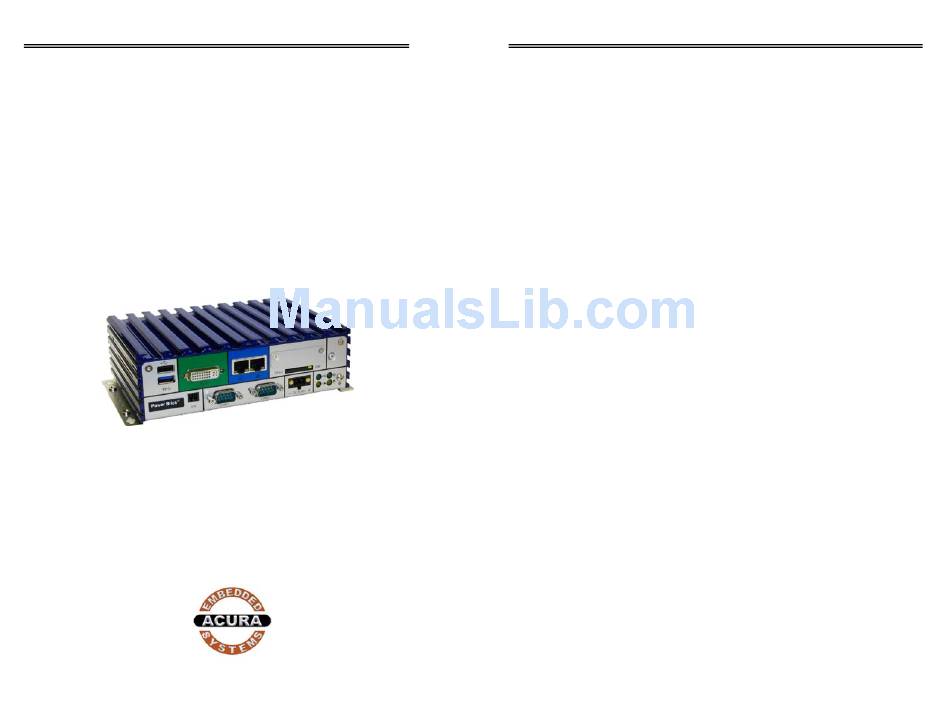

Acura Embedded PowerBrick AQ6 Quick Manual

PowerBrick AQ6
PowerBrick
Quick Manual
Small footprint rugged Intel® ATOM™ Quad Core E3845 1.92GHz
Copyright by Acura Embedded Systems Inc.
AQ6
Industrial Computer

1. Overview

®
With an Onboard Intel Atom™ Quad Core E3845 @ 1.92 GHz processor,
PowerBrick AQ6 as a small, rugged computer is the premium choice when
desktop computer performance is required in industrial computing applications.
Small size does not necessarily mean limitations in computing power.
PowerBrick AQ6 comes loaded with fast SSD hard drive and 4G (Optional
upgrade to 8G) memory, all at a competitive price. It is designed and built for
great performance in a variety of applications and environments. The design
focuses on elements essential for industrial use wile excluding unneccesary
hardware. The architecture is modular which allows for easy upgrading and
expansions.
Areas of applications include:
•
Oil-rigs/Gas/Mining vehicles
•
Security and patrol vehicles even helicopters
•
Emergency ( EMS) or public safety vehicles
•
Seaport terminal container yard management
•
Fleet management
The main features are:
• ®
CPU Onboard Intel Atom™ processor E3845 Quad Core,1.92 GHz
•
Memory 1x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB
RAM (Optional upgrade to 8GB ) , un-buffered and non-ECC ,
•
Dual Independent Display HDMI and DVI-D or HDMI and VGA (via
DVI-I to VGA converter)
•
I/O Interface (Internal) 4x GPI and 4 GPO (5V, TTL Type)
•
Storage Device 1x CFast (SATA2.0) and 1x 2.5" SSD (SATA2.0)
•
Expansion Slot 1x Mini-PCIe socket for optional Wi-Fi/LTE-4G/Hilscher
automation modules
Power Requirements
•
Power input: +9 to +30VDC
Support OS
•
Windows 8, Windows Embedded Standard 8
•
Windows Embedded Professional 7
•
Linux Kernel version 3.8.0
Dimensions and Weight
•
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
•
Less 4 LBS
Construction
•
Aluminum and Metal Chassis with fanless design)
Certifications
•
CE ,FCC Class A ,UL/cUL
Quick Manual
Page 1
Updated by Oct 29/14
