Summary of Contents for AzenX AZ-SBC98

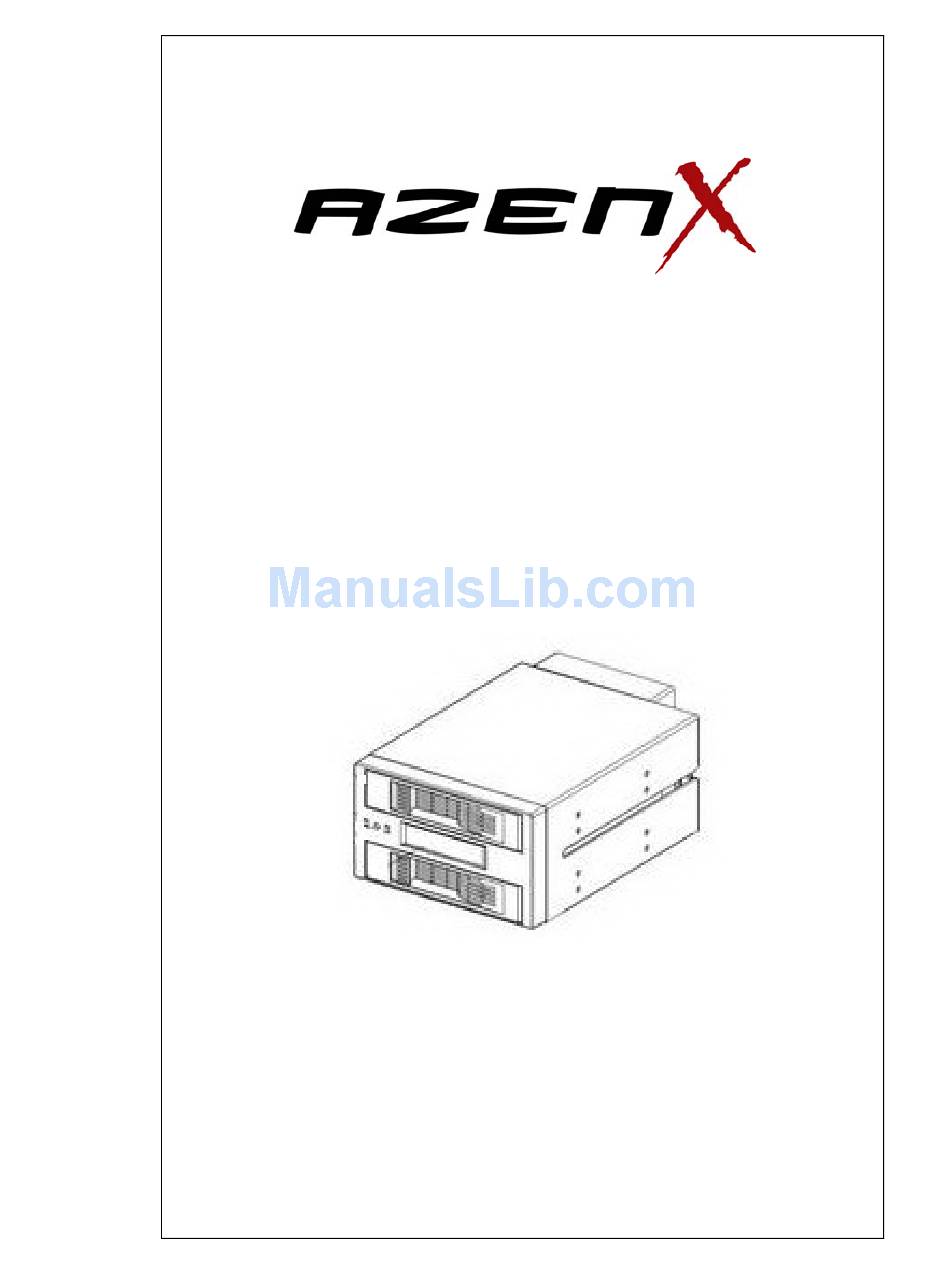

- Page 1 Installation Manual （AZ-SBC98） SATA SUBRAID V3...
- Page 2 Introduction of SATA SUB RAID V3 SUB RAID V3 is the RAID system, which meets SATA transfer norms and standards. It provides schools, public institutes, governments, monitoring severs or personal-use computers the High-speed Backup. SATA SUB RAID V3 provides all PC users the highest performance with the lowest cost.
-
Page 3: System Requirements
function as the diagram shows. System requirements System：IBM compatible PCs CPU：Support Intel, AMD, Cyrix and etc. Hard Disk：Support normal SATA(SATA1／SATA2) hard disk, and compatible with major brands’ hard disk. (Up to 2T Bytes of hard disk capacity is supported.) Notification before installation Before adopting SATA SUB RAID V3, please must notice following descriptions. - Page 4 Device important descriptions 1. Fan Stand：Fan stand is removable for convenient maintaining two ball bearing fans (8cm x 8cm) 2. SATA Slot：SATA transfer interface. 3. Power socket of fan：Power socket of fan (3 PIN) 4. RS232 I/O and 4Pin Jumper：For upgrading BIOS firmware. You can select Normal or High-speed Backup.
- Page 5 Installation Steps Step 1：Install SATA SUB RAID V3 to computer chassis. Step 2：Use SATA cable to connect SATA slot of SATA SUB RAID V3, and connect to the SATA slot of mainboard. Step 3：Connect 4PIN connector of power supply to the SATA SUB RAID V3. Step 4：Put hard disk to the HDD1 tray, and fasten screws to fix the hard disk.
- Page 6 system could be also processed continuously and normally. When the new hard disk is replaced, SATA SUB RAID V3 will enter “auto-rebuild” mode automatically, and meanwhile the LCD will indicate “Rebuilding” to imply that the backup is processing. When auto-rebuild is completed, the LCD will return to the normal status.
- Page 7 When selecting High-speed backup mode, for two built-in high speed backup devices which complete backup, SATA SUB RAID V3 will show them on LCD indicator as respectively, for your convenient recording. For other more backup devices, SATA SUB RAID V3 will show them on LCD indicator as T-N, which means no high speed backup included.
- Page 8 Replace the new fan in the reverse direction. Service For any questions or problems please use our Email-Hotline: info@azenx.com or our Phone-Hotline: +1-510-498-8888 AzenX is a brand of Dynatron Corporation. Tel: +1-510-498-8888 Fax: +1-510-498-8488 Email: sales@dynatron-corp.com Website: www.dynatron-corp.com...
- Page 9 www.azenx.com...
