Summary of Contents for ProShop PixBAND Quad 6

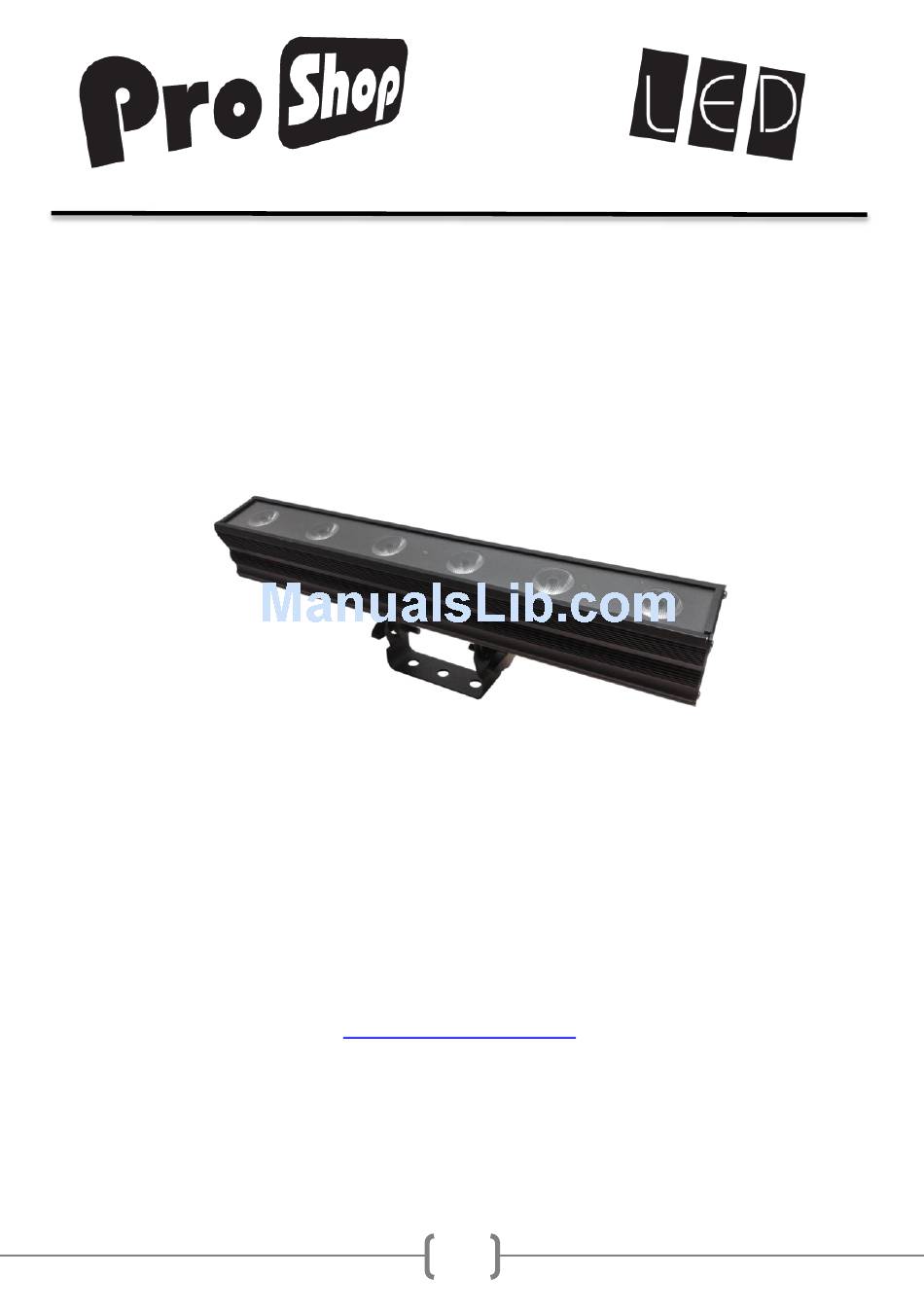

- Page 1 PixBAND Quad 6 User Manual PixBAND Quad 6 6 High Powered Quad-Colour LEDs www.showtech.com.au...
-
Page 2: Table Of Contents
PixBAND Quad 6 Table of Contents 1. Safety instructions…………………………………………………………3 1.1 Overhead rigging …………………………………………………….4 1.2 Power Connection …………………………………………………..6 1.3 Cleaning and Maintenance ……………………………………..6 2. Menu Navigation ............7 3. DMX Allocation ..............9 4. Technical Specifications ..........10... -
Page 3: Safety Instructions
PixBAND Quad 6 1. Safety Instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperature. Avoid exposing it to direct rays of sun near a heating appliance. Do not put it in a temperature below 41°F/5°C, or exceeding 95°F/35°C. -
Page 4: Overhead Rigging
PixBAND Quad 6 1.1 Overhead Rigging This item must be built in a way that it can hold 10 times more of its weight for 1 hour without causing any damages. The installation must be secured with a secondary safety attachment. The Safety attachment has to be constructed in a way that no part of the installation can fall down. - Page 5 PixBAND Quad 6 Mount the projector with the mounting bracket to your trussing system using an appropriate clamp. For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture. You must only use safety –ropes with quick links with screw cap.
-
Page 6: Power Connection
PixBAND Quad 6 1.2. Power Connection !! CAUTION !! Never leave this device running unattended!! Every person that is involved with this item has to be qualified!! Connect item with main plug. The voltage and frequency must exactly be the same as stated on the device. -
Page 7: Menu Navigation
PixBAND Quad 6 2.0 Menu navigation Menu Selection Options Extended Options DMX Address DMX Address 001-512 Set the unit start address DMX Channel 4 Channel Mode RGB + dimmer, strobe Adjust the DMX mode 8 Channel Mode RGB + macros + dimmer... -
Page 8: Green
PixBAND Quad 6 Auto Show 11 Auto Show 12 Fade Fade Speed 0-100% Static Fixture Color Fixture Color Allows the user to select non-changing output Select R,G,B select desired colour colours and shades, as well as setting the strobe function... - Page 9 PixBAND Quad 6 Dimmer 1 Dimmer Speed Fast Allows the user to select from 4 options of Dimmer 2 Dimmer Speed Medium dimming speeds Dimmer 3 Dimmer Speed Slow Sound Mode Sound activation Standby Standby Back Lite LCD Backlight will remain on...
-
Page 10: Dmx Allocation
PixBAND Quad 6 Version V1.0 Factory settings Factory Reset Reset 3.0 DMX Allocation 4ch 6ch 8ch 30ch 000-255 Green 000-255 Blue 000-255 White 000-255 Strobe 000-255 Dimmer 000-255 Macros 000-255 000-010 No Function Speed 011-255 Strobe Slow to Fast 000-255... -
Page 11: Technical Specifications
PixBAND Quad 6 4.0 Technical Specifications Power in: 100-240 VAC, 50/60Hz Power consumption: 55 W LED type: 8W RGBW 4 IN 1 LED Number of LEDs: 6 pcs Beam angle: 120° Dimensions (L x W x H): 560 x 65 x 196 mm...
