Summary of Contents for Ezy Flame EZFG-18

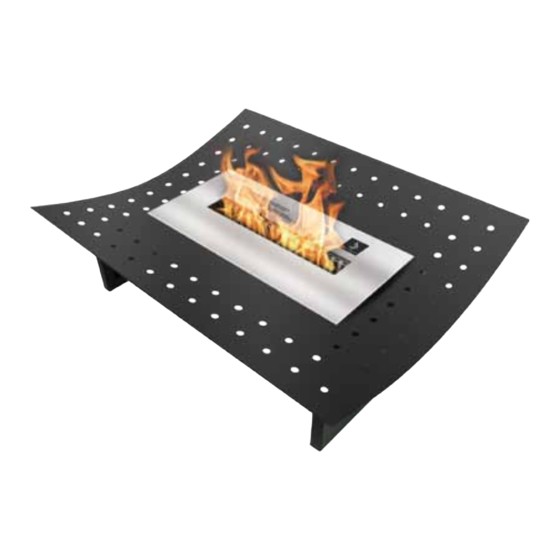

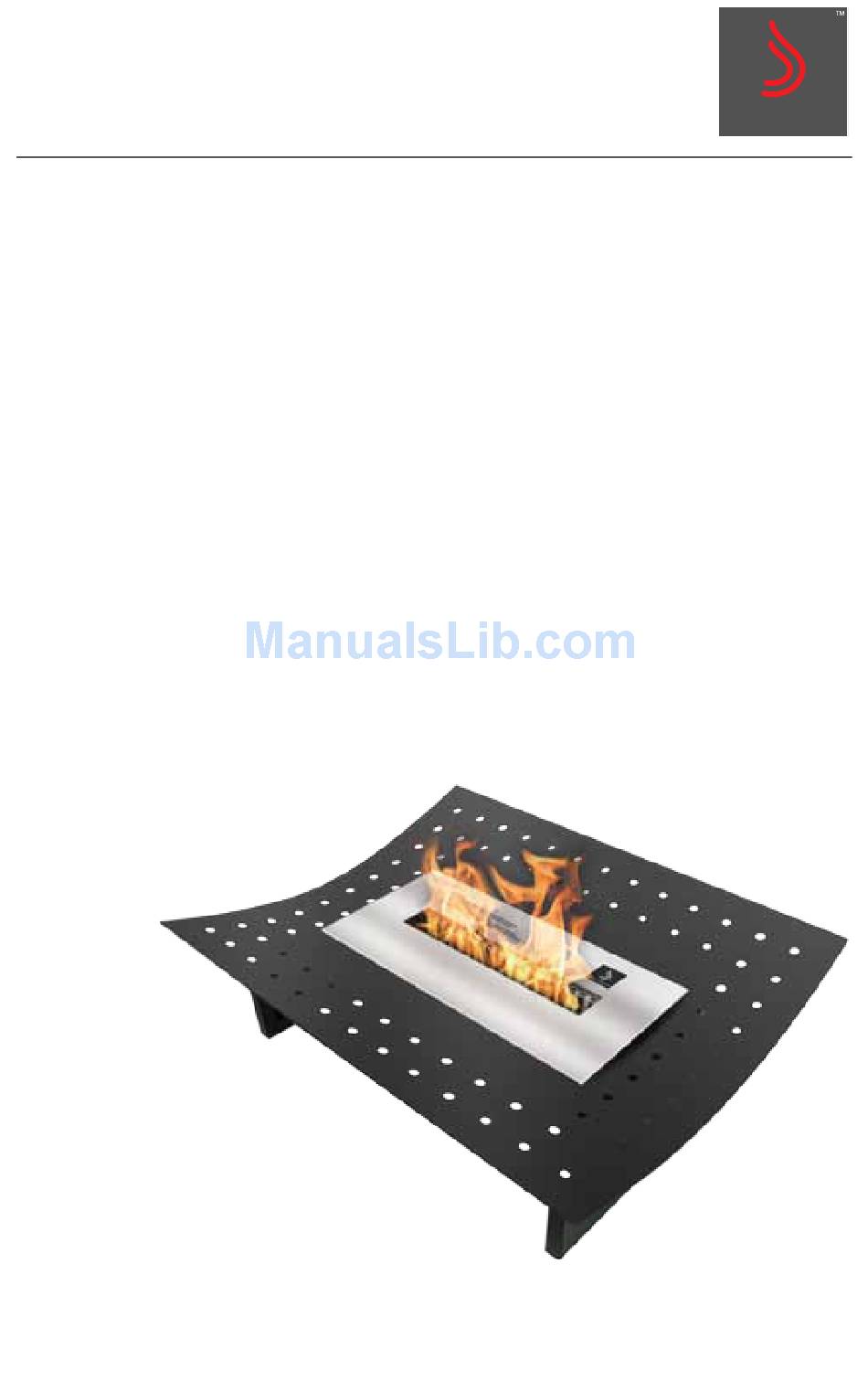

- Page 1 Ezy Flame Ezy Flame Ethanol Firegrates Owners manual and installation guide...
-
Page 2: Table Of Contents
Please keep these instructions in a safe place for future reference. Table of Contents Introduction Pack contents Safety warnings Positioning your firegrate 9-10 Assembling your firegrate Installing your firegrate Operating your firegrate 13-15 Caring for your firegrate 16-17 Warranty 18-19 Product Information ©... -
Page 3: Introduction
Ezy Flame Thank You Thank you for choosing this Ezy Flame product. Ezy Flame Firegrates offer a delightful solution to anyone looking for an easy and convenient fireplace experience. No major installation is required with these fabulous Bioethanol fuelled firegrates. -
Page 4: Pack Contents
Pack contents Unpacking your firegrate When unpacking the firegrate from the carton, use the checklist below to ensure that all components are present for your model. Note: The firegrate and fittings depicted in these instructions are for demonstration purposes only. Your firegrate or fittings may be different to what is shown. -
Page 5: Safety Warnings
Your safety Appliance safety · Do not disassemble or modify the burner or firegrate in any manner other than as Before you use this product for the first time, described within these instructions for the read and follow the supplied installation and purpose of assembly or installation. - Page 6 Your safety Operating safety · Never pour fuel into an open flame or into the burner reservoir unless it has been · While the firegrate is operating or hot, turned off and allowed to cool for at least do not touch the main heating surfaces, 15 minutes.
- Page 7 h o t . N e v e r f i l l t h e b u r n e r w h i l e i t i s o p e r a t i n g o r b e f o r e r e f i l l i n g t h e b u r n e r .
- Page 8 Your safety Maintenance and repair safety Notice · Unless specifically recommended in this The manufacturer, its authorized agents, manual, do not repair or replace any part distributors and re-sellers do not accept of the appliance. responsibility for any damage that occurs to this appliance or any injury sustained or death ·...
-
Page 9: Positioning Your Firegrate
Positioning your firegrate Installation requirements Minimum room size and ventilation requirements This firegrate must not be installed or operated within a room having a volume of less than: 70 cubic metres (approx 2500 ft ). To determine the volume of a room, measure the length, width and height of the room with a tape measure. - Page 10 Minimum 450mm / 18” 100mm side and rear clearance Fuel safety clearance Do not store fuel within 1 metre (40”) of the firegrate. 1 metre (40”)
-
Page 11: Assembling Your Firegrate
Assembling your firegrate Assembling your firegrate Remove the firegrate and all components from the carton. Ensure all packaging material is removed from the firegrate before assembly and use. Check you have all components before disposing of packaging. To assemble, place the firegrate body on a clean and level surface. -
Page 12: Installing Your Firegrate
Installing your firegrate Freestanding installation Before installing your firegrate, read the section on clearances and ventilation (pages 8-9). For your safety and well-being, clearances, installation warnings and ventilation requirements must be observed. Indoor installation The firegrate must be placed on a firm, level and non combustible surface. - Page 13 Never ll the unit while it is operating Neve Operating your firegrate...
-
Page 14: Operating Your Firegrate
Operating your firegrate Lighting your firegrate Lighting procedure Prior to lighting your firegrate, ensure the burner is filled to the desired level. Close the burner damper control after filling. Step 1 1. To light the burner: Open the damper plate and place the hooked end of the damper control rod into the fuel chamber and push the rod... - Page 15 This is the start up phase. Until the burner has reached its working temperature, the flames Ezy Flame will tend to stay low and be somewhat bluish in appearance with yellow tips. Full flame height will be achieved when the burner is at the correct operating temperature.
-
Page 16: Caring For Your Firegrate
Only replace this material with an identical material, available from Ezy Flame. Clean internal parts of the firegrate regularly as Never replace the fibre material with any other determined by the amount of use. -
Page 17: Caring For Your Firegrate
If you intend to store your firegrate for Other than cleaning as described in the extended periods, please observe the previous section, your Ezy Flame firegrate does following directions. not need to be serviced on a regular basis. However, you should inspect the firegrate and... -
Page 18: Warranty
In the USA and North America, warranty is provided by Black and Stone Inc. In Australia, warranty is provided by Black and Stone Pty Ltd. In other countries, contact your authorized Ezy Flame distributor. This limited warranty... -
Page 19: Warranty
Warranty Warranty registration Please register your product warranty within 30 days of the date of purchase by using the warranty registration card and the envelope provided. For all warranty and customer service enquiries, please call our customer service number: Canada and United States of America Back and Stone Inc. -
Page 20: Product Information
Specifications Model EZFG-18 EZFG-24 Burner Capacity 2.0 litres / 0.5 Gal 2.0 litres / 0.5 Gal Max Heat Output 14,000 BTU | 4.0kW 14,000 BTU | 4.0kW Rec Max Heating Area 700 ft | 65m 700 ft | 65m Burn Duration...
