Summary of Contents for Roger GPSR-BP

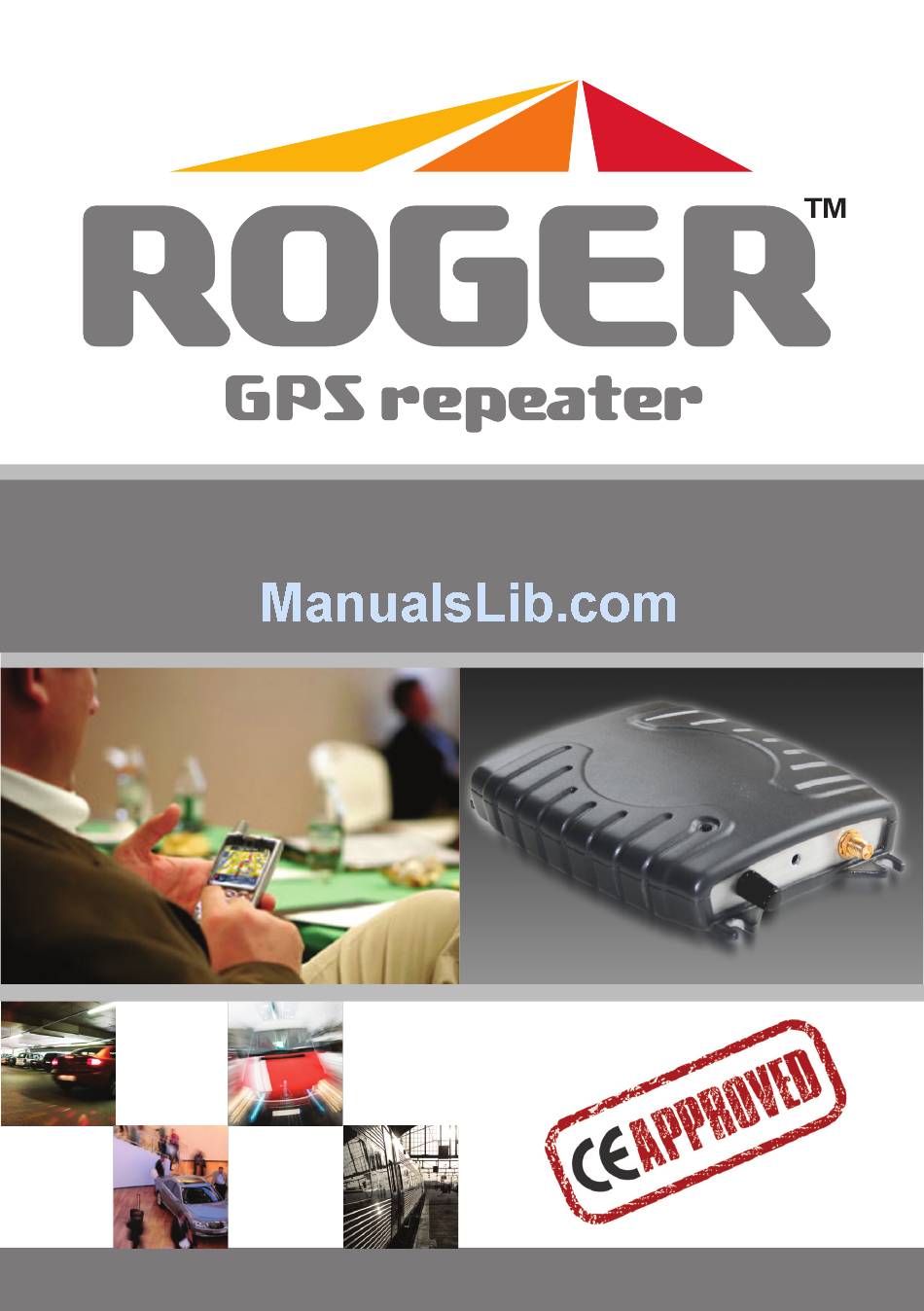

- Page 1 Installation instructions...
-
Page 2: Table Of Contents
ROGER™ GPS repeater installation instructions 3...FAST installation instructions 4...Product description 4...Declaration of conformity 5...Components 7...GPS Repeater transmitter Repeter controls and connectors Outside antenna Power supply Cable Installation, tools required Receiving antenna installation 8...GPS repeater installation Adjusting and testing 10...Troubleshooting 11...Technical information 11...Other features... -
Page 3: Fast Installation Instructions
FAST installation instructions 1. Installation, tools required 3. GPS repeater installation When installing the GPS repeater, Install the GPS repeater transmitter you should have: by fixing it to the ceiling, wall or a • A suitable tools to tighten the SMA suitable mount. -
Page 4: Roger™ Gps Repeater Installation Instructions
ROGER™ GPS repeater installation instructions Product description ROGER™ GPS repeater is a device that is used to relay GPS signals to places where they cannot normally be. The GPS repeater operates by receiving GPS satellite signals with an antenna located outside f the building and re-radiating them to the indoor or covered space. -
Page 5: Power Supply
Components The ROGER™ GPS repeater system consists of the following components: GPS Repeater Outside antenna for receiving GPS signals Power supply RF Cable 1. GPS Repeater The GPS repeater works by receiving GPS signals from satellites with an outdoor antenna. The signals are then transported to indoors via cable and re-radiated by the GPS repeater. - Page 6 RG214 and up to 90m with ECOFLEX. Longer cable runs may require a separate line amplifierto compensate the power loss in the cable. ROGER™ GPS Repeater Package (GPSR-BP) includes: 1. ROGER™ GPS repeater unit 2. Outdoor antenna for receiving GPS signals 3. Power supply 4. RF antenna cable, 19,5 m...
-
Page 7: Gps Repeater Transmitter
Figure 1: Repeter controls and connectors 5. Integrated antenna 4. Status LED 1. Gain control 3. Antenna connector 2. DC Power GPS Repeater transmitter The GPS Repeater transmitter is the main component of the system. The GPS Repeater transmitter contains filtering, amplifiers and power control circuits. The GPS Repeater also supplies power (+5VDC, max 100mA) to the outdoor antenna through the antenna cable. -
Page 8: Installation, Tools Required
Receiving antenna connector Receiving antenna should be connected to the SMA input connector with the RG58 cable supplied. Alternatively, a custom cable can be used. (SMA female, +5VDC 100mA output for active antenna) Status LED Integrated antenna inside the case Installation, tools required When installing the GPS repeater, you should have: •... -
Page 9: Adjusting And Testing
The cables should be installed so that there is no constant strong force to any direction at the connector. After having installed the outside antenna, cable and repeater, plug in the AC/DC adapter cable and plug the adapter to a power outlet. The LED of the repeater should flash a few times at startup and then turn constant red or green The indications of the status LED are:... -
Page 10: Troubleshooting
Troubleshooting GPS receiver cannot receive signals next to the repeater. • Check that +5VDC is present in the antenna end of the cable and in the antenna connector of the repeater. Broken or short-circuited cable? • Check that repeater power is on and LED is on. No LED indication on GPS Repeater •... - Page 11 Other features Automatic gain control Status/power LED Feedback oscillation suppression Internal transmit antenna Manual gain control Output power limit –60dBm, 0,000001mW CE-certified 0523 Contact information ROGER is a registered trademark of: Roger GPS Oy Tekniikantie 12 02150 Espoo FINLAND e-mail: roger@gps-repeating.com...
- Page 12 Supplier reserves all rights for product changes and upgrades. Pictures and texts are indicative.
