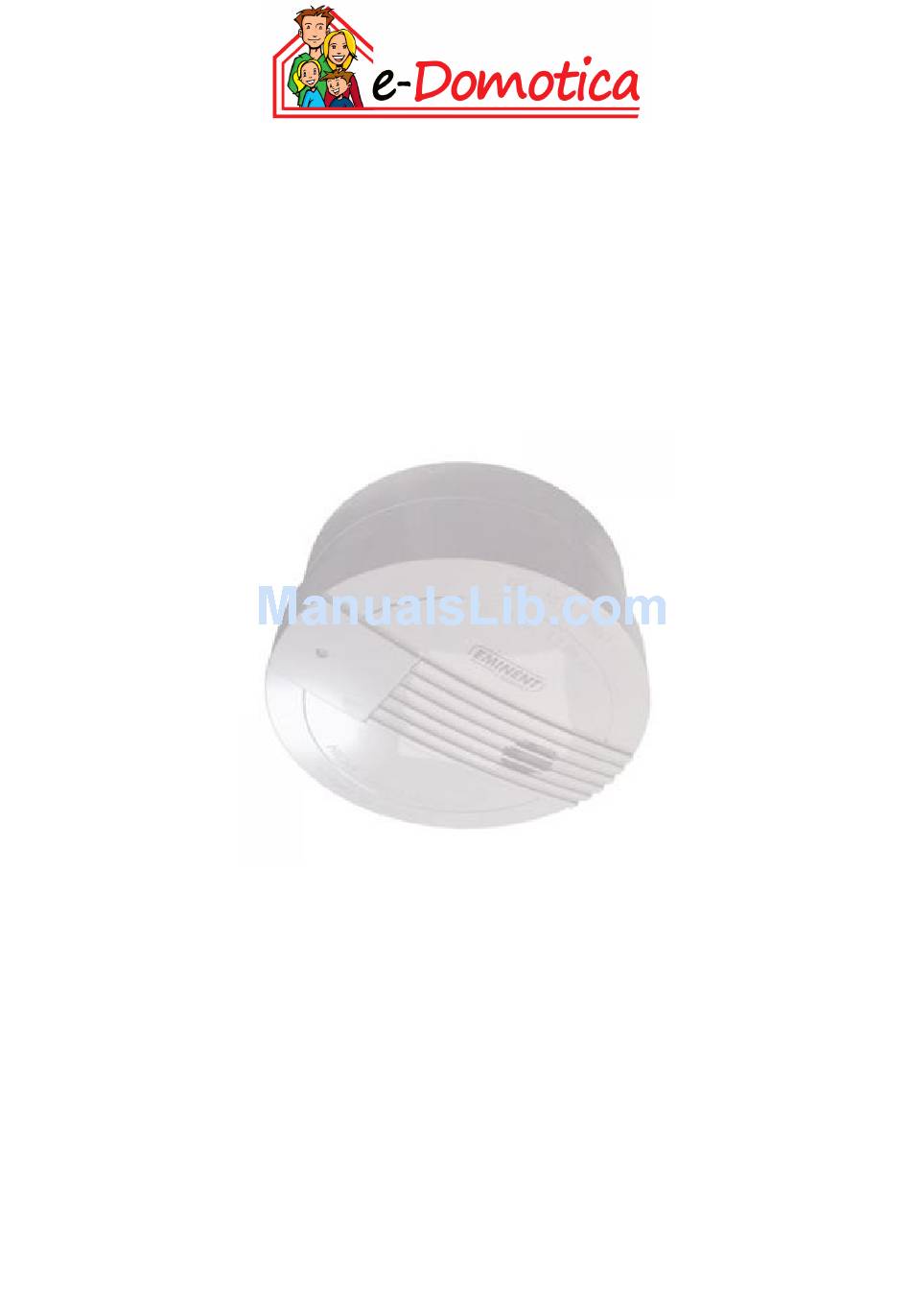

- Page 1 EM6590 e-Domotica Smoke Sensor English Manual NL...
-
Page 2: Table Of Contents
1.1 Functions and features Warn yourself and others at home upon the detection of smoke using this wireless EM6590 e-Domotica Smoke Detector. Get an early warning when a smoke or fire is started from this advanced smoke sensor. This devices does not only function stand alone (like other smoke sensors), but can... -
Page 3: Packing Contents
Domotica sirens and send a signal to the e-Domotica portal to notify yourself and others by phone and text message about the smoke alarm. 1.2 Packing contents The following parts need to be present in the packing: EM6590 e-Domotica Smoke Sensor • Mounting screws and plugs •... -
Page 4: Installing The Battery
Do not close the housing yet. 3.0 Adding the smoke detector to an e- Domotica e-Centre Base Station You can now add the EM6590 e-Domotica Smoke Detector to your e-Domotica e- Centre base station, follow these steps. Tips: If you already use 230V powered e-Domotica accessories, you are able to include the smoke sensor on the location where the motion sensor needs to be mounted. -
Page 5: Setup A Smoke-/Gas Alarm
ENGLISH Enter “http://ecentre” in the address bar of your web browser and press the ‘Enter’ key on your keyboard. Or go to http://192.168.1.100 if this is the IP address of your e-Centre. The webpage of the e-Centre will be shown. Go to the ‘e-Domotica Products’... -
Page 6: Setup Your Personal Smoke Alarm System Using The E-Domotica Portal
ENGLISH On the e-Centre webpage, click on ‘Alarm Settings’ in the menu on the left hand side. Click on the edit button next to the Smoke-/Gas alarm. Select one or more smoke sensors for this smoke alarm. Alarm Events: You can use a scene to be triggered upon the detection of smoke. When one or more smoke sensors detect smoke, the selected scene will be triggered. -
Page 7: Adding Contact Persons
ENGLISH Image 4. Edit smoke alarm settings on the e-Domotica Portal 5.1 Adding contact persons When you have added one or more contact persons during the first setup of your e- Centre (refer to the manual of the EM6505), these contact persons are noticed here. Refer to the following image for an example: Image 5. -
Page 8: Assigning A Camera To The Smoke Alarm
ENGLISH Image 6. Setup notifications Check the options you want to use for the contact person(s). In this example, Mr. John Smith will be notified by phone, SMS and email. Click ‘Save and continue’. 5.3 Assigning a camera to the Smoke alarm On this tab, you can assign an e-Domotica camera to the Smoke alarm. -
Page 9: Mounting The Smoke Detector
ENGLISH 6.0 Mounting the smoke detector This smoke detector is designed to be used in a house or small office (at home). It is recommended to use severals smoke detectors at home to detect a fire or smoke even quicker. 6.1 Choosing a mounting location To get a full cover of the detection area it is recommended to use several smoke detectors. - Page 10 10 | ENGLISH Image 9. Recommended mounting locations for a family house. Install at least 2 smoke sensors per Household. If a hallway or stairway is 12 meters or longer, install a smoke sensor on both ends of the hallway. It is recommended to install smoke detectors in every bedroom.
-
Page 11: Not Recommended Mounting Locations Of The Smoke Detector
11 | ENGLISH Image 11. Mounting a smoke detector in the attic of a house. 6.2 Not recommended mounting locations of the smoke detector Mounting the smoke detector on a wrong place can cause false alarms making the system less reliable. Do not install a smoke sensor in these areas Areas where combustion takes place, like a kitchen with few windows or poor ventilation. - Page 12 12 | ENGLISH Image 12. Air currents can activate the smoke alarm Do not mount the smoke detector in very humid areas, near bathrooms or showers. Mount the smoke detectors at least 3 meters away from the bathroom. Do not mount the smoke detector in cold or hot areas. Operating temperature of the smoke detector is 4°...
-
Page 13: Mounting The Smoke Detector
13 | ENGLISH 6.3 Mounting the smoke detector Once you have decided a proper mounting location, according to the information the previous chapter, you can now start to mount the smoke detector. Remove the mounting bracket from the housing: Image 13 Use the mounting bracket to mark drilling and screw holes. -
Page 14: Detection Display On The E-Centre Screen, Mweb And The E-Domotica App
14 | ENGLISH 7.1 Detection display on the e-Centre screen, Mweb and the e-Domotica app. To check whether to smoke detector is working properly and detecting smoke you can use the e-Centre touch screen, the mobile mWeb website and the e-Domotica app on your smart phone or tablet. -
Page 15: Warning And Points Of Attention
15 | ENGLISH You can also contact us by phone. Below you will find a list with phone numbers for each supported country. Country Phone number Rate per minute* Belgium (Dutch) 070 277 286 €0.30 Belgium (French) 070 277 286 €0.30 Denmark +45 69918565... -
Page 16: Warranty Conditions
16 | ENGLISH Also, you will find frequently asked questions in the FAQ section. It is highly recommended to consult the FAQ section. Very often the answer to your questions will be found here. 11.0 Warranty conditions The five-year e-Domotica warranty applies to all e-Domotica products unless mentioned otherwise before or during the moment of purchase.
