OWNER'S MANUAL

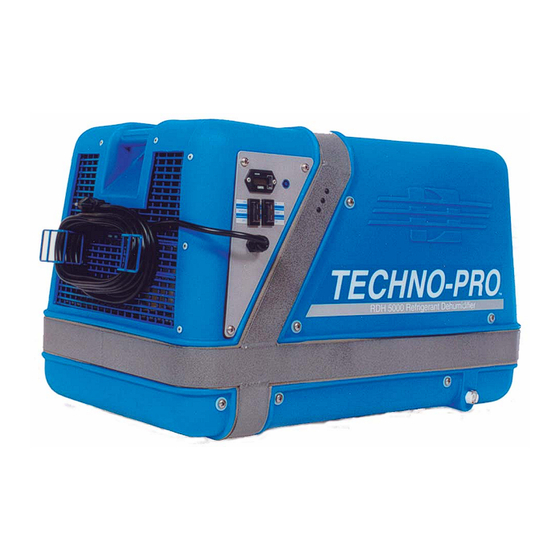

TECHNO PRO 5000 DEHUMIDIFIER
This manual contains important safety and operating information.
Please read before using the dehumidifier and save for future reference.
Purchase Date:______________________________Serial No:__________________________________
313 North Oak Street Burlington, Washington 98233 Toll Free: 888.755.9176
Phone: 360.755.9176 • Fax: 360.755.9236 • email:
info@dryairtech.com
• www.dryairtech.com
Advertisement
Related Manuals for Dry Air TECHNO PRO 5000
Summary of Contents for Dry Air TECHNO PRO 5000
- Page 1 OWNER’S MANUAL TECHNO PRO 5000 DEHUMIDIFIER This manual contains important safety and operating information. Please read before using the dehumidifier and save for future reference. Purchase Date:______________________________Serial No:__________________________________ 313 North Oak Street Burlington, Washington 98233 Toll Free: 888.755.9176 Phone: 360.755.9176 • Fax: 360.755.9236 • email: info@dryairtech.com...
- Page 2 PACKAGING Be sure to keep all original packaging. Original packaging will help protect unit from freight damage if there is a need to return. Dry Air Technology Toll Free U.S. & Canada: 888.755.9176 Overseas: (001) 360.755.9176 Email: info@dryairtech.com...
-
Page 3: Safety Information
Congratulations on your purchase of the Drapes or other loose fabrics can be drawn against the unit restricting its Techno Pro™ 5000. This dehumidifier airflow. This condition may cause the has been designed to offer you the unit to overheat. Assure that there is reliability, durability and portability you sufficient space between the back of the need. -
Page 4: Maintenance
4. Plug the unit into a grounded extraction and create undue pressure on alternating current circuit and switch the refrigeration system. on the unit. The coils should be cleaned about every 5. Secure the 40 feet pump hose to a 8 to 12 weeks. -
Page 5: Specifications
frame provides even more coil Warning! protection by cleaning the air before it The fan blade is sharp! Do not enters the unit. touch the edges with your hands, serious personal injury may result. The Techno Pro™ 5000 is stackable for storage or for operation in the field. - Page 6 REPAIRS Techno Pro™ 5000 PARTS LIST 1. Should an electrical component fail Description Part Number consult your Distributor or the Techno Pro Shell RD-00C-P4N20147 Factory Service Center to obtain OEM parts. Wire Grill RD-00C-M5A10150 2. If a problem develops in the Grill w/ Cord Wrap RD-00C-M5A10204 refrigeration system, only a certified...
- Page 7 • www.dryairtech.com Sequence of Operations for Techno Pro 5000 The On/Off switch (Sw1) in the ON position will energize the humidity control Power Module (PM) that supplies power to the Humidity Control module (HC). When ambient conditions rise above the factory (adjustable) setting of 40% RH (+4% dif) on the HC module the unit will start operations.
- Page 8 313 North Oak Street • Burlington WA 98322 USA Phone: 360-755-9176 Fax: 360-755-9236 Toll Free from U.S. or Canada: 1-888-755-9176 Email: info@dryairtech.com • www.dryairtech.com...
- Page 9 Phone: 360-755-9176 Fax: 360-755-9236 Toll Free from U.S. or Canada: 1-888-755-9176 Email: info@dryairtech.com • www.dryairtech.com Techno Pro 5000 with Humidity Control Comp Pump HC = humidity control module HG = hot gas solenoid DC = ICM (printed control board) or Ranco (mechanical control)
- Page 10 313 North Oak Street • Burlington WA 98322 USA Phone: 360-755-9176 Fax: 360-755-9236 Toll Free from U.S. or Canada: 1-888-755-9176 Email: info@dryairtech.com • www.dryairtech.com Techno Pro Component Wiring to Terminal Block 120V L2= common terminals Pwr = power terminals L1 = 120V supply voltage terminals TB = terminal block SW1= main on/off power switch L1 connections = Power cord;...
- Page 11 Dry Air Technology further warrants that for a period of ten (10) years, the cabinet, chassis and housing of dehumidifiers manufactured by Dry Air Technology, will be free from defects in material or workmanship, or Dry Air Technology, at its option, will repair or replace the defective part(s), provided that all labor and shipping costs for the defective part(s) shall be borne by the end-user.
