Summary of Contents for Current Audio SB650

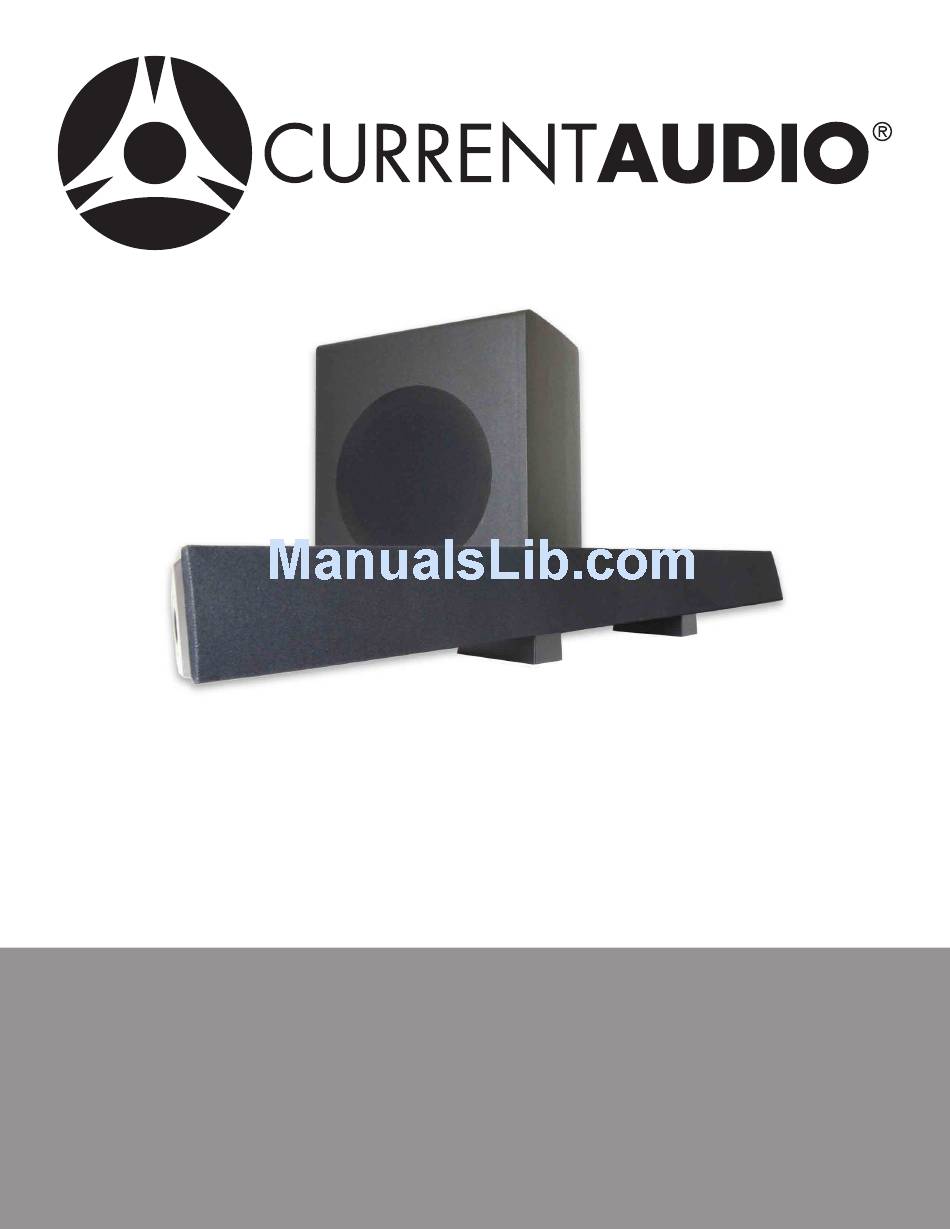

  • Page 1 SB800 SB650 SB500 Instruction Manual...
  • Page 2: Safety Instructions

    TO RAIN OR MOISTURE QUALIFIED SERVICE PERSONNEL. The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. www.currentaudio.com 1890 Cordell Court, Suite 105., El Cajon, CA 92020 • 866-927-7181 ©2014 Current Audio - All Rights Reserved. Rev. 01, 06/14...
  • Page 3 Please read this manual thoroughly before making any connections or applying AC power. This manual applies to the SB800, SB650 and SB500 Soundbar Systems. Follow the instructions in this manual. It will allow you to obtain the maximum performance and listening pleasure from your new soundbar.

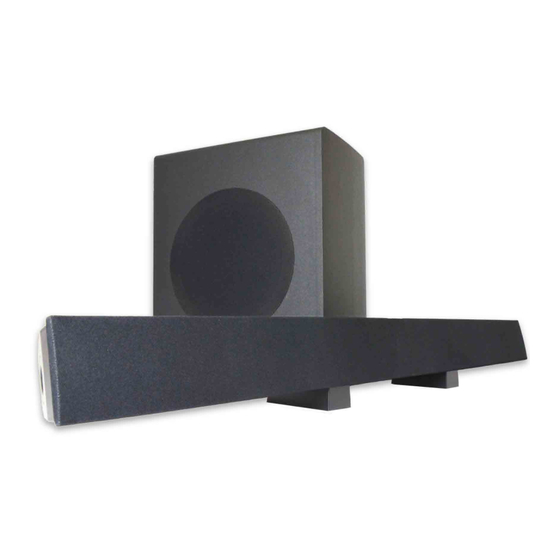

  • Page 4 The SB800, SB650 and SB500 Soundbar describes the latest digital technology in amplified speaker sound bars with a powerful wireless amplified subwoofer by Current Audio. The powerful subwoofer can be located anywhere in the room. This is the perfect Home Theater System with a wide sound stage.
  • Page 5: Installation

    Install the wireless subwoofer preferably near the front wall next to an electrical outlet. The power cord is the only wire needed for hook-up. Corner placement will give an added bass boost. www.currentaudio.com 1890 Cordell Court, Suite 105., El Cajon, CA 92020 • 866-927-7181 ©2014 Current Audio - All Rights Reserved. Rev. 01, 06/14...
  • Page 6: Making Connections

    The final connection should be the power cords. INPUTS The inputs are located on the back of the soundbar. They include 18VDC power, analog RCA, Digital Optical (SB650 and SB800 only), Digital Coaxial and 3.5mm jack Connect red and black Coax digital Optical digital 3.5mm stereo plug...
  • Page 7 • When the LED on the subwoofer blinks and the LED is still blinking on the soundbar, release the button on the subwoofer and the two will connect to each other. • It may take a few seconds for this connection to be made. Repeat the process as necessary to make the connection. Connecting source equipment to an Optical (SB800/SB650 models only) or Coax Digital input on the soundbar: • Both digital optical and digital coax inputs on the soundbar support 2 channel or PCM digital bitstreams. • All source equipment must be set to either 2 channel or PCM output.
  • Page 8 RCA or 3.5mm inputs to connect to the soundbar Please consult your television manufacturer’s manual if the information above is not correct www.currentaudio.com 1890 Cordell Court, Suite 105., El Cajon, CA 92020 • 866-927-7181 ©2014 Current Audio - All Rights Reserved. Rev. 01, 06/14...
  • Page 9 The soundbar is compatible with many different universal remote controls supplied with satellite receivers, cable box receivers, AV receivers, televisions. Please refer to the on-line link for further information. www.currentaudio.com 1890 Cordell Court, Suite 105., El Cajon, CA 92020 • 866-927-7181 ©2014 Current Audio - All Rights Reserved. Rev. 01, 06/14...
  • Page 10 Current Audio, LLC soundbars are warranted to be free from defects in materials and/or workmanship to the original retail purchaser for a period of 1 year, provided the equipment was purchased and installed from a Current Audio authorized dealer or distributor.
  • Page 11 NOTES...
