DF8912NH_HA1ULL

DVD PLAYER

OWNER'S MANUAL
MODEL : LGDVB418
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGDVB418 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG LGDVB418

Summary of Contents for LG LGDVB418

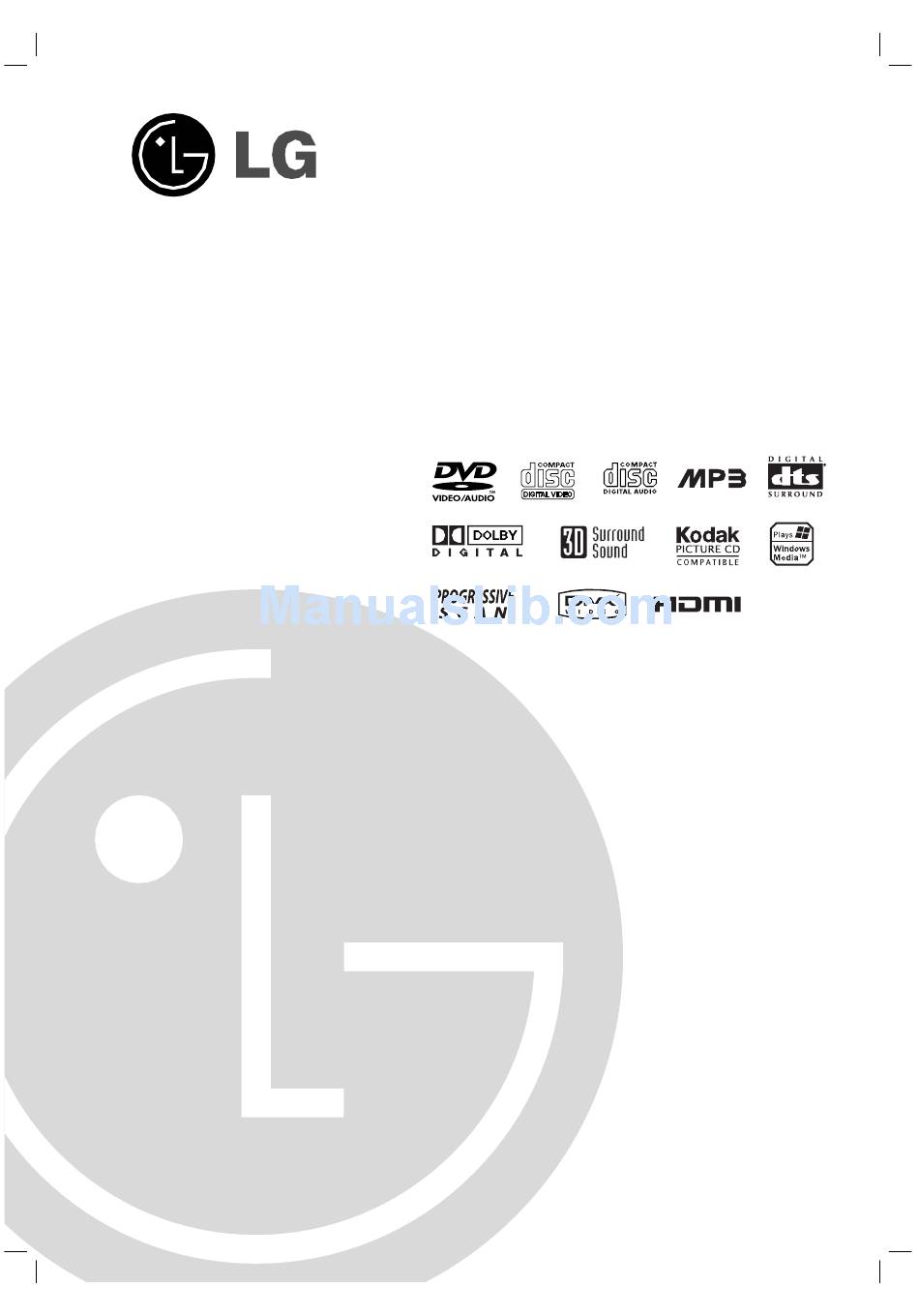

  • Page 1: Dvd Player

    DF8912NH_HA1ULL DVD PLAYER OWNER’S MANUAL MODEL : LGDVB418 Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
  • Page 2 FCC COMPLIANCE: The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc., 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Phone: 1-201-816-2000 SERIAL NUMBER: The serial number is found on the back of this unit. This number is for this unit only. You should record the serial number in the space provided and retain this guide as a permanent record of your purchase.

  • Page 3: Table Of Contents

    Setting up the Player ....10 DVD Player Connections ....10 Video and Audio Connections to Your TV .

  • Page 4: Introduction

    This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location. Symbol Used in this Manual The lightning flash symbol alerts you to the...

  • Page 5: Types Of Playable Discs

    • Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player’s regional code or the disc cannot play. • If you try to play a DVD with a different region code from your player, the message “Check Regional...

  • Page 6: Disc-Related Terms

    DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video.You will be able to play DivX movies using this DVD player. PBC: Playback Control (Video CD only) Playback control is available for Video CD (VCD) version 2.0 disc formats.

  • Page 7: Front Panel

    - HDMI mode : You can switch among the 480p, 720p or 1080i resolution. 480i, 480p, 720p or 1080i resolution. Disc Tray Insert a disc here. Display window Shows the current status of the player. Remote Sensor Point the DVD Player remote control Front Panel here.

  • Page 8: Rear Panel

    Rear Panel COAXIAL (Digital audio out jack) Connect to digital (coaxial) audio equipment. AUDIO OUT (Left/Right) Connect to an amplifier, receiver, or stereo system. VIDEO OUT Connect to a TV with video inputs. HDMI OUT HDMI output providing a high quality interface for digital audio and video.

  • Page 9: Remote Control

    OPEN / CLOSE Opens and closes the disc tray. POWER Switches DVD Player ON and OFF. 0-9 number buttons Selects numbered items in a menu. CLEAR Removes a track number on the program list or a mark on the MARKER SEARCH menu.

  • Page 10: Installation And Setup

    Audio Connection to Your TV: Connect the left and right AUDIO OUT jacks of the DVD Player to the audio left and right IN jacks on the TV (A) using the audio cables. Do not connect the DVD Player’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.

  • Page 11: Hdmi Connection

    - For S-VIDEO OUT connection, black and white scramble signal will appear if you select an incompatible resolution. HDMI compatible TV Rear of DVD player About HDMI HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes, and other AV devices.

  • Page 12: Audio Connection To Optional Equipment

    Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic ll / Pro Logic: Connect the left and right AUDIO OUT jacks on the DVD Player to the audio left and right IN jacks on your Amplifier, Receiver, or Stereo System, using the audio cables (A).

  • Page 13: On-Screen Display

    On-Screen Display You can display the general playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display: 1. Press DISPLAY during playback. 2. Press v / V to select an item. The selected item is highlighted.

  • Page 14: Initial Settings

    Initial Settings By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 14 to 18. To display and exit the Menu: Press SETUP to display the menu.

  • Page 15: Display

    Vocal Dolby Digital / DTS / MPEG Bitstream: Select “Bitstream” if you connect the DVD Player’s DIGITAL OUT jack to an Amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder. PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier.

  • Page 16: 5.1 Speaker Setup

    You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted. If Auto Play mode is set to On, this DVD player will search for title that has the longest playback time and then play back the title automatically.

  • Page 17: Divx(R) Vod

    DivX DivX(R) VOD You can display the DivX DRM (Digital Rights Management) Registration code for your unit. The Registration code is used for VOD (Video-On- Demand) service agent. You can purchase or rent an encrypt movie file. Notes: If you rent the DivX VOD file, it has several options of viewing limits as shown below.

  • Page 18: Lock (Parental Control)

    LOCK (Parental Control) LOCK Rating Unlock Password Country Code Move DVD-V Rating Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country.

  • Page 19: Operation

    Playing a DVD or Video CD Playback Setup 1. Turn on the TV and select the video input source connected to the DVD Player. 2. Turn on the Audio System (if applicable) and select the input source connected to the DVD player.

  • Page 20: Still Picture And Frame-By-Frame Playback

    DVD-A Slow Motion 1. Press PAUSE/STEP (X) during playback. The DVD player will now go into PAUSE mode. 2. Use the SCAN (m or M) to select the required speed: t 1/16, t 1/8, t 1/4, or t 1/2 (backward), or T 1/16, T 1/8, T 1/4, or T 1/2 (forward).

  • Page 21: Zoom

    DVD-V DVD-A DivX Zoom Use zoom to enlarge the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the sequence: 100% size →...

  • Page 22: Dvd Audio Discs

    (sometimes you’ll find it on the disc’s jacket cover or on a web site). This password control isn’t dictated by your DVD Player — it is a function of the disc. Since the authoring of DVD Audio Discs varies, some of the on-screen display choices might not be available for the disc you’re playing.

  • Page 23: Playing An Memory Card

    Playing an Memory Card You can play Photo, Music, and MOVIE files in Memory Cards with this DVD player. 1. Insert a Memory Card until it fits into place. 2. Press MEMORY CARD on the front panel. The Memory Card slot choice menu appears on the TV screen.

  • Page 24: Playing An Audio Cd Or Mp3/Wma Disc

    ? * : “ < > l etc. • The total number of files on the disc should be less than 650. This DVD Player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards.

  • Page 25: Audio Cd And Mp3 / Wma Disc Features

    Audio CD and MP3 / WMA Disc Features Pause 1. Press PAUSE/STEP during playback. 2. To return to playback, press PLAY, ENTER or press PAUSE/STEP again. Moving to another Track 1. Press SKIP (. or >) briefly during playback to go to the next track or to return to the beginning of the current track.

  • Page 26: Programmed Playback

    Programmed Playback The program function enables you to store your favorite tracks from any disc in the player memory. A program can contain 30 tracks. 1. Insert a disc. Audio CD or MP3/WMA Discs: AUDIO CD or MUSIC menu appears. 2.

  • Page 27: Viewing A Jpeg Disc

    • Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an on- screen display after several minutes, some of the files may be too large —...

  • Page 28: Playing A Dvd Vr Format Disc

    Maintaining the Unit The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

  • Page 29: Playing A Divx Movie Disc

    Playing a DivX Movie Disc Using this DVD Player you can play DivX disc. 1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen. MOVIE 0:00:00 List Movie Folder 1 Movie Folder 2 Movie Folder 3...

  • Page 30: Additional Features

    Additional Features Last Scene Memory DVD-V DVD-A VCD1.1 This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

  • Page 31: Reference

    Enter speaker. (-10dB - 0dB) Distance If you connected speakers to your DVD Player, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.

  • Page 32: Controlling Your Tv With The Supplied Remote

    TV using some of the buttons. Controlling other TVs with the remote You can control the sound level, input source, and power switch of non-LG TVs as well. If your TV is listed in the table below, set the appropriate manufacturer code.

  • Page 33: Language Codes

    Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Abkhazian 6566 Fiji Afar 6565 Finnish Afrikaans 6570 French Albanian 8381 Frisian Ameharic 6577 Galician Arabic 6582 Georgian Armenian...

  • Page 34: Troubleshooting

    • The rating level is set. • The Remote Control is not pointed at the remote sensor on the DVD player. The Remote Control does not work properly. • The Remote Control is too far from the DVD player.

  • Page 35: Specifications

    Specifications General Power requirements: AC 120 V , 60 Hz Power consumption: 12W Dimensions (Approx.): 430 x 39 x 242 mm (W x H x D) without feet Weight (Approx.): 2.2 kg Operating temperature: 5 °C to 35 °C (41 °F to 95 °F) Operating humidity: 5 % to 90 % Outputs VIDEO OUT:...

  • Page 36: Limited Warranty - Usa

    This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, excluding U.S.
