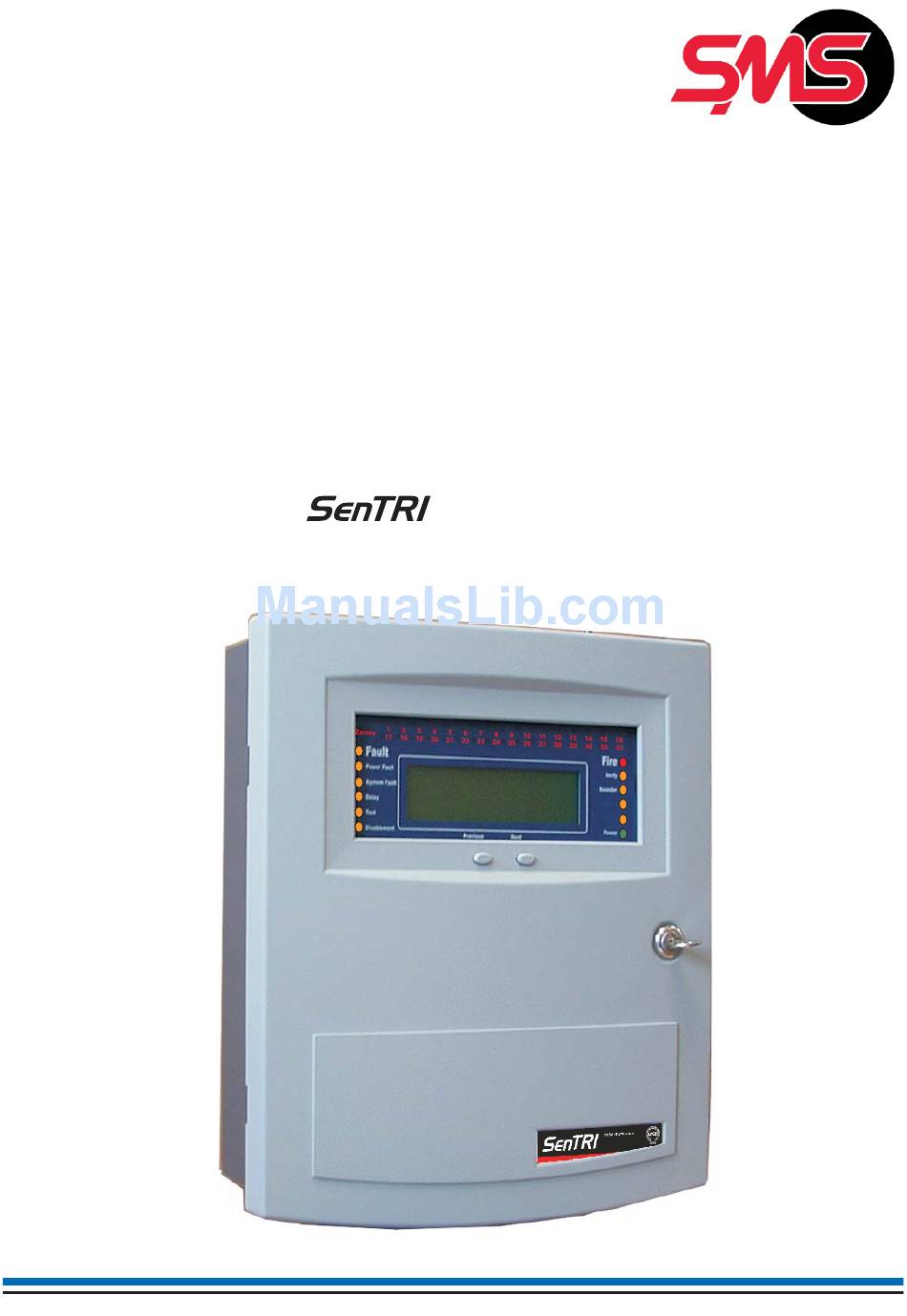

Page 1: Operating Instructions
Operating instructions Control panel based system Fire detection and alarm system Pane l healt hy 15:45 SenT RI Fire Syste m Desig ned to EN54 Pt 2 & 4 4188-901 issue 2_11-09_SenTRI-Ops... -
Page 2: Table Of Contents
Operating instructions Contents How to edit Input/output line label - - - - 28 Preface - - - - - - - - - - - - - - - - - 3 How to edit a zone label - - - - - - - - - 28 Associated documents - - - - - - - - - 3 How to edit a local panel label - - - - - - 29 Conventions - - - - - - - - - - - - - - 3... -
Page 3: Preface
Symbol Keys Preface This is the second issue of operating instructions for the SenTRI fire detection and alarm system. This issue incorporates information on the networked What you will see. system. Associated documents SenTRI Control panle based system What you will hear. -
Page 4: User Responsibility
Any servicing work on the " SeNTRI system must be carried out by a suitably trained person, please refer For help with service and to your servicing organisation. -

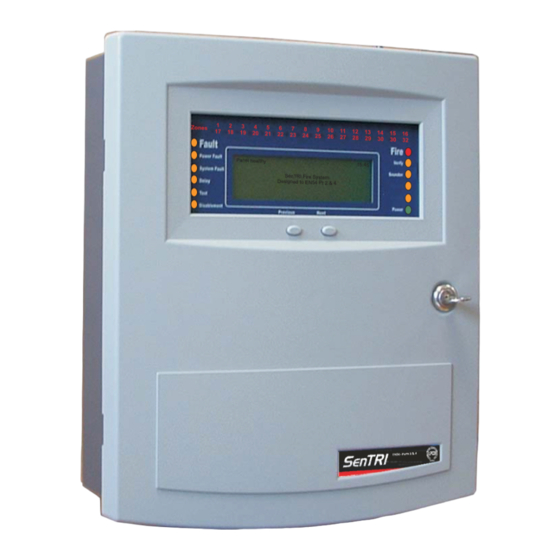

Page 5: Control And Indicating Equipment
A zonal panel may be used to cover sub division of the premises. Zones Zone indicators Panel healthy 15:45 SenTri Fire System Designed to EN54 Pt 2 & 4 A3 Zonal panel... -
Page 6: Description Of Controls And Indications
Key lock to open Controls and Log Book the outer door Zones Fault Fire Panel healthy 15:45 Verify Power Fault SenTRI Fire System Sounder System Fault Designed to EN54 Pt 2 & 4 CB253 Delay Test CB254 Disablement Power Previous... - Page 7 fire system Indicators Description Display The Display provides messages of the system status / events by means of 8 lines by 40 characters per line display. Secret-until-lit fire zone indicators. When "Zones" text and Zones (red) number(s) are illuminated it indicates that a FIRE has been detected in the specified zone(s).
- Page 8 Operating instructions Sound Alarms Pressing the Sound Alarms button will sound all the system alarms. This button is only pressed in an emergency or at other agreed times, for example when conducting a sounder test or practice evacuation. Silence Alarms Pressing the Silence Alarms button will silence the system alarms.
-
Page 9: Normal Condition
¨ the display shows a: 'Panel healthy' message at the control panel and ¨ only the 'Power' green indicator is lit. Panel healthy 15:45 SenTRI Fire System Designed to EN54 Pt 2 & 4 Flashing Fault Fire Panel healthy 15:45... -
Page 10: Weekly Tests
Operating instructions Weekly tests Every week during normal working hours the fire detection and alarm system should be tested. It is important to inform the alarm receiving centre of the fire test. The weekly fire test can be carried out at a manual call point without breaking the call point glass. ¨... -
Page 11: How To Manually Raise An Alarm Of Fire
fire system How to manually raise an alarm of FIRE If you see a fire in the protected premises and want to raise a fire alarm to warn occupants in the building, you can do this manually by: ¨ Going to the nearest manual call point that is located away from the fire hazard. ¨... -
Page 12: Automatic Detection Of Fire
Operating instructions Automatic detection of FIRE A fire in your protected premises is automatically sensed at any one of the fire detection devices installed in the building, such as a sensor or a fire input from an interface. The control panel actions the alarm sounders in the system and at the same time gives the details of the fire event. - Page 13 fire system Make an entry in the log book Record the event of the event for future reference. The 1st Fire will always appear Use the [Previous] or [Next] Multiple fires at top of display. All buttons to scroll the fire subsequent fires appear events.
-
Page 14: Fault Conditions
Operating instructions Fault conditions A fault in the system, such as failure of mains power to the panel or removal of any monitoring device will cause a Fault condition to appear at the control panel. The control panel will provide details of the event, this event indication is repeated at all repeat indicators, zonal and mimic panels in the system. -
Page 15: Typical Fault Messages
fire system Typical fault messages The table below shows some of the more typical fault messages and indications that may appear at the panel if there are faults in the system. It also gives the meaning and possible rectification action for each fault. Flashing Message Indication... -
Page 16: Disablement Conditions
Operating instructions Disablement conditions A disablement condition is the manual or automatic disablement of a part of the fire detection system. An automatic disablement may be pre-configured for your premises to disable smoke sensors during the normal working hours in areas where smoke or dust may be present. A manual disablement may be necessary where building work is being undertaken that could result in a false alarm. -
Page 17: Typical Disablement Messages
fire system Typical Disablement Messages The following table shows some typical disablement messages and indications that may appear at the panel. Flashing Message Indication Meaning Action The zone specified has If manually disabled then Zone Disabled Disablement been manually or investigate and if at card n automatically disabled. -
Page 18: Menu Controls
Panel beeps Flashing on button press Fault Fire 15:45 Power Fault Verify Sounder System Fault SenTRI Fire System Designed to EN54 pt 2 & 4 CB253 Delay Test CB254 [Control] [ Set Up ] [ Info ] [ Test/Eng] Disablement... -
Page 19: To Carry Out A Display Test
fire system To carry out a display test How to change your PIN code " You can test the message display and the indicators on the control panel. The following terms: Password, PIN, Usercode and Access code mean the Press the MENU ON/OFF key and then the F4 key to select [Test/Eng]. -
Page 20: How To View The Historic Events
Operating instructions How to view the historic events Cards inside the control panel Up to 255 events are stored in the Historic log of the The control panel uses the following card reference panel. To view the Historic log. numbers. Press MENU ON/OFF. -
Page 21: How To Save Changes To Memory
fire system How to save changes to memory How to view active events If you make any changes to a Labels or Password An active event is an event that is still present and has then you must save these to the NVM (Non Volatile not cleared. -
Page 22: How To Set The System Clock
Operating instructions How to set the system clock How to use the external printer & These functions assume there is an external printer connected to the panel. An incorrect setting of the To Switch On the Printer system clock will affect any time Press the MENU ON/OFF key. -
Page 23: How To Enable/Disable A Zone
fire system How to enable/disable a zone How to enable/disable Sensing " A zone is a subdivision of your premises protected by the fire alarm system. There can be up to 128 zones It is only possible to disable a configured in a system. -
Page 24: How To Enable/Disable An Io Line
Operating instructions How to enable/disable an IO line How to enable/disable aux relay There can be up to four input/output lines on an The control panel / network node has two auxiliary interface unit, which can be disabled or enabled. You relays that provide voltage free contacts to control will need the IO line, device and loop numbers, these external equipment in the event of a fire or fault on the... -
Page 25: Viewing Labels
fire system Viewing labels How to view a I/O line label The identification label given to each system device An interface unit can have up to four input/output (IO) can be checked. Devices such as fire sensors, alarm lines. Each line can be given a label that appears on sounders, manual call points, interface units - the display during an event. -
Page 26: How To View A Zone Label
Operating instructions How to view a zone label How to view the local panel label A zone is a subdivision of a building used for fire When there is a network of control panels and nodes detection. To view a zone label you will need to know connected together in a system and each panel/node the zone number. -
Page 27: To View Or Print A Map
fire system To view or print a map Editing labels " A map provides information on devices that are connected to a loop on the system or panels/nodes in Any changes to labels must be a system. backed up to the Memory, see the section Press the MENU ON/OFF button. -
Page 28: How To Edit Input/Output Line Label
Operating instructions How to edit Input/output line label How to edit a zone label Each input / output (IO) line of an interface unit can be Each zone can be given a label and an entered label given a label and a previously entered label can be can be modified. -
Page 29: How To Edit A Local Panel Label
fire system How to edit a local panel label How to edit custom label A label is normally given to the control panel to identify A custom message or label is displayed beneath the its location in a network. A previously entered label Designed to EN54 Pt 2 &... -
Page 30: Maintenance
Cover Test Key Resetting the resettable element on a SenTRI Manual Call Point Slide the keyhole cover upwards to expose the keyhole. Insert the test key in the keyhole and turn it clockwise by one quarter of a turn. Then turn the test key anticlockwise by one quarter of a turn to reset the call point... -
Page 31: Replacing The Glass On An Older Manual Call Point
fire system Replacing the glass on an older Manual Call Point & Take appropriate precautions when clearing broken glass to prevent injury. " A weather resistant version of the manual call point may have two gaskets, there may be a Cover/glass gasket and a there will be a Spacer/cover gasket, which must be refitted in their respective positions. -
Page 32: Battery Replacement
Use the keypad to input a loop number 1 or 2 and then the F2 button to select [Enter]. 0832 Gent by Honeywell Hamilton Industrial Park, 140 Waterside Road, Leicester LE5 1TN, UK 0832-CPD-1286 2-LOOPS (SENTRI) SenTRI EN54-2: 1997, A1:2006 Control and Indicating equipment for fire detection and fire alarm systems in buildings.
