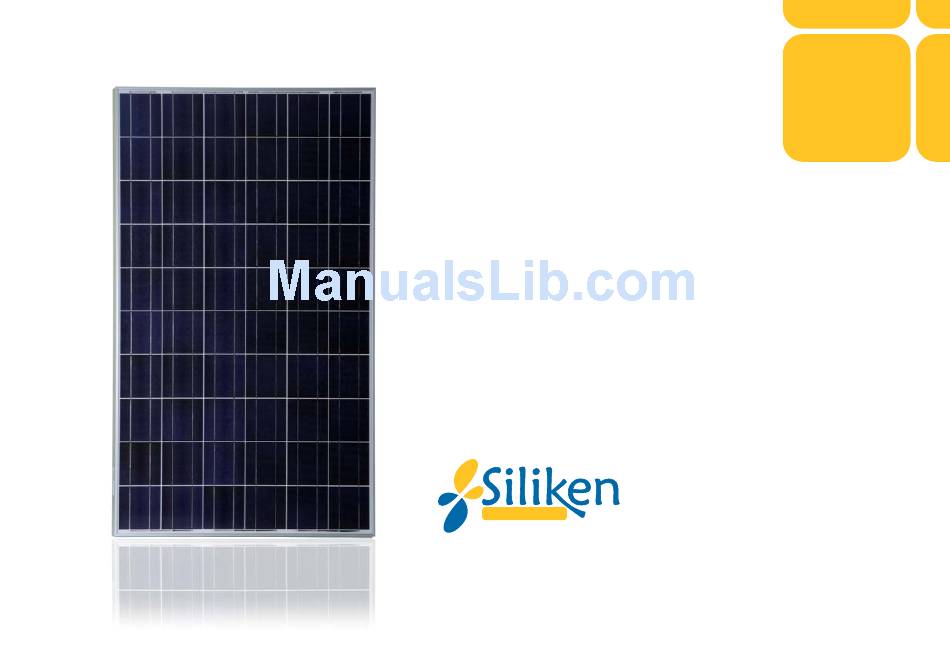

  • Page 1 Instructions for use Photovoltaic module c a l i f o r n i a...
  • Page 2 SILIKEN appreciates your support for our products. We recommend that you read this instruction manual carefully in its entirely before handling the photovoltaic module. © You will find a digital version of this catalog at www.siliken.com Forestry Stewardship Council Recycled...

  • Page 3: Table Of Contents

    Table of contents Important safety instructions ................ Product description ..................Recommendations for use ................Product certificates and guarantee ............... By-pass diodes ..................Operating voltage ..................Protection fuses ..................Warnings and electrical hazards ..............Current-voltage curves ................Mechanical assembly instructions ............... Module maintenance ..................

  • Page 4: Important Safety Instructions

    This instruction manual and the product labels contain a series of important safety messages. They should be read carefully before handling or connecting the photovoltaic module since the module produces electricity as soon as the cells are exposed to sunlight.

  • Page 5: Product Description

    Product description Your photovoltaic Standard module is comprised of the following elements: 1 FRAME In anodised aluminium; providing a system for anchoring the module to the support structure. 2 GLASS Ultra-transparent 3.2 mm thick tempered glass; providing rigidity to the unit and protecting the active surface of the cells.
  • Page 6 Product description Your photovoltaic Glass-Glass module is comprised of the following elements: 1 FRONT GLASS Ultra-transparent 4mm thick tempered glass; providing rigidity to the unit and protecting the active surface of the cells. 2 AND 4 EVA (Ethylene Vinyl Acetate); its function is to encapsulate the cell circuit.

  • Page 7: Recommendations For Use

    The metal support structure for the photovoltaic modules should be connected to ground in the manner indicated in the Low Voltage Directive 93/68/EEC and 2006/95/EEC and National Electrical Code.
  • Page 8 Do not dismantle, modify or adapt the PV module. Do not remove any part or the identification label from a PV module installed by Siliken Modules S.L.U. If you do so, the guarantee will be invalid. Do not apply paint or adhesives to the back side of the PV module.

  • Page 9: Product Certificates And Guarantee

    Siliken photovoltaic glass-glass modules are tested according to EN:14449. Siliken provides a 10 year guarantee for the materials of the photovoltaic module and against any possible defects of the photovoltaic module due to the manufacturing process.
  • Page 10 Product certificates and guarantee Siliken also guarantees output power from the photovoltaic module of at least 90% of the minimum output power measured under standard conditions (STC=92.94 W/ft , 77ºF 36ºF, 1.5 Air mass / STC=1000 ± W/m, 25ºC 2ºC, 1.5 Air mass) and specified in the Siliken product’s ±...

  • Page 11: By-Pass Diodes

    Siliken delivers its modules with by-pass diodes included inside the connections box. The photovoltaic cells have two operating modes: it operates as a current generator or as a current consumer. A cell exposed to solar radiation provides a current ranging between 6 and 8 amps with a potential difference of around 0.6 volts.
  • Page 12 By-pass diodes Normal operation Operation with the cell in the shade Instructions for using photovoltaic modules...
  • Page 13 From the moment that the failure in the diodes occurs and until they are replaced, the affected photovoltaic module(s) must remain disconnected from the other modules on the photovoltaic array, thus guaranteeing that the circuit remains open. In any event, the decision to change the diodes is the responsibility of Siliken.

  • Page 14: Operating Voltage

    Calculate the value based on the lowest temperature in the region where the modules will be installed. Maximum system voltage Max. no. of modules (-0.00215)) + (( T - 77 ) x no cell oc77°F Instructions for using photovoltaic modules...

  • Page 15: Protection Fuses

    Protection fuses Attention: Under normal conditions, a photovoltaic module is likely to experience conditions that produce more current and/or voltage than reported at standard test conditions. Accordingly, the values of ISC and VOC marked on this module should be multiplied by a factor of 1.25 when determining component voltage ratings,...
  • Page 16 Protection fuses The design level current for these fuses must be multiplied by a factor of 1.25 times the Isc of the photovoltaic module measured under standard test conditions (92.94 W/ft and 77 ºC) / (1,000 W/m and 25°C). The...

  • Page 17: Warnings And Electrical Hazards

    Warnings and electrical hazards The installation, handling and maintenance of the photovoltaic modules must be carried out by qualified personnel duly equipped with individual protections. For information purposes, these protections include: safety boots with insulation for above 1000V, gloves with 1000V insulation, as well as a helmet and appropriate clothes.
  • Page 18 Warnings and electrical hazards Do not allow objects to fall on the photovoltaic module, and do not sit on, lean on, or walk on the photovoltaic module, on either side (glass or rear sheet), given that it could cause the cells to break and therefore significantly lower the power and energy performance of the modules.
  • Page 19 Do not place the installation near to any possible source of inflammable gases or vapors, since the photovoltaic modules can cause sparks just like any other electrical component. Always ensure the installation is equipped with protection devices against electrical hazards.
  • Page 20 PV modules can increase this risk in case of fire. WARNING: Failure to comply with the provisions of this section will lead to the loss of guarantee and the exoneration of Siliken from any type of responsibility for damage to property or injury to people.

  • Page 21: Current-Voltage Curves

    It must be noted that the voltage and current behaviour of the cells depends on the solar radiation and temperature. Therefore, the actual operating conditions of a photovoltaic module will depend on the region where the module is installed and the ambient conditions in that region.
  • Page 22 In general, we observe a decrease of the photovoltaic module power as the operating temperature increases, at a ratio of -0.43%/ºC. For example, a module of 221 Wp will lose 0.95 Wp for every additional °C in the cells.

  • Page 23: Mechanical Assembly Instructions

    Whenever the PV installation serves as a roof, meaning that the photovoltaic module works like a roof tile, the installation must be designed according to the Building Codes in force in the particular country in question.
  • Page 24 Install the module so that the connection box cable holders are never oriented upwards in the direction of the inclination. cable glands Instructions for using photovoltaic modules...
  • Page 25 For integrated modules that serve as a roof tile, it must be assured that the rear part of the modules is ventilated. A photovoltaic module is not a structural element. Be sure that the module is not going to support any load that could cause the tempered glass to break.
  • Page 26 The modules with frames are supplied with 4 holes on the aluminum frame, at the distances and with the diameters that are specified in the data sheets of the products (available at www.siliken.com). These holes are used to secure the module to a structure which must have been...
  • Page 27 The recommended layout in the event that anchor clamps are used for the module with a frame is the layout shown in the following schematic of the SLK60P6L and SLK60M6L modules. Instructions for using photovoltaic modules...
  • Page 28 The indications stated below are only for standard modules without a frame: If the module is supplied without the aluminum frame, handle it as follows: In general, handle modules with extreme care before they get to the Instructions for using photovoltaic modules...
  • Page 29 8 mm and a maximum of 10 mm, and the torque applied should be between 15 and 20 Nm. Instructions for using photovoltaic modules...
  • Page 30 Listed below are the details of where the anchor clamps should be positioned for each model of the modules: SLK50P6L module: 3 x 80mm fixing clamps should be placed on each lengthwise edge of the module, as shown in the diagram below: Instructions for using photovoltaic modules...
  • Page 31 Mechanical assembly of the modules SLK48P6L module 3 x 80mm fixing clamps should be placed on each lengthwise edge of the module, as shown in the diagram below: The indications stated below are only for standard Glass-Glass PV modules: Instructions for using photovoltaic modules...
  • Page 32 Listed below are the details of where the anchor clamps should be positioned for each model of the modules: GG40P6L module 2 x 80mm fixing clamps should be placed on each longest edges of the module, as shown in the diagram below: Instructions for using photovoltaic modules...
  • Page 33 For any questions, please contact the Technical Department of SIliken WARNING: Failure to comply with the provisions of this section will lead to the loss of guarantee and the exoneration of Siliken from any type of responsibility for damage to property or injury to people.

  • Page 34: Module Maintenance

    Siliken photovoltaic modules require a minimum level of maintenance throughout their useful life, which includes the following operations: Cleaning of the photovoltaic modules. The energy production of the solar module can be affected if the glass is dirty. Periodically clean the modules to guarantee maximum production.
  • Page 35 Check the tightness and condition of the electrical connectors annually. Visually inspect the cables and compression glands. Visually inspect the front face of the photovoltaic modules to verify that there are no defects. WARNING: Failure to perform the checks and minimum maintenance...

  • Page 36: Module Frame Grounding

    Module frame grounding All exposed metal parts of PV module frames must be grounded during installation (per NEC 690.43), and to accomplish this Siliken Modules SLU recommends the following components: (1) M4 AISI304 stainless steel bolt with hexagonal nut. (2) DIN67982 stainless steel serrated washers.
  • Page 37 Do not use the ground of the structure or of the module’s frame to provide this type of protection against polarization. This could be hazardous. Instructions for using photovoltaic modules...
  • Page 38 Place the lug on the surface of the module, and add the self-threading screw creating a threaded hole and tighten. Put the lock washer then the nut on the screw on the inside of the frame and tighten to a minimum torque of 20 inch-pound. Instructions for using photovoltaic modules...
  • Page 39 Module frame grounding Grounding Lug Picture Grounding Lug Assembly Other option can be: Materials (to be supplied by the installer of the system). 1. Tyco Electronics Solklip (Trademark) Grounding Clip Assembly: 1954381-1 Instructions for using photovoltaic modules...
  • Page 40 Using a screwdriver, thread the screw into the hole until the head is flush with the base and the base is flush with the frame, then tighten the screw with another 1/4 to 1/2 turn. Recommended torque is between 2.3 and 2.8 Nm [20 and 25 in.–lbs]. Instructions for using photovoltaic modules...
  • Page 41 Do not use the ground of the structure or of the module’s frame to provide this type of protection against polarization. This could be hazardous. Instructions for using photovoltaic modules...

  • Page 42: Declaration Of Ce Conformity

    Declaration of CE Conformity under Directive 89/336/EEC (EMC Directive), Directive 2006/95/EEC and 93/68/EEC (Low Voltage Directive) We, Siliken, do hereby declare under our sole responsibility that the Solar Photovoltaic Module product of the Siliken brand models SLK60P6L, SLK36P6L, SKL60M6L, SLK36M6L,GG40P6L...
  • Page 43 Notes Instructions for using photovoltaic modules...
  • Page 44 Siliken California Corporation • 1225 Exposition Way, Suite D-160 San Diego, CA92154. USA Tel.: 619-671-0246 - Fax: 619-710-4903 siliken.usa@siliken.com www.silikenusa.com...
