PTZOptics 12X-SDI User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PTZOptics 12X-SDI User Manual
User Manual
V3.0.0
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 12X-SDI and is the answer not in the manual?

Questions and answers

Summary of Contents for PTZOptics 12X-SDI

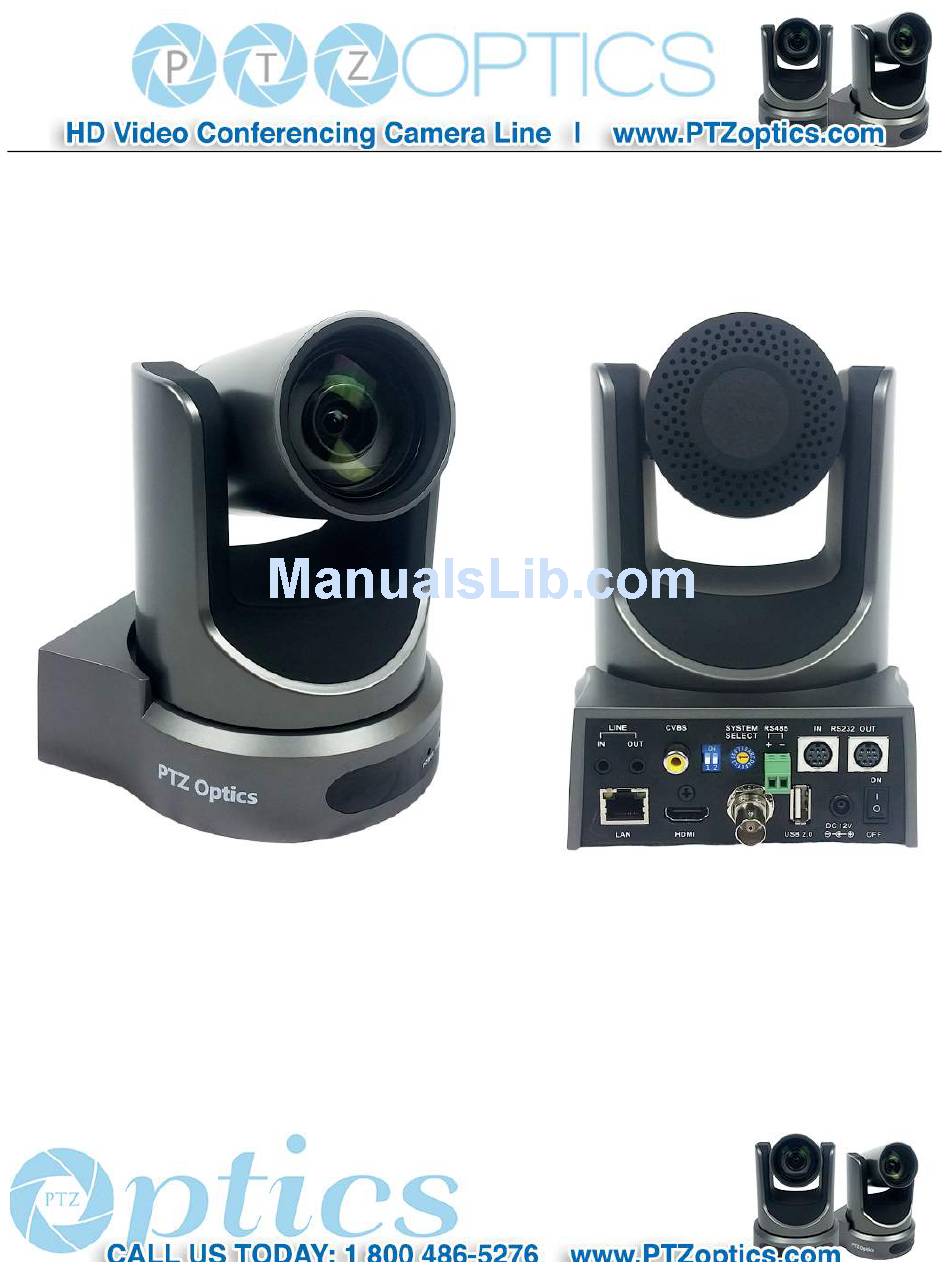

  • Page 1 PTZOptics 12X-SDI User Manual User Manual V3.0.0 (English)
  • Page 2 Preface Thank you for using this HD Video Conferencing IP-Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: n...

  • Page 3: Table Of Contents

    Contents 1、 Note ································································································ 3 2、 Supplied Accessories ············································································· 4 3、 Quick Start ························································································· 5 4、 Features ···························································································· 8 5、 Product Specification ············································································ 9 6、 Main Unit ························································································ 10 7、 IR Remote Controller Explanation ··························································· 11 8、 Use IR Remote Controller ····································································· 13 9、...

  • Page 4: Note

    Note l Electric Safety Installation and operation must accord with electric safety standard. l Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. l Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ...... 1PCS Power cord ........1PCS RS232 cable ......... 1PCS Remote controller ......1PCS User manual ....... 1PCS...

  • Page 6: Quick Start

    Quick Start Step1. Please check connections are correct before starting...
  • Page 7 Step2. Setting switches Set both of the switch1 and switch2 to "OFF'. That is "Normal Working Mode". SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080i60 1080i50 720p60 720p50 576i 1080p30...
  • Page 8 RESTORE DEFAULT Restore Change Value [Home] OK [Menu] Back...

  • Page 9: Features

    Features 1. Adopt Panasonic's 1/2.7 inch, 2.07 million pixels high quality HD CMOS sensor, which can achieve maximum 1920 x 1080 high resolution and quality image with highest output frame rate 30 FPS. 2. High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions,picture can still keep clean and clear.

  • Page 10: Product Specification

    Product Specification Video Format 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, NTSC, PAL Video Output Interface HDMI,HD-SDI,CVBS Tilt Speed Range 1.7° ~ 69.9°/s Vertical flip & Sensor Type CMOS,1/2.7 inch Support Mirror Effective Pixel: 2.07 million; Sensor Pixel Number of Preset Total Pixel: 2.74million ≤0.1°...

  • Page 11: Main Unit

    Main Unit 1. Audio LINE IN Interface 8. RS232 OUT jack 2. Audio LINE OUT Interface 9. RJ45 Interface 3. CVBS Interface 10. HDMI Interface 4. Dip switches 11. HD-SDI Interface 5. System select switch 12. USB2.0 6. RS485 jack 13.

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption standby mode approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 13 9. Menu Setting Menu button: Press this button to enter or exit the OSD menu 10. Zoom Buttons Zoom : Zoom In Zoom : Zoom Out 11. Set Camera IR Address Buttons [*]+[＃]+[F1]: Address1 [*]+[＃]+[F2]: Address2 [*]+[＃]+[F3]: Address3 [*]+[＃]+[F4]: Address4...

  • Page 14: Use Ir Remote Controller

    USE IR Remote Controller...
  • Page 15 When the camera is working, you can use remote 2. Zoom controller to perform panning, tilting, zooming and focusing, store and call back preset positions. Button Instruction： 1. In this instruction, ‘press the button’ means the press and relax the two actions. Such as ‘press [HOME] button’...
  • Page 16 3. Focus Control Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues 1. To store a preset position: The users should press and stops as soon as the button is released.
  • Page 17 7. Camera Selection Press the button corresponding to the camera you want to operate. 8. Camera IR Address Set [*]+[＃]+[F1]: Address1 [*]+[＃]+[F2]: Address2 [*]+[＃]+[F3]: Address3 [*]+[＃]+[F4]: Address4 9. Shortcut Set [*]+[＃]+[1]: OSD menu default English [*]+[＃]+[3]: OSD menu default Chinese [*]+[＃]+[4]: Default IP address...

  • Page 19: Rs-232 Interface

    RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND IR OUT 7.IR OUT 7.NC 8.NC...

  • Page 21: Serial Communication Control

    Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface. RS232   C ommunication   C ontrol   Ø The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s.
  • Page 22 VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Command Function Command Packet Comments z0 4y FF Return when the command is accepted. ACK/Comletion (y: Socket No.) Messages z0 5y FF Return when the command has been Completion (y: Socket No.) executed.
  • Page 23 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF CAM_Zoom Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF Direct...
  • Page 24 Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position Reset 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF Gain Setting CAM_Gain Down 8x 01 04 0C 03 FF Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Position Gain Limit 8x 01 04 2C 0p FF...
  • Page 25 mm: Register No. (=00-7F) CAM_RegisterValue 8x 01 04 24 mn 0p 0q FF pp: Register Value (=00-7F) p: Color Gain setting 0h (60%) to Eh CAM_ColorGain Diret 8x 01 04 49 00 00 00 0p FF (200%) SYS_Menu 8x 01 06 06 03 FF Turns off the menu screen 8x 01 06 01 VV WW 03 01 FF Down...
  • Page 26 p: Color Hue setting 0h (− 14 dgrees) to CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF Eh ( +14 degrees Part 3 Query Command Inquiry Command List Command Command packed Inquiry Packet Comments y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF...
  • Page 27 CAM_ApertureModeI 8x 09 04 05 FF y0 50 03 FF Manual Sharpness nq(Sharpness) CAM_ApertureInq(Sh 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain arpness) y0 50 02 FF CAM_PictureEffectM 8x 09 04 63 FF odeInq y0 50 04 FF B&W...
  • Page 28 ww: Pan Max Speed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF zzzz: Tilt Position y0 50 01 FF C Type CAM_TypeInq...
  • Page 29 pp: R_Gain qq: B_Gain r: WB Mode s: Aperture tt: AE Mode CAM_CameraBlockIn y0 50 0p 0p 0q 0q 0r 0s tt 0u vv 8x 09 7E 7E 01 FF u.bit2: Back Light ww 00 xx 0z FF u.bit1: Exposure Comp. vv: Shutter Position ww: Iris Position xx: Bright Position...
  • Page 30 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 31 Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...

  • Page 32: Menu Setting

    Menu Setting...
  • Page 33 1. MENU EXPOSURE Press [MENU] button to display the main menu on Mode Auto the normal screen, using arrow button to move the cursor ExpCompMode to the item to be set. Press the [HOME] button to enter the Backlight corresponding sub-menu. Gain Limit Anti-Flicker MENU...
  • Page 34 Iris: Aperture value. Optional items: F1.8, Sat.: Saturation. Optional items: 60% ~ 200%. F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F11.0, Hue: Chroma adjustment, Optional items:0 ~ 14 Close（Effective only in Manual, AAE mode） IR Filter: IR Filter, Optional items:1 ~ 3 Shutt.: Shutter value. Optional items: 1/30,1/60, AWB sens: The white balance sensitivity,...
  • Page 35 5. P/T/Z NOISE REDUCTION NR2D-Level 3 P/T/Z NR3D-Level 3 SpeedByZoom On D-HotPixel AF-Zone Center AF-Sense Select Item Change Value Select Item [Menu] Back Change Value [Menu] Back NR2D-Level: 2D noise reduction. Optional items: Off,Auto,1 ~ 5 SpeedByZoom: The depth of field scale switch, NR3D-Level: 3D noise reduction.
  • Page 36 Chinese address and VISICA Address Save: Save Options. Optional items: Yes, No Protocol: Control protocol type. Optional items: AUTO,VISCA, PELCO-D, PELCO-P V_Address: Protocol address, To be decided according to the agreement, AUTO, VISCA protocol Optional items: 1 ~ 7 P_D_Address: PELCO-D protocol Optional items: 0 ~ 254 P_P_Address: PELCO-P protocol Optional items: 0 ~ 31...

  • Page 38: Equipment Setup And Internet Connection

    Equipment Setup and internet connection 1. Operating Environment Operating System: Windows 2000/2003/XP/vista/7 Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect internet camera to your internet or to your PC directly via internet cable. 2) Turn on DC12V power.
  • Page 39 If IPC IP address and PC IP address not in the same internet segment, upgrade_En.exe can modify IP address, subnet mask and port number etc. accordingly. In UPGRADE v1.8, select the camera needed to be modified, shown as below: Click “config” then go to below:...
  • Page 40 Enter new IP in "IP" bar, subnet mask in "Mask" bar, Gateway,First DNS, MAC address,and click “Set”. Shown as above.(For example: if your PC IP is 192.168.1.88, then camera IP must be 192.168.1.xx, the first, second, third number must keep the same) NOTE IP camera default IP address"192.168.100.88", user "admin", password "admin".
  • Page 41 2.2 Input login name and password, click "confirm", then pop up below window,language select button on the left bottom: ！ NOTE If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to Then Install VLC (player software), http://4dx.pc6.com/xy/vlcplayer.zip,pop out the download window, click“Save”.

  • Page 42: Vlc Stream Media Player Monitoring

    Dynamic DNS visit camera 1.1 Camera accessed by dynamic DNS Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link：http://hostname :port number For example, setup host computer name: youdomain.f3322.org, camera port number: 554, Access link should be: http://youdomain.3322.org:554 ！...

  • Page 43: Ip Camera Parameter Setup

    1.2 Input URL address: rtsp://ip: port number/1 (Main stream); rtsp://ip: port number/2(sub stream)(When RTSP port number default value is 554,then can be omitted as rtsp://ip/1 or rtsp://ip/2) IP Camera parameter setup Homepage introduction 1.1 Menu All pages include 2 menu bars: Real time monitoring: displaying video image Parameter setup: with function buttons 1.2 Video viewing window...
  • Page 44 Status bar in viewing window shown as below 1） Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again. 2） Audio control buttons: can set slient mode. 3）Full screen switch button. 1.3 PTZ Setup 1) PTZ direction control box: Up, down, left, right, home oblique button as above 2) Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20.
  • Page 45 Video format Support 50HZ(PAL)and 60HZ(NTSC),and Dial priority three formats. Video Coding Support baseline and mainprofile format Resolution Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
  • Page 46 Constant bit rate: video coder will be coding according to preset speed Variable bit rate: video coder will adjust the speed based on preset speed to gain the best image quality. I key frame interval: Set interval between 2 I frame, the bigger interval is, the response will be lower from viewing window. Fluctuate level Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6 Image Setup,please click “Image”...
  • Page 47 Flip & Mirror Tick Flip to realize image upside down, tick mirror to realize image around the mirror. Default not tick. Button Adjusting the parameters, press "apply" button to save, press "cancel" button to cancel the adjustment of the parameters, press "default" button obtain the default value. Audio Setup,please click “Audio”...
  • Page 48 Work Mode Work Mode RTSP Reboot Click the "Reboot" button, system restart. User and password The user can modify the password (letters and Numbers only) Apply / Cancel Modify password and click the "apply" button to the login page, press "cancel" button to cancel password change.
  • Page 49 Default the IP address is 192.168.100.88, The MAC address can be modified. Port Settings   IP address identifies the network device, the device can run multiple web applications, each network program using network port to transmit data, so data transmission to be carried out between the port and port. Port setting is to set up WEB SERVER program using which port to transmit.

  • Page 50: Network Control

    Network Control 1. View from Web browser (better in IE) l To view from web browser, firstly need to check camera IP address. There are 2 methods to check: Method 1: press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
  • Page 51 Once IP changed, need to restart the camera. 2 methods to restart as below: Method 1: Turn off and turn on manually to restart camera Method 2: On web page, find “System” and click “Apply” (when under remote controlling environment, better use this method)
  • Page 52 PTZ ON IP NETWORK This model currently supports various PTZ control methods, including RS232, RS485, IR remote control, HTTP CGI, and TCP protocol. The following is the detailed description about HTTP CGI and TCP Protocol control methods. 1. TCP Protocol Method V51N implements TCP server inside, there is a port configurated by Web for receiving the connection from TCP client,the TCP port number is 5678.
  • Page 53 http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[pan speed]&[tilt speed] More descriptions: [Camera IP]: This camera IP address; [action] including：up, down, left, right, ptzstop; [pan speed] : 1(low speed) – 24(high speed); [tilt speed]: 1(low speed) – 20(high speed). 2.2 Zoom control URLformat as below: http://[Camera IP]/cgi-bin/ptzctrl. cgi?ptzcmd&[action]&[zoom speed] More descriptions: [Camera IP]: This camera IP address;...

  • Page 54: Maintains And Trouble Shooting

    Maintenance and Troubleshooting Camera Maintains l If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet. l Use soft cloth or tissue to clean the camera cover. l...
  • Page 55 l When modify IP address in an incorrect way cause the wrong IP address or forget web passwords, press the IR remote controller "[*]+[＃]+[Manual]" to restore the default value (Default IP: 192.168.100.88 Default username: admin Default password: admin) Sound l No sound 1.
