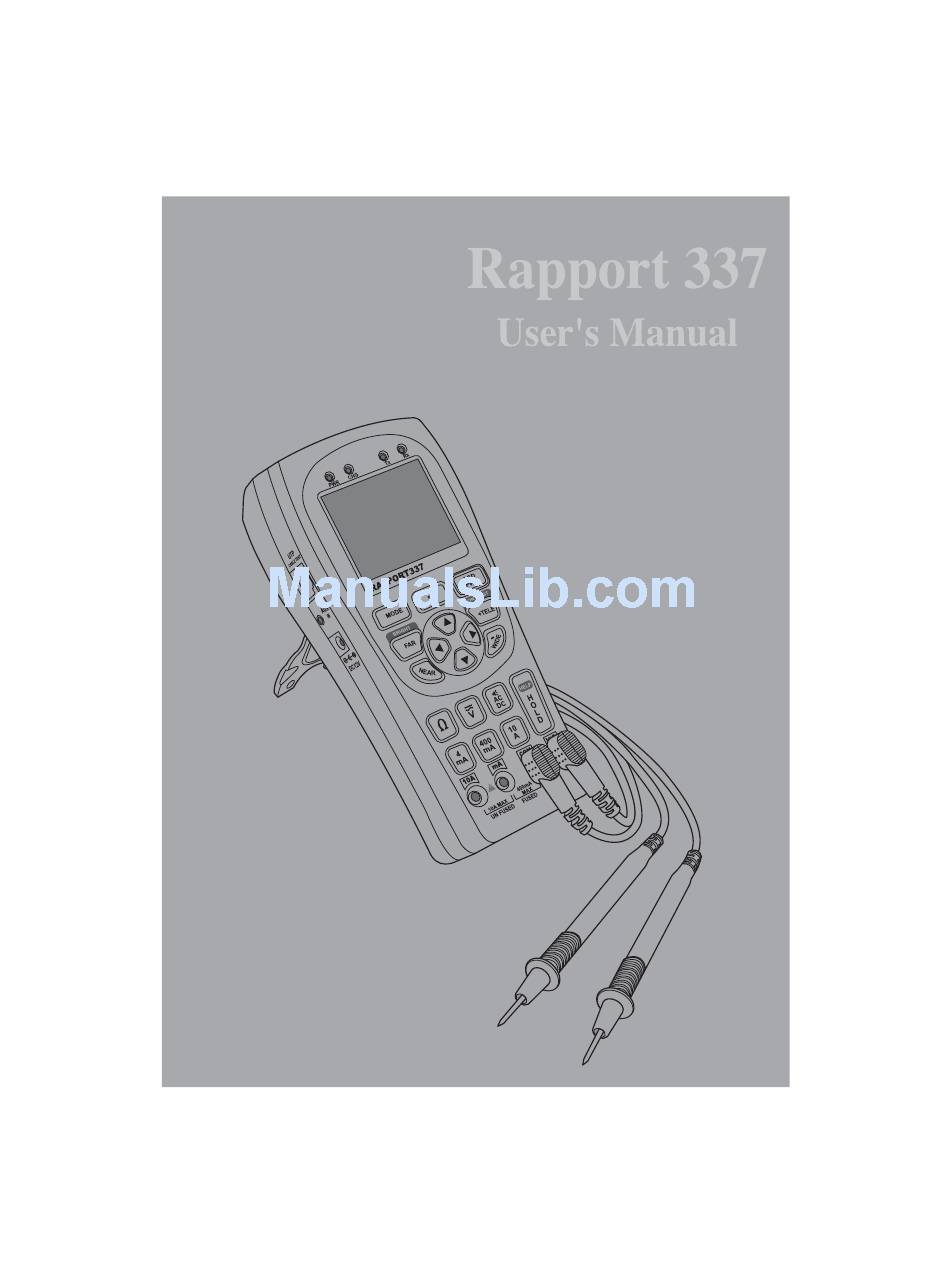

  • Page 1 www.rapport337.com...
  • Page 2 Distributed by: Manufacturer : Wonwoo Engineering Co., Ltd. www.rapport337.com Made in Korea...

  • Page 3: Table Of Contents

    T T ABLE OF CONTENTS Before Reading the User's Manual 1. Safety Information WARNING 2. Introduction of Rapport337 Names & Functions of Each Part 3. Specifications of Rapport337 General Specifications Meter Specifications 4. Functional Use Power ON/OFF OSD Setup Screen when Power is on Mode Setup VIDEO TESTER DIGITAL MULTI METER...
  • Page 4 MEMO...

  • Page 5: Before Reading The User's Manual

    Rapport 337. And when there is any question when in use or there is any damage, make sure to contact the dealer of your Rapport337.

  • Page 6: Safety Information

    1 1 . Saf ety Inf or mation W A R N I N G The following is important to use Rapport337 safely. First of all, read through "the precautions for your safety " before using the system. Make sure to check the input and output range of voltage or current at every input and output ports of Rapport337 before connecting each of them, so that the system cannot be overloaded when in use.
  • Page 7 1 . Saf ety Inf or mation When the meter function is being used, do not connect any device to the VIDEO IN/OUT terminals at that time, as the grounding could cause any damage or trouble to both of them. The following operational environment should be maintained constantly for the proper use of Rapport337.
  • Page 8 Turn off the power to the circuit to be measured and discharge all high voltage capacitance before starting resistance or continuity tests to avoid damage to the Rapport 337. Put the finger behind the protecting pad when using a probe.
  • Page 9 1 . Saf ety Inf or mation W A R N I N G Battery Charging & Its Precautions With the rechargeable 6 nickel hydrogen (Ni-MH) AA-size batteries placed in, Rapport337 can be charged with an adopter of above DC 12V, 1A, and it takes more than 8 hrs for the battery to be fully charged.
  • Page 10 - Cautions for Battery - The following batteries can be used for Rapport337 - (AA)-size alkaline battery (6EA) - (AA)-size chargeable nickel hydrogen (Ni-MH) battery (6EA) Use only chargeable nickel hydrogen (Ni-MH) batteries, when charging batteries,using an adapter to Rapport337. Place the CHARGE SWITCH "ON"...

  • Page 11: Introduction Of Rapport337

    2 . Intr oduction of Rappor t3 3 7 FEATURES As a handy and portable device designed for testing various appliances, for the image-output equipments to be installed, Rapport337 is an efficient tester with useful testing functions, to assist the installation of CCTV, UTP test, communications test, RS-485 communications inspection, etc.
  • Page 12 Standard Items Check the contents of your Rapport337 package with the standard checklist below placing them on a level place. Rapport337 Main Body User's Manual Test Lead Set(Red, Black) Adapter Rechargeable AA(Size) Nickel Hydrogen(Ni-MH) Battery (6EA) Necklace UTP test Terminal BNC Video Cable Car Power jack Optional Items...

  • Page 13: Names & Functions Of Each Part

    2 . Intr oduction of Rappor t3 3 7 Names & Functions of Each Part RAPPORT337 MODE BRIGHT CONTRAST +TELE 400mA 400V DC 10A MAX 400V AC 500V MAX UN FUSED FUSED www.rapport337.com...
  • Page 14 Part Name Function Power LCD Red LED is on when the system is switched on Charge Green LED is on when being charged Indicating LED Data Transmitting Red LED is on when data is transmitted Data Receiving Red LED is on when data is received TFT LCD Key Button Controlling External Devices of Rapport337...
  • Page 15 2 . Intr oduction of Rappor t3 3 7 Part Name Function Key Button METER PART Resistance It measures resistance Button It measures voltage Voltage Button Setup Change IT changes setup of AC/DC, Button resistance/continuity test Current It is used for measuring lower current below 4 mA Measuring Button 1 Current...
  • Page 16 Part Name Function Input BNC It inputs external image signal It outpus input image signal to Rapport337 Output BNC or internally generated Video Test Signals It is the port of input & output of communication Communication signal.(Rx+, Rx-,Tx+,Tx-) Port Base It braces Rapport337 It hangs on the neck for safety Safety hook Up...
  • Page 17 2 . Intr oduction of Rappor t3 3 7 Part Name Function UTP Jack Test jack for UTP cable Audio, AUX input port AUX Jack (function to be added when upgraded) DC Power Jack DC power input jack(for over DC12V,1A) ON/Off main power supply Power S/W www.rapport337.com...

  • Page 18: Specifications Of Rapport337

    3 3 . Specif ications of Rappor t3 3 7 General Specifications Input Voltage 10%, above 1A Battery Chargeable Ni-MH battery 6EA (AA size) Electric Characteristic Charging Time Above 8 hrs Built-in Charger Operation time More than 3 hrs TV Type NTSC/PAL Image Image level...

  • Page 19: Meter Specifications

    3 . Specif ications of Rappor t3 3 7 Meter Specifications Measuring Minimum Measured Value Accuracy Item Measuring 400mV 100uV (0.8% + 2dgts) DC Voltage 10mV (1.0% + 2dgts) 400V 100mV (1.2% + 3dgts) 10mV AC Voltage (40H ~ 500H ) 400V 100mV 0.2uA...
  • Page 20 Measuring Minimum Measured Value Accuracy Item Measuring 400uA 0.2uV (1.5% + 5dgts) (40Hz ~ 500Hz) 40Hz ~ 500Hz 40mA 20uV AC Current (1.8% + 5dgts) 400mV (40Hz ~ 500Hz) 400mA 200uV 40Hz ~ 500Hz (3.0% + 4dgts) 40Hz ~ 500Hz (1.0% + 4dgts) (1.0% + 2dgts) Resistance...

  • Page 21: Functional Use

    4 . Functional Use Power ON/OFF The Power slide switch is located on the side of Rapport337. Turn the Power slide switch on, and press to start the Rappor337. To turn off the system, press more than 3 sec. Then, POWER OFF is displayed on the main screen with a beep.

  • Page 22: Mode Setup

    Mode Setup LCD Screen is changed in order of VIDEO METER whenever key is pressed once. MODE SELECT window displays on LCD screen when key is pressed more than 3 sec. Press key after selecting the mode you want, using the shift setup key.

  • Page 23: Video Tester

    4 . Functional Use View Information mode : At this mode, the basic information of RAPPORT337 can be seen. (version, battery residual, communications protocol, & speed.) Main Setting mode : At this mode, the basic setup of RAPPORT337 can be changed. (user's name, auto power off time, beeper, brightness, contrast, etc.) HELP : HELP image relevant to the mode displays when the key...
  • Page 24 OSD Screen Setup VIDEO : Indicates that the system is in video test mode. NTSC : Indicates if input or output video signal system is NTSC or PAL. Input video signal is output on LCD screen by automatic checking without a special setup key, and output video signal system in Pattern Generator mode can be switched to NTSC or PAL, using key.
  • Page 25 4 . Functional Use Enter the PATTERN GENERATION MODE when key is pressed in VIDEO mode. Output video system is changed to NTSC or PAL, using key. Output pattern can be seen COLOR BAR, RED, BLUE, GREEN or its reverse order, using key.

  • Page 26: Digital Multi Meter

    DIGITAL MULTI METER Voltage, current, resistance, continuity can be tested. W A R N I N G To prevent an electric shock, injury or damage to RAPPORT337, off the power supply of the circuit, and discharge all the high-voltage capacity before testing resistance and continuity. When applying the meter function by using your RAPPORT337, make sure to turn on its power and set up the proper mode before...
  • Page 27 4 . Functional Use Description of METER MODE LCD WINDOW Part Function Description - Resistance test Kinds of test to - Continuity test set up - Set up tests of DC/AC voltage, current unit of resistance test is indicated - Indicator of AC or DC value of voltage or current Test value to - AC voltage &...
  • Page 28 Part Function Description DC Voltage test AC Voltage test Resistance test (Measuring unit : Voltage test VOLT (Measuring unit : V) Current test (Measuring unit : mA, A) Continuity test (Starting to beep at below 80 MEASURING RESISTANCE The unit of resistance is .
  • Page 29 4 . Functional Use TESTING CONTINUITY Continuity means the presence of a complete path for current to flow. And the continuity test features a beep that sounds when a circuit is complete. The beep allows users to quickly test continuity without having to watch the display.
  • Page 30 MEASURING AC & DC VOLTAGE Voltage means the difference in electrical potential between two points. The polarity of AC voltage varies over time, while the polarity of DC is constant over time. The meter displays ac voltage values as rms (root mean square readings.
  • Page 31 4 . Functional Use MEASURING AC & DC CURRENT Current is simply defined as a flow of electrons running through a conductor. To measure current, you must break the circuit under test, and then place the meter in series with the circuit. The current measuring range of the meter is 10A max.
  • Page 32 W A R N I N G Check for the location of the test lead set at current test mode. Place the red lead at mA only for below 400mA, and place it at 10A when the value to be tested is over 400mA, or the value is unknown. W A R N I N G Use it only for the current measuring after checking for the test mode.

  • Page 33: Ptz Controller

    4 . Functional Use PTZ CONTROLLER How to connect each terminal and LCD screen PTZ Operation Test : The basic operation of PTZ : Up, Down, Left, Right, and Zoom, and Manual focus controlling are possible, also. The test of various protocols and transmission speed are possible.
  • Page 34 When you want to know the input signal of an exterior controller, you can see the input data by connecting the communications cable to the RX terminal of the Rapport 337. How To Control PTZ PTZ functions (controlling Up, Down, Left, Right), etc. are possible to be...
  • Page 35 4 4 . Functional Use SPST : It memorizes PRESET. Setup can range from 1 up to 99. (short for SET PRESET). First, move the camera to the view to be designated , and press key, and using & keys, place the cursor at the location of SPST.
  • Page 36 The setup is available up to 255 max. PROTOCOL : Setup of PTZ PROTOCOL The initial setup made PELCO-D, and changing to PELCO-D, PELCO-P, and WONWOO are available, in accordance with the protocol mode of PTZ. It is done by pressing & keys. www.rapport337.com...
  • Page 37 4 . Functional Use * BAUDRATE : Setup of TRANSMISSION SPEED The initial setup is 2.4KBps, it can be made up to 2.4Kbps ~ 38.4Kbps. It is done by pressing & keys. To escape from PTZ CONTROL SETUP Mode, simply, press the again.

  • Page 38: Utp Cable Tester

    UTP CABLE TESTER Connect UTP cable to be tested to UTP port of RAPPORT337, while connect the other end to UTP tester. The connected condition of the cable can be checked, by pressing key, after the connection is completed. Direct cable and cross cable can be classified, and disconnection or short-circuit can be also examined.

  • Page 39: View Information

    4 . Functional Use VIEW INFORMATION Mode Setup : First, press key more than 3 sec. and select VIEW INFORMATION on MODE SELECT MENU, then press key. MAIN SETTING Mode Setup : First, press key more than 3 sec. and select MAIN SETTING on MODE SELECT MENU, then press key.
