Summary of Contents for Access 2GOability

  • Page 1 ACCESS User Manual...
  • Page 2 THIS MANUAL BEFORE USE General information You have just purchased a 2GOability wheelchair and we want to thank you for the confidence in our 2GOability products. The wheelchair is a quality product. The policy of 2GOability is to continually improve the quality and reliability of our products.
  • Page 3 Fill out the information on your authorized dealer below: Company: ………………………………………………………………… Address: ………………………………………………………………… ………………………………………………………………… Telephone number: ………………………………………………………………… Fax number: ………………………………………………………………… Email address: ………………………………………………………………… Website: …………………………………………………………………...

  • Page 4: Table Of Contents

    IDENTIFICATION ......................4 GENERAL EXPLANATION CONCERNING YOUR WHEELCHAIR .......... 5 2.1 Components of the wheelchair ..................5 2.2 General explanation of the function and possibilities of your wheelchair ......5 SAFETY REGULATIONS ....................6 3.1 General safety regulations ....................6 3.2 Warnings for safe use ......................6 INSTRUCTIONS FOR USE ....................

  • Page 5: Identification

    IDENTIFICATION Your wheelchair is equipped with a unique identification number. You can find this number on the cross frame of your wheelchair. Below is an example of the frame label on which you can find the identification number. Furthermore you will find the explanation of the various data stored on the frame label listed below.

  • Page 6: General Explanation Concerning Your Wheelchair

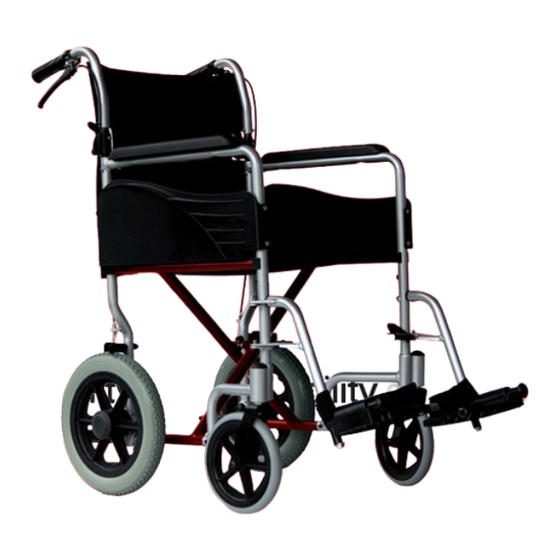

    GENERAL EXPLANATION CONCERNING YOUR WHEELCHAIR 2.1 Components of the wheelchair Backrest and coating Front fork Push handle Ball head Drum brake Foot plate Frame Foot rest Rear wheel Seat Front wheel (swing castor) Armrest Your wheelchair is equipped with a number of elements and parts. You should know these before continue reading this manual.

  • Page 7: Safety Regulations

    If used correctly, the 2GOability wheelchair is an utmost safe and stable product, if the instructions for use as described in this manual are followed. However, it is possible when the 2GOability wheelchair is not used correctly, dangerous situations may occur.

  • Page 8: Instructions For Use

    The maximum weight capacity has been indicated on your wheelchair frame  label; Unauthorized modification and or use of parts not supplied by 2GOability will  invalidate the warranty of this chair and may lead to injury to the user and or damage to the chair.

  • Page 9: Negotiating Pavements And Unequal Surfaces

    To get out of the wheelchair: First of all you must make sure that your wheelchair stands as closely as possible to the place of where you wish to transfer to. Put the castors forward and engage the brakes. Swing away the footplates and place your feet on the ground. You are now in position to carry out the operation.

  • Page 10: Going Up And Down Ramps

    Warning:  Do not drive into curbs! Going down the pavement: The attendant should move the wheelchair forward to the curb. Then the user should lean back so the attendant can tilt the wheelchair to find a balance point. When the wheelchair is balanced the attendant can move the wheelchair slowly off the curb.
  • Page 11 Going downstairs To go downstairs, the wheelchair should be facing forwards. The rear attendant should tip the wheelchair until it balances. The front attendant should support the wheelchair by holding the side frames. The wheelchair should then be slowly guided down each step.

  • Page 12: Instructions For Use And Mounting Options

    In this chapter we will explore all the possibilities that you have with your wheelchair. All setting and user instructions, such as the removal of the footrest, will be discussed. Your wheelchair is a 2GOability Access 5.1 Tools and technical information For the maintenance of your wheelchair you will, in some cases, need tools.

  • Page 13: Use Of The Footplate And Footrest

    Folding the wheelchair Fold away the footplates and remove the footrests, see chapter 5.3;  Make sure you stand next to the wheelchair;  Grab both grips on the side of the seating and pull them upwards, see picture 2. ...
  • Page 14 Removing the footrest from the wheelchair Go to the front of the wheelchair;  Pull the black steel control lever to the inside of the wheelchair, see picture 5. You  can now swing the footrest inwards or outwards; Swing the footrests 90˚ to the outside of your wheelchair and pull the complete ...

  • Page 15: Using The Drum Brakes

    5.4 Using the drum brakes The drum brakes can be found on the push handles of the wheelchair. Squeeze the lever towards the black push handle to brake, see picture 7.  You can also put a parking brake on. Squeeze the lever towards the black push handle;...

  • Page 16: Tire Table

    Picture 12 TRANSPORT AND TRANSIT IN CAR Your 2GOability wheelchair is designed to be easily transported by car. Your wheelchair is foldable so the total width is limited to an average measure of 20 cm. Further your wheelchair is equipped with swing away and detachable footrests and a foldable backrest.

  • Page 17: Assembly

    6.2 Assembly Unfold the wheelchair: Go stand next to the wheelchair, tilt the wheelchair a bit towards you and push the seat tube down. The wheelchair will un-fold. Go stand before the wheelchair and push again on the two seat tubes to ensure that they are directly on the frame.

  • Page 18: Rear Wheel

    7.4 Rear wheel A good adjustment of the rear wheels improves the stability of the wheelchair. Make sure that the wheels can move freely without touching anything;  Make sure there is no margin on the rear wheels.  7.5 Front castor and front castor fork The front fork must move and turn freely to ensure a smooth ride.

  • Page 19: Problem Analysis And Solutions

    PROBLEM ANALYSIS AND SOLUTIONS Your 2GOability wheelchair is inspected and adjusted so that you can use it immediately. Continual use necessitates maintenance, especially if the factory set adjustments have been altered. The following troubleshooting guide, lists several common problems that may occur and offers corrective actions for each.

  • Page 20: Warranty

    However you do need to provide to 2GOability a complete filled in warranty registration form, a copy of the bill with the date of purchase and with the original packaging.

  • Page 21: General Maintenance Instructions

    Every three months Check all bolts, screws and nuts and tighten if necessary; Check tyre tread for wear.  Tip The 2GOability Access complies with EN 12183, EN 1041 and ISO 7176-19. For more information, please visit our website, www.2GOability.com...
  • Page 22 2GOability.com: ‘Créateur de solutions de mobilité’ France: info@2goability.fr European distribution centre: UK/Ireland: info@2goability.co.uk Belgium: info@2goability.be 1, Route d’Anrosey, Germany: info@2goability.de Laferté sur Amance Spain: info@2goability.es 52500 Haute-Marne Poland: info@2goability.pl France Netherlands: info@2goability.nl...
