DO NOT DISCARD BOX!
(If for any reason you need to ship your machine back and you discard your box you will be
responsible for purchasing another one plus any freight charges to ship the box to you)

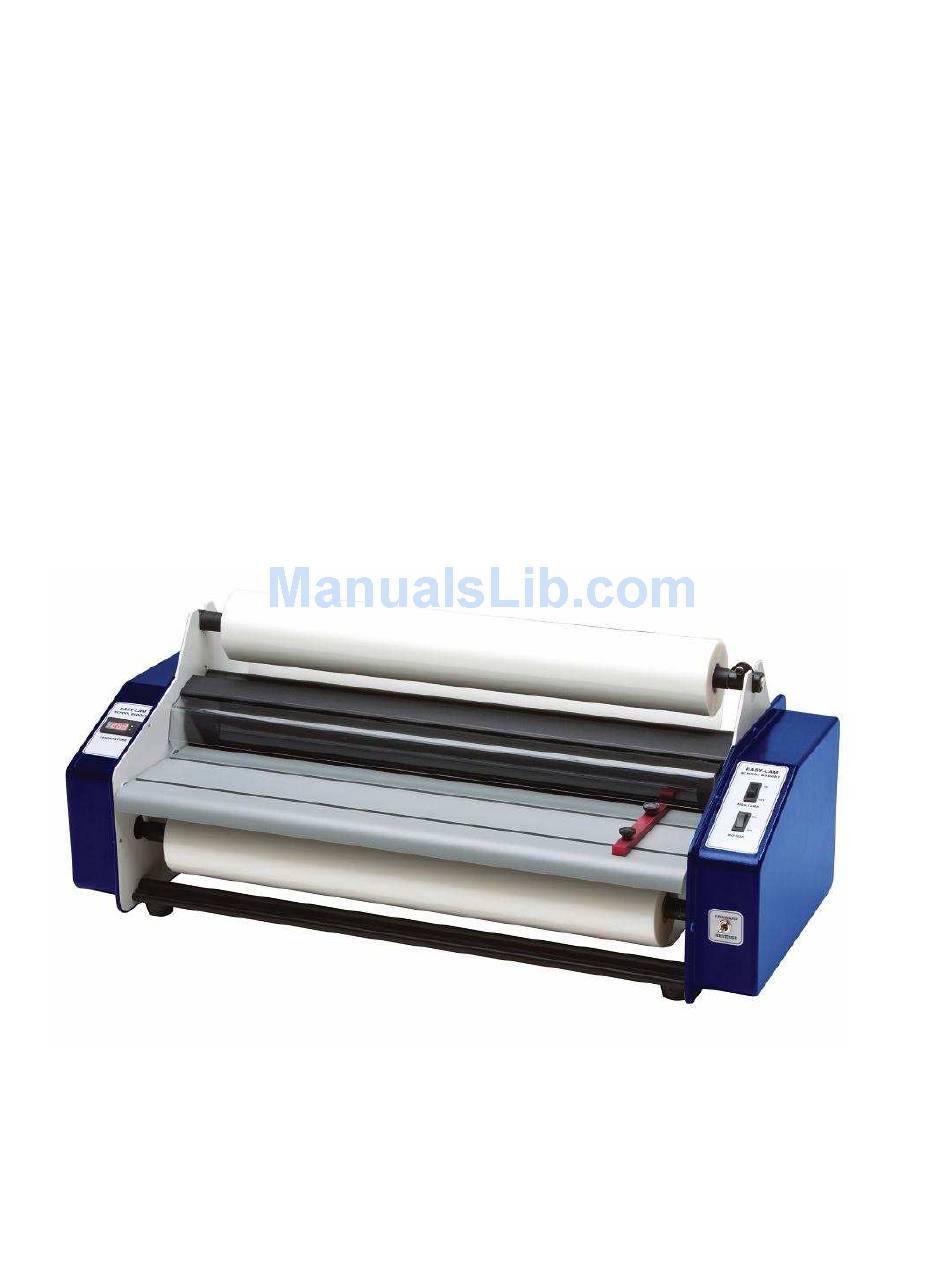

Easy-Lam
Budget PRO
Roll Laminator
READ BEFORE OPERATING MACHINE
FAILURE TO LOAD FILM CORRECTLY WILL VOID ALL WARRANTIES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for LSI Easy-Lam Budget PRO EZPRO27
- Page 1 DO NOT DISCARD BOX! (If for any reason you need to ship your machine back and you discard your box you will be responsible for purchasing another one plus any freight charges to ship the box to you) Easy-Lam Budget PRO Roll Laminator READ BEFORE OPERATING MACHINE FAILURE TO LOAD FILM CORRECTLY WILL VOID ALL WARRANTIES...
- Page 2 CAUTION READ BEFORE OPERATING DO NOT RUN THE MACHINE IN REVERSE WHEN THERE IS FILM ON THE FRONT ROLLERS, ESPECIALLY HOT FILM. THIS WILL CAUSE THE FILM TO DISPLACE THE TEMPERATURE SENSOR AWAY FROM THE ROLLER. THE HEAT CONTROLLER WILL RECEIVE AN INCORRECT LOWER READING OF THE TEMPERATURE AND THE ROLLERS WILL BE OVERHEATED AND POSSIBLY...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Messages and Electrical Safeguards……………..4-5 Introduction ............... 6 Laminator Features............6 Specifications..............6 Initial Set-up……………………………………………………7-8 Components…………………………………………………..7 Heat Control………………………………………………..8 Operation……………………………………………………….9-11 Loading Laminating Film…………………………………….9 Threading Laminating Film………………………………..9-10 Adjusting Mandrel/Film Tension………………………… 10-11 Roller Temperature ..…………………………………….11 Laminating…………………………………………………….11 Troubleshooting……………………………………………...12 Maintenance………………………………………….……….13-14 Cleaning Rollers............…..13 Removing Wrap Arounds…………………………………..14 Warranty &... -
Page 4: Important Safety Messages And Electrical Safeguards
IMPORTANT SAFETY MESSAGES AND ELECTRICAL SAFEGUARDS For your protection, do not connect the laminator to electrical power or attempt to operate it until you read these instructions completely. Keep these instructions in a convenient location for future reference. This instruction manual and labels affixed to the laminator are important safety messages. - Page 5 Do not overload electrical outlets beyond their capacity as this can result in fire or electrical shock. This unit is rated at 15 amps and should be the only item plugged into a 15 or 12 amp branch circuit. When connected to a 20 amp branch circuit any items in addition to the EZPRO27 must not exceed 4 amps.
-
Page 6: Introduction
INTRODUCTION Congratulations on your purchase of the LSI Easy-Lam Budget PRO (EZPRO27) Roll Laminator. This unit is designed to provide years of trouble-free service. The EZPRO27 will accept rolls of laminating film up to 27” wide in thicknesses up to 10 mil. The speed of lamination is determined by the thickness of the film. -
Page 7: Initial Setup
INITIAL SETUP Unpacking and assembly... Before unpacking the unit, inspect the shipping container for signs of damage. Notify the carrier Make sure to keep the box and and your dealer immediately if any damage is noted. packaging The laminator weighs approximately 60 lbs. Use two people when removing the laminator from the box Components... -
Page 8: Heat Control
Heat Control Your new Easy-Lam has a digital heat controller. Users can easily adjust the set temperature for the heated rollers to achieve the best quality lamination. The controller has been calibrated to accurately display the roller temperature in the laminating range. The laminator temperature should be adjusted according to the film thickness and the item being laminated. -
Page 9: Operation
OPERATION This section describes the operation of your EZPRO27. This laminator is designed for all widths of plastic up to 27”. However, if narrower widths are used the rollers must be cleaned before using a wider roll. Refer to the MAINTENANCE section for cleaning instructions. Loading Laminating Film onto Mandrels... -
Page 10: Adjusting Mandrel/Film Tension
Figure 4 4. Pull 6"-12" of film from the bottom roll. Pass it under the lower idler bar and drape the film from the bottom roll over the film from the top roll. Since the rollers are hot the bottom film will adhere to the top film. -
Page 11: Roller Temperature
2. Locate Allen Key and insert into Allen head screw on the right side of the mandrel. Turn the screw to adjust the tension (clockwise to increase, counter clockwise to decrease) until the film passes over the roller without wrinkles and the web between the laminating and pull rollers is tight. -
Page 12: Troubleshooting
TROUBLESHOOTING The following guide will assist you with most problems that may be encountered when laminating. PROBLEM: Laminator is inoperative. Motor does not turn, machine does not heat. ACTION: Unit may be unplugged. Connect power supply. Ensure that the circuit breaker has not tripped Fuse may have blown. -
Page 13: Maintenance
PROBLEM: Laminated material curls after leaving pull rollers. ACTION: Adjust tension. If laminated item curls upwards, reduce top mandrel tension. If item curls downward, reduce bottom mandrel tension. Clean rollers of residual adhesive as it may be causing “drag” on one side. Refer to MAINTENANCE section for cleaning instructions. -
Page 14: Removing Wrap Arounds
Removing Wrap-arounds... When laminating with thinner gauges of film, there is the possibility of the film wrapping around the Pull Rollers. Use the same procedure for Cleaning the Laminating Rollers in order to remove a wrap-around. You should remove any wrap-arounds that occur as soon as possible. If the film is allowed to cool while wrapped around the rollers it may be more difficult to remove and the heaters may have to be turned on to loosen the film. -
Page 15: Warranty & Return Policy
Warranty & Return Policy... Warranty: Your laminator is warranted to be free of defects in material and workmanship for a period of 1 year from the date of original purchase. In the event of a manufacturers defect in materials or workmanship or for assistance with the operation of a malfunction, please email service@lamspec.com.
