Summary of Contents for Genpar BMP-50

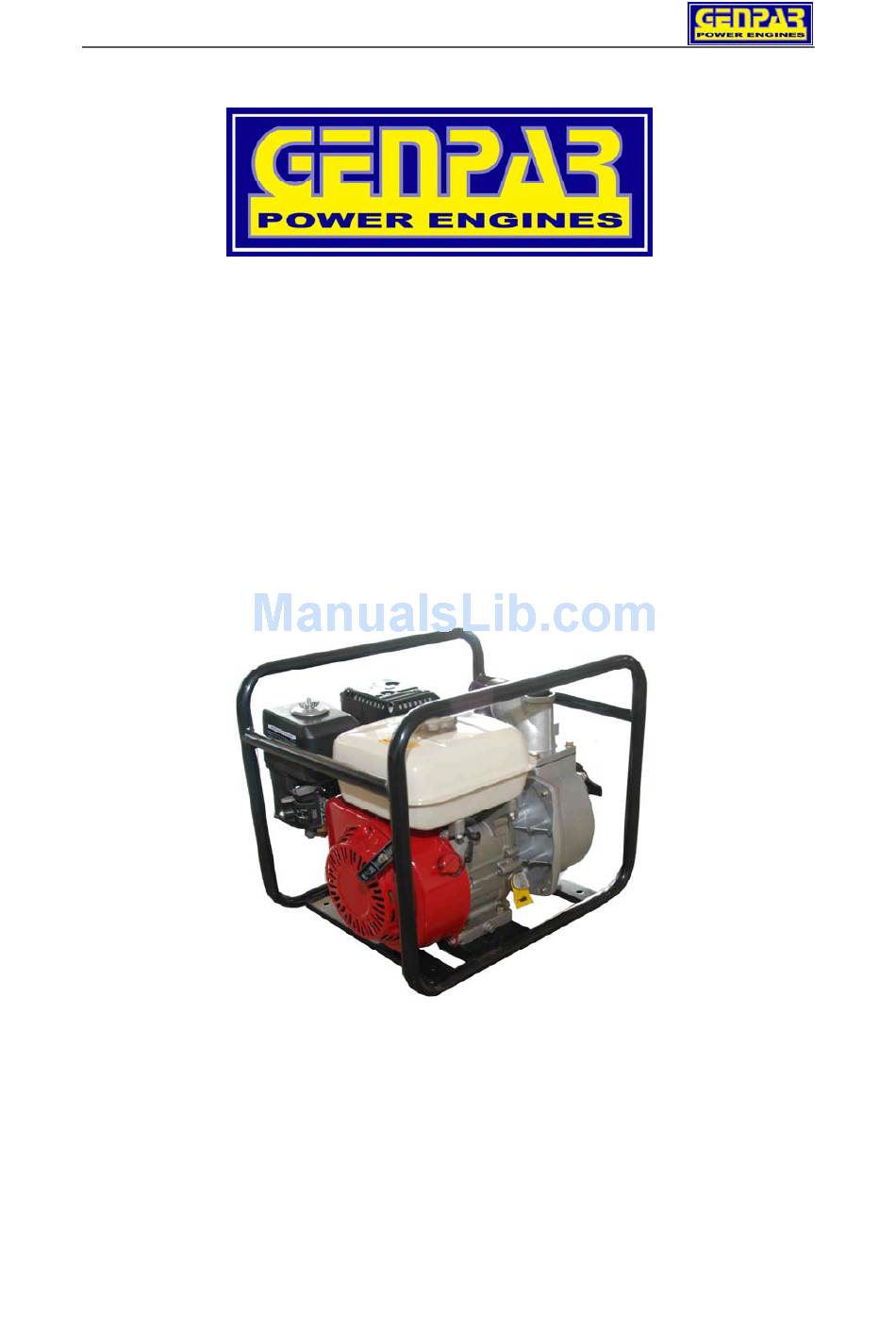

- Page 1 Owner’s Manual Water Pump BMP-50/80/100...
-
Page 2: Safety Alert Symbols
SAFETY ALERT & HAZARD SYMBOLS SAFETY ALERT & HAZARD SYMBOLS NOTE Before using this equipment, ensure that the operator has read and fully understands all instructions in this manual. SAFETY ALERT SYMBOLS The following safety alert symbols will inform you about potential hazards that could injure you or others. - Page 3 Engine components can generate extreme heat. To prevent burns, DO NOT touch these areas while the engine is running or immediately after operations. NEVER operate the engine with heat shields or heat guards removed. Rotating Parts NEVER operate equipment with covers, or guards removed. Keep fingers, hands, hair and clothing away from all moving parts to prevent injury.
- Page 4 For your own personal safety and those around you, YOU MUST READ and ensure you FULLY UNDERSTAND the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. In the event you are unsure about the safe and correct use of the water pump.
-
Page 5: Exhaust Fumes
Fuel is highly flammable. It may cause injury, death or property damage. SHUT DOWN the engine, extinguish all open flames and DO NOT smoke while filling the fuel tank. ALWAYS wipe up any spilled fuel. • Before refueling, switch off the engine and allow it to cool. •... -
Page 6: Specification & Technical Data
Low speeds extend engine life dramatically. We recommend for continuous pumping that the pump be operated at approximately 3000r.p.m. SPECIFICATION & TECHNICAL DATA Model BMP-50 BMP-80 BMP-100 Inlet and Outlet Diameter 2.0"... -
Page 7: Operation
4' water pump 1000 1200 1400 1600 Flow (L/min) OPERATION PUMP PLACEMENT For best pump performance, place the pump close the water level \and use hoses that no longer than necessary. That will enable the pump to produce the greatest output with the least self-priming time. As head (pumping height) increases, output decreases. - Page 8 DISCHARGE HOSE INSTALLATION Use a commercially available hose And hose connector, and clamp. It is best to use a short, large-diameter hose. That will reduce fluid friction and improve output. Tighten the hose clamp securely to Prevent the discharge hose from disconnecting under high pressure.
- Page 9 TYPE OF WATER Pumps are capable of pumping septic tank effluent, sink wastes, small amounts of dirt or sand, drainage or polluted water and some industrial wastes. They are not designed to pump large quantities of foreign matter. If fluid contains large or stringy material, then an adequate suction strainer should be used.
-
Page 10: Setting Engine Speed
6. Pull the starter grip lightly until resistance is felt, then pull it briskly 7. When engine running, moved the choke level to CLOSE position. SETTING ENGINE SPEED After starting the engine, move the throttle level to FAST position for self-priming, and check pump output. - Page 11 Ref. No. Description Ref. No. Description Base frame set Check valve Engine Suction flange Bolt Bolt Bracket D/F Packing Sealing washer Delivery flange Socket bolt Bolt O-ring O-ring Mechanical seal asm Plug Adjusting washer Name plate Impeller Packing Volute Hose coupling O-ring Hose joint...
