PS-3650A/PS-3651A
Installation Guide
Caution
Be sure to read the "Warning/Caution
Information" on the attached sheet before
using the product.

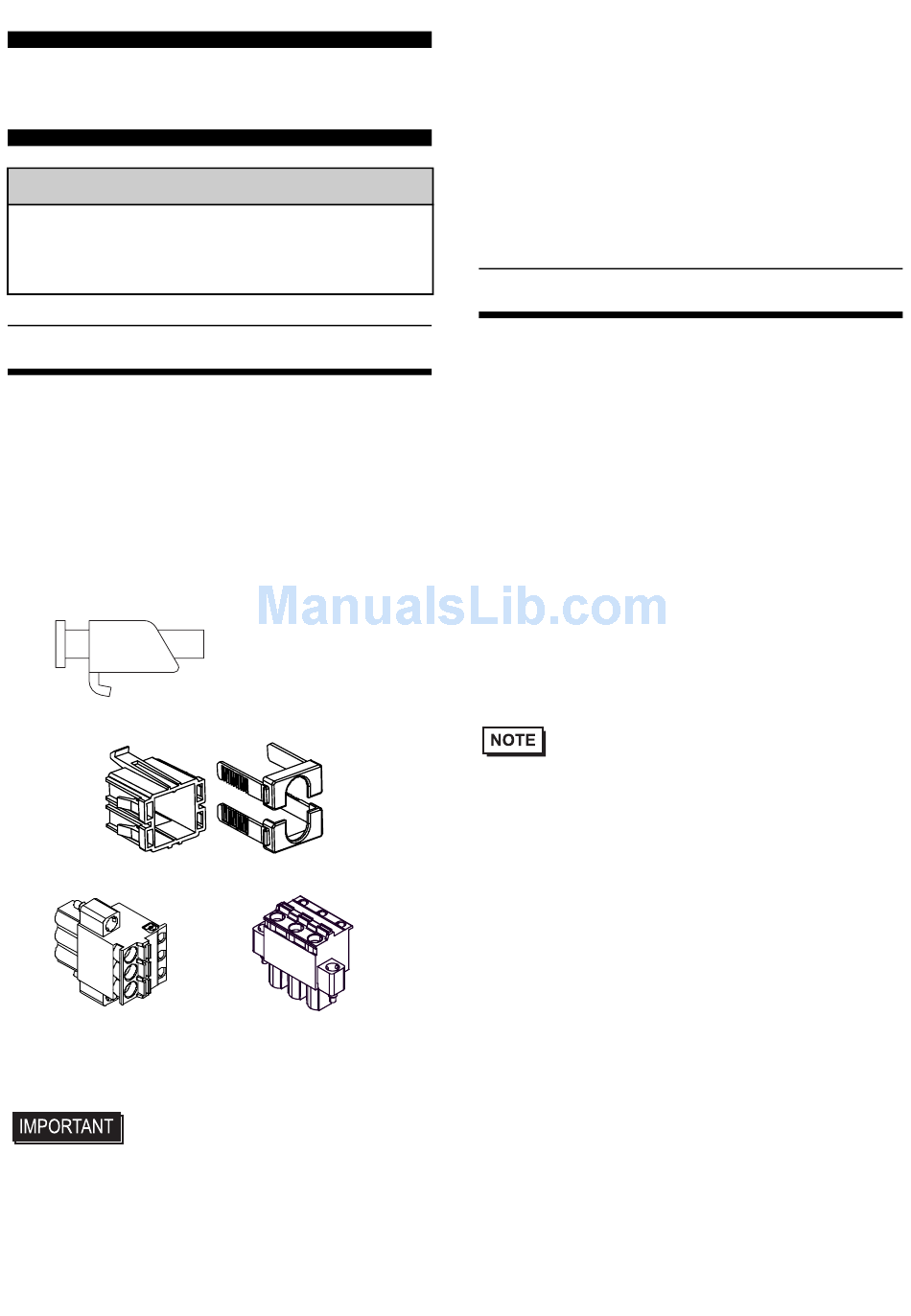

Package Contents
(1) PS-A Unit (1)
(2) English and Japanese Installation Guides
(one of each) <This Guide>
(3) Warning/Caution Information (1)
(4) Installation Gasket (1) (attached to the
PS-A unit)
(5) Installation Fasteners (Set of 4)
(6) USB Cable Clamp (2 ports) (2)
(7) Power Plug (1)
AC type
(5.08mm[0.2in.]
pitch)
• Be careful when installing the PS-A not
to damage the built-in HDD.
This unit has been carefully packed, with
special attention to quality. However, should
you find anything damaged or missing,
DC type
(7.62mm[0.3in.]
pitch)
please contact your local PS-A distributor
immediately.
When you order a PS-A unit built to your
specifications, the PS-A package should
include an Installation Guide for any optional
items included. Please use that guide to check
that all components are included in each
optional item's package.
About the Manual
For detailed information on PS-A series, refer
to the following manuals.
• PS-3650A/PS-3651A Series Hardware
Manual
• PS-3650A/PS-3651A Series
Reference Manual
• PS-3650A/PS-3651A Series
API Reference Manual
Manual can be downloaded from Pro-face
Home Page.
URL
http://www.pro-face.com/otasuke/
• The drivers and utilities for PS-A can be
downloaded from Pro-face Home Page.
This Installation guide is for the following
models:
• PS3650A-T42
• PS3650A-T42-24V
• PS3651A-T42
• PS3651A-T42-24V
• PS3650A-T42S
• PS3650A-T42S-24V
• PS3651A-T42S
• PS3651A-T42S-24V
Please refer to related manuals or installation
guides for PS-3650A/3651A Series that are
not listed above.
1
Advertisement
Table of Contents
Related Manuals for Digital Electronics PS3650A-T42
Summary of Contents for Digital Electronics PS3650A-T42
-
Page 1: Installation Guide
(6) USB Cable Clamp (2 ports) (2) • The drivers and utilities for PS-A can be downloaded from Pro-face Home Page. This Installation guide is for the following models: (7) Power Plug (1) • PS3650A-T42 • PS3650A-T42-24V • PS3651A-T42 • PS3651A-T42-24V AC type • PS3650A-T42S DC type (5.08mm[0.2in.]... -
Page 2: Part Names And Functions
Part Names and Functions Front Name Description A Display Display Area B Touch Panel User input is available by means of touching the panel. The lamp shows the status of the PS-A’s power and operation. The display colors and their details are as follows. PS-A Status Normal Operation Green (lit) - Page 3 PS-3650A Series PS-3651A Series Rear PS-3650A Series PS-3651A Series Side Name Description H Power Switch Supported by AC type only. For connection, install a power plug, which is one of accessories, I Power Connector to the power cable. J Mask Cover K Expansion Board Base PS-3650A Series only.
-
Page 4: General Specifications
S T U V TU V PS-3650A Series PS-3651A Series Bottom Name Description 10BASE-T/100BASE-TX/1000BASE-T Auto Changeover. This S Ethernet Interface (LAN2) interface uses an RJ-45 type modular jack connector. 10BASE-T/100BASE-TX Auto Changeover. This interface T Ethernet Interface (LAN1) uses an RJ-45 type modular jack connector. Speaker Output Interface Mini jack connector. -
Page 5: Environmental Specifications
Environmental Specifications PS-3650A Series PS-3651A Series 0 to 50 °C : without HDD 0 to 50 °C : without HDD Surrounding Air 5 to 50 °C : with HDD 5 to 45 °C : with HDD Temperature Storage Temperature -20 to +60°C 10 to 90% RH (Not condensing, wet bulb temperature: 39°C or less. -
Page 6: Dip Switches Configuration
(2) Unscrew the screws (2) as you see on the following figure, then remove the Fan Unit or the Memory Slot Cover. PS-3650A Series PS-3651A Series DIP Switches Configuration • Be sure to confirm what settings will be used by the other device and set the slide switches accordingly. - Page 7 Switch Description Notes Used for the system. Reserved Reserved Factory Settings: ON Used for the system. Reserved Reserved Factory Settings: OFF Power Change Reset SW mode. Reset SW Factory Settings: OFF button Sets up an enabled/disabled state for the port execution control Disabled Enabled Factory Settings: OFF...
- Page 8 Switch Description RS-232C RS-422 RS-485 Inserts termination Switches the TX resistance of 220Ω termination resistance No termination between TXA and ON/OFF. TXB. Inserts termination Switches the RX resistance of 220Ω termination resistance No termination between RXA and ON/OFF. RXB. Switches the shorting Shorts TXA and No shorting of TXA and RXA ON or...
-
Page 9: External Interfaces
Switch Description Notes Changeover of a Master/Slave Master Slave Factory Settings: ON setting for primary CF Card I/F. Used for the system. Reserved Reserved Factory Settings: OFF Change Reset SW mode. Enabled Disabled Factory Settings: OFF Used for the system. Reserved Reserved Factory Settings: OFF... -
Page 10: Ras Interface
RAS Interface RS-422 The PS-A unit side connector is a D-Sub 9 Signal Name Description pin socket type. Signal Ground (SG) Interfit Bracket #4-40(UNC) No Connection Send Data B (-) No Connection • RAS is an interface for RAS port type only. -
Page 11: Installations
PS-A Installation Installations (1) Create a Panel Cut following the dimen- sions in the table below. Also, determine Installation Requirements the panel thickness according to the panel thickness range with due consideration of • For easier maintenance, operation, and panel strength. improved ventilation, be sure to install the Unit: mm [in.] PS-A at least 50mm [1.97 in.] away from... -
Page 12: Power Cord Specifications
(3) Insert each fastener’s hook into the slot • Supplying a power voltage other than and tighten it with a screwdriver. Insert that specified can damage the PS-A the installation fasteners securely into and the power supply. the insertion slot recess. There are eight •... -
Page 13: Power Supply Cautions
• To prevent the possibility of a terminal Recommended CRIMPFOX ZA3 short, use a pin terminal that has an Pin Terminal (1201882) insulating sleeve. Crimp Tool Power Supply Cautions • Input and Output signal lines must be • Accompanying AC type power supply separated from the power control cables plug is CA7-ACCNL-01 from Pro-face or for operational circuits. -
Page 14: Grounding Cautions
Grounding Cautions Input/Output Signal Line Cautions • Be sure to create an exclusive ground for • All PS-A Input and Output signal lines the Power Cord’s FG terminal. Use a must be separated from all operating grounding resistance of 100Ω, a wire of circuit (power) cables. -
Page 15: To Prevent The Usb Cable From Coming Off
(4) Insert the USB cover into the tab of the To prevent the USB cable USB holder to fix the USB cable. from coming off When using a USB device, attaching the USB holder to the USB Interface located on the side of the PS-A unit prevents the USB cable USB Cover Interface from becoming disconnected. -
Page 16: Installation Prerequisites For Standards
PS-A is installed. http://www.pro-face.com/ • For use on a flat surface of a Type 4X (Indoor © Copyright 2009 Digital Electronics Corporation. All Use Only) and/or Type 12 Enclosure. rights reserved. • Type 4X (Indoor Use Only) and/or 12 PFX104904F .PS365XA-MT03E-BTH...
