Summary of Contents for Ecotec STC

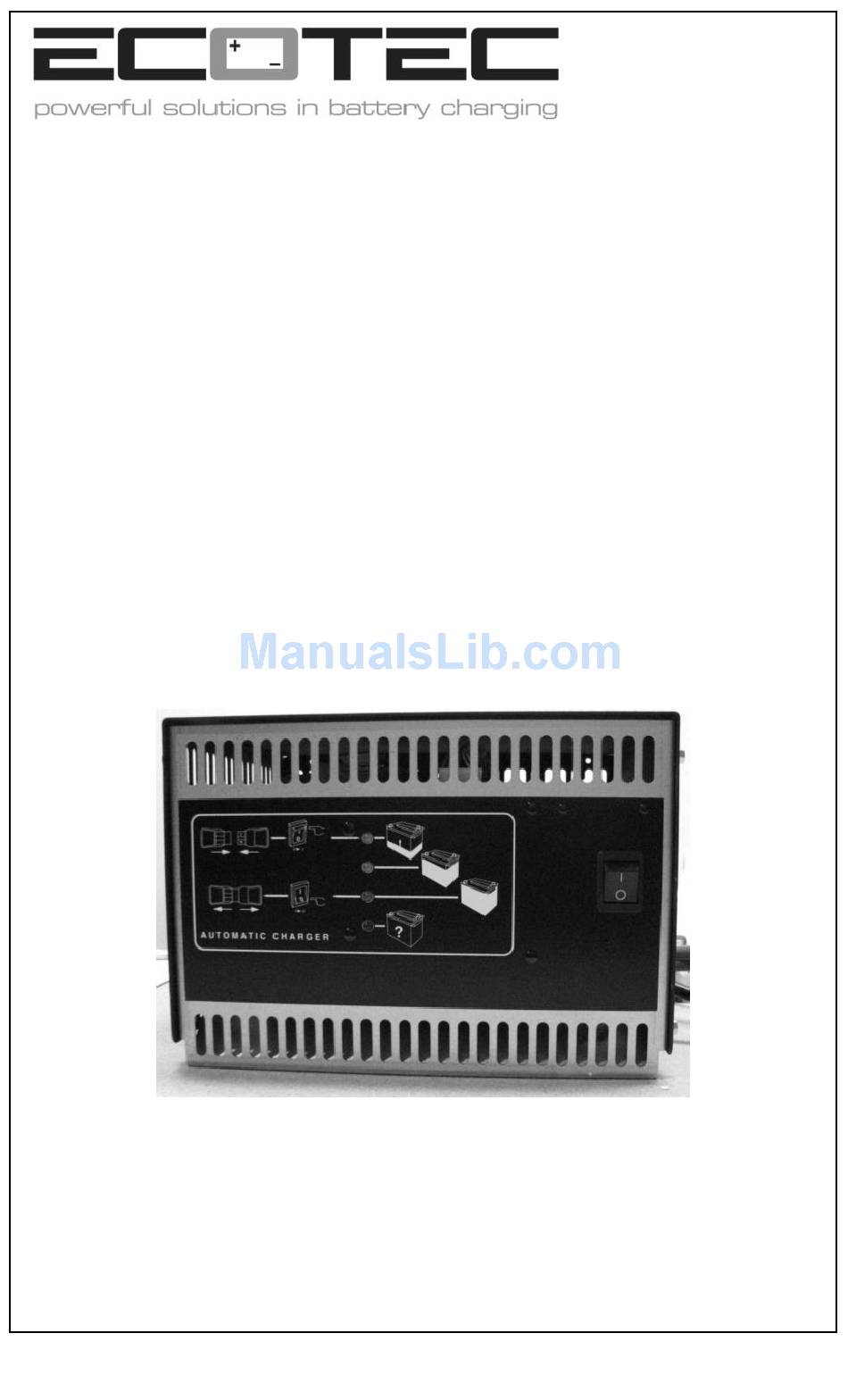

- Page 1 Operating Instructions for STC Battery Charger...
-
Page 2: General Safety
General Safety The charger may only be used for the specified battery types This battery charger is supplied with pre-set charging curves that are adapted for the battery types listed in figure 1. Always contact the battery manufacturer to verify that the charging curve is appropriate. - Page 3 Installation Initial Installation The AC input source to which the charger is to be connected must be capable of supplying the current specified on the charger nameplate. CAUTION: TO REDUCE THE RISK OF FIRE, USE THIS CHARGER ONLY ON CIRCUITS WITH BRANCH CIRCUIT PROTECTION (CIRCUIT BREAKER OR FUSE) OF A MAXIMUM OF 20 AMPERES IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE, ANSI/NFPA 70 AND ALL LOCAL CODES AND ORDINANCES.
- Page 4 STANDING WATER. STORE IN A CLEAN AND DRY LOCATION. Battery Charger Application The STC charger is intended for use in single shift and other light duty applications. Depending on battery capacity, charging can last from 10-16 hrs. Battery capacity ranges for each model are listed below:...
- Page 5 OPERATION Charging WARNING: IN CASE OF DANGER, DISCONNECT THE CHARGER FROM THE AC INPUT VOLTAGE Connecting a battery Check that the battery charger is turned off and the front panel switch is in the OFF position. All indicator lights should be off. Check the charger output cables and connector to ensure there is no visible damage.
-
Page 6: Troubleshooting
Disconnecting a battery CAUTION: THE BATTERY CHARGER SHOULD BE TURNED OFF WHEN DISCONNECTING THE BATTERY. IF THE BATTERY IS DISCONNECTED DURING AN ONGOING CHARGE CYCLE, THE CONTACTS IN THE CHARGING CONNNECTOR WILL BE DAMAGED AND SPARK FORMATION CAN OCCUR CAUSING A HYDROGEN EXPLOSION. - Page 7 REPAIR LIMITATIONS ECOTEC has the right to site inspection and judgment of the claimed defects in any product covered by this warranty. ECOTEC's liability is limited to the repair of any defects found to exist by ECOTEC or, at ECOTEC's option, the replacement of the defective product.
- Page 8 ECOTEC neither assumes or authorizes any persons to assume for ECOTEC any other liability in connection with the sale or use of the goods sold and there are no oral agreements or warranties collateral to or affecting this written warranty.
