User´s Guide
DA-80200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-80200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DA-80200

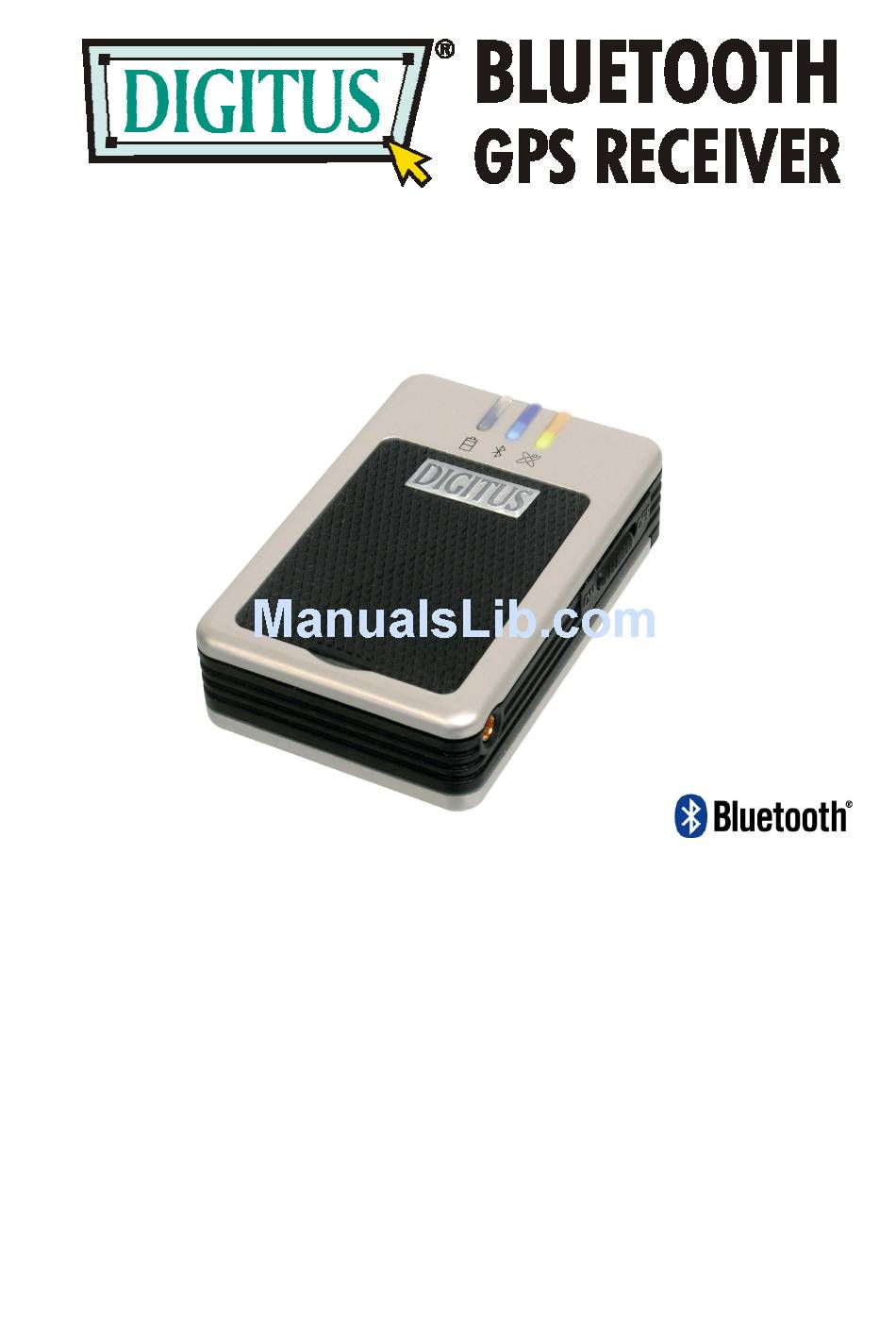

  • Page 1 User´s Guide DA-80200...
  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS ......................2 OVERVIEW ..........................3 PACKING LIST ........................4 MAIN FUNCTIONS ......................5 TECHNICAL SPECIFICATION ..................6 4.1.....................6 ASIC PECIFICATION 4.2. )..................6 CQUISITION AVERAGED 4.3.....................6 ECEIVER CCURACY 4.4......................6 IMITATION 4.5........................6 OWER UPPLY 4.6....................7 UTPUT AND NTERFACE 4.7.
  • Page 3: Overview

    1. Overview (Fig.1) The DA-80200 Wireless GPS Receiver (Fig. 1) is a total solution GPS receiver with Bluetooth, UART interface and built-in rechargeable battery for high sensitivity to tracking signal. DA-80200 design is based on SiRF Star III low power Architecture.
  • Page 4: Packing List

    2. Packing List Congratulations on your purchase of the DA-80200 Wireless GPS Receiver. We hope it will be useful to you for a long time. Before you begin, make sure that your package includes the following items. If any of these items are missing, please contact your local dealer or distributor.
  • Page 5: Main Functions

    3. Main functions DA-80200 provides a series of functions. It is well suited to system integration and users who use PDA, Notebook PC with Bluetooth device. Built in SiRF Star III Low power consumption chipset. 20 parallel satellite-tracking channels for fast acquisition and reacquisition.
  • Page 6: Technical Specification

    Working voltage: 75-85mA (Normal mode). 30mA (Power Saving). Working period (In Battery full power status): > 10 hours on Continue mode. > 16 hours on Power Saving mode. Protection circuit on DA-80200 should stop charging the cell when over-temperature condition --50 occurs.
  • Page 7: Output And Interface

    4.6. Output and Interface Output I. Output protocol Baud Rate: 38400 bps Data bit: 8 Parity: No Stop bit: 1 II. Format. NMEA0183 V2.2: GPGGA (1time/1 sec), GPGSA (1 time/5 sec.), GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), GPVTG (1 time/1 sec), (GLL, or SiRF binary format for optional).
  • Page 8: Getting Started

    Power too low -------- red LED Charging -------------- green LED Full or Not in charging -- LED of STEP 2. Turn on Power Bluetooth Status – Turn on DA-80200 power Searching Bluetooth device Blue LED blinking (1time / 1sec) Data is transferring? Transferring…...
  • Page 9: Hardware Description

    GPS Status --- Put DA-80200 in clear view of the sky without any obstruction for better satellite acquiring. Turn on power Turn off power DA-80200 DA-80200 ↓ ↓ Steady orange Orange Search GPS -- Power Off -- LED on LED off ↓...
  • Page 10 2). LED status : SYMBOL COLOR STATUS DESCRIPTION 1 times / 1 sec Search Bluetooth Device Blue Blinking 1 time / 1 sec Standby Mode Bluetooth 1 time / 3 sec Transferring Data Light on Power too low Green Light on In charging Battery Light off...
  • Page 11 Table 1 Pin Name Signal and description Signal ground, Battery charging ground. VOUT Unregulated voltage out: 3.6 V max 100mA. Transmit Data. From organizer to peripheral.(Voltage Level is 3.3V ~ 5.0V). Receive Data. Form peripheral to organizer.(Voltage level is 3.3V ~ 5.0V). Positive terminal of DC adaptor that powers the internal VCHARG charging circuit of Li-Ion battery.
  • Page 12: Software Installation

    Bluetooth Manager. For other PDA, the steps may be a little different. ( Bluetooth Manger is one of popular program used for Bluetooth device) 1. Open “Bluetooth Manager” on pocket → ↓ Connect 2. Search Bluetooth device DA-80200 Select Explore a Bluetooth device ↓ Next 3. Find the Bluetooth device Next →...
  • Page 13: Driver Installation

    System: Windows 98/Me/2000/XP Installation I. Copy entire DA-80200 USB folder from CD to hard disk. II. Connect USB connector to computer without DA-80200 GPS receiver. While the computer automatically starts the installation program, please direct the driver to the DA-80200 USB folder.
  • Page 14 At outdoor space but GPS signal function to try again, or connect an is blocked by building or car roof. external antenna to improve the poor GPS signal. DA-80200 Power On/Off Execute fail Bluetooth function unstable Re-Start PDA or PC and reference sec 5.2...
  • Page 15 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 16 Note: In the event of incorrect installation and improper use in a residential area, the device may cause disruptions in radio devices and other electronic devices. Proper use means that the device is operated with shielded connector cables as far as possible, for network products also with shielded cables of category 5e and higher.
