General Pump DCFSCP20 The Hammerhead Operator's Manual

AVAILABLE REPAIR KITS
Rotary Head Kit - Major:
P/N 2100279
Includes items 2, 3, 4, 5, 6, 7, 8, 9,
10, 11, 12, 13, 14, 15 and 16
Rotary Head Kit - Minor:
P/N 2100203
Includes items 9, 10, 12 and 16
Complete Rotary Head Kit:
P/N 2103065
Includes all items
DCG4000 FSC Gun Kit:
P/N 2100274
ITEM PART
NO. NO.
1 2500004 Housing, Swivel
2 2520030 Bearing Retainer, Small
3 2520028 Retainer, Bearing
4 2520031 Washer, Bearing Retainer
5 2520027 Spacer, Bearing
6 2640015 Bearing, 15 x 42
7 2701012 O-ring
8 2701011 O-ring
9 2701010 O-ring
10 2720007 Spring, Compression
11 2530008 Pin
12 2530007 Stem, Small
13 2200037 Snap Ring
14 2520029 Snap Ring
15 2200038 Stem, Swivel
16 2710000 Back-up Ring
DESCRIPTION QTY.
1
1
1
1
2
2
1
1
1
1
2
1
1
3
1
1

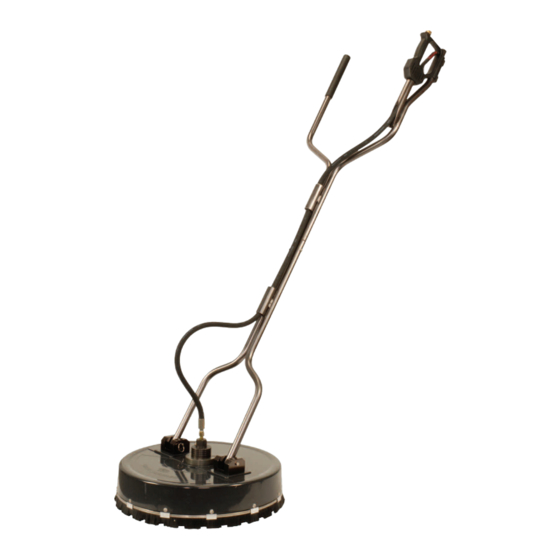

PROFESSIONAL FLAT SURFACE CLEANER
FROM GENERAL PUMP
• COMPENSATING GUN FEATURE
• FULL 20" CLEANING PATH
• HEAVY-DUTY ANODIZED
ALUMINUM COMPONENTS
• RUGGED ABS COVER
WARNING: Read Before Operating Machine
Always wear protective eyewear
Keep clear of rotating nozzles
Never lock trigger gun open with any device
Drain water in cold weather to avoid freezing
Tampering with any part of this machine will void all warranties
DCFSCP20
OPERATOR'S MANUAL
General Pump is a
member of
the Interpump Group
